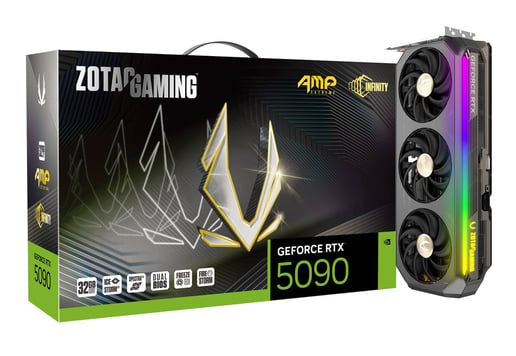

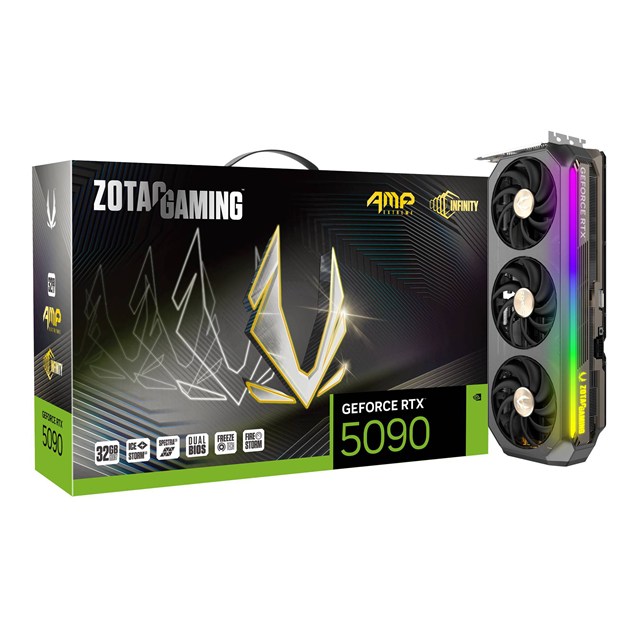

Zotac GeForce RTX 5090 AMP Extreme INFINITY OC 32GB GDDR7 Graphics Card

Zotac GeForce RTX 5090 AMP Extreme INFINITY OC 32GB GDDR7 Graphics Card

CCL Code: VGA7261

Coming soon

Notify Me

Zotac GeForce RTX 5090 AMP Extreme INFINITY OC 32GB GDDR7 Graphics Card

ZT-B50900B-10P

Key Features:

  • 32GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

This item has very limited stock [more info]

CCL Code: VGA7261

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

The ZOTAC GAMING GeForce RTX™ 5090 AMP Extreme INFINITY offers a completely revamped gaming experience with a whole new approach to Graphics Card design, featuring NVIDIA's cutting-edge Blackwell architecture and features such as DLSS 4. With an elegant design punctuated by a gorgeous infinity mirror in the front, a reinforced mid-frame, and a vapor chamber larger than its predecessor, the AMP Extreme INFINITY gives you infinite possibilities for gaming, or applications beyond.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • The ultimate ZOTAC GAMING GPU

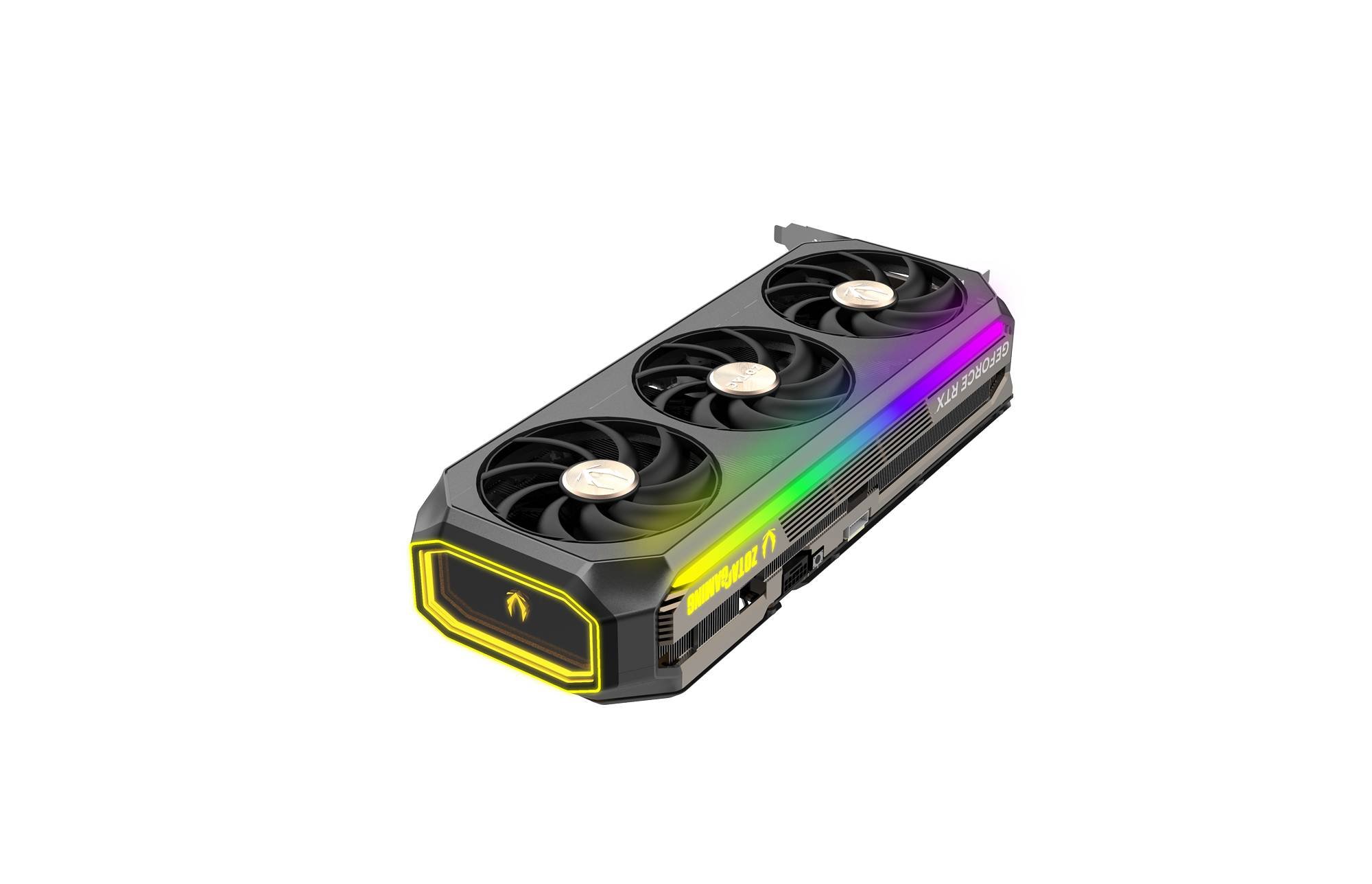

  • Infinity Mirror Design
  • IceStorm 3.0 Advanced Cooling
  • BladeLink Fans
  • 34% Larger Vapor Chamber
  • FREEZE Fan Stop, Active Fan Control 2.0, Dual BIOS
  • Tri-zone SPECTRA 2.0 RGB Lighting
  • SPECTRA LINK Lighting Sync port

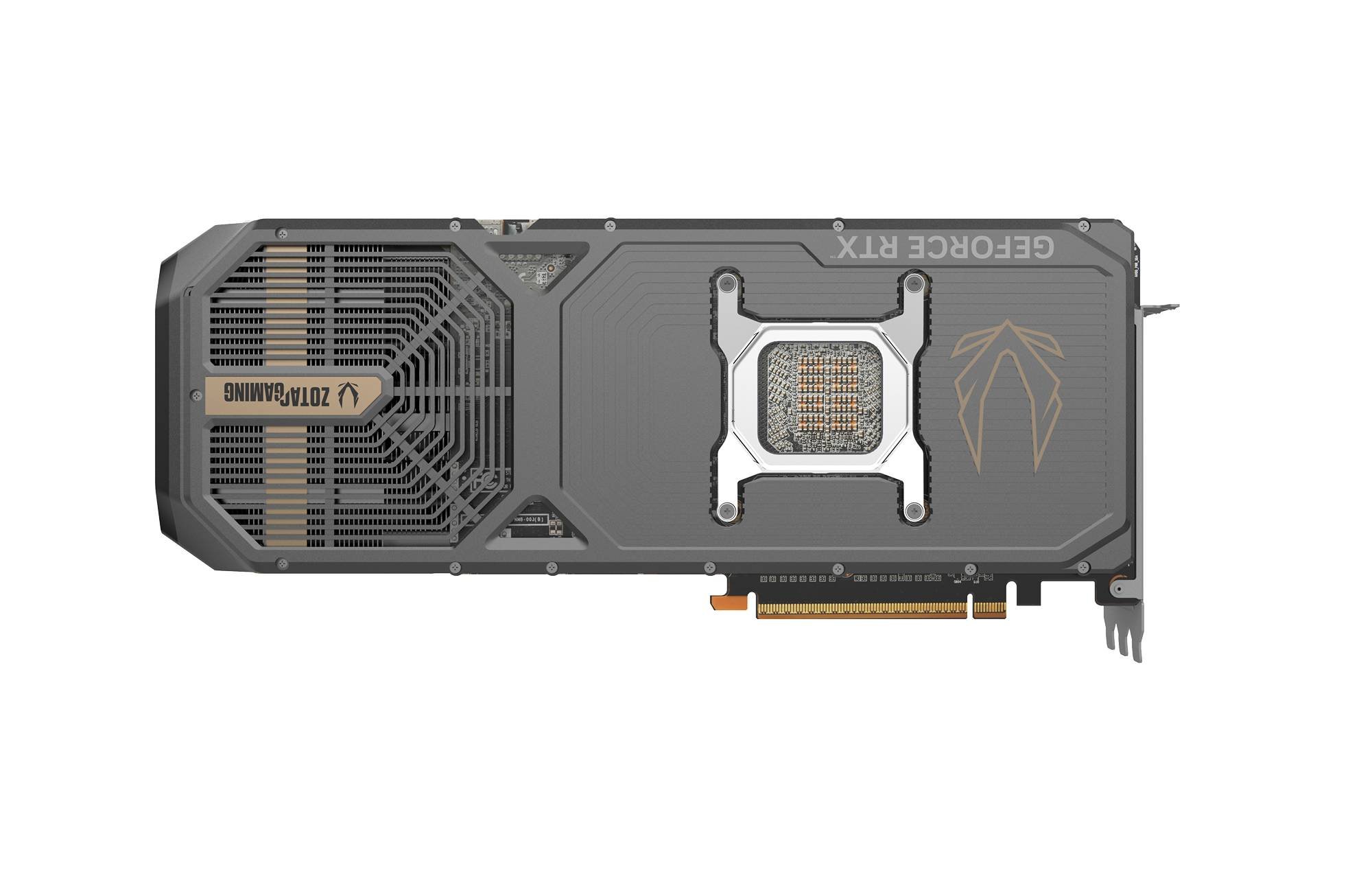

  • Metal die-cast Backplate
  • Bundled with GPU Support Bracket
  • All-new FireStorm Utility
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5090
Chipset Additional Information AMP Extreme INFINITY
Base Chip Clock 2017 MHz
Boost Chip Clock 2467 MHz
Number of Cores 21760
Graphics Core CUDA

Memory

Memory Size 32768 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 512 bit
Memory Bandwidth 1.79 TB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16

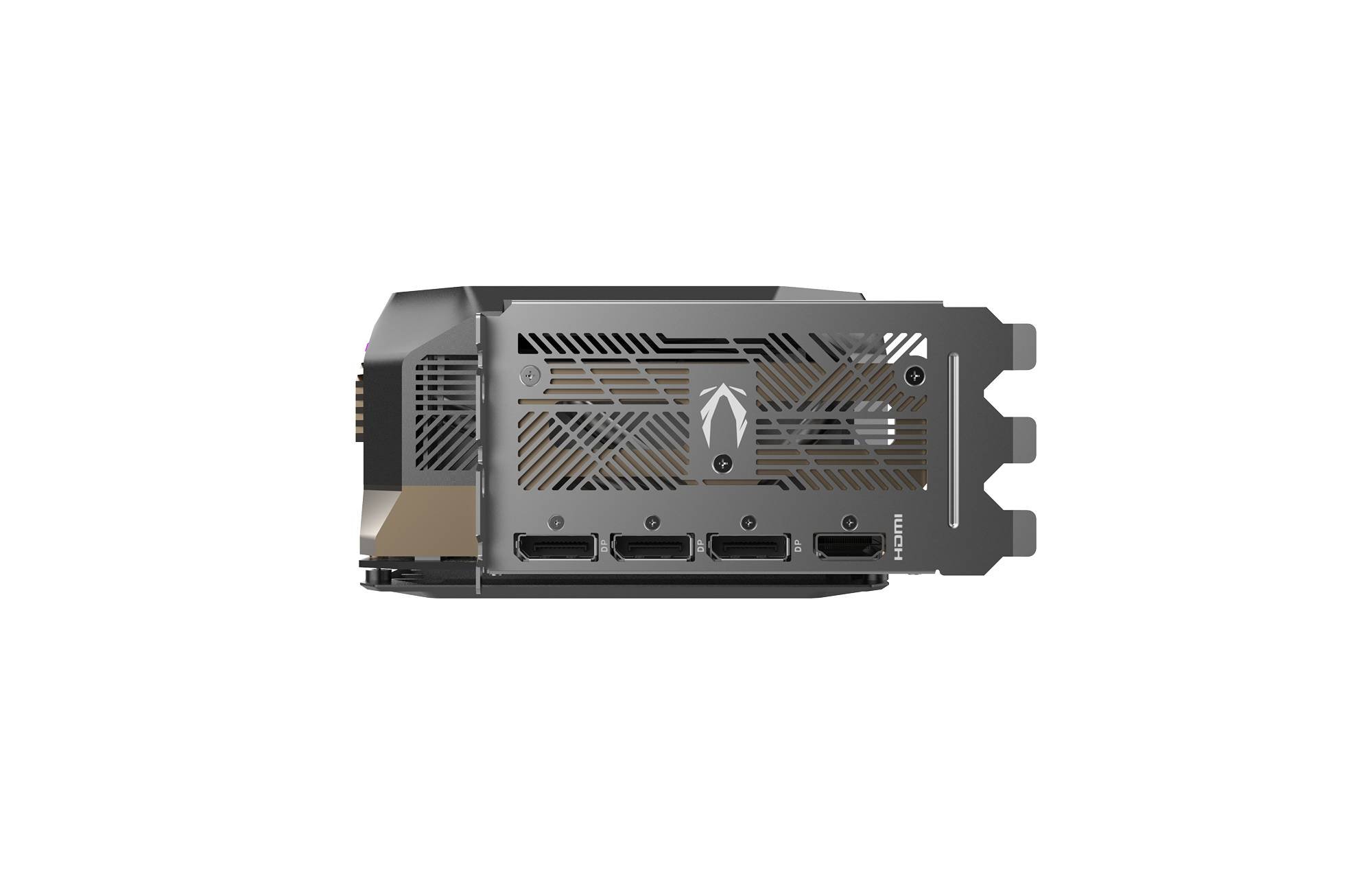

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 or 4 x 8-pin PCIe
Power Consumption 600 W
Recomended Power Supply 1000 W

Physical

Form Factor Graphics Card

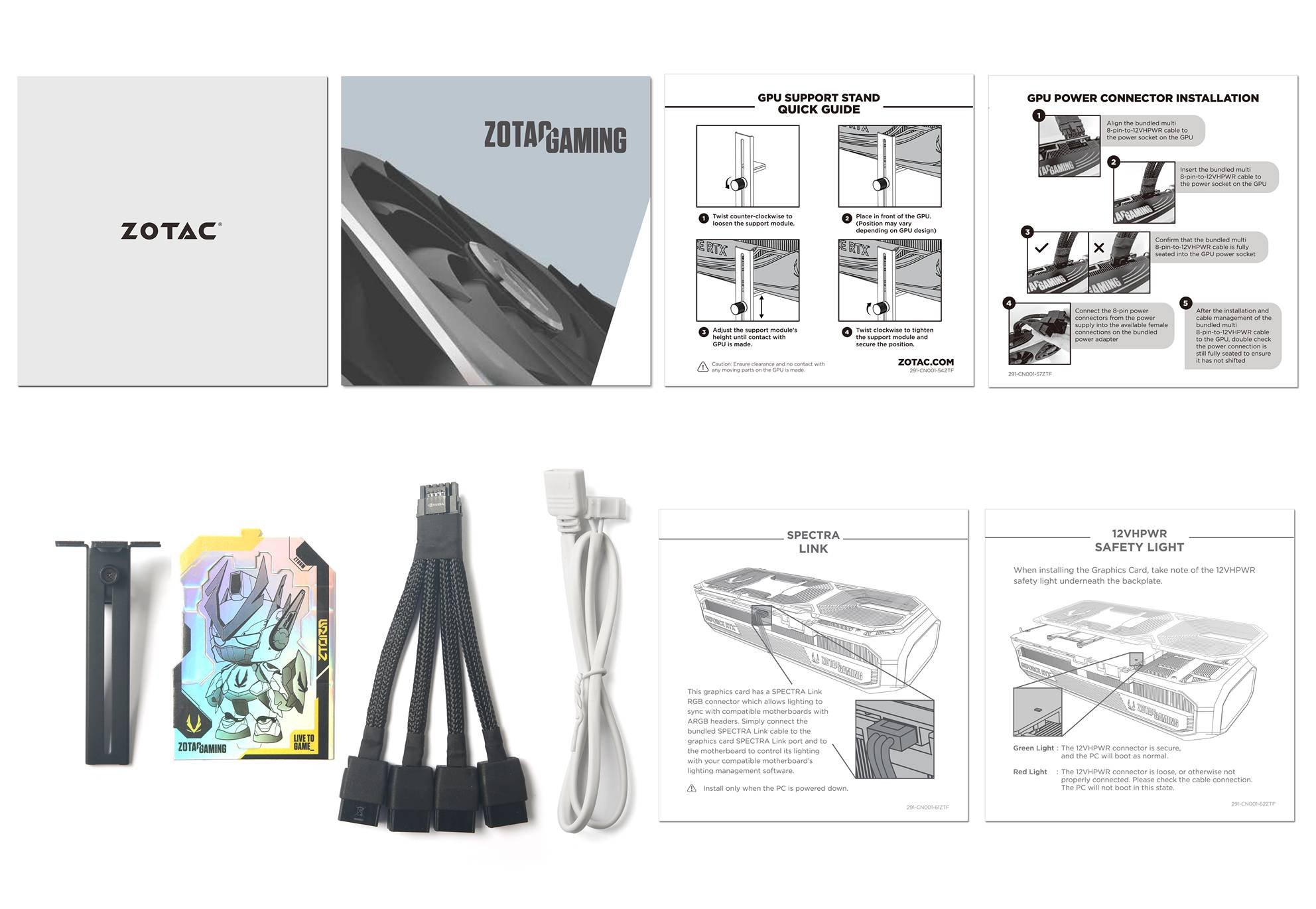

In The Box Graphics Card
User Manual
1 x 12V-2x6 to 4 x 8-pin PCIe adapter
SPECTRA Link cable
GPU support stand
Width 69.6 mm (3.5 slot)
Depth 332.1 mm
Height 137.5 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5090
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 333 mm
Card Width 4
Power Requirement (auto) 600 W
GPU Power (TDP) 600 W
Graphics card count 1
PCI Express Power Pins (female) 32
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5090

Graphics Device

G-Sync Yes

Item Details

Manufacturer Zotac
Manufacturer Code ZT-B50900B-10P
EAN 8886307700018
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Zotac
Manufacturer Code ZT-B50900B-10P
