Gigabyte Z890 UD WIFI6E ATX Motherboard for Intel LGA1851 CPUs

Gigabyte Z890 UD WIFI6E ATX Motherboard for Intel LGA1851 CPUs

CCL Code: MBD3773

£196.99 inc VAT

Gigabyte Z890 UD WIFI6E ATX Motherboard for Intel LGA1851 CPUs

Z890 UD WIFI6E

£196.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Monday 23rd December

6 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel Z890 Chipset
  • Socket 1851
  • DDR5 (Max: 256GB / 4 slots)
  • 3 x M.2 & 10 x USB & 4 x SATA
  • Display Port
CCL Code: MBD3773
Overview

Gigabyte Z890 UD WIFI6E Motherboard

Main Features

  • Supports Intel Core Ultra processors (Series 2)
  • Digital twin 12+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AORUS AI SNATCH: Auto-Overclocking Software by AI models
  • AI Perfdrive: Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility: 4* DDR5 with XMP Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage: 3* M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
Specifications

CPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors
64-bit Support Yes
Socket LGA1851

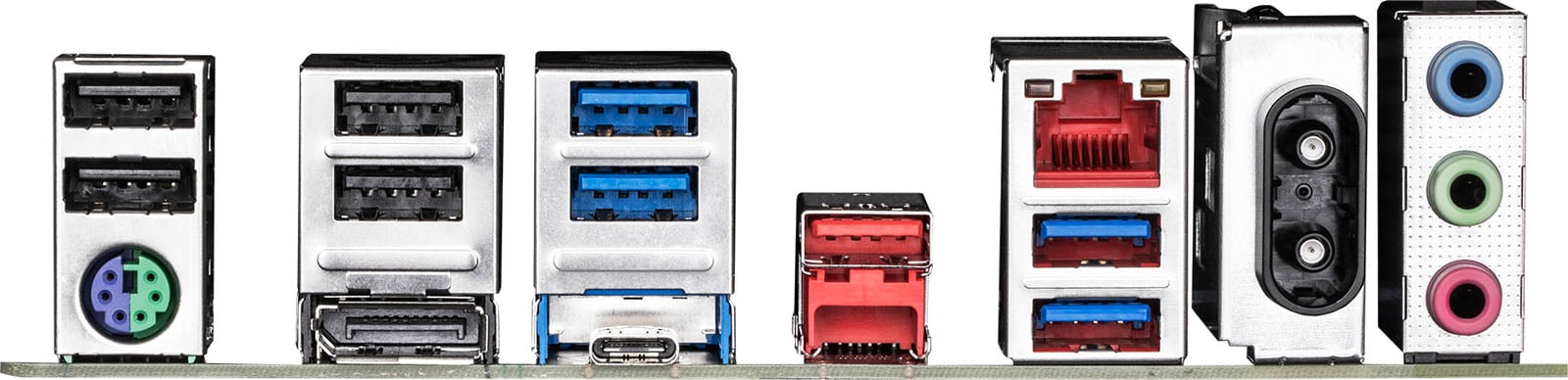

Rear Panel I/O Ports

USB Ports 1 x USB4
1 x USB 3.1
4 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water Cooling pump header
2 x System fan headers
2 x System fan/Water Cooling pump headers
Thunderbolt Port(s) 2 x Thunderbolt AiC headers
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen4 or SATA)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 8800 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel Z890
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
3 x PCI Express 4.0 x16 slots (@ x4/x4/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Windows 11

System

BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 6400 MT/s
Max Memory Speed Supported (overclocked) 8800 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 10 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection No
DisplayPort Connection Yes
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z890
Thunderbolt No
Motherboard Model Gigabyte Z890 UD WIFI6E
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code Z890 UD WIFI6E
EAN 4719331865313
UPC 889523045336
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code Z890 UD WIFI6E
