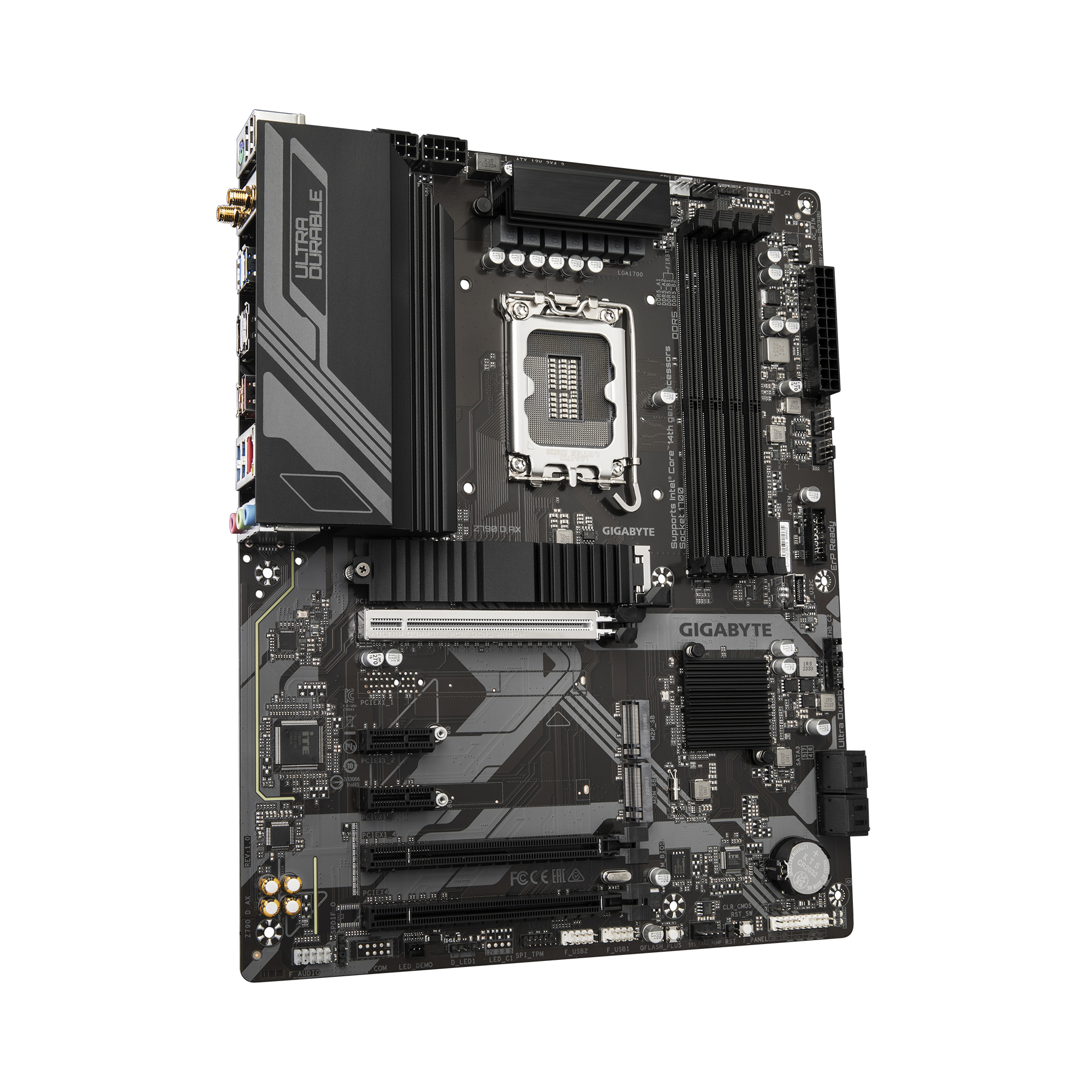

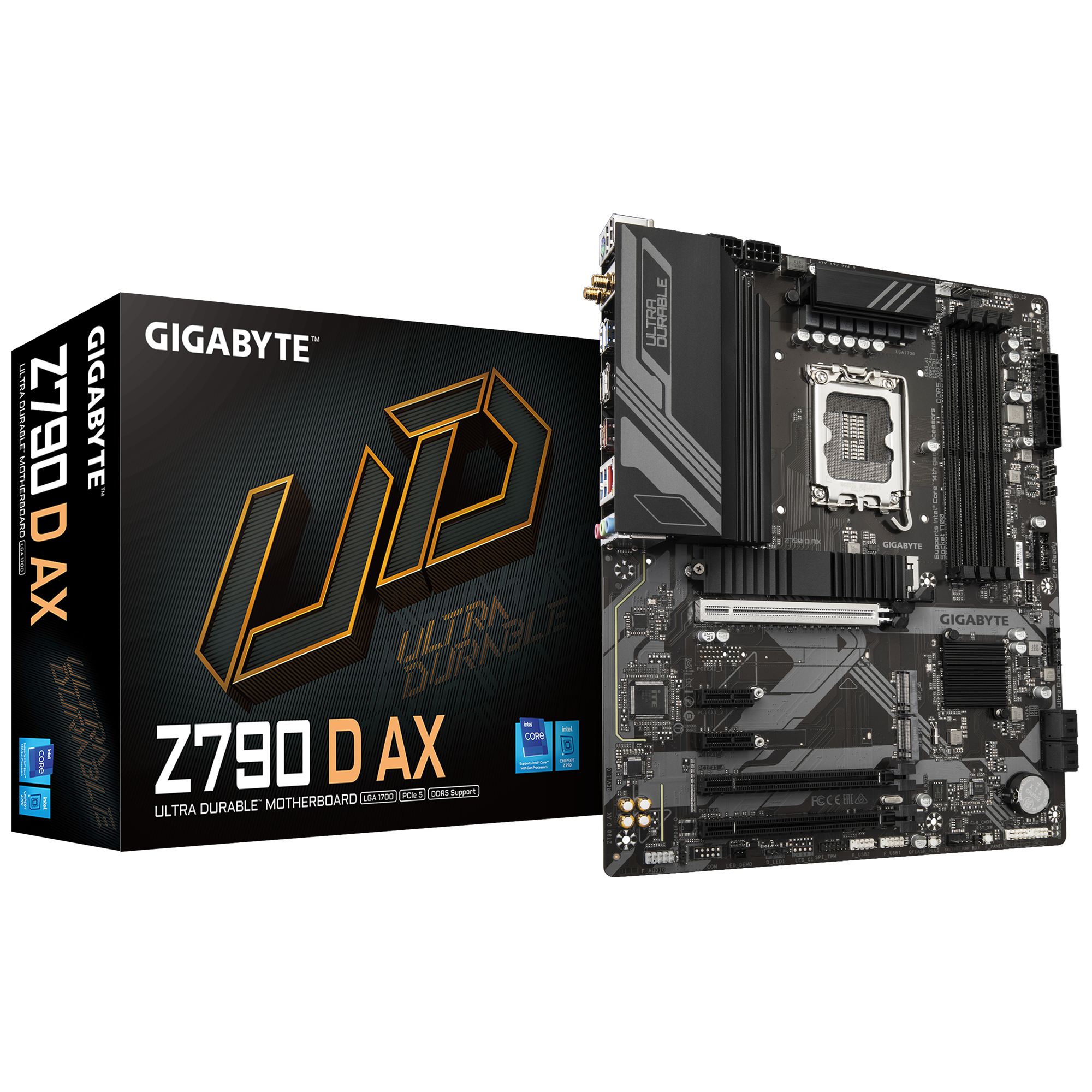

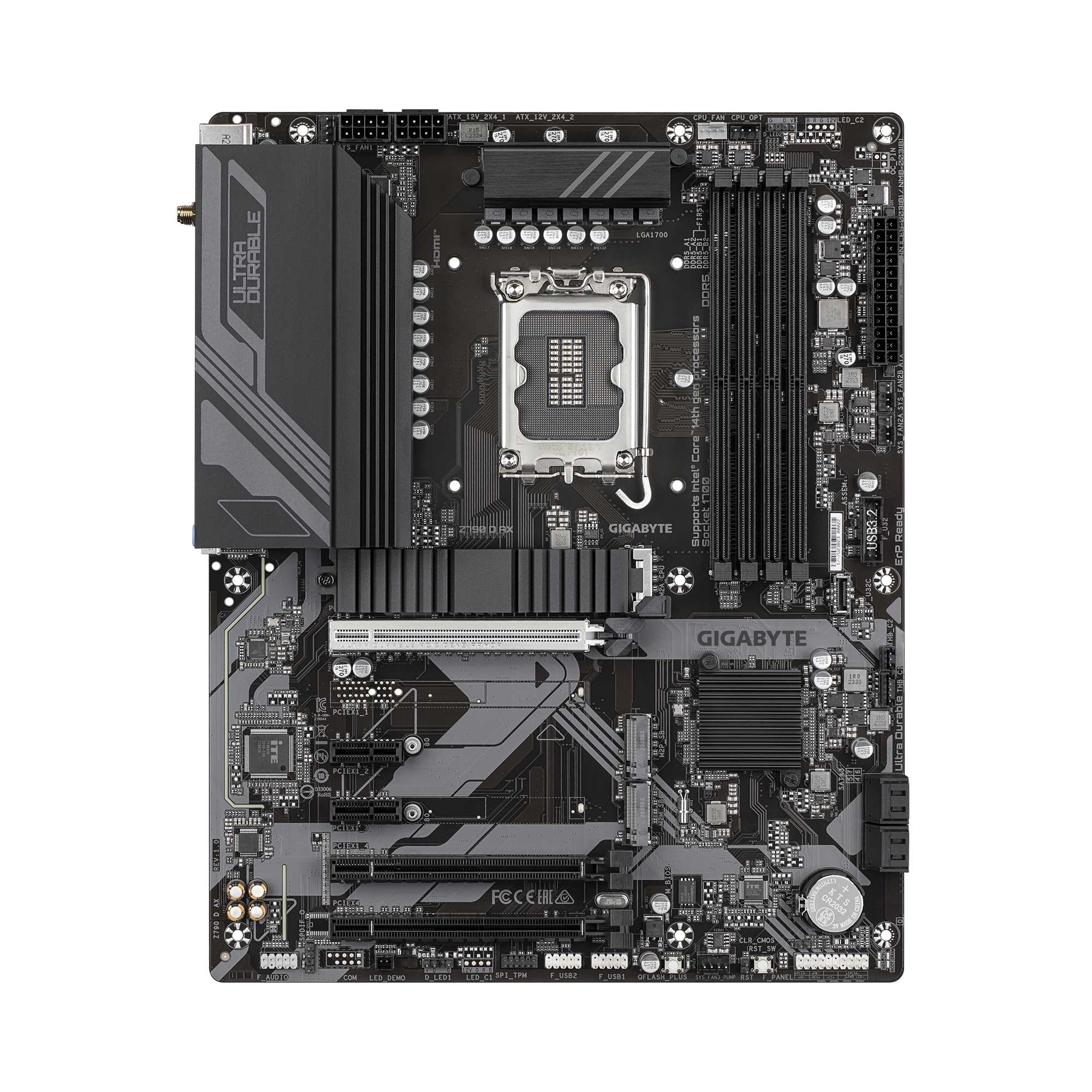

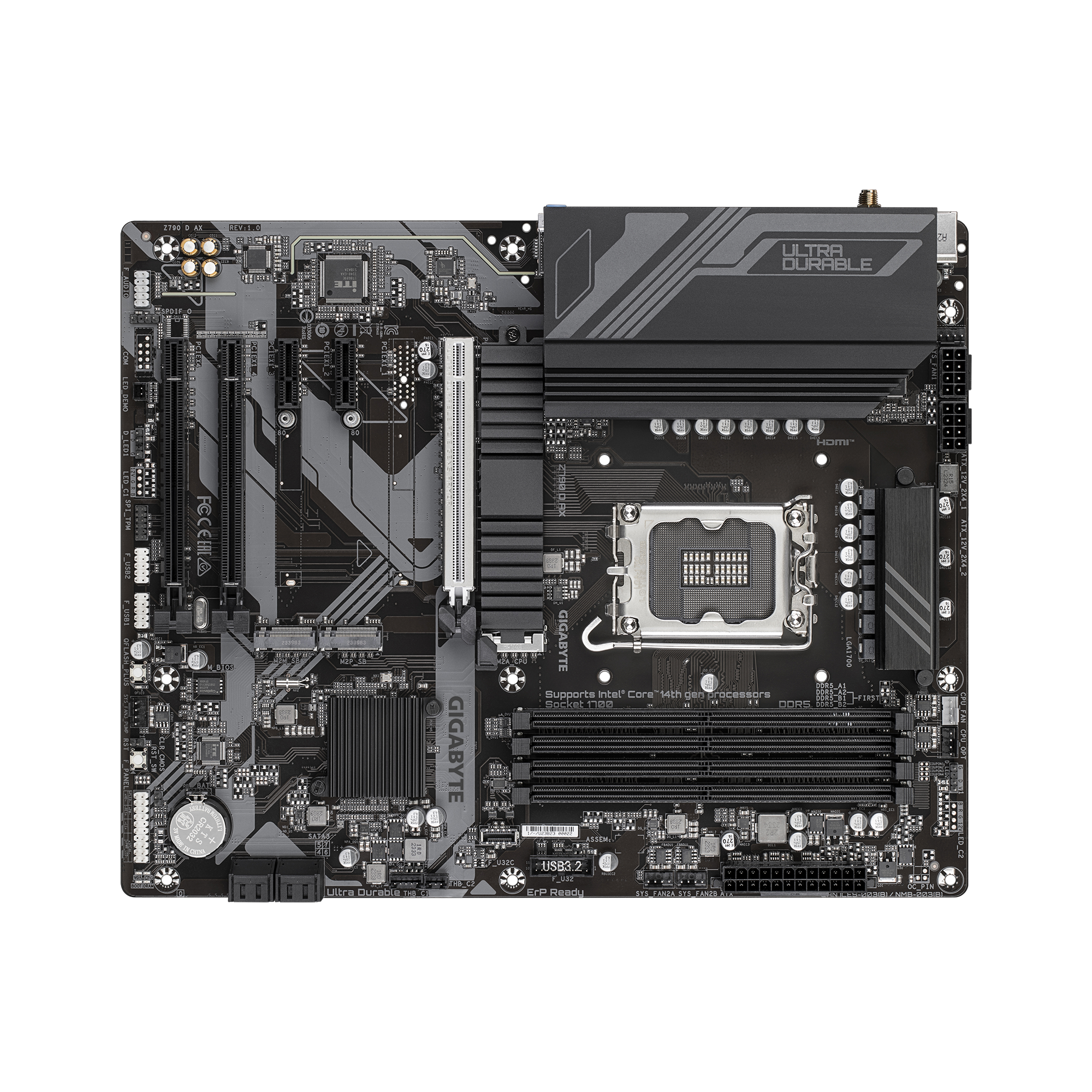

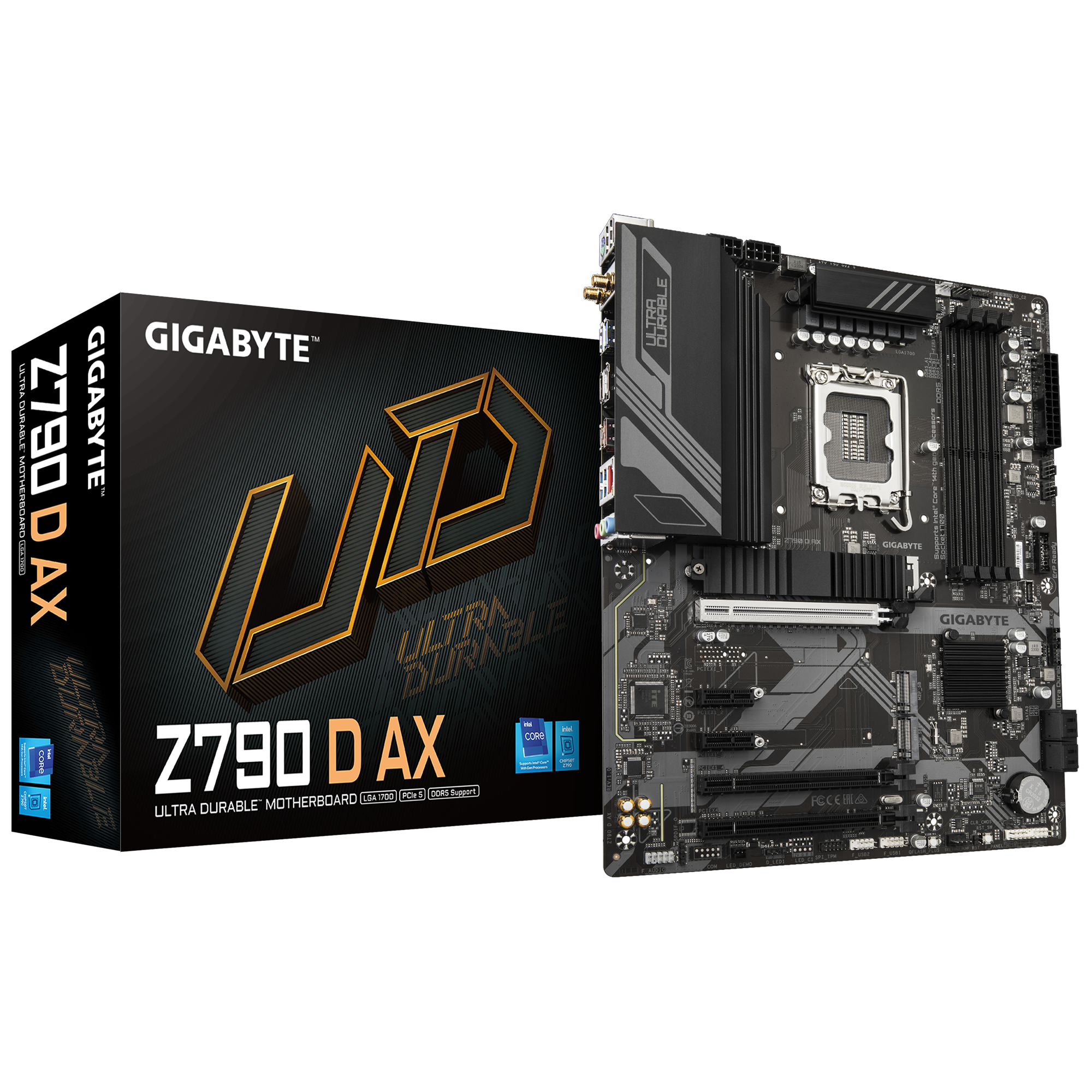

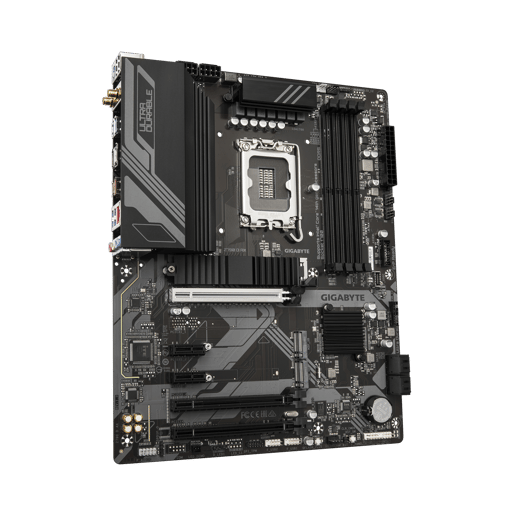

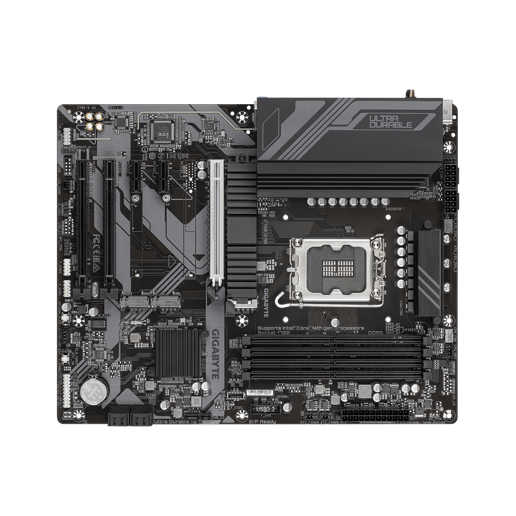

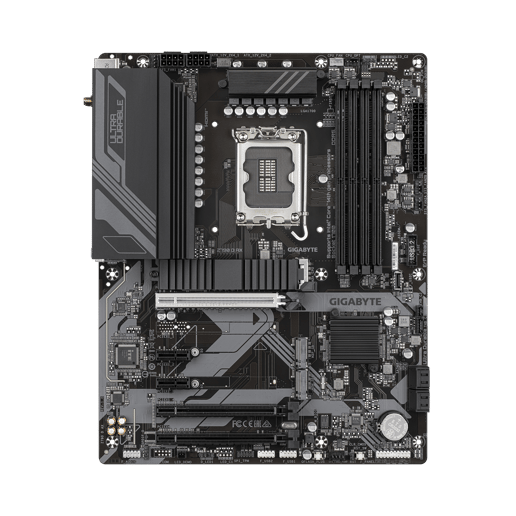

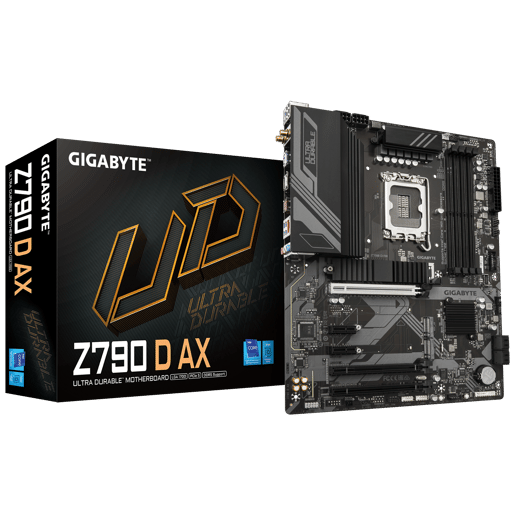

Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs

Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3670

£183.99 inc VAT

  • Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs

Grab a free Lian Li anti-sag bracket with every ATX motherboard purchase!**

Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs

Z790 D AX

£183.99 inc VAT

Available for delivery from Tuesday 14th January

or Click & Collect from Monday 13th January

Hurry, only 1 left!

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel Z790 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 3 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3670
Overview

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Main Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11a
  • Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Promotions

GRAB A SOUGHT-AFTER PC ACCESSORY FREE WITH EVERY ATX MOTHERBOARD!

For a limited time, every purchase of an ATX motherboard qualifies for a 100% discount on a Lian Li GB-002 anti sag bracket, one of the better methods to keep your shiny new graphics card from succumbing to gravity!! Simply add the bracket to your basket alongside the motherboard and discount will be applied.

CLICK TO VIEW AND ADD THE LIAN LI GB-002 TO YOUR BASKET

Bracket advertised as compatible with ATX/eATX motherboards, however high-end boards with large thermal-shielding may interfere with mounting compatibility.

Offer valid 25th December to 31st January, and whilst stocks last.

Bracket

Lian Li GB-002 Anti Sag Bracket for Graphics Cards

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

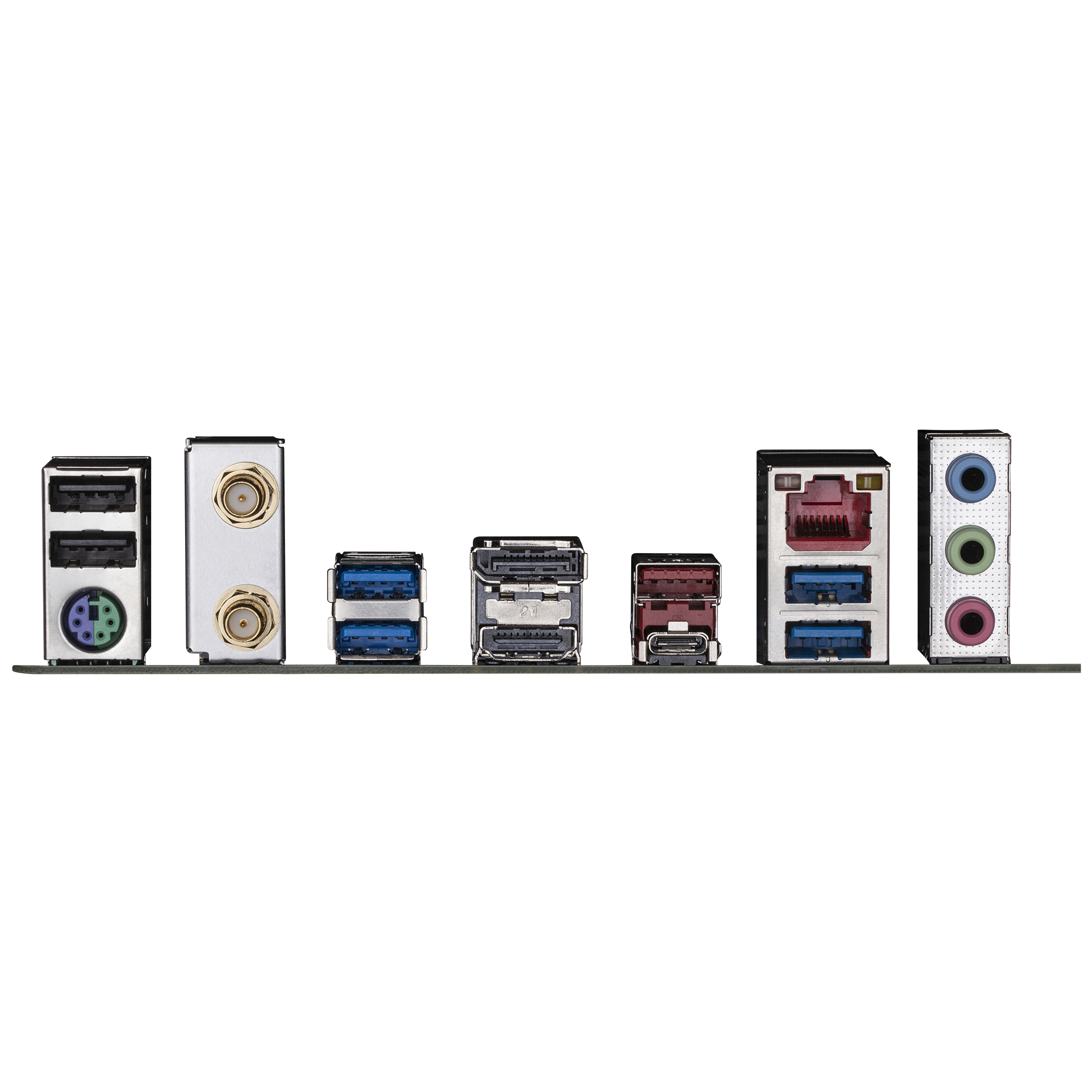

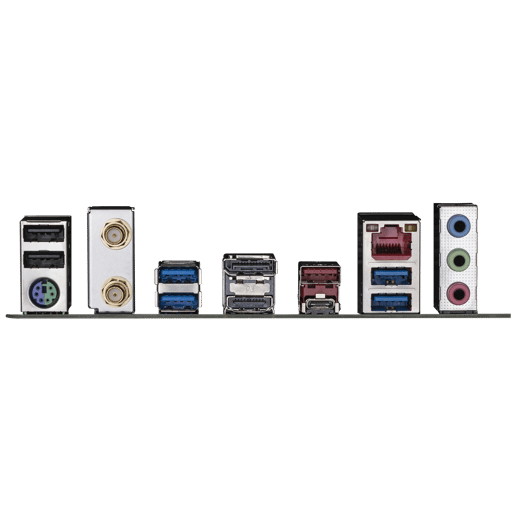

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water Cooling pump header
3 x System fan headers
1 x System fan/Water Cooling pump header
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 2 x Thunderbolt add-in card connectors
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4 or SATA)
2 x 3-pin ARGB LED headers

Memory

Memory Bus Speed Up to 7600 MT/s
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x1)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 7600 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No
Motherboard Model Gigabyte Z790 D AX
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code Z790 D AX
EAN 4719331860592
UPC 889523042052
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code Z790 D AX
