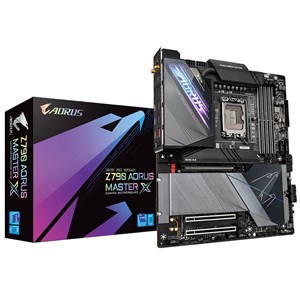

Gigabyte Z790 AORUS MASTER X EATX Motherboard for Intel LGA1700 CPUs

Gigabyte Z790 AORUS MASTER X EATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3613

Was £598.55

SAVE £202

Now only

£395.99 inc VAT

Gigabyte Z790 AORUS MASTER X EATX Motherboard for Intel LGA1700 CPUs

Z790 AORUS MASTER X

Was £598.55

SAVE £202

Now only

£395.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Tomorrow

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • EATX Form Factor
  • Intel Z790 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 5 x M.2 & 14 x USB & 4 x SATA
  • Display Port
CCL Code: MBD3613
Overview

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

Main Features

  • Supports Intel Core 14th and 13th processors
  • Digital direct 20+1+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • EZ-Latch Plus: PCIe 5.0 x16 slot & M.2 slots with quick release design
  • UC BIOS: User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
  • Fast Networking: 10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • Extended Connectivity: DP, Front USB-C 10Gb/s, Front & Dual Rear USB-C 20Gb/s
  • DTS:X Ultra Audio: ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports

USB Ports 2 x USB-C 3.2
7 x USB 3.1
1 x USB-C 3.0
4 x USB 3.0
DisplayPorts 1 x DisplayPort 1.2
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
4 x System fan headers
4 x System/Water Pump fan headers
Thunderbolt Port(s) 2 x Thunderbolt add-in card connectors
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2280/25110 (PCIe Gen5)
2 x M.2 slots, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Noise Detection header
2 x Temperature Sensor headers

Memory

Memory Bus Speed Up to 8266 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x4/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1220-VB
ESS ES9118 DAC

Warranty

Warranty 3 Years

Network

Integrated Network Marvell Aqtion AQC113C
Network Speeds Supported Up to 10 Gbps
Wireless LAN Yes - Wi-Fi 7
Wireless Network Speed Up to 5.8 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor eATX Motherboard
Width 260 mm
Length 305 mm

Key Features

M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 100 W
Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 8266 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 5
Maximum NVMe M.2 ports 5
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 260 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 14 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection No
DisplayPort Connection Yes
Motherboard Form Factor EATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No
WiFi Speed 5800 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code Z790 AORUS MASTER X
EAN 4719331857585
UPC 889523039335
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code Z790 AORUS MASTER X
