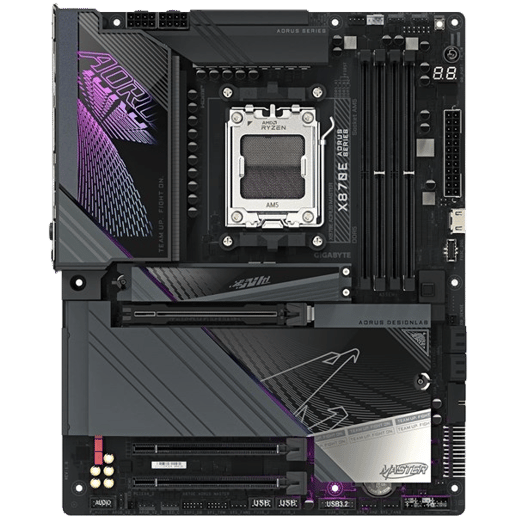

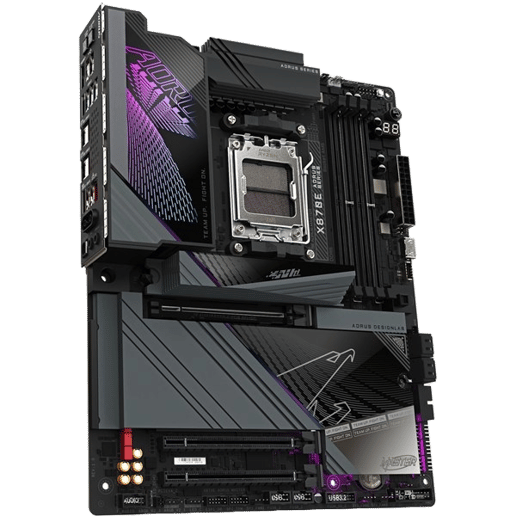

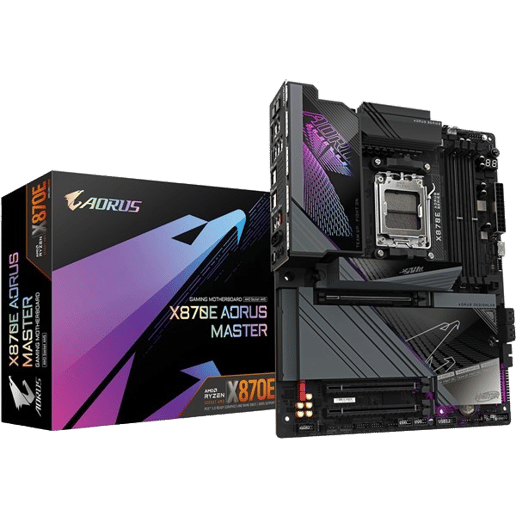

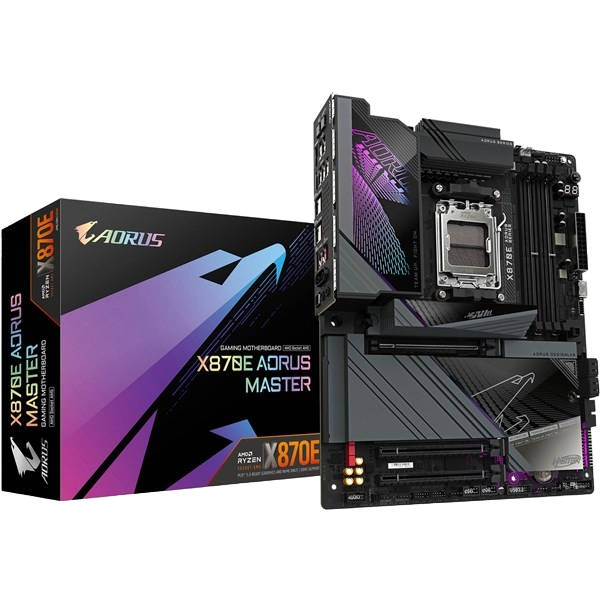

Gigabyte X870E AORUS MASTER ATX Motherboard for AMD AM5 CPUs

Gigabyte X870E AORUS MASTER ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3720

£550.99 inc VAT

Gigabyte X870E AORUS MASTER ATX Motherboard for AMD AM5 CPUs

X870E AORUS MASTER

£550.99 inc VAT

Available for delivery from Tuesday 5th November

or Click & Collect from Monday 4th November

Hurry, only 1 left!

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD X870E Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 4 x M.2 & 12 x USB & 4 x SATA
  • HDMI
CCL Code: MBD3720
Overview

Gigabyte X870E AORUS MASTER AMD Socket AM5 Motherboard

Main Features

  • DDR5 OC up to 8600MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5: 4x DIMMs with AMD EXPO Memory Module Support
  • DDR Wind Blade: Enhanced Active Cooling for Memory Modules
  • M.2 EZ-Match: Magnetic alignment for easy installation of large heatsinks
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage: 4x M.2 slots, including 3x PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
  • Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio: Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability.
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 9000, 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

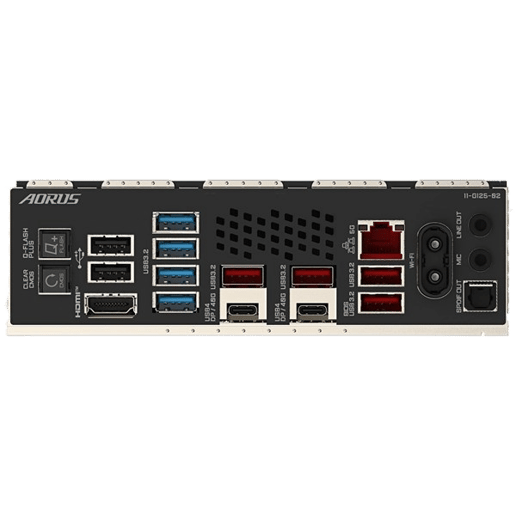

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
4 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPorts Yes via USB-C
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water Cooling pump header
4 x System fan headers
2 x System fan/Water Cooling pump headers
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5)
2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen5)
1 x M.2 slot, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
4 x 3-pin ARGB headers
1 x 4-pin RGB header
1 x Noise Detection header
2 x Temperature Sensor headers

Memory

Memory Bus Speed Up to 8600 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X870E
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC1220

Network

Integrated Network Realtek
Network Speeds Supported Up to 5 Gbps
Wireless LAN Yes - Wi-Fi 7
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Windows 11
Windows 10 64-bit

System

BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
1 x Reset
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 8600 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD X870E
Thunderbolt No
Motherboard Model Gigabyte X870E AORUS MASTER
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB

Item Details

Manufacturer Gigabyte
Manufacturer Code X870E AORUS MASTER
EAN 4719331864354
UPC 889523044803
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code X870E AORUS MASTER
