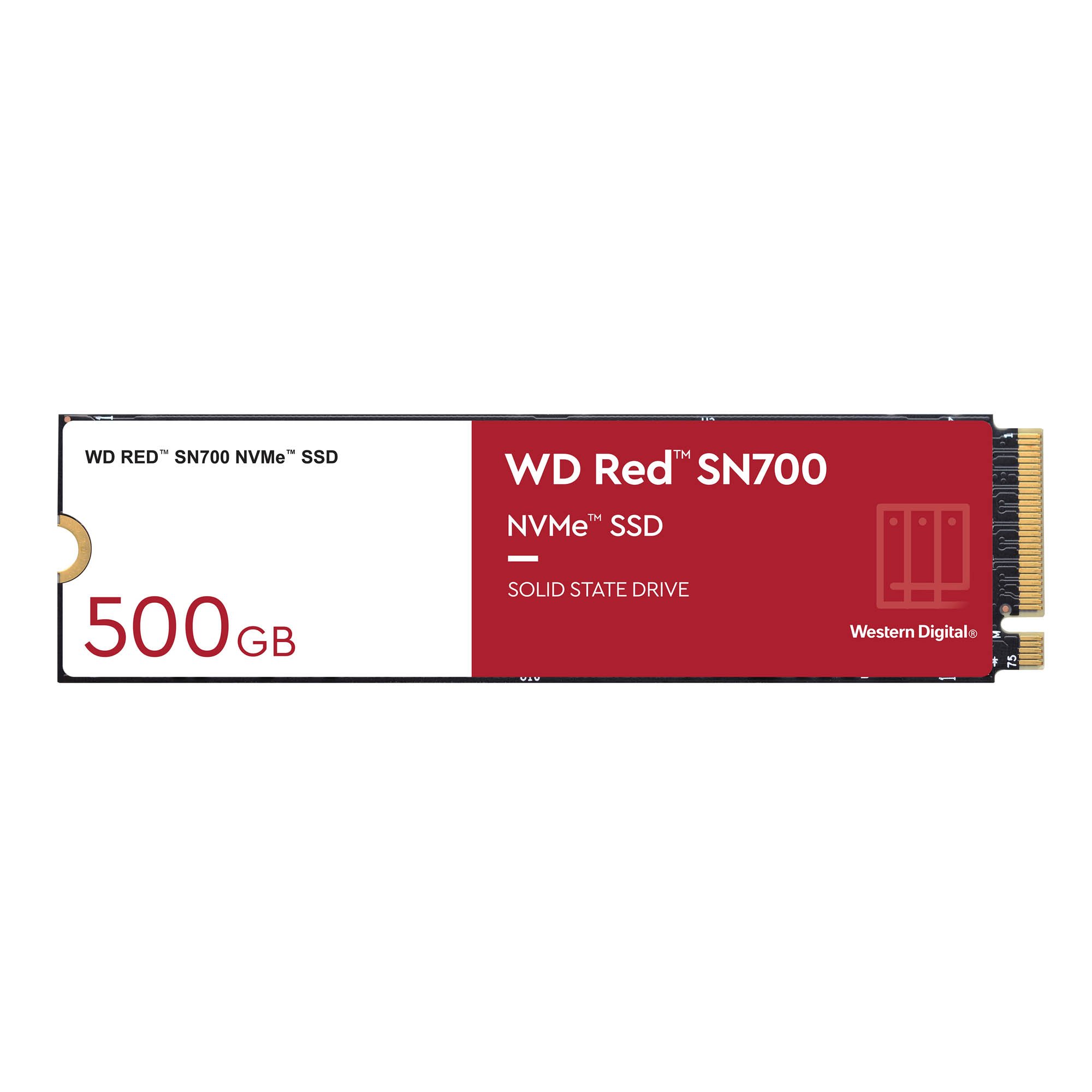

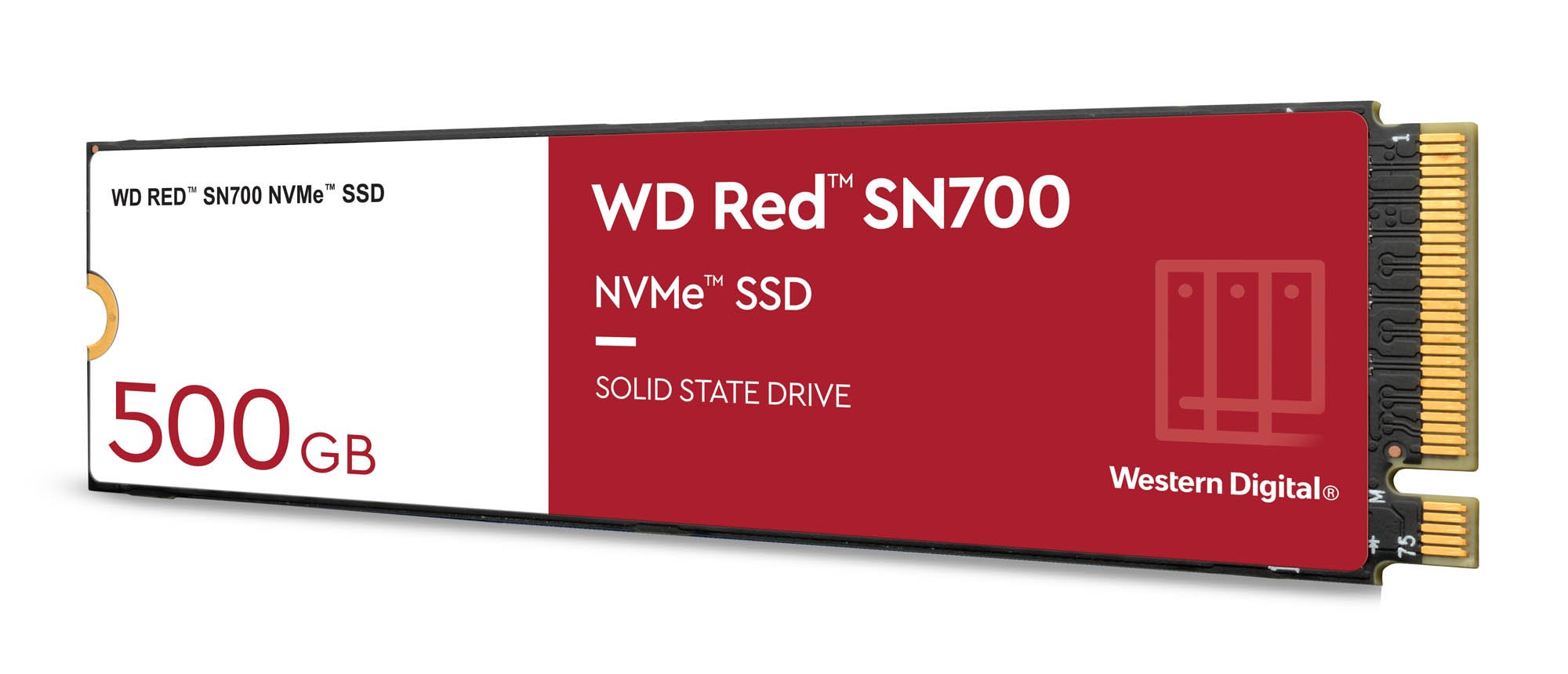

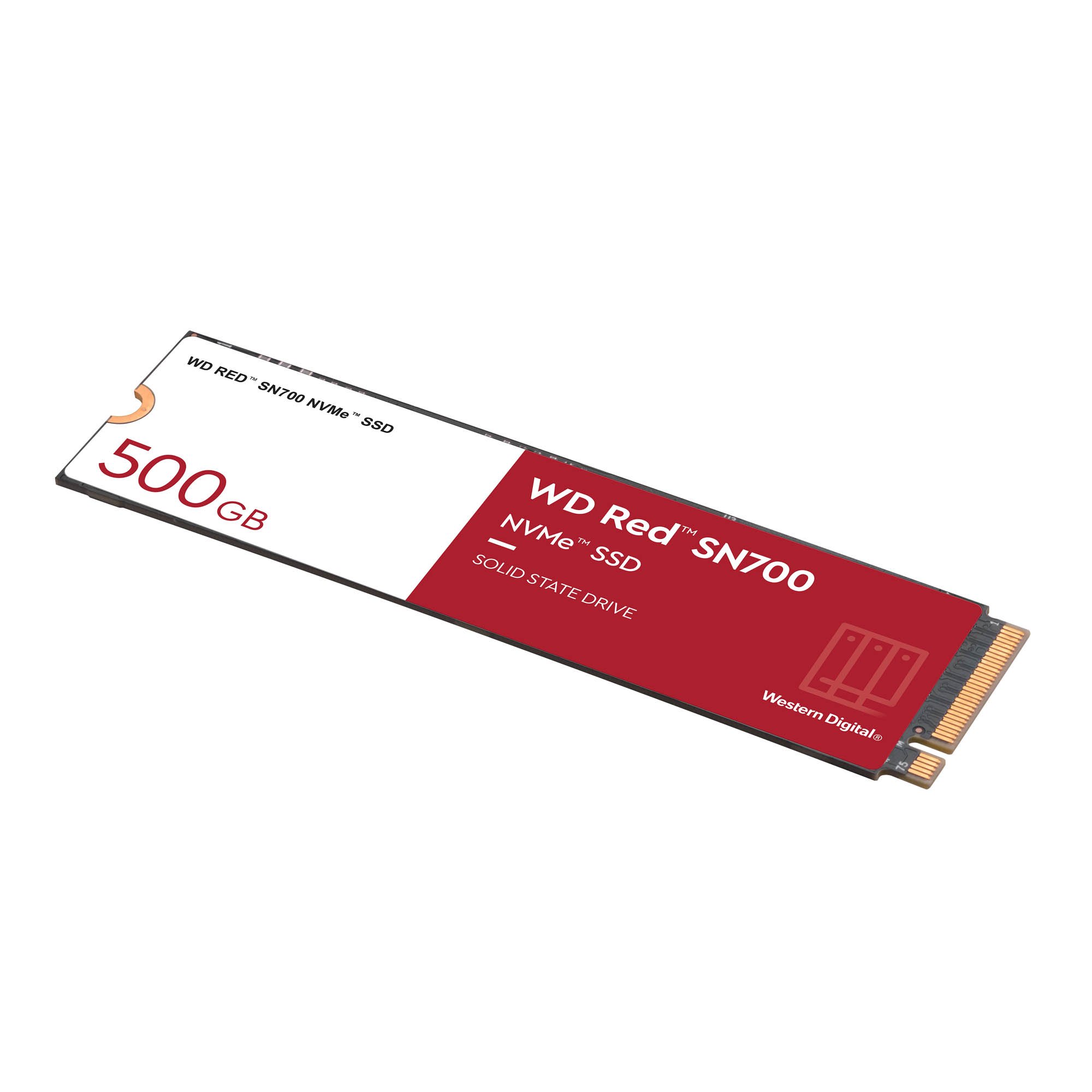

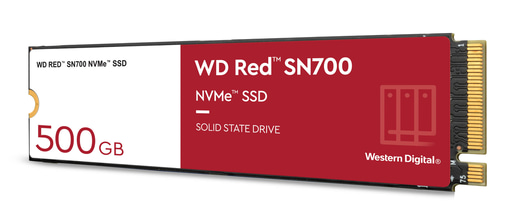

500GB Western Digital Red SN700 M.2 2280

500GB Western Digital Red SN700 M.2 2280

CCL Code: SSD1639

Sold out

Notify Me
  • 500GB Western Digital Red SN700 M.2 2280
  • 500GB Western Digital Red SN700 M.2 2280
  • 500GB Western Digital Red SN700 M.2 2280

Accelerate Your NAS

500GB Western Digital Red SN700 M.2 2280

WDS500G1R0C

Key Features:

  • PCIe 3.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 3.4GB/s Read
  • Up to 2.6GB/s Write
  • 4K IOPS Read: 420K
  • 4K IOPS Write: 380K
CCL Code: SSD1639

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Capacity:

Overview

Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe™ SSD. The drive’s robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching —all while helping to lower your TCO.

Accelerate Your NAS

The fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.

Built to Last

Tackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB1 model), backed by a 5-year limited warranty.2

Step Up to NVMe™

Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.

Perfect for SMBs

Even in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.

Scale Up to Keep Up

Keep ahead of the data explosion with huge capacities up to 4TB1.

Optimize Your Workflow

Purpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.

1. 1GB = 1 billion bytes and 1TB = one trillion bytes. Actual user capacity may be less, depending on operating environment.
2. 5 years or Max Endurance (TBW) limit, whichever occurs first.

Specifications

Storage

Solid State Capacity 500 GB
Storage Type SSD
Drive Size M.2-2280
Memory Type SSD
Drive Capacity 500 GB

Performance

Read Speed Up to 3,430 MB/s
Write Speed Up to 2,600 MB/s
4K Random Read (AS SSD) Up to 420k IOPS
4K Random Write (AS SSD) Up to 380k IOPS
Data Storage Life 1000 TBW
Mean Time Between Failure (MTBF) 1,750,000 hours

Interfaces/Ports

Interface PCIe Gen3 x4 NVMe

Electrical

Electrical Power Consumption Standby 70 mW

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -55 ~ +85 °C

Physical

Form Factor Solid State Drive
Enclosure type Internal
In The Box 1 x 500GB SSD
Width 22 mm
Depth 80 mm
Height 2.38 mm
Weight 7.5 g

Warranty

Warranty 5 Years

Key Features

Disk Capacity 500 GB
Interface Type PCI Express 3.0 x4 NVMe
Storage Capacity 500 GB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 420 k IOPS
Drive Interface Type PCIe 3.0 x4 NVMe
Write IOPS (4K) 380 k IOPS
Power Requirement (auto) 5 W
Number of SATA power required 1
Bundle Config - Home (CB) Yes

Item Details

Manufacturer Western Digital
Manufacturer Code WDS500G1R0C
UPC 718037891439
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Western Digital
Manufacturer Code WDS500G1R0C
Reviews
4.0 / 5 1 review

Chris Konopka

April 2023

Good Product. Nice quality Drive. Good packaging. Good speed.
