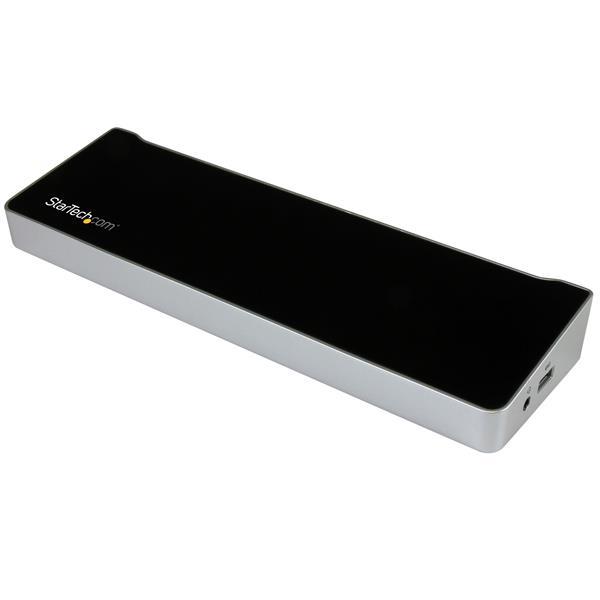

StarTech.com USB 3.0 Triple-video Docking Station for Laptops

StarTech.com USB 3.0 Triple-video Docking Station for Laptops

CCL Code: NOT02083

Sold out

Notify Me

StarTech.com USB 3.0 Triple-video Docking Station for Laptops

USB3DOCKH2DP

Key Features:

  • Integrated security lock
  • Supports DisplayPort 1.2
  • Includes a USB 3.0 host cable
CCL Code: NOT02083

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

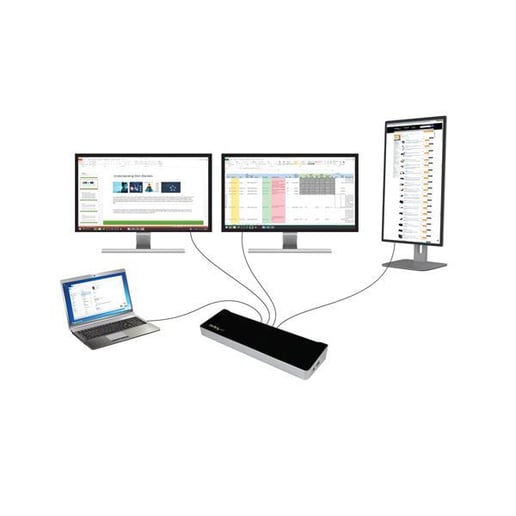

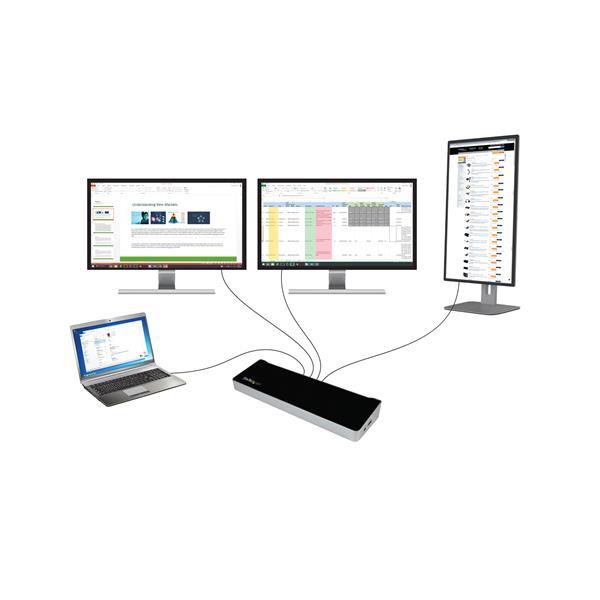

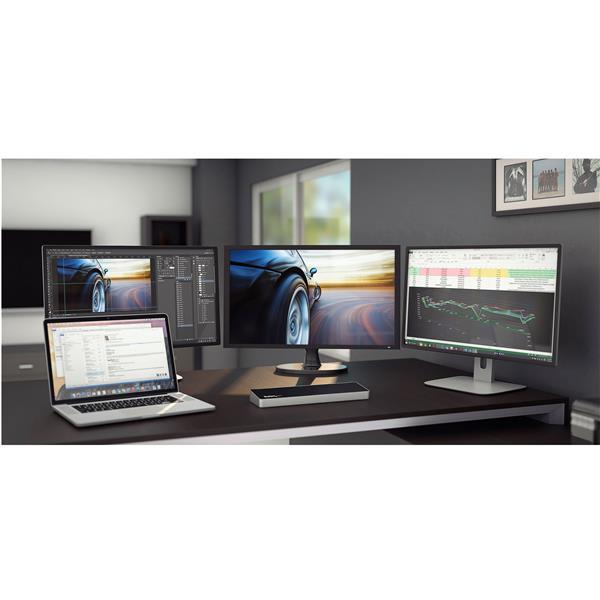

This triple-video docking station for laptops merges cutting-edge technology and high-quality hardware with innovative design elements. It's one of the first universal laptop docking stations to support three external displays. When coupled with your laptop display, the docking station makes it easy to create a high-performance, high-resolution workstation with four displays in total, including one 4K DisplayPort display. With its expanded display presence, this specialty docking station is ideal for a wide range of applications. It offers a fast and easy way to maximize your laptop's workable screen space, which is perfect for graphic and web designers, animators, financial analysts and more. The triple-video docking station uniquely integrates two video chipsets, making it possible to connect one HDMI and two DisplayPort monitors to your laptop. With four total displays, you can manage several programs at once and avoid the nuisance of minimizing or rearranging windows. Plus it delivers 4K cinema resolution to the first DisplayPort monitor. This versatile docking station boosts your workflow with minimal impact on your budget, and it connects to your laptop or Windows based tablet through just one USB 3.0 (also known as USB 3.1 Gen 1 - 5Gbps) cable. Why sacrifice image quality for display quantity? This top-of-the-line docking station offers the best of both worlds. It features three video ports, including a DisplayPort connection that supports 4K x 2K (3840 x 2160p - 30Hz) Ultra HD resolution.

Main Features

  • Improve your productivity, dual-chipsets support three monitors, including a 4K display - 2x DisplayPort, 1x HDMI

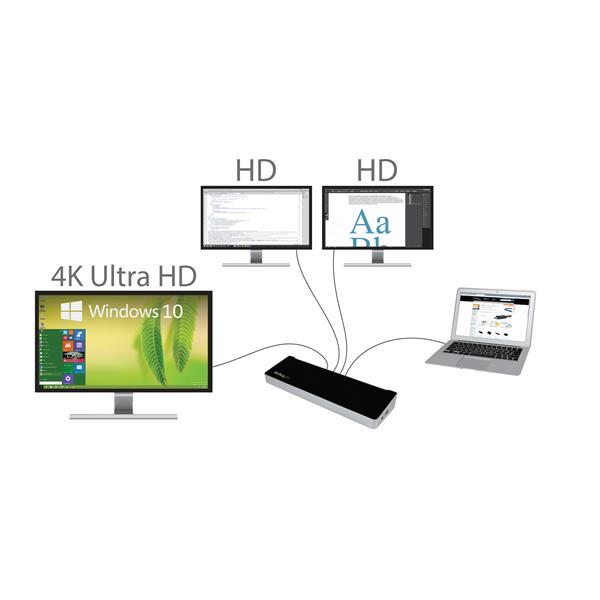

  • Upgrade your workstation to 4K Ultra HD (3840 x 2160p), one DisplayPort connection supports 4K resolution
  • Connect up to 12 peripherals, including five USB 3.0 devices, USB fast-charge and sync, and dual audio

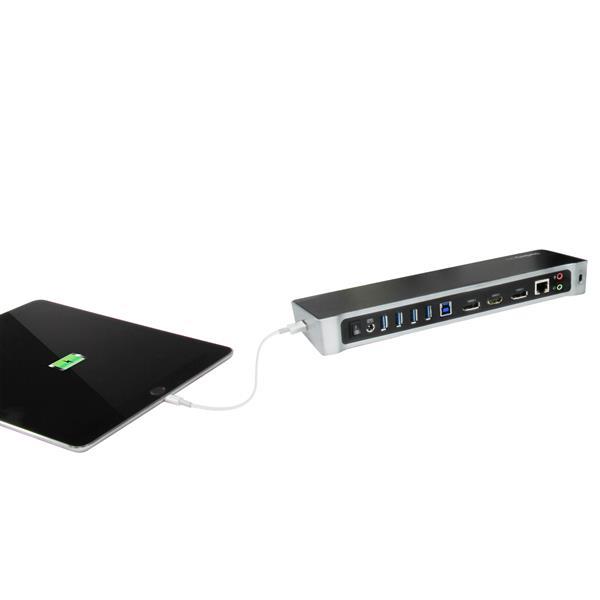

  • Always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2
  • Dual-audio input and output - side-panel 3.5mm 4-position TRRS headset port, plus rear-panel headset and microphone ports
  • Gigabit Ethernet RJ45 Port with Wake-on-LAN (WOL) support
  • Integrated security lock
  • Supports DisplayPort 1.2
  • Small and flat footprint provides an elevated typing surface when tucked under your laptop
  • Includes a USB 3.0 host cable
Specifications

Compatibility

Compatibility Windows: 10,8,7. • Mac OS: Yosemite, Mavericks, El Capitan

Storage

Data Transfer Rates 2000 MB/s

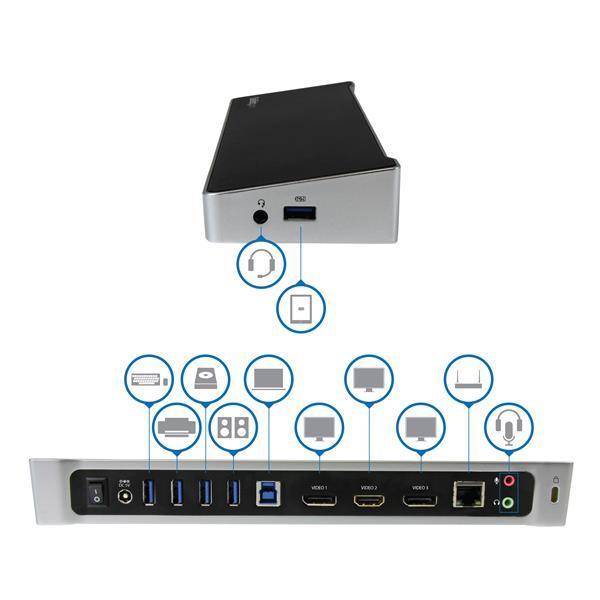

Interfaces/Ports

DisplayPort 1 x DisplayPort (20 pin) Female
HDMI Port 1 x HDMI
USB Ports 1 x USB 3.0 A (Fast-Charge; 9 pin; SuperSpeed) Female • 4 x USB 3.0 A (9 pin; SuperSpeed) Female
RJ-45 Ports 1 x RJ-45 Female
Headphone Ports 1 x 3.5 mm Mini-Jack (4 Position) Female
Audio Line Out Ports 1 x 3.5 mm Mini-Jack (4 Position) Female

Warranty

Warranty 3 Years

Compliance

Compliance Standards USB Battery Charging Specification Rev. 1.2 • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab • USB 3.0 - Backward compatible with USB 2.0/1.1
Standards RoHS

Electrical

Power Supply 100 - 240 AC

Physical

Form Factor Dock Adaptor
Cabinet Colour Black and SIlver
Enclosure type Portable
LED Status Indicators 1 x Link (Green)1 x Activity (Amber)
Security Locking Mechanics Security Lock Slot

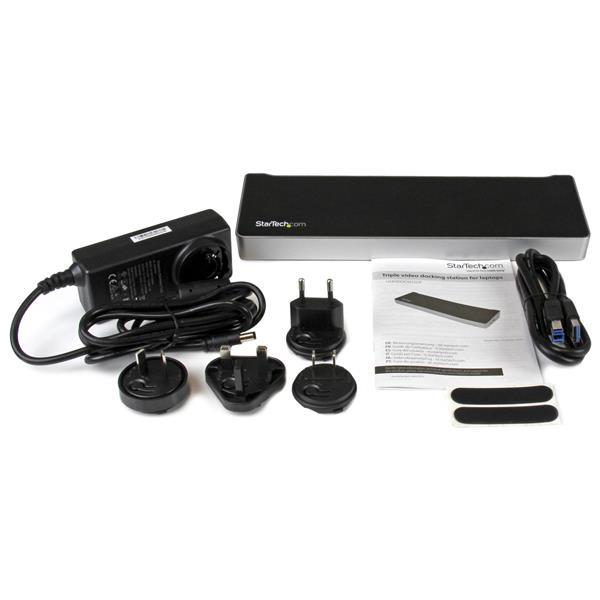

In The Box 1 x laptop docking station2 x USB 3.0 host cables1 x universal power adapter (NA/EU/UK/AU)1 x instruction manual
Width 8.2 cm
Depth 27 cm
Height 3.4 cm
Weight 0.372 kg

Item Details

Manufacturer StarTech.com
Manufacturer Code USB3DOCKH2DP
EAN 0065030860918
UPC 065030860918
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code USB3DOCKH2DP
Reviews
No reviews have been received for this product yet
