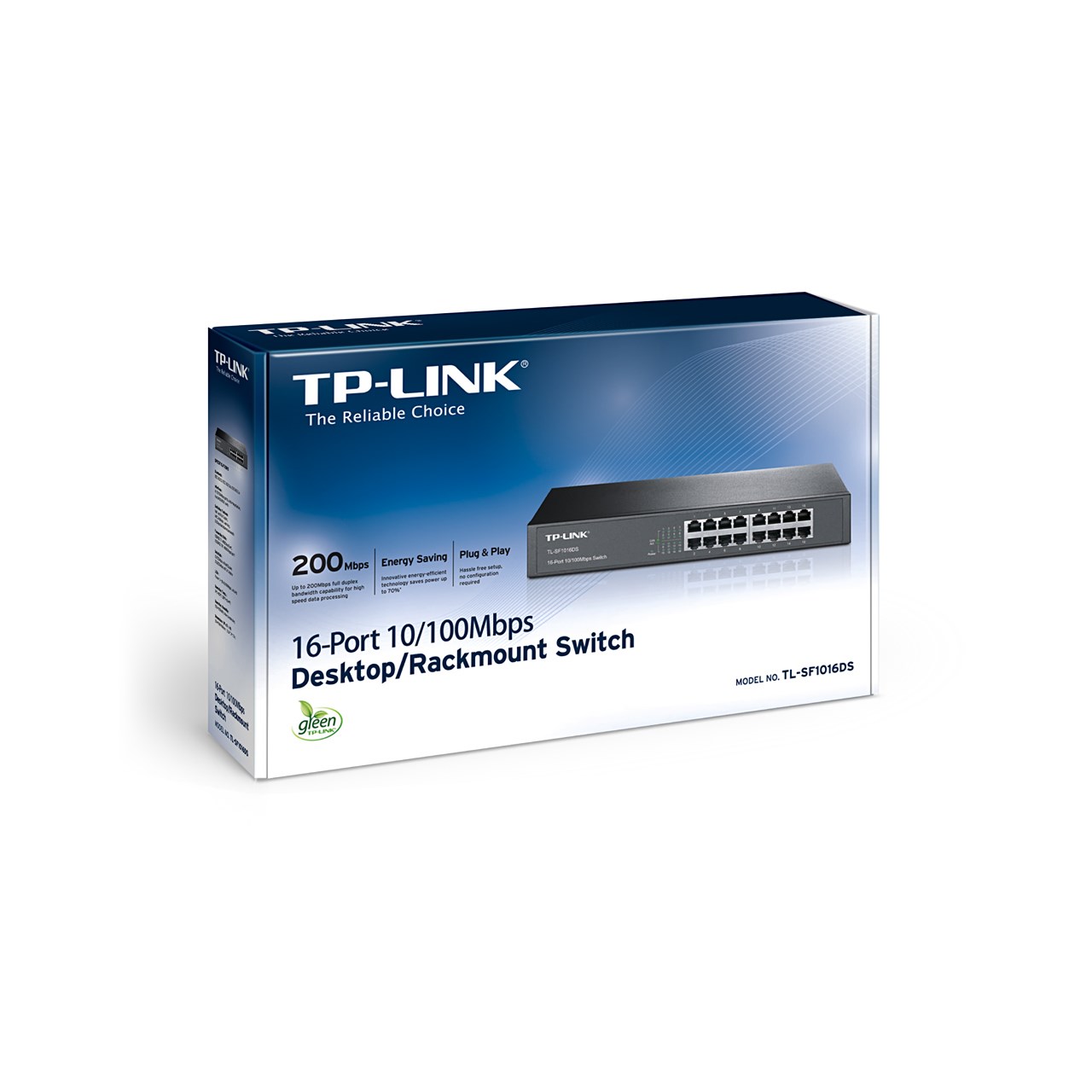

TP-Link TL-SF1016DS 16-Port 100 Mbps Desktop Switch

TP-Link TL-SF1016DS 16-Port 100 Mbps Desktop Switch

CCL Code: NET0436

£37.58 inc VAT

TP-Link TL-SF1016DS 16-Port 100 Mbps Desktop Switch

TL-SF1016DS

£37.58 inc VAT

Available for delivery from Thursday 28th November

or Click & Collect from Thursday 28th November

Buying in bulk? Contact our business team.

Key Features:

  • 16 x 100 Mbps Ports
  • Switch Type: Unmanaged
  • Form Factor: Desktop
CCL Code: NET0436
Overview

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture,TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

This TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Main Features

  • TP-Link TL-SF1016DS 16-Port Fast Ethernet Desktop/Rackmount Switch
  • 16 x 10/100M RJ45 ports
  • Innovative energy-efficient technology saves power up to 25%
  • Supports IEEE 8023x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2 Gbps Switching Capacity
  • Store and forward Switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
  • Desktop and Rack-mountable design
  • Plug and Play design simplifies installation
  • Standard 13-inch rack-mountable steel case
  • Fanless design to make sure it works quietly without disturbing your family
Specifications

Performance

Backplane 3.2 Gbps
MAC Addresses 8,000
Network Latency 10Base-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ù STP (maximum 100m); 100Base-Tx: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ù STP (maximum 100m)
Packet Forwarding Rate 148,800 pps
Port Bandwidth 10/100 Mbps

Interfaces/Ports

Network Speeds Supported 10/100 MBps
Full Duplex Capabilities All ports via Auto-Negotiation
Number of Fixed Ports 16 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100 Mbps

Compliance

Standards Compliance IEEE802.3, 802.3u, 802.3x
Emissions CE
Safety FCC

Electrical

AC Voltage Range 100 to 240 V AC
Electrical Frequency 50 to 60 Hz
Power Adaptor Type AC

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Rackmount
LED Status Indicators Power, Link/Act, 100Mbps
Width 29.4 cm
Depth 18.0 cm
Height 4.4 cm

Key Features

PoE Supported No
Switch Type Unmanaged
Switch Form Factor Desktop
LAN Port(s) Speed 10/100
Number of LAN Port(s) 16
PoE+ Supported No

Warranty

Warranty 1 Year

Item Details

Manufacturer TP-Link
Manufacturer Code TL-SF1016DS
EAN 6935364020880
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code TL-SF1016DS
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf 0.28MB
Manual pdf 0.63MB
