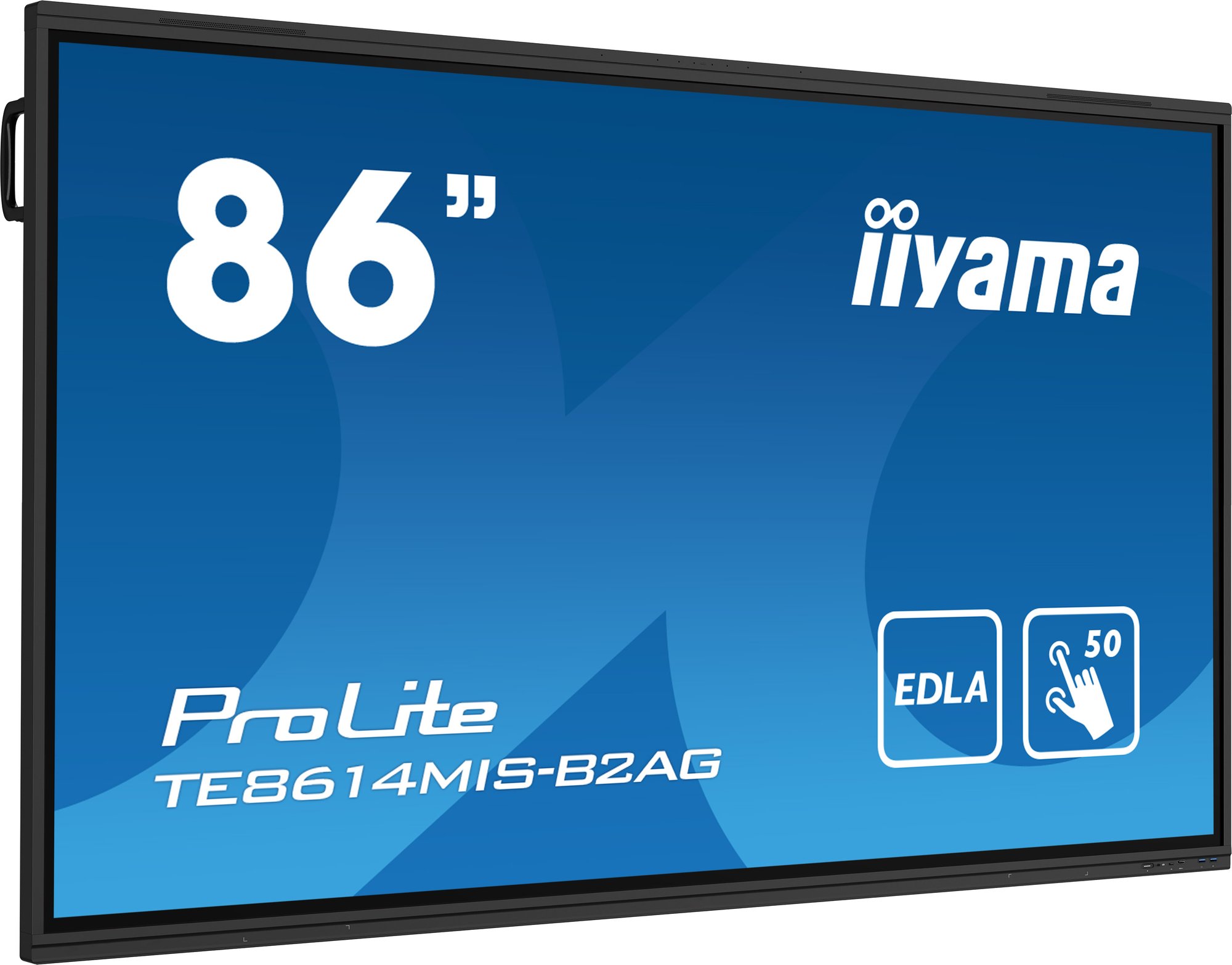

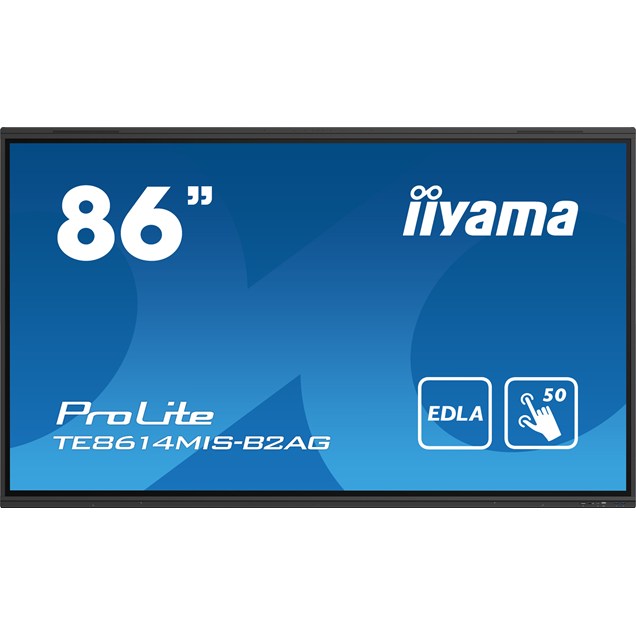

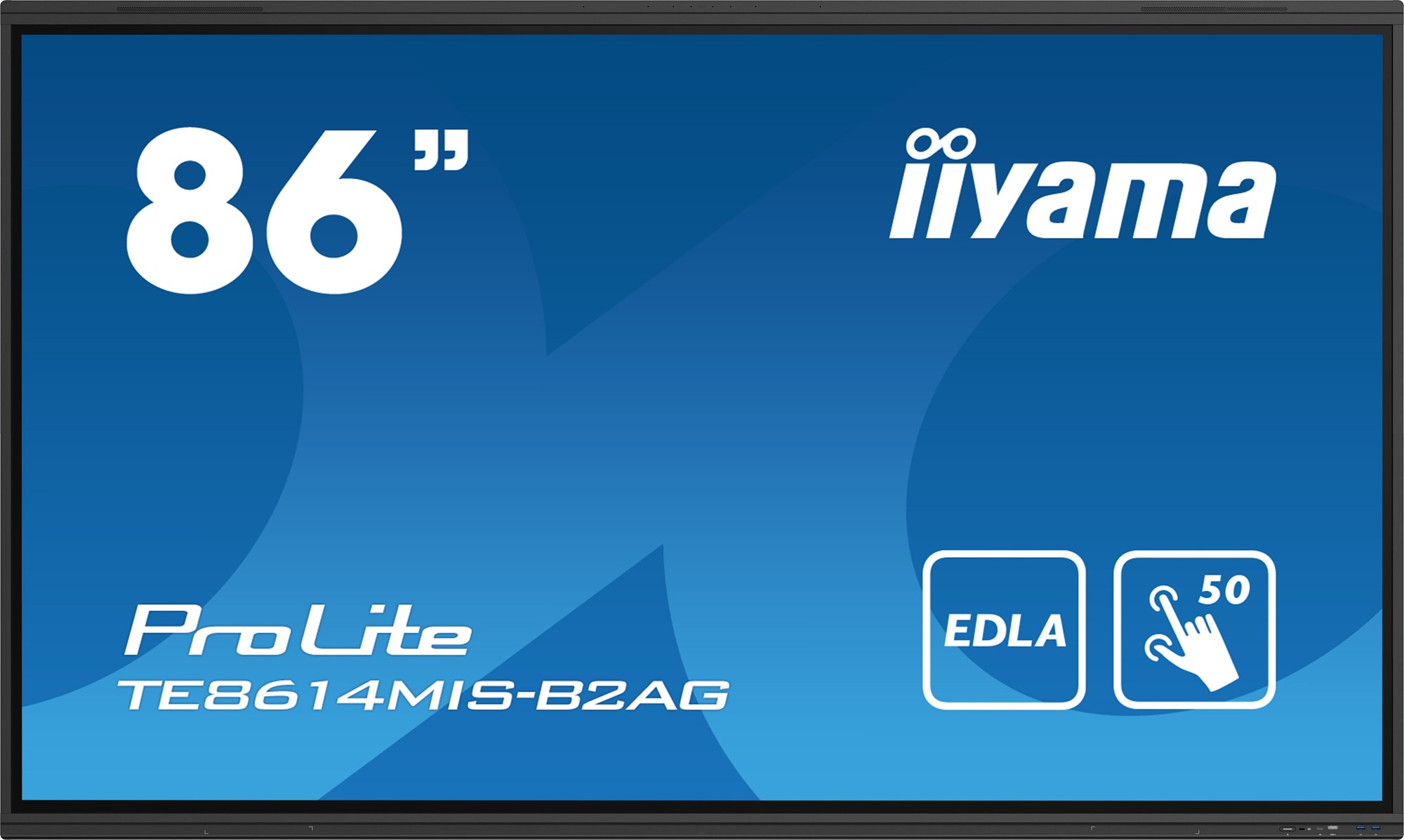

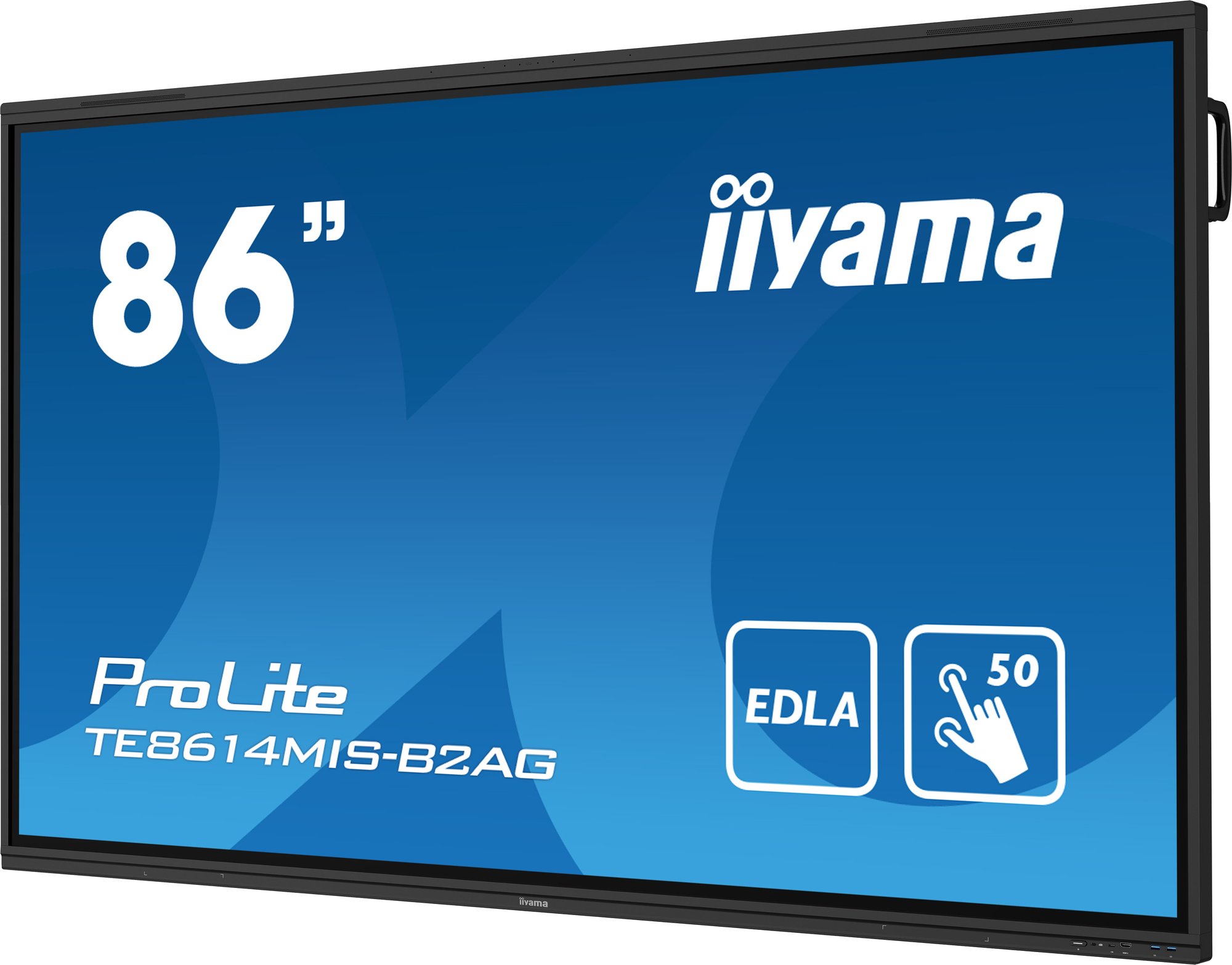

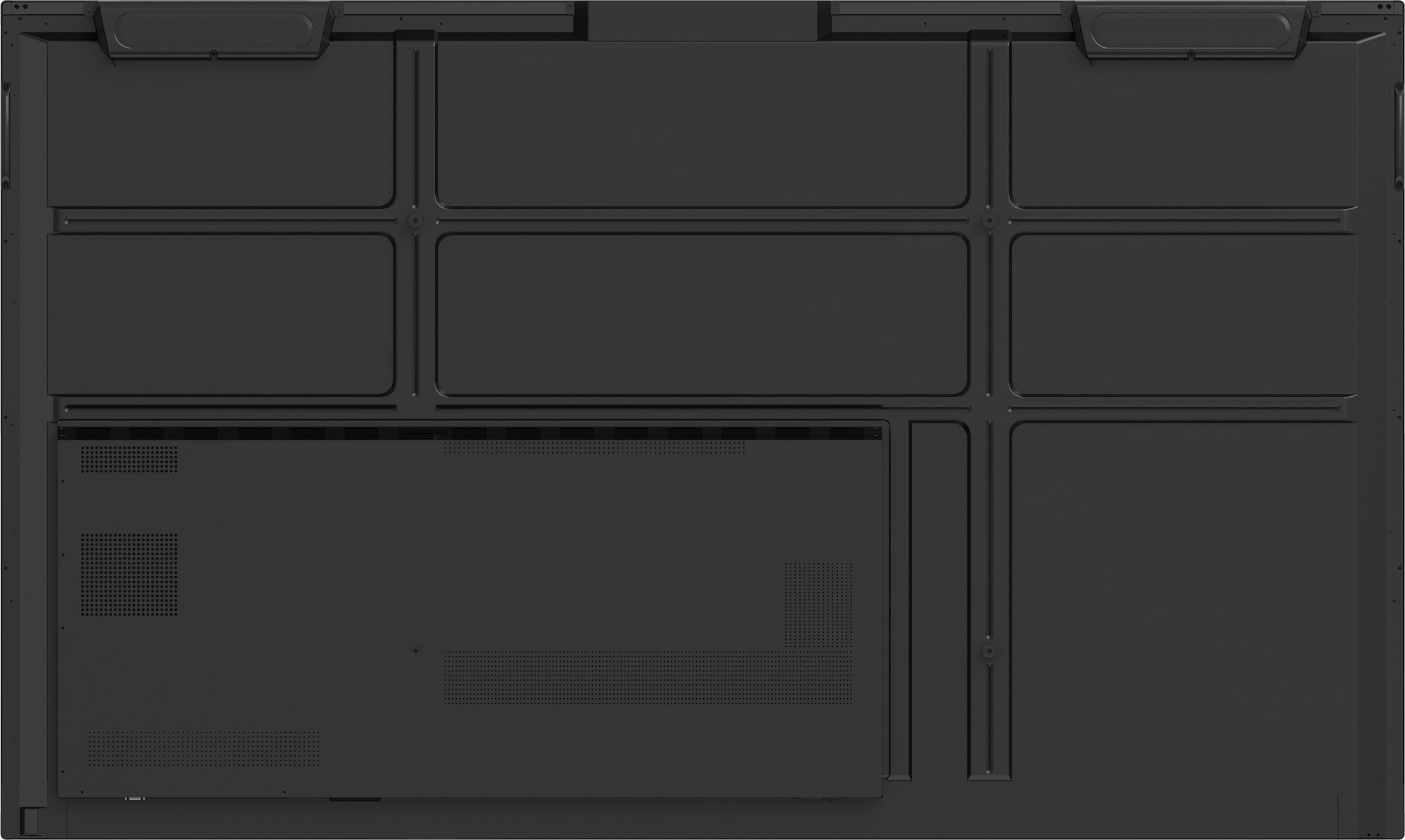

iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display

iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display

CCL Code: PLA1496

Discontinued

  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display
  • iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display

86" Interactive 4K LCD Touchscreen with integrated annotation software

iiyama ProLite TE8614MIS-B2AG 86 inch 4K Interactive Touchscreen Display

TE8614MIS-B2AG

86" Interactive 4K LCD Touchscreen with integrated annotation software

Key Features:

  • 3840 x 2160 Resolution
  • 6.5ms Response Time
  • 450cd/m2 Brightness
  • Built-in Speakers
  • 60Hz Refresh Rate
  • Inputs: HDMI
CCL Code: PLA1496

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The TE8614MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform.

Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution.

With its innovative 4K Interface and customizable User Profiles, the TE8614MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement.

Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.

Google EDLA Certified

Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.

PURETOUCH-IR+

The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.

iiyama DMS

iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.

Multi-Window Mode

You can easily read and control your content when standing in front of your audience. Simply can drag and drop information between the apps. The windows are flexible, easy-to-use, designed specifically for large screen presentation and education.

iiyama Share

Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

iiWare 12E

Empower your presentations with iiWare 12E, featuring Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.

Built-in speakers & microphone

The high quality built-in 8 Array Microphone and Dual Directional Speakers support conferencing configurations with ultra clear sound and 8m voice pick-up.

Standalone Solution

Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC.

USB-C Connection

Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 100W power delivery.

Specifications

Display

Screen Aspect Ratio 16:9
Screen Size 86 in
Viewable screen size 85.6 "
Screen Width 1895 mm
Screen Height 1066 mm
Screen technology VA
Screen Construction Flat
Colours 1.07 billion, 10-bit
Pixel Pitch 0.494 mm
Brightness 450 Lumens
View Angle (Horizontal - Max) 178 °
View Angle (Vertical - Max) 178 °
Contrast Ratio 4,000:1
Contrast Ratio - Dynamic 5,000:1
Resolution (Native) 3840 x 2160
Resolution Type (Native) 4K Ultra HD
Response time 6.5 ms
Backlight Yes
HD Support Yes
Aspect Ratio 16:9
3D Display No
Horizontal Frequency 30 ~ 135 kHz
Vertical Frequency 60 Hz

Physical

Display Type PureTouch-IR+
Form Factor Large Format Display
Case Colour Black

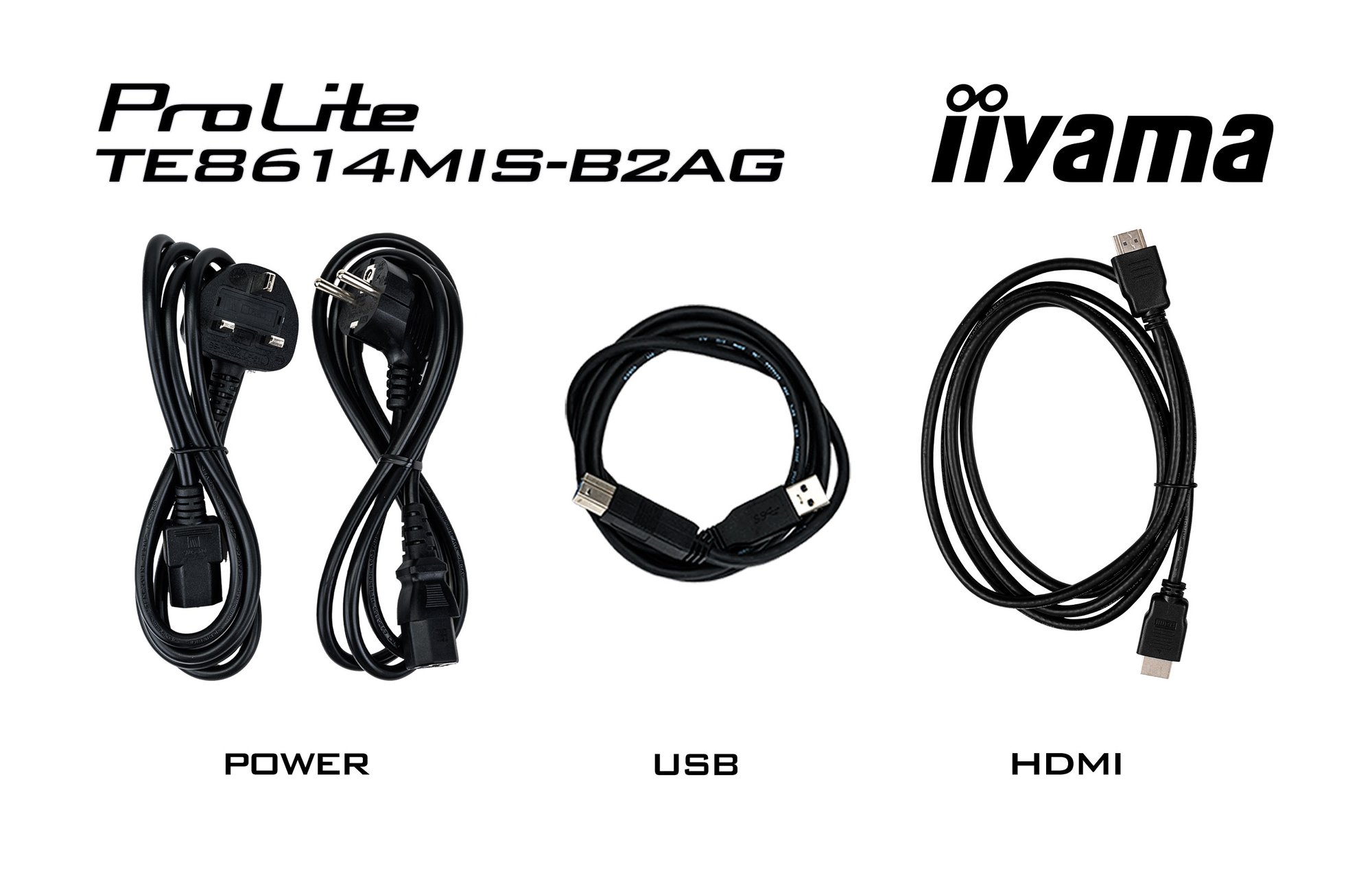

In The Box Display
Power Cable
USB Cable
HDMI Cable
4 x Touch Pens
Quick Start Guide
Safety Guide
Wi-Fi 6 Module
NUC Mounting Bracket
Webcam Mounting Bracket

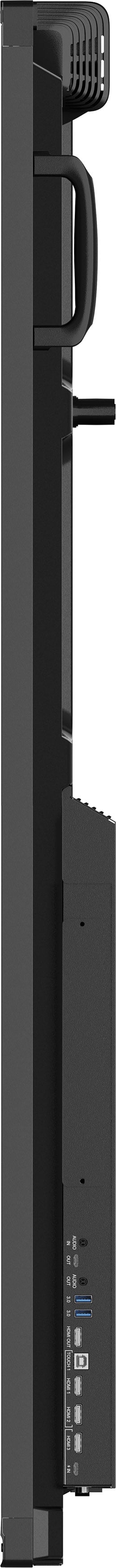

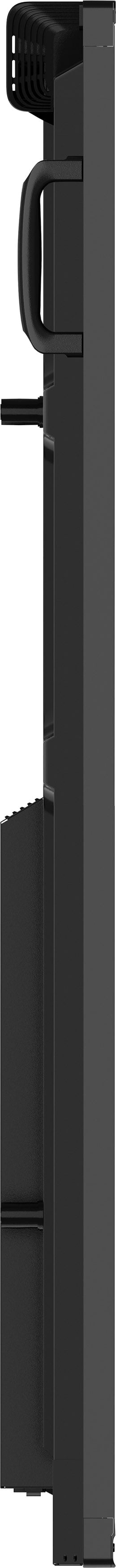

Width 1957 mm
Depth 86 mm
Height 1171 mm
Weight 63.6 kg

Mount

Wall Mountable Yes
Wall Mount VESA 800 x 600 mm
Tilt (Forward/Backward) No
Swivel (Left/Right) No
Height Adjustable No
Pivot (Rotation) No

Camera

Webcam No

Remote

Remote Control Yes

Warranty

Warranty 3 Years

CPU

Processor Number A76+A55
CPU Speed 2.4 GHz

Memory

Memory Size 8 GB

Sound

Speakers Yes - 2 x 18W, 2 x 8W

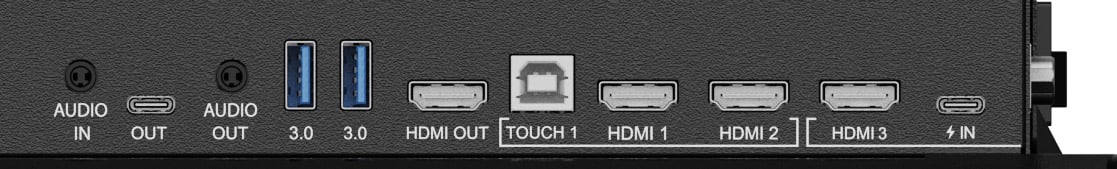

Interfaces/Ports

Audio Line Out Ports 1 x 3.5mm Jack
USB Ports 2 x USB-C (DP Alt)
2 x USB-C 3.0 downstream
4 x USB 3.0 downstream
Audio Line In Ports 1 x 3.5mm Jack
Serial Ports 1 x RS-232c
AC Power 1 x AC in
HDMI Ports 4 x HDMI 2.0
DisplayPort In 1 x DisplayPort 2.1
Digital Out 1 x HDMI 2.0
1 x USB-C
RJ-45 Ports 2 x RJ-45 (in/out)
1 x RJ-45 LAN Control
Infrared Port 1 x IR

Network (Wired)

Network Card Yes
Network Card Data Link Protocol Ethernet
Network Card Speeds Up to 1 Gbps

Network (Wireless)

Bluetooth Yes
Wireless System Yes
RF Network Standard Wi-Fi 6

System

Language Selection EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Plug and Play DDC2B
Software Included (may be trial or restricted) iiWare 12E

Electrical

Electrical Power Consumption 267 W
Electrical Power Consumption Standby 0.5 W
Voltage 100 ~ 240 V
Electrical Frequency 50 ~ 60 Hz
Power Adaptor Type Internal
Power Supply Yes
Energy Rating G

Environmental

Operating Temperature 0 ~ 40 °C

Key Features

Power Source Mains Powered
Gaming No
Projection Aspect Ratio 16:9
Screen Type 4K (2160p)
Curved Display No
Thunderbolt Connection No
HDR Support No
Built-in USB Hub USB 3.0
Refresh Rate 60 Hz
USB-C Connection Yes
VESA Mountable Yes
Main Colour Black
Built-in Speakers Yes
Hard Glass Coating Yes
VGA Connection No
DVI Connection No
HDMI Connection Yes
Touchscreen Yes
Panel Technology VA
3D Ready No

Item Details

Manufacturer iiyama
Manufacturer Code TE8614MIS-B2AG
EAN 4948570124046
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer iiyama
Manufacturer Code TE8614MIS-B2AG
