StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K

CCL Code: KVM0257

Sold out

Notify Me

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K

SV431DPU3A2

Key Features:

  • No software or drivers required
CCL Code: KVM0257

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of  disconnecting and reconnecting your peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Main Features

  • Easily share peripheral devices using the built-in USB 3.0 hub
  • Astonishing picture quality with support for Ultra HD 4K resolutions
  • Full multimedia control with separate 3.5 mm auxiliary support
  • No software or drivers required
  • Independent HID keyboard and mouse ports
Specifications

Interfaces/Ports

Video In Ports 4 x DisplayPort (20 pin) Female Input
Video Out 1 x DisplayPort (20-pin) Female Output
Console Audio Port 1 - 3.5 mm Mini-Jack (3 Position) Female Output • 4 - 3.5 mm Mini-Jack (3 Position) Female Input
PC USB Port(s) 4 - USB Type-A (9 pin) USB 3.0 Female • 4 - USB Type-B (9 pin) USB 3.0 Female • 3 - USB Type-A (9 pin) USB 3.0 Female

Warranty

Warranty 2 Years Warranty

Electrical

Electrical Voltage 100 to 240 VAC

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 0 to 80 %

Physical

Form Factor KVM Switch

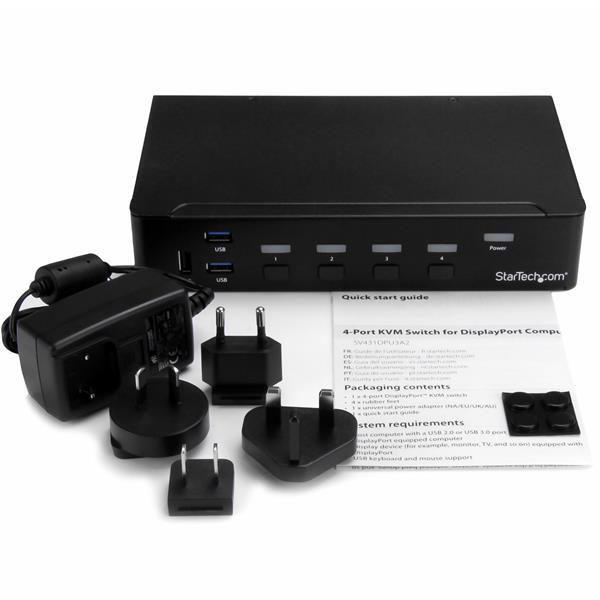

In The Box 1 - 4-port DisplayPort KVM switch • 4 - rubber feet • 1 - universal power adaptor (NA/EU/UK/AU) • 1 - quick start guide
Width 13.0 cm
Depth 22.0 cm
Height 4.3 cm
Weight 1.062 kg
LED Status Indicators 4 - port selection/link LEDs • 1 - power LED

Item Details

Manufacturer StarTech.com
Manufacturer Code SV431DPU3A2
EAN 0065030863728
UPC 065030863728
Condition New
Warranty

Warranty Information

Warranty 2 Years Warranty

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code SV431DPU3A2
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Manual pdf 0.85MB
Manual pdf 0.33MB
Datasheet pdf 0.20MB
