Sparkle Arc B570 GUARDIAN OC 10GB GDDR6 Graphics Card

Sparkle Arc B570 GUARDIAN OC 10GB GDDR6 Graphics Card

CCL Code: VGA7180

£249.99 inc VAT

Sparkle Arc B570 GUARDIAN OC 10GB GDDR6 Graphics Card

SB570G-10GOC

£249.99 inc VAT

Available for delivery from Thursday 16th January

or Click & Collect from Thursday 16th January

Buying in bulk? Contact our business team.

Key Features:

  • 10GB GDDR6 Graphics Memory
  • PCI Express 4.0 x8 Interface
  • Overclocked Edition

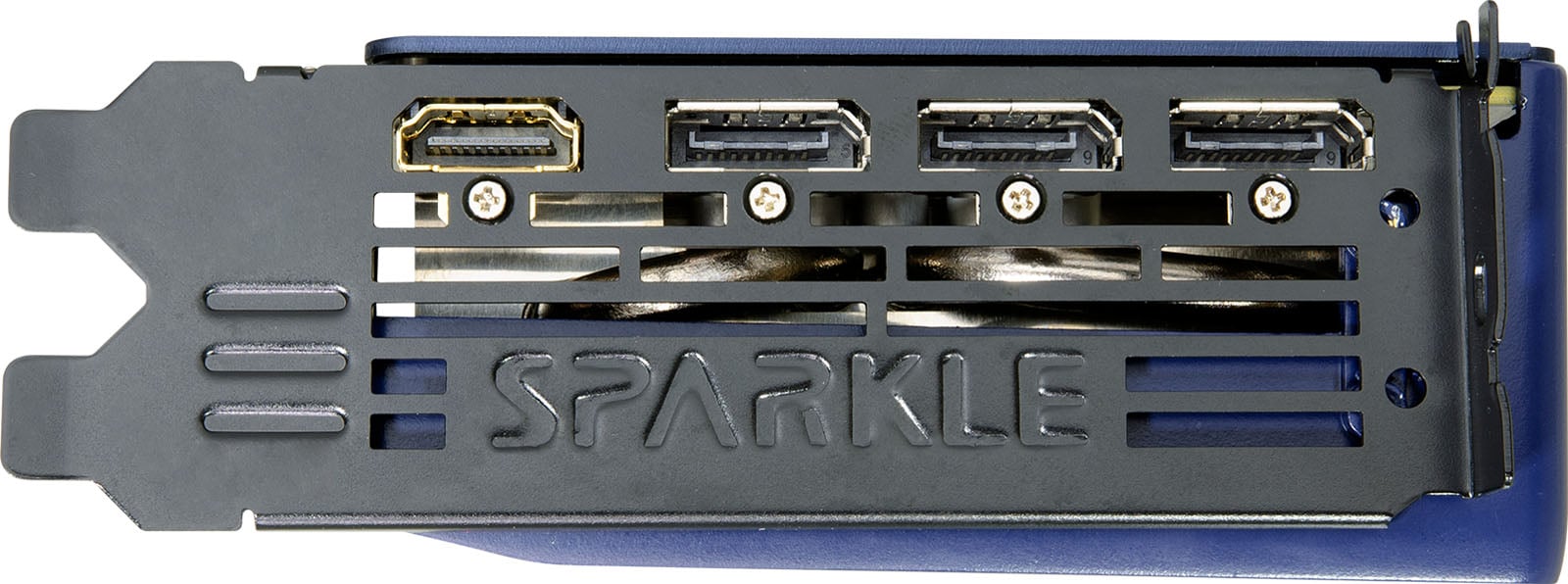

  • Outputs - HDMI and Display Port
CCL Code: VGA7180
Overview

The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground.

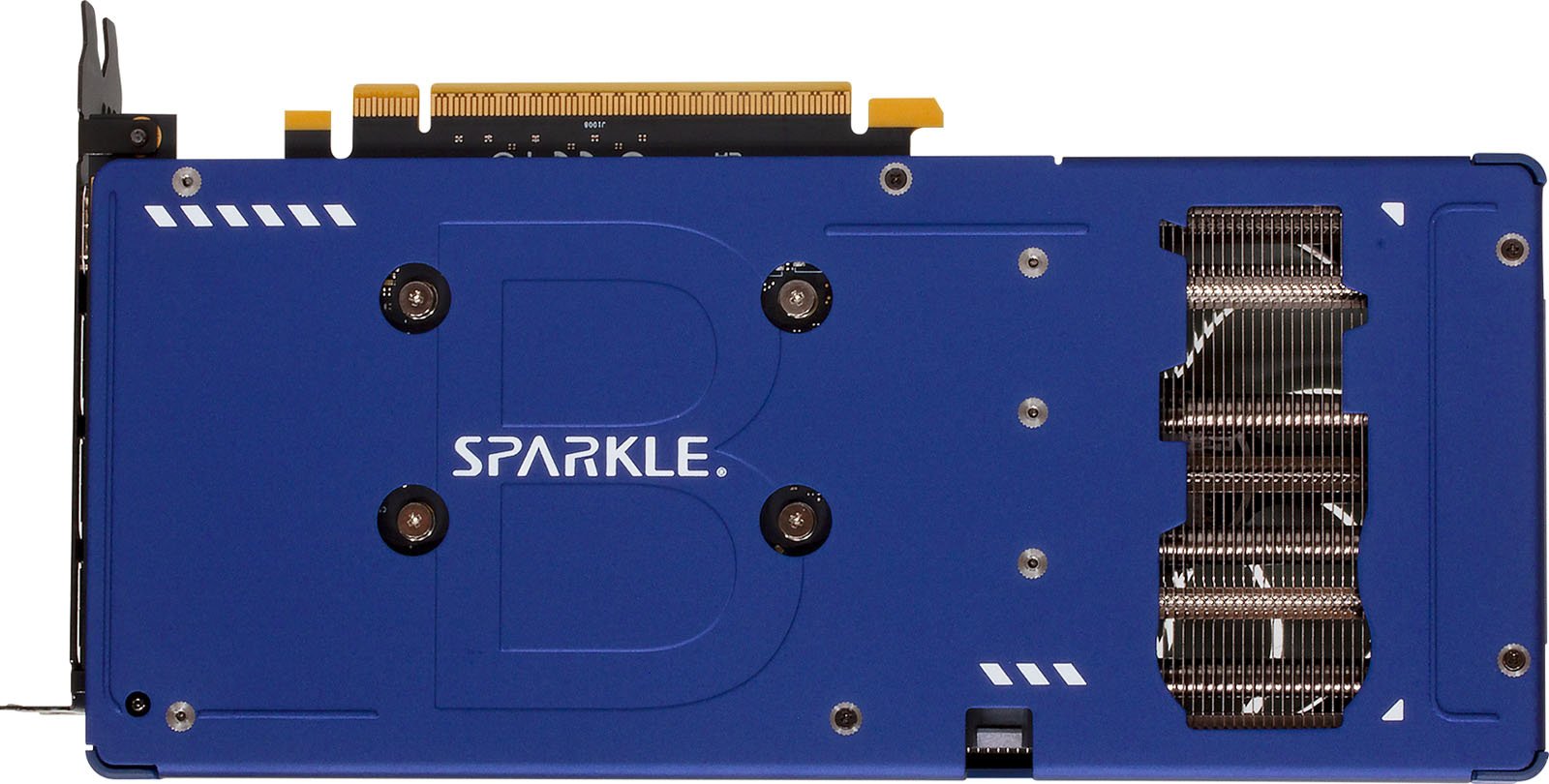

GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.

Specifications

GPU

Chipset Manufacturer Intel
Chipset Model Name Arc
Chipset Model Number B570
Chipset Additional Information GUARDIAN OC
Boost Chip Clock 2660 MHz
Number of Cores 144
Graphics Core XMX

Memory

Memory Size 10240 MB
Memory Type GDDR6
Memory Width 160 bit
Memory Bandwidth 380 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x8
HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 2.1

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot

Electrical

Power Connector 1 x 8-pin PCIe
Power Consumption 170 W
Recomended Power Supply 600 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Width 44 mm (2.2 slot)
Depth 242 mm
Height 105 m
Weight 796 g

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x8
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR6
Main Colour Blue
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
PCIe Pin Type 6+2-Pin
FreeSync Yes
Cooling Technology Dynamic Fan Inc. 0dB Mode
GPU Length 242 mm
Card Width 3
Power Requirement (auto) 170 W
GPU Power (TDP) 170 W
Graphics card count 1
PCI Express Power Pins (female) 8
PCIe Physical Slot required 16
12VHPWR 16-pin Connector No

Graphics

Graphics Chipset Intel Arc B570

Item Details

Manufacturer SPARKLE
Manufacturer Code SB570G-10GOC
EAN 4711342290856
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer SPARKLE
Manufacturer Code SB570G-10GOC
