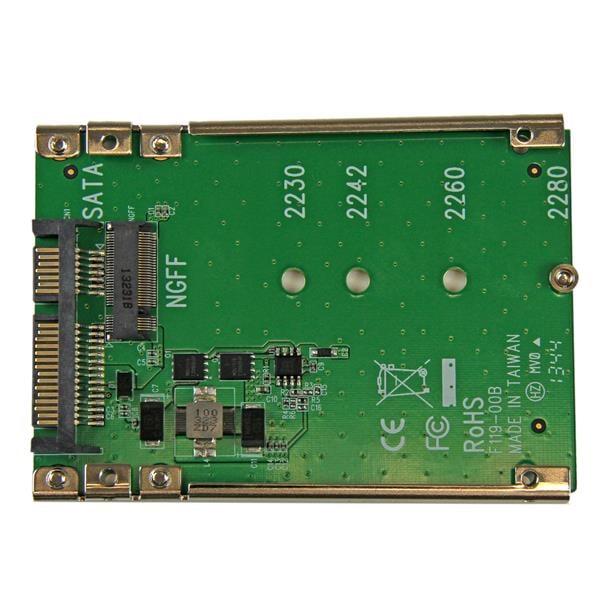

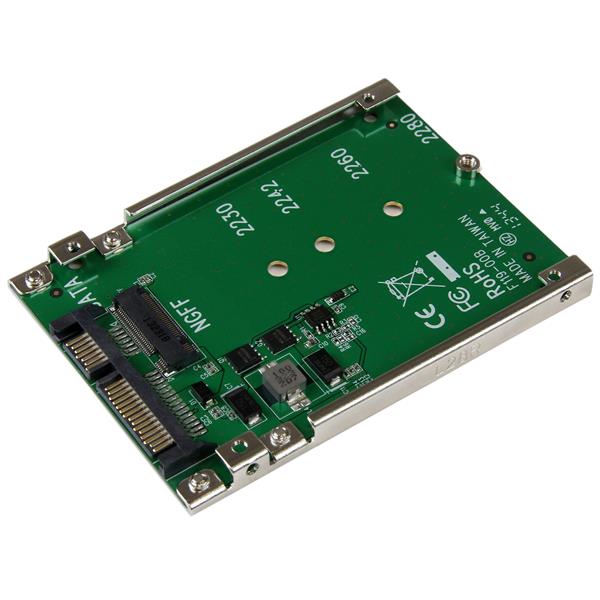

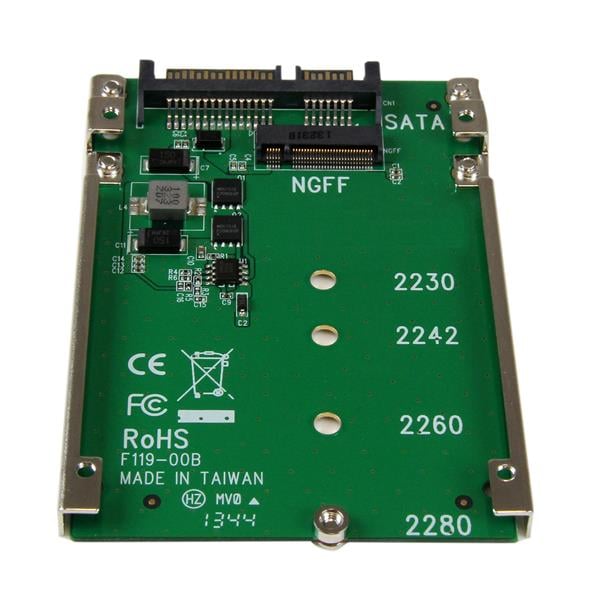

StarTech.com M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter

StarTech.com M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter

CCL Code: CNT0294

Sold out

Notify Me

StarTech.com M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter

SAT32M225

Key Features:

  • Open-frame steel mounting bracket
  • 2.5in SATA form factor housing
CCL Code: CNT0294

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Vastly increase system performance by adding the speed of an M.2 SSD (Next Generation Form Factor) in any 2.5 SATA application, with the SAT32M225 M.2 SSD to SATA adapter. Utilize the full potential of your SATA III controller, with an M.2 SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. M.2 SSDs can also save you money by reducing your power consumption over regular platter drives. Help protect the health of your drive with an open-frame design that maximizes heat dissipation.

Main Features

  • Open-frame steel mounting bracket
  • Supports 7mm or larger 2.5 SATA bays
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • 2.5in SATA form factor housing
  • Supports full length M.2 NGFF (Next Generation Form Factor) SSD Solid State Drives (2230, 2242, 2260, 2280)
Specifications

Interfaces/Ports

Convert From 1 - M.2 (NGFF) Receptacle
Convert To 1 - SATA Data & Power Combo (7+15 pin) Receptacle

System Requirements

Operating Systems Supported Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Server 2012/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit) • Mac OS X • Linux

Environmental

Operating Temperature -40 to 85 °C

Physical

Form Factor Converter Adaptor

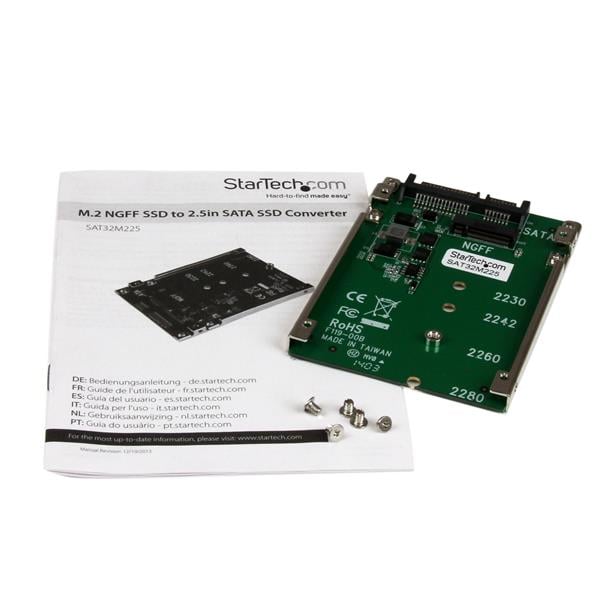

In The Box 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter • 1 - Mounting screw kit • 1 - Installation manual
Width 7.0 cm
Depth 10.0 cm
Height 0.7 cm
Weight 0.40 kg

Warranty

Warranty 2 Years

Item Details

Manufacturer StarTech.com
Manufacturer Code SAT32M225
EAN 0065030855600
UPC 065030855600
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code SAT32M225
