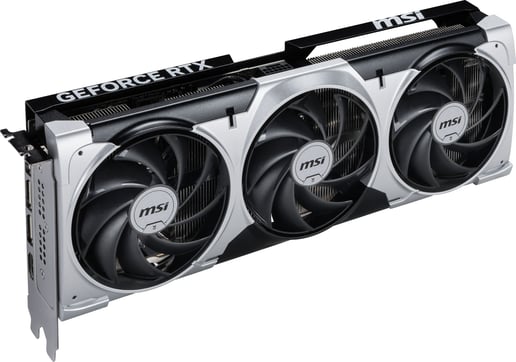

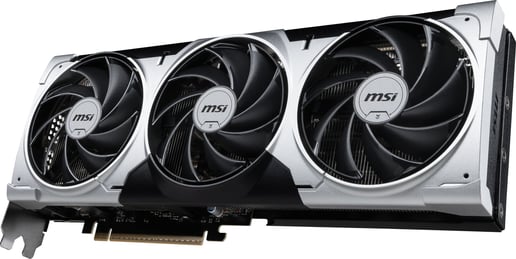

MSI GeForce RTX 5080 VENTUS 3X PLUS OC 16GB GDDR7 Graphics Card

MSI GeForce RTX 5080 VENTUS 3X PLUS OC 16GB GDDR7 Graphics Card

CCL Code: VGA7208

Coming soon

Notify Me

MSI GeForce RTX 5080 VENTUS 3X PLUS OC 16GB GDDR7 Graphics Card

RTX 5080 16G VENTUS 3X OC PLUS

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA7208

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Main Features

  • Powered by NVIDIA Blackwell.
  • SFF-Ready Enthusiast GeForce Card

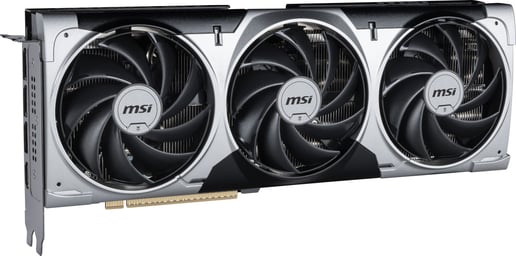

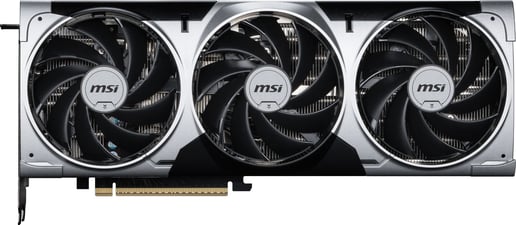

  • TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
  • Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
  • Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

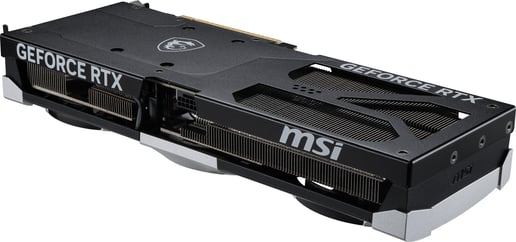

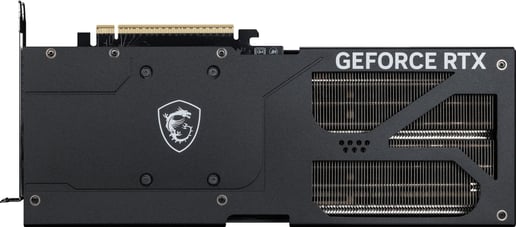

  • Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
  • MSI Center software gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
  • Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5080
Chipset Additional Information VENTUS 3X PLUS OC
Base Chip Clock 2295 MHz
Number of Cores 10752
Graphics Core CUDA

Memory

Memory Size 16384 MB
Memory Clock 30 Gbps
Memory Type GDDR7
Memory Width 256 bit
Memory Bandwidth 960 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16

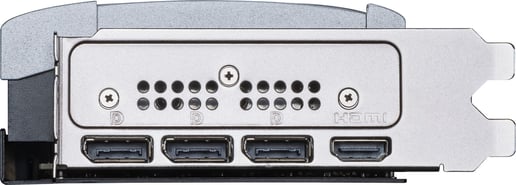

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6
Power Consumption 360 W
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Width 49 mm (2.5 slot)
Depth 303 mm
Height 121 mm
Weight 1.105 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5080
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 303 mm
Card Width 3
Power Requirement (auto) 360 W
GPU Power (TDP) 360 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5080

Graphics Device

G-Sync Yes

Item Details

Manufacturer MSI
Manufacturer Code RTX 5080 16G VENTUS 3X OC PLUS
EAN 4711377292528
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 5080 16G VENTUS 3X OC PLUS
Reviews
No reviews have been received for this product yet
