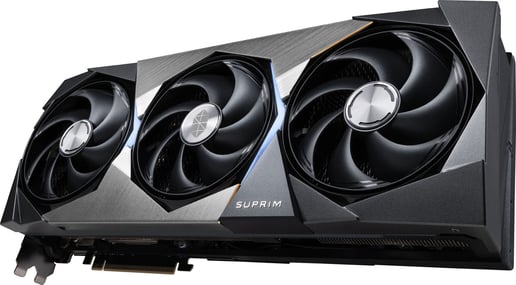

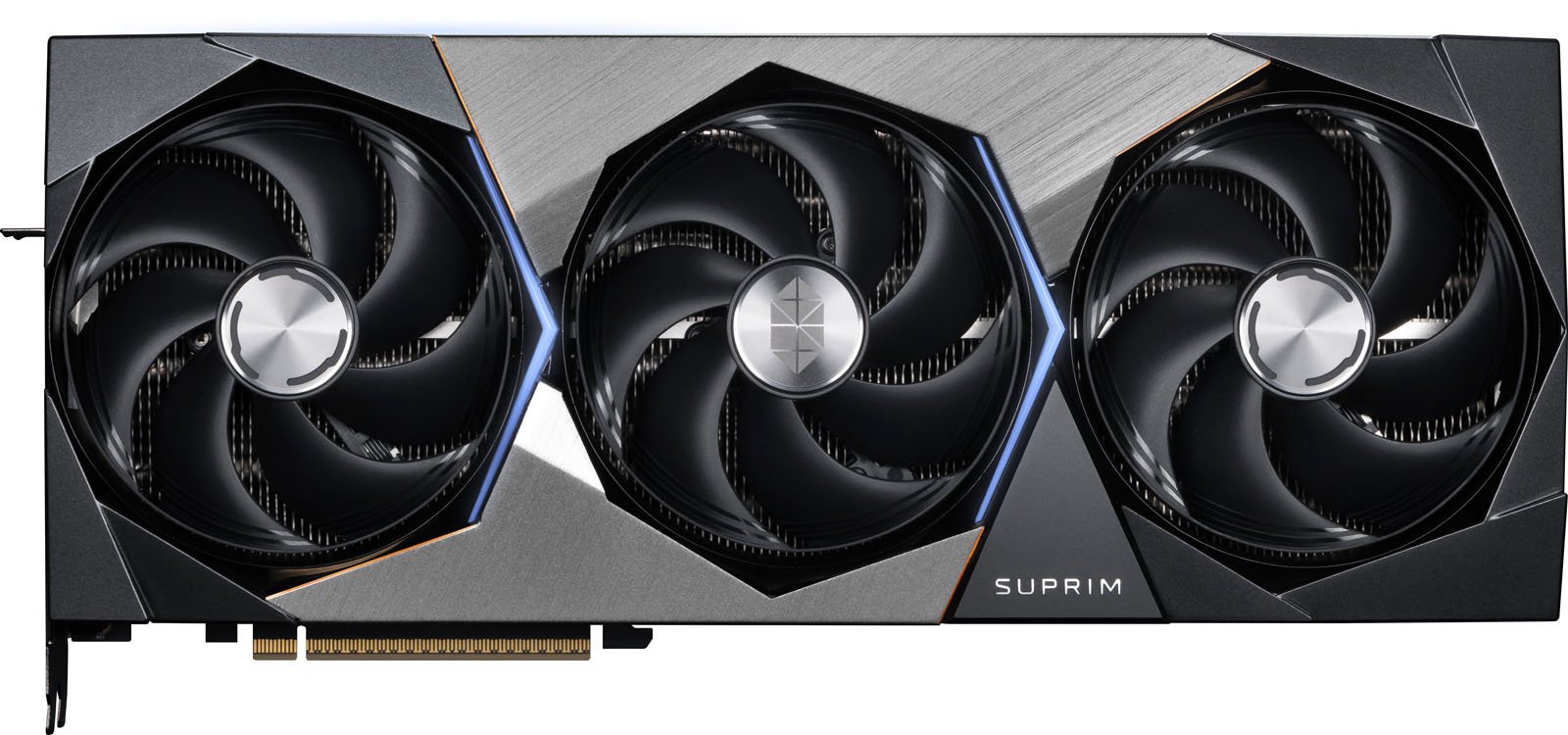

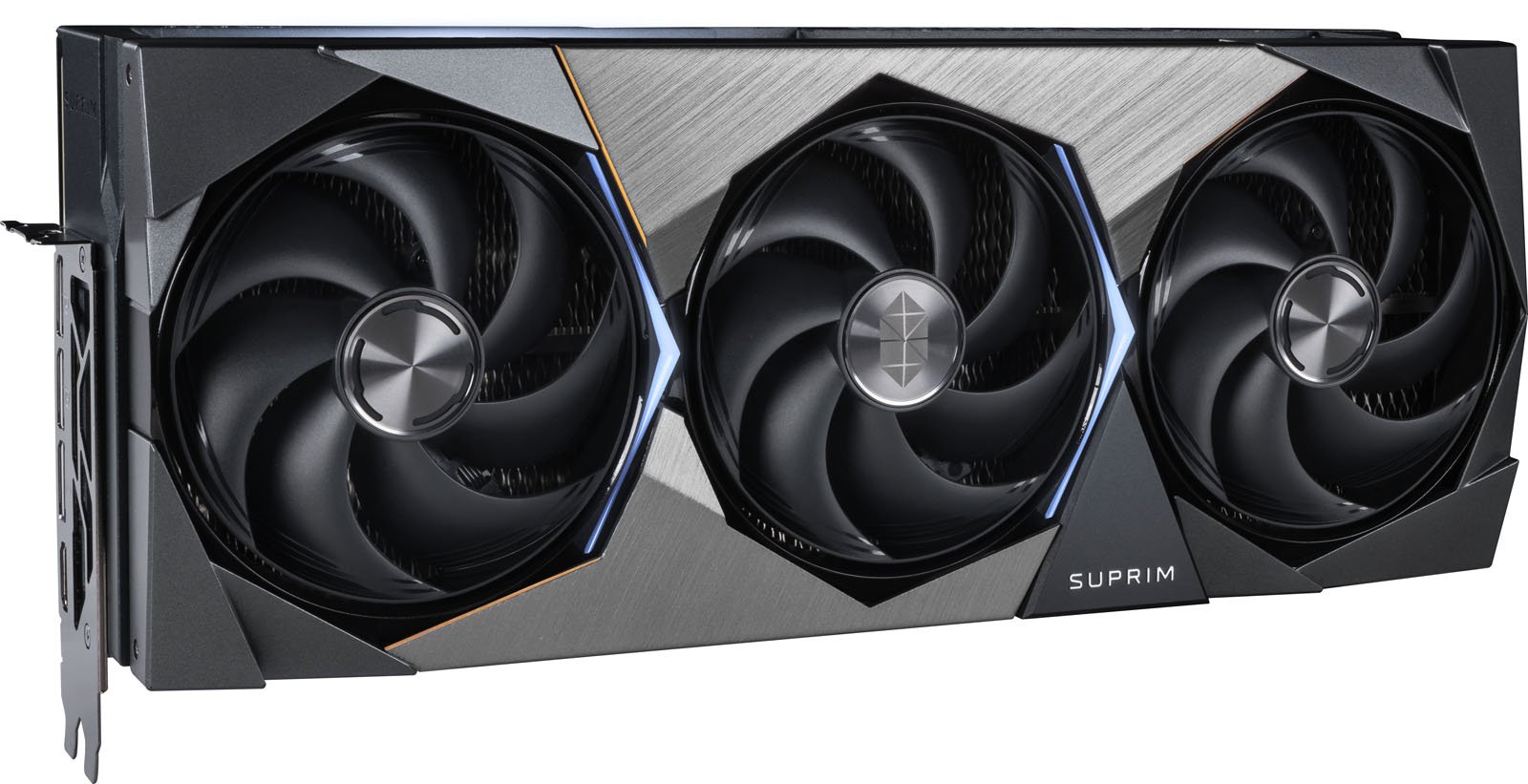

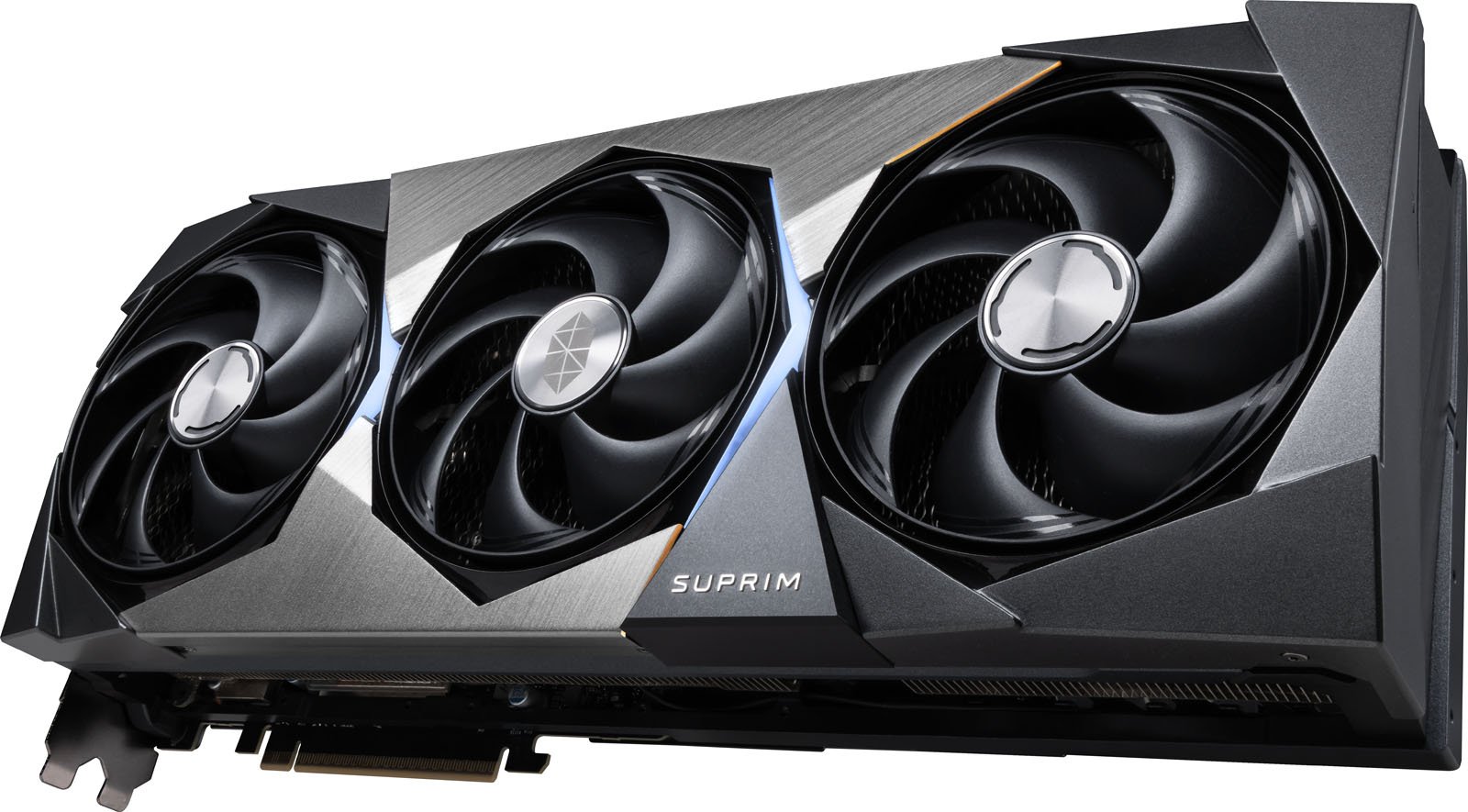

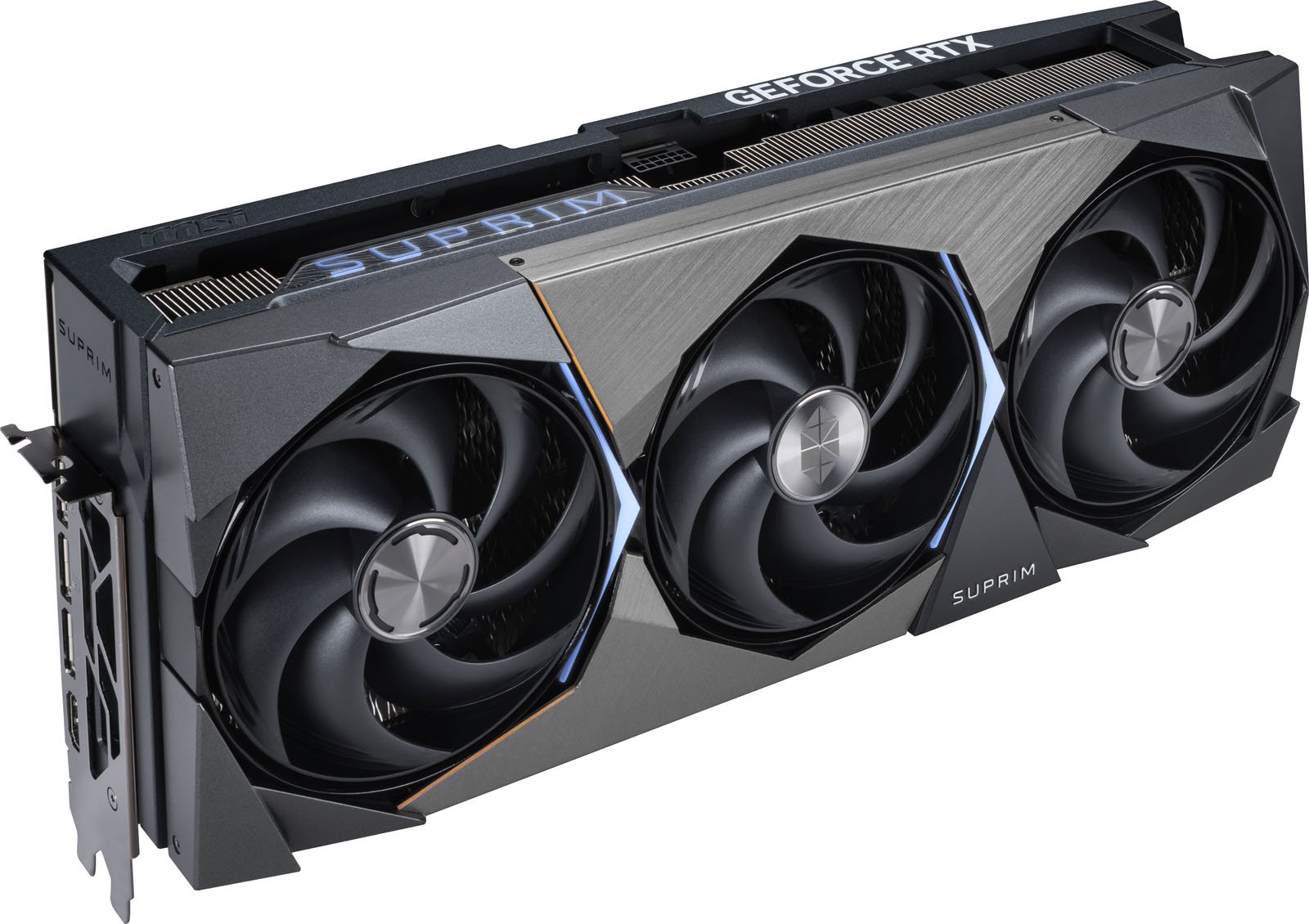

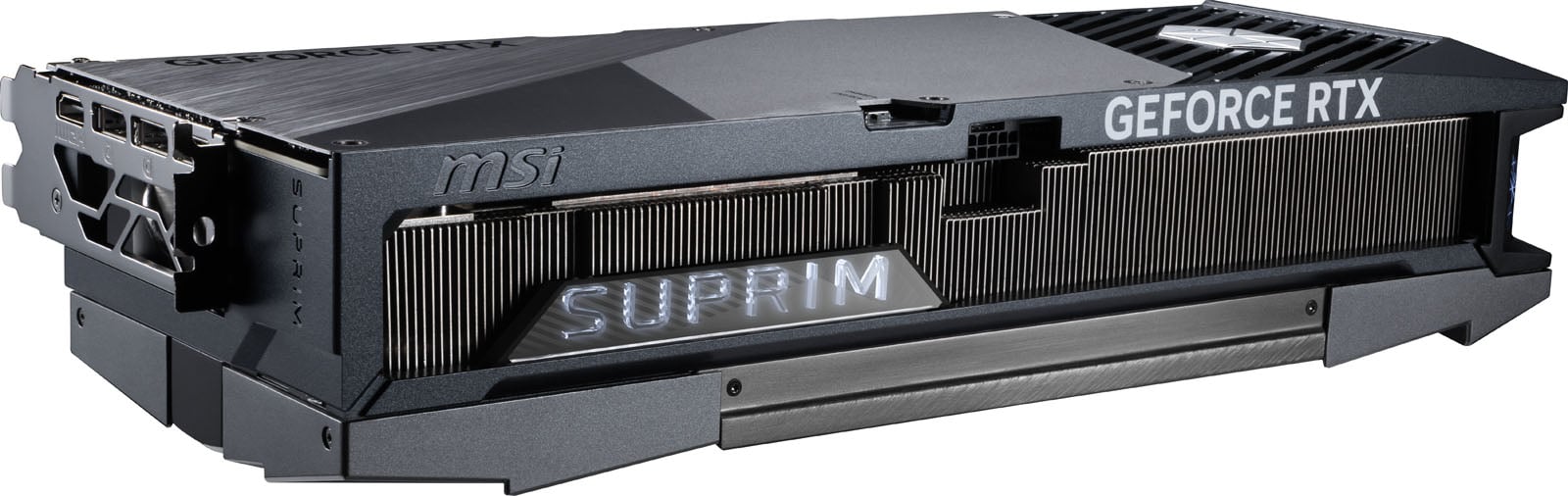

MSI GeForce RTX 5080 SUPRIM SOC 16GB GDDR7 Graphics Card

MSI GeForce RTX 5080 SUPRIM SOC 16GB GDDR7 Graphics Card

CCL Code: VGA7207

Coming soon

Notify Me

MSI GeForce RTX 5080 SUPRIM SOC 16GB GDDR7 Graphics Card

RTX 5080 16G SUPRIM SOC

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Outputs - HDMI and Display Port
CCL Code: VGA7207

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Unleash extraordinary performance with the MSI SUPRIM graphics card—crafted with premium design and materials. Push the boundaries with stunning aesthetics and exceptional cooling. Take your gaming to the next level with unparalleled precision and sophistication.

Main Features

  • Powered by NVIDIA Blackwell.
  • HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.
  • STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
  • Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
  • Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
  • Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
  • Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
  • Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

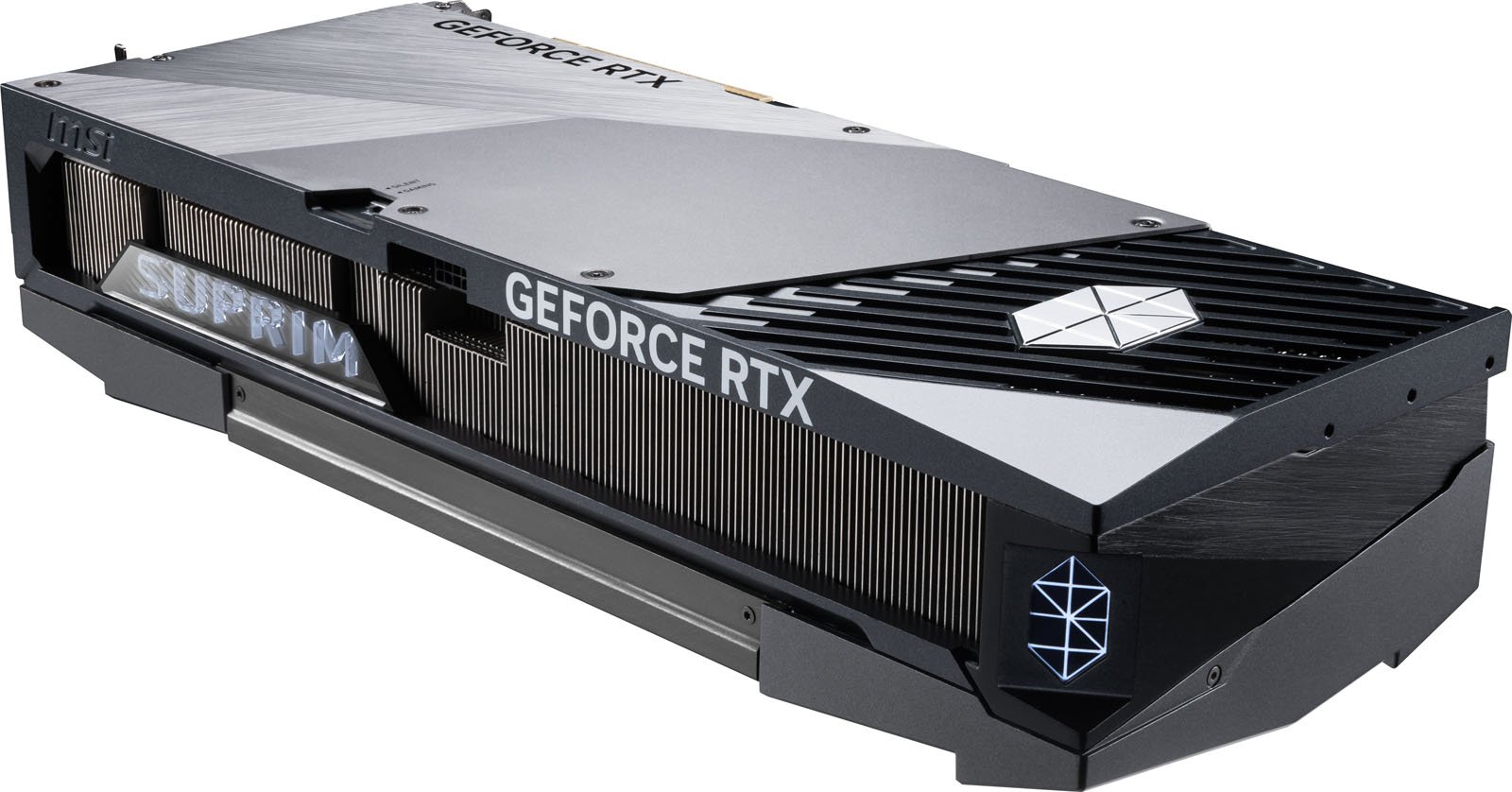

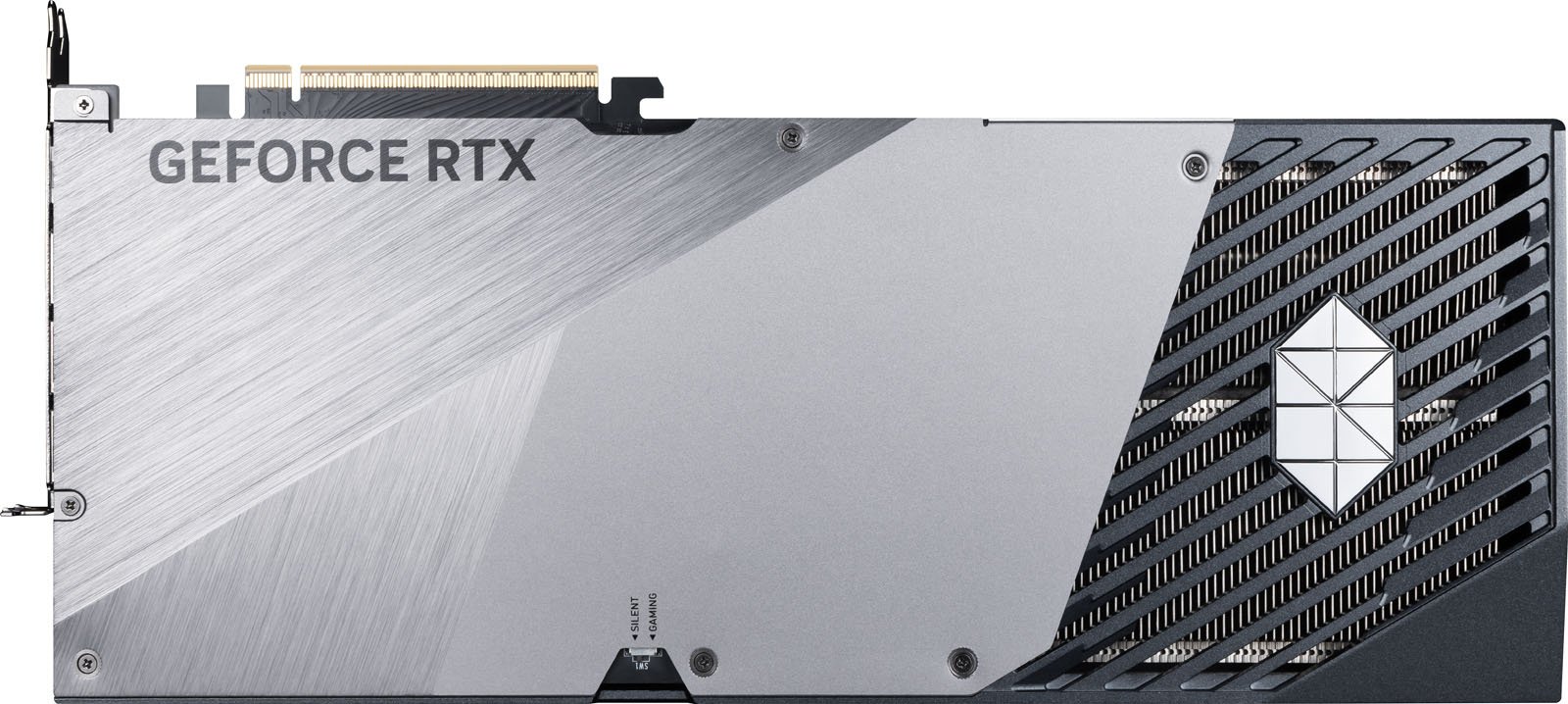

  • Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
  • Dual BIOS: Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
  • MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
  • Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5080
Chipset Additional Information SUPRIM SOC
Base Chip Clock 2295 MHz
Number of Cores 10752
Graphics Core CUDA

Memory

Memory Size 16384 MB
Memory Clock 30 Gbps
Memory Type GDDR7
Memory Width 256 bit
Memory Bandwidth 960 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16

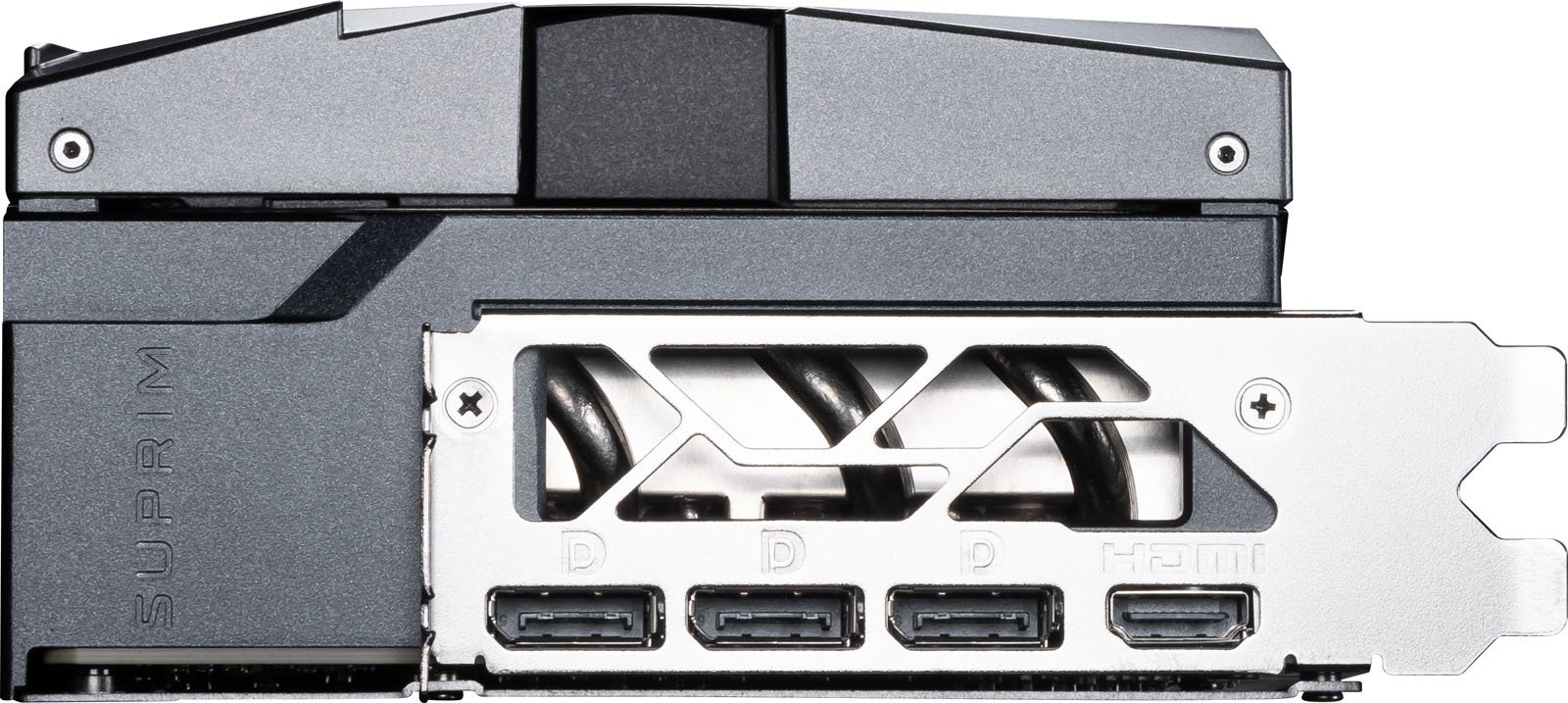

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 or 3 x 8-pin PCIe
Power Consumption 360 W
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card

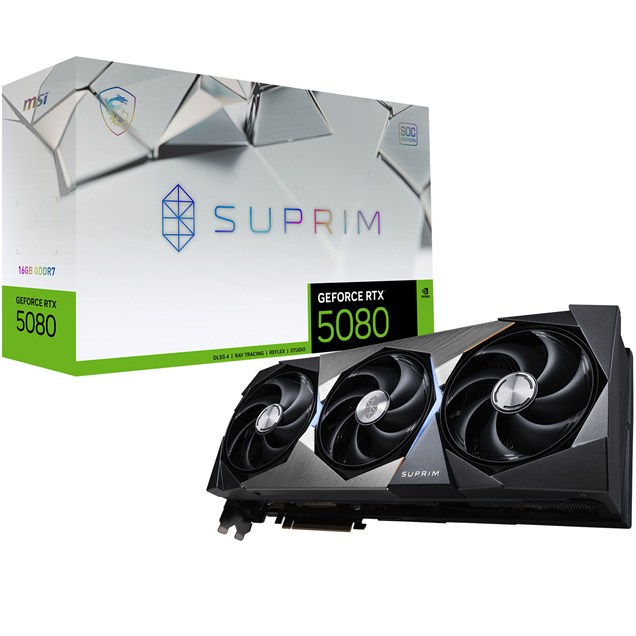

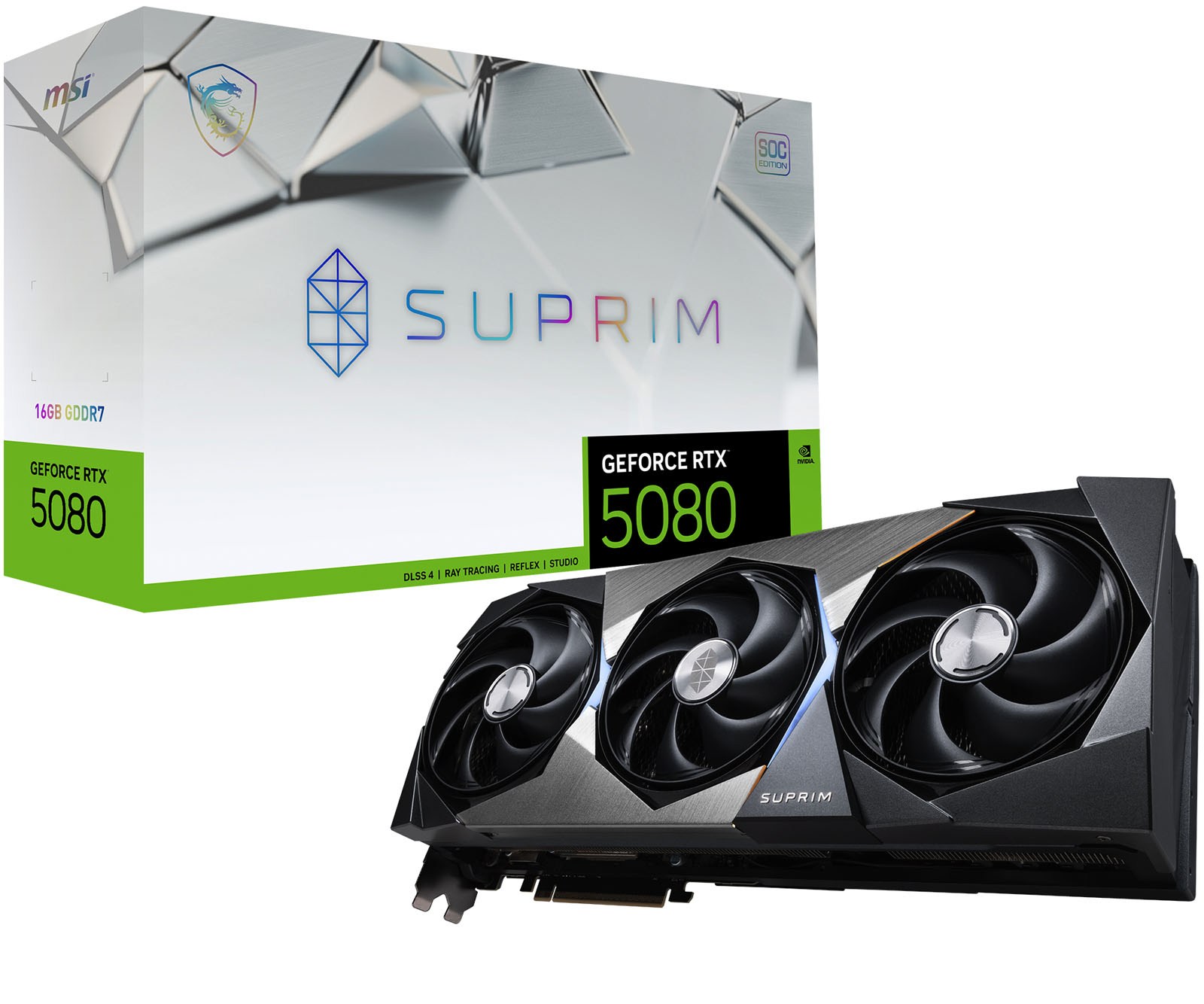

In The Box Graphics Card
1 x 12V-2x6 to 3 x 8-pin PCIe Adapter
VGA Holder
Width 76 mm (3.5 slot)
Depth 359 mm
Height 150 mm
Weight 2.614 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5080
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 359 mm
Card Width 4
Power Requirement (auto) 360 W
GPU Power (TDP) 360 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5080

Graphics Device

G-Sync Yes

Item Details

Manufacturer MSI
Manufacturer Code RTX 5080 16G SUPRIM SOC
EAN 4711377292238
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 5080 16G SUPRIM SOC
Reviews
No reviews have been received for this product yet
