Name: MSI PRO X870-P WIFI ATX Motherboard for AMD AM5 CPUs
Brand: MSI
SKU: MBD3717
Price: 262.99 GBP
Availability: InStock

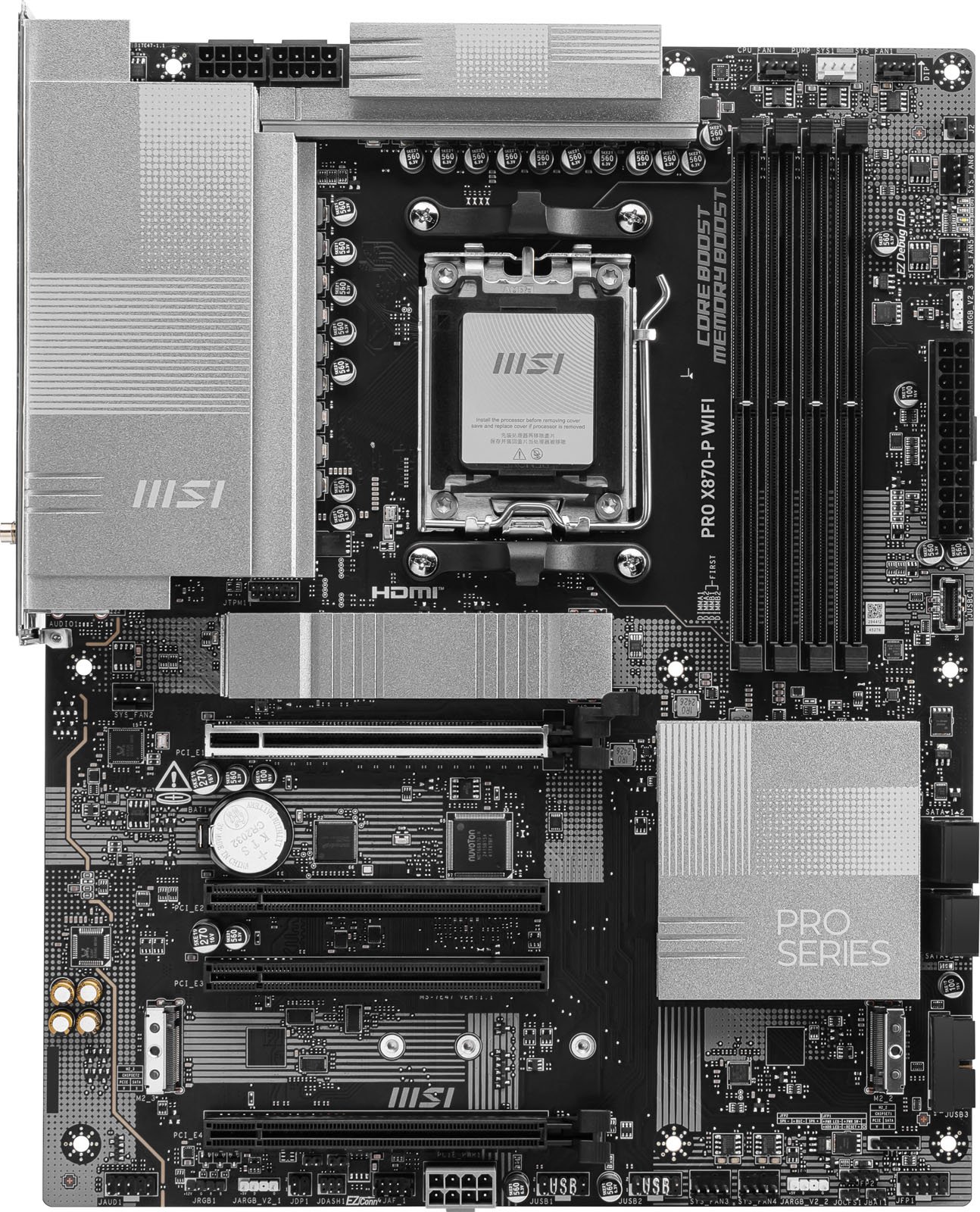

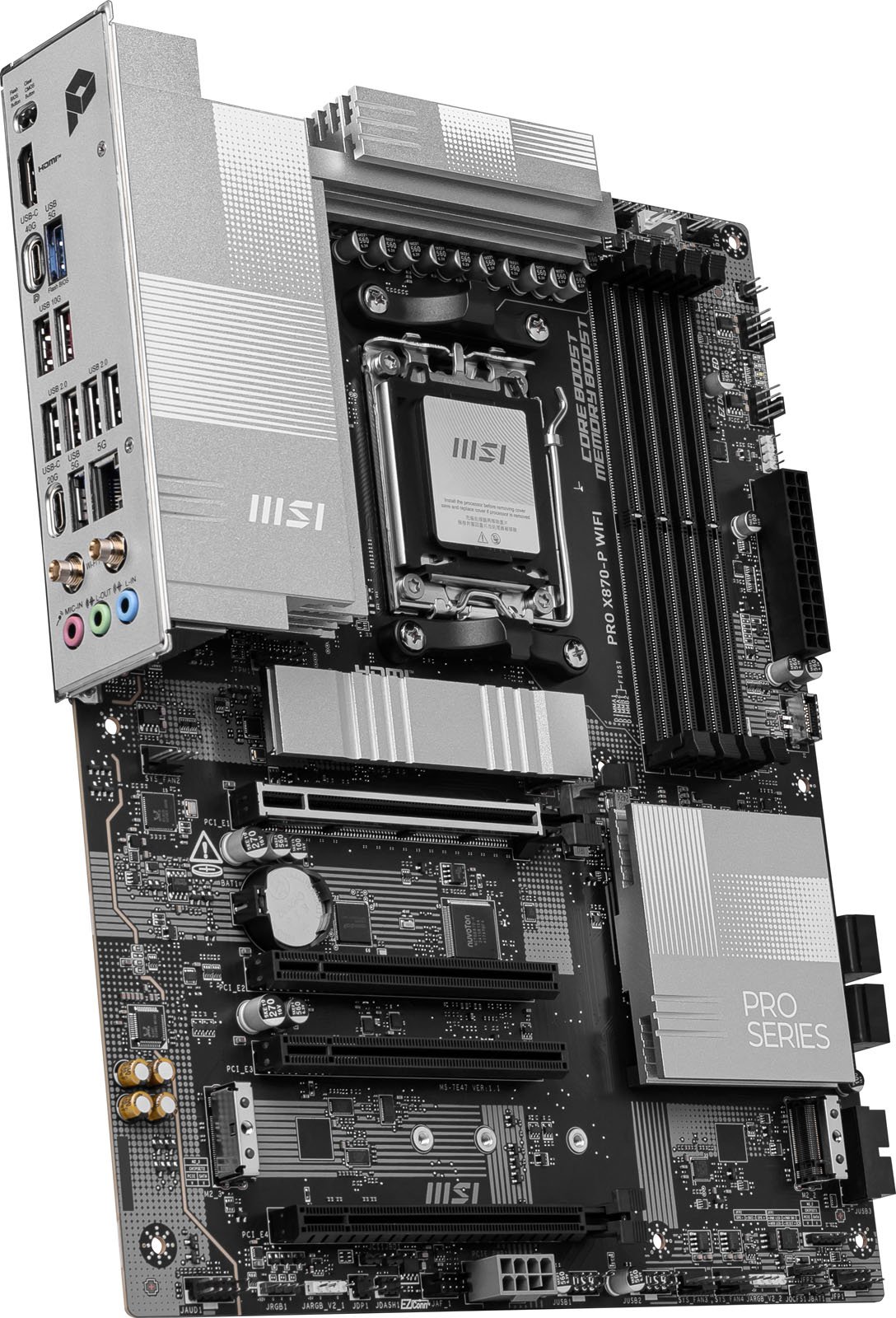

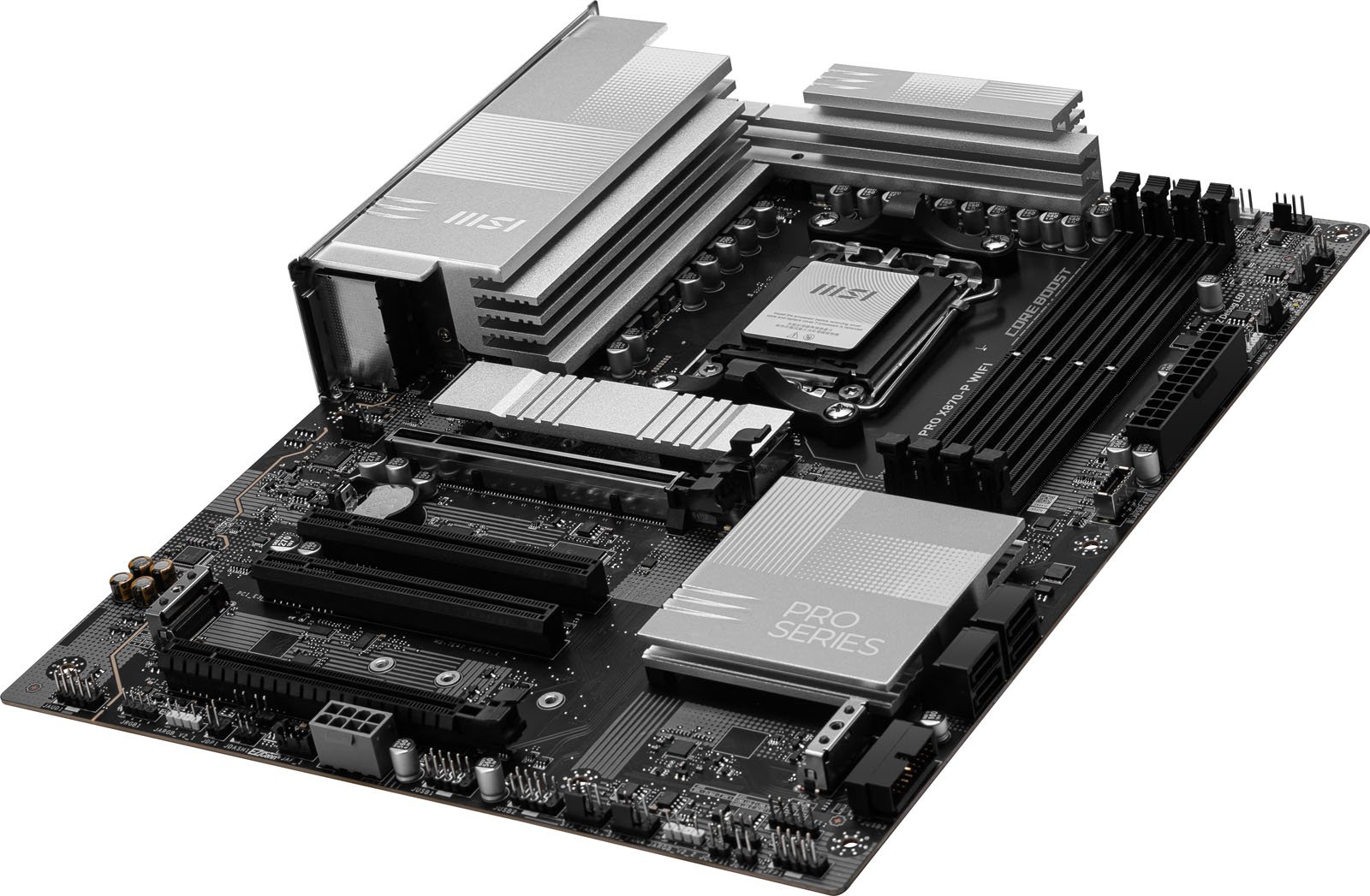

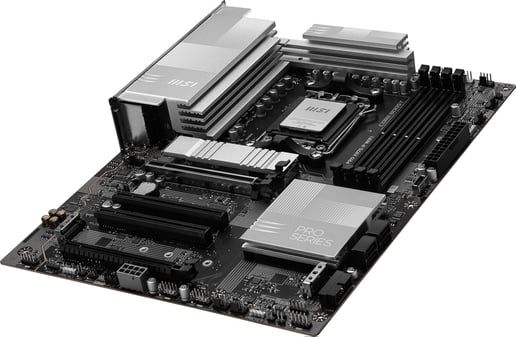

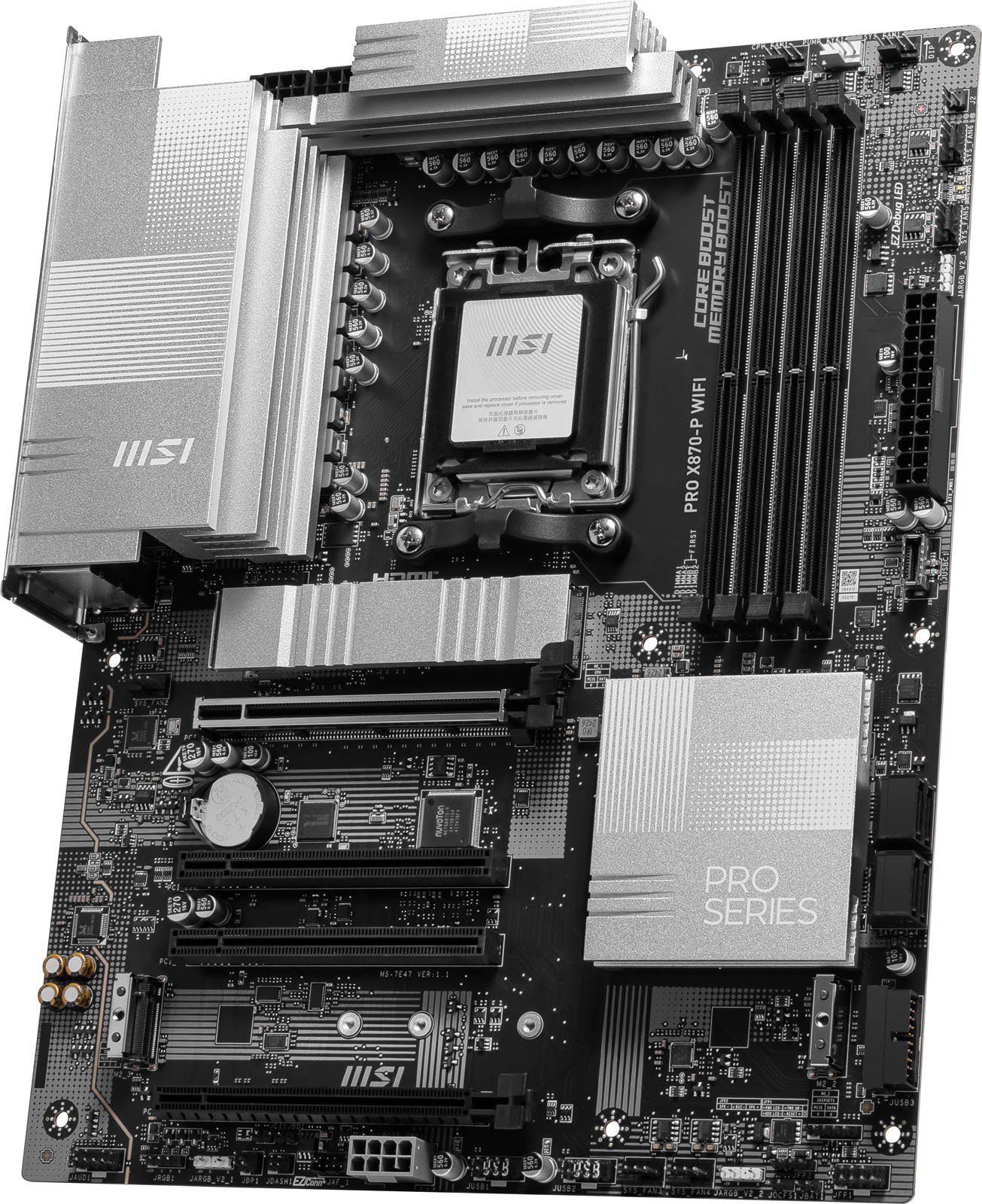

MSI PRO X870-P WIFI ATX Motherboard for AMD AM5 CPUs

Compare

PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

£262.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
AMD X870 Chipset
Socket AM5
3 x M.2 & 10 x USB & 4 x SATA
HDMI

CCL Code: MBD3717

Overview

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

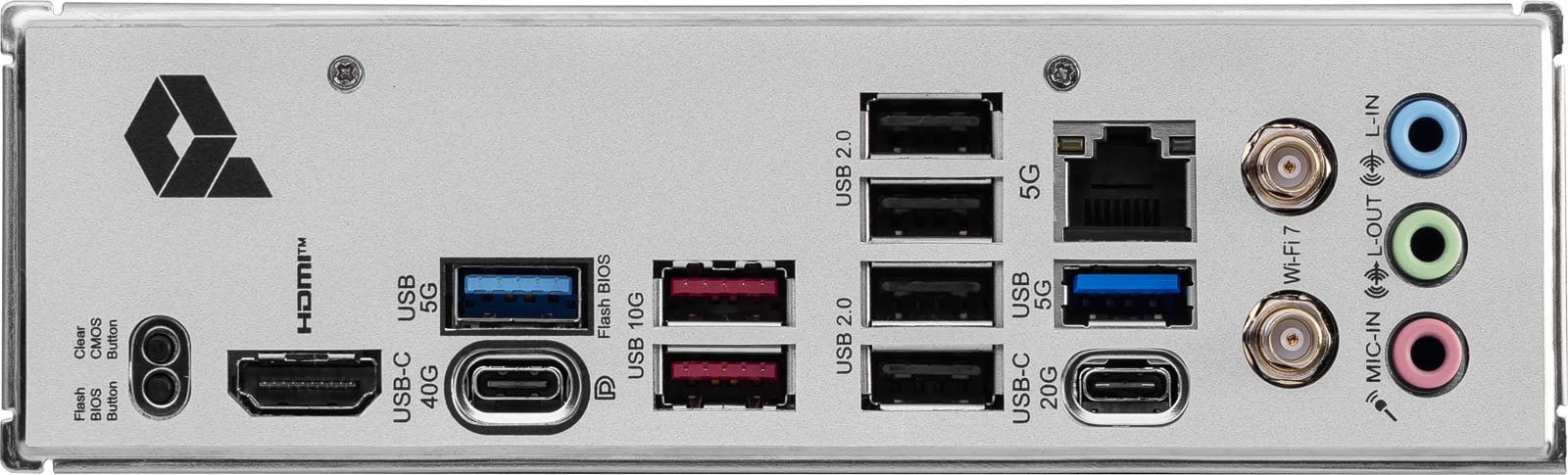

Rear Panel I/O Ports

USB Ports	1 x USB-C 4 1 x USB-C 3.2 2 x USB 3.1 2 x USB 3.0 4 x USB 2.0
DisplayPorts	Yes via USB-C
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Combo fan header 6 x System fan headers
Thunderbolt Port(s)	2 x Thunderbolt5 card connectors (JTBT5, support RTD3)
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS 1 x 8-pin PCIe
Other Connectors	1 x M.2 slot, Type 2280/2260 (PCIe Gen5) 1 x M.2 slot, Type 22110/2280 (PCIe Gen4) 1 x M.2 slot, Type 2280/2260 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Memory Bus Speed	Up to 8200 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD X870
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Realtek 8126VB
Network Speeds Supported	Up to 5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

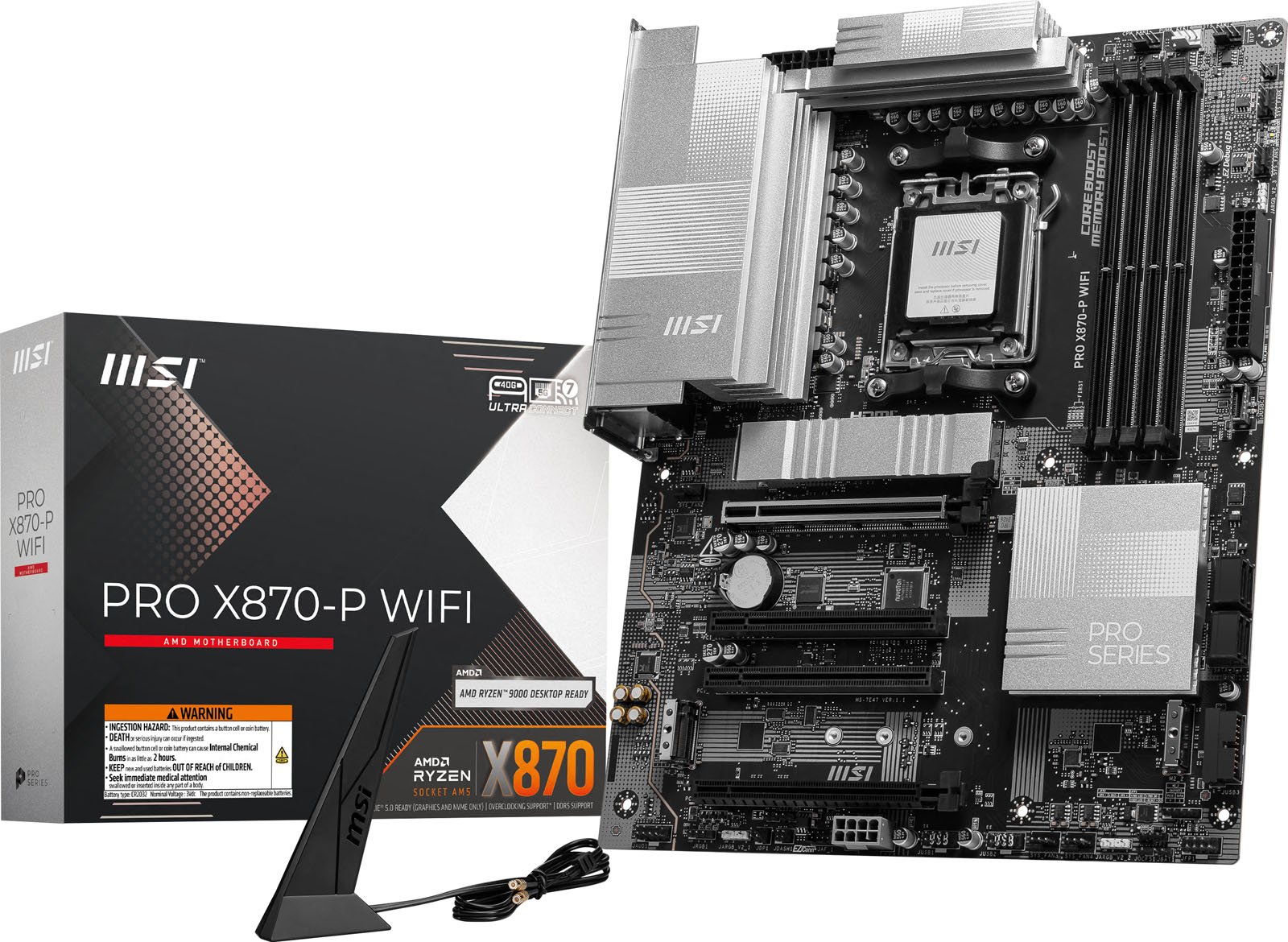

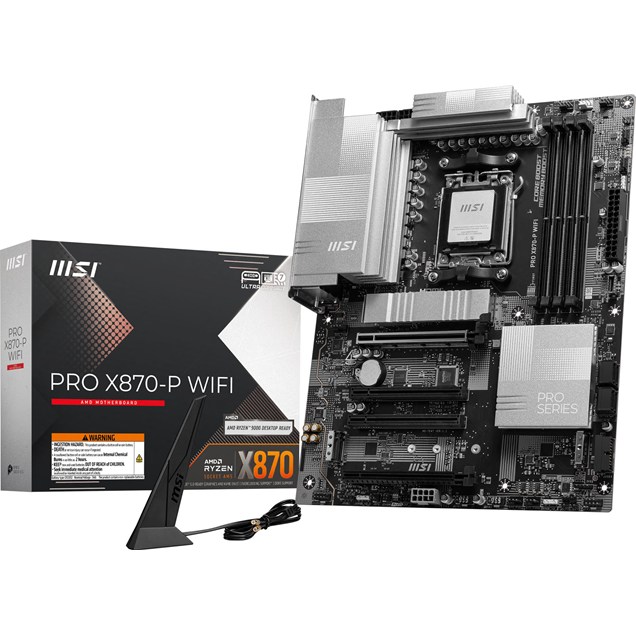

In The Box	Motherboard EU Regulatory Notice Quick Installation Guide EZ M.2 Clip II Remover 3 x EZ M.2 Clip II EZ Wi-Fi Antenna 2 x SATA Cables 1 to 2 EZ Conn-Cable (V1)
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Number of PCI Slots	4 slot(s)
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD X870
Thunderbolt	No
Motherboard Model	MSI PRO X870-P WIFI
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	8200 MT/s
CPU Power Pins (female)	16
PCI Express Power Pins (female)	8
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
