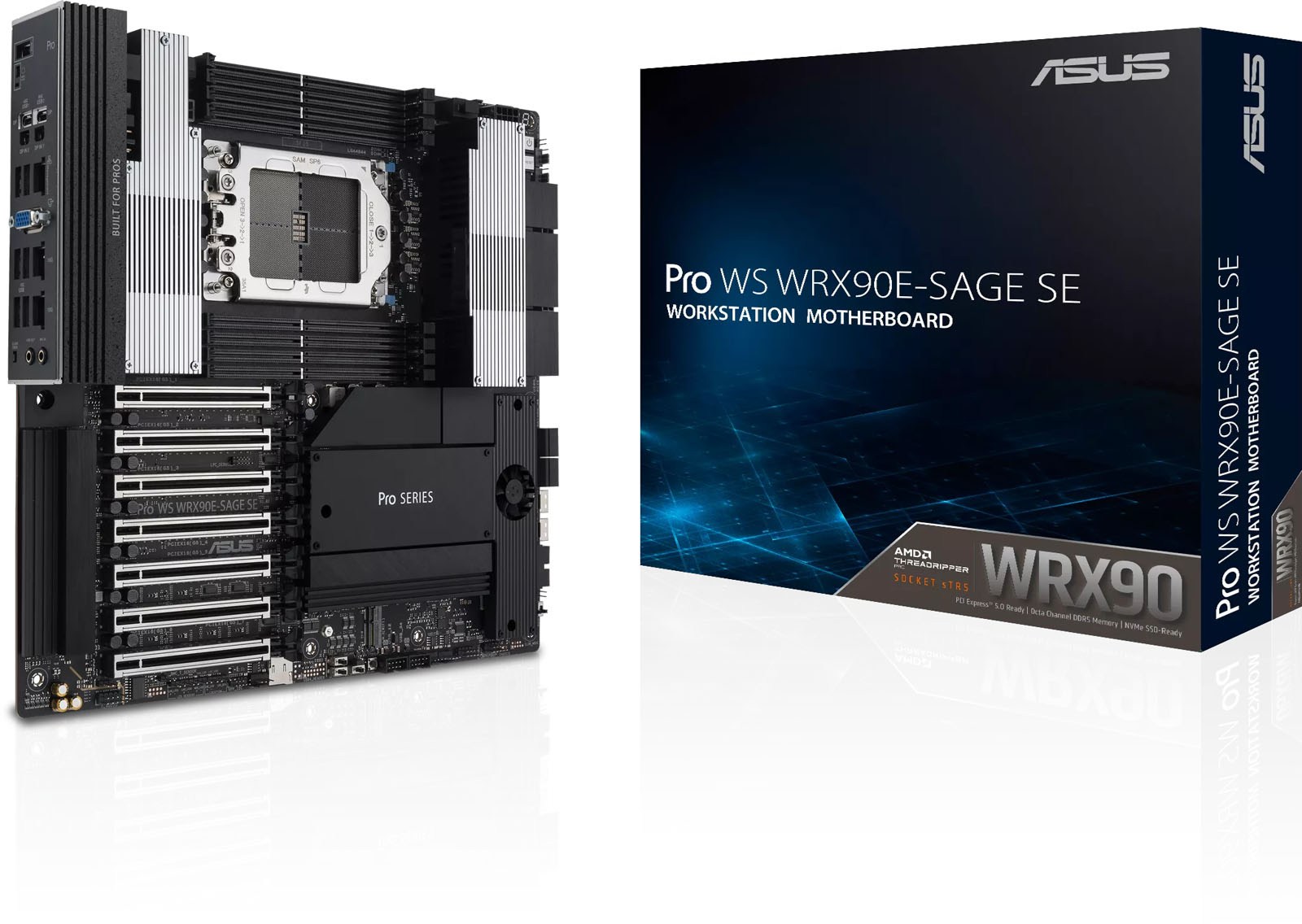

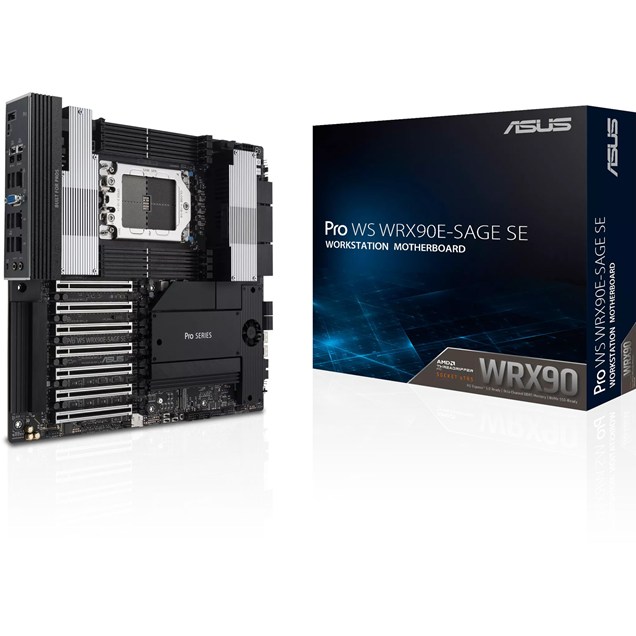

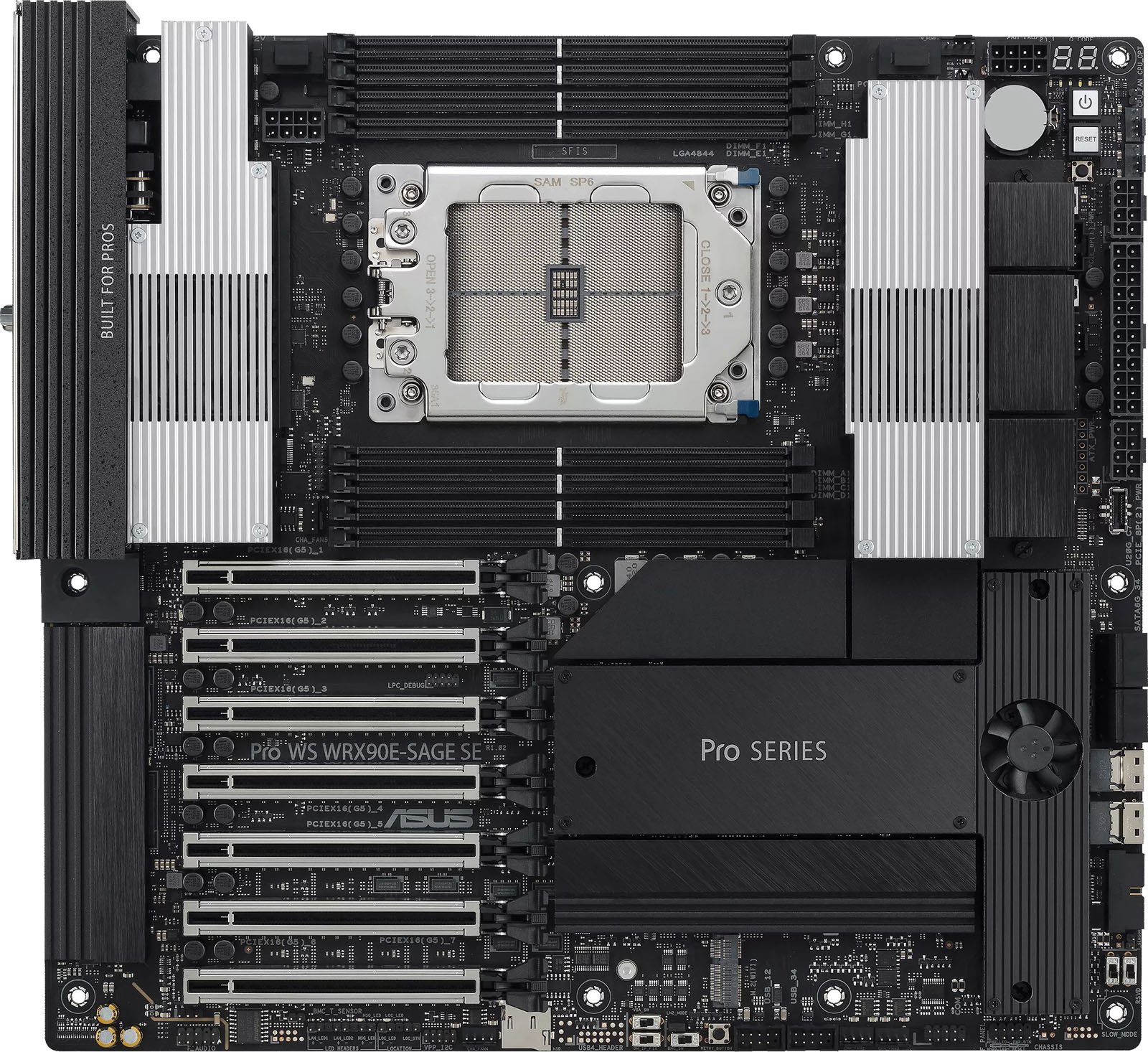

ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs

ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs

CCL Code: MBD3571

Sold out

Notify Me
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

ASUS Pro WS WRX90E-SAGE SE SSI EEB Motherboard for AMD sTR5 CPUs

90MB1FW0-M0EAY0

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

Key Features:

  • SSI EEB Form Factor
  • AMD WRX90 Chipset
  • Socket sTR5
  • DDR5 (Max: 2TB / 8 slots)
  • 4 x M.2 & 9 x USB & 4 x SATA
CCL Code: MBD3571

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

Main Features

  • AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.
  • Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.
  • CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).

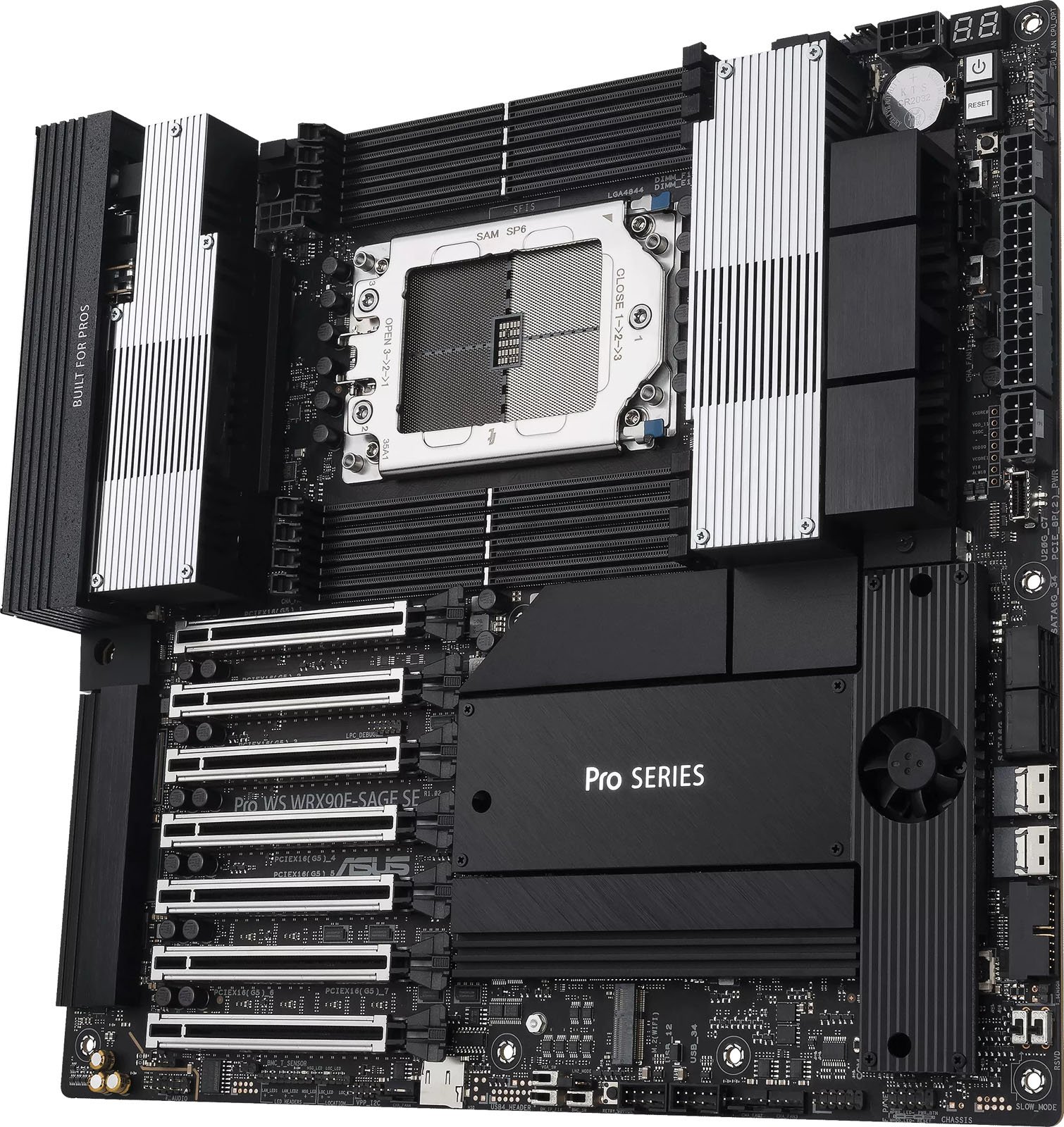

  • Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Specifications

CPU

CPU Socket Socket sTR5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen Threadripper PRO 7000 WX-Series
64-bit Support Yes
Socket sTR5

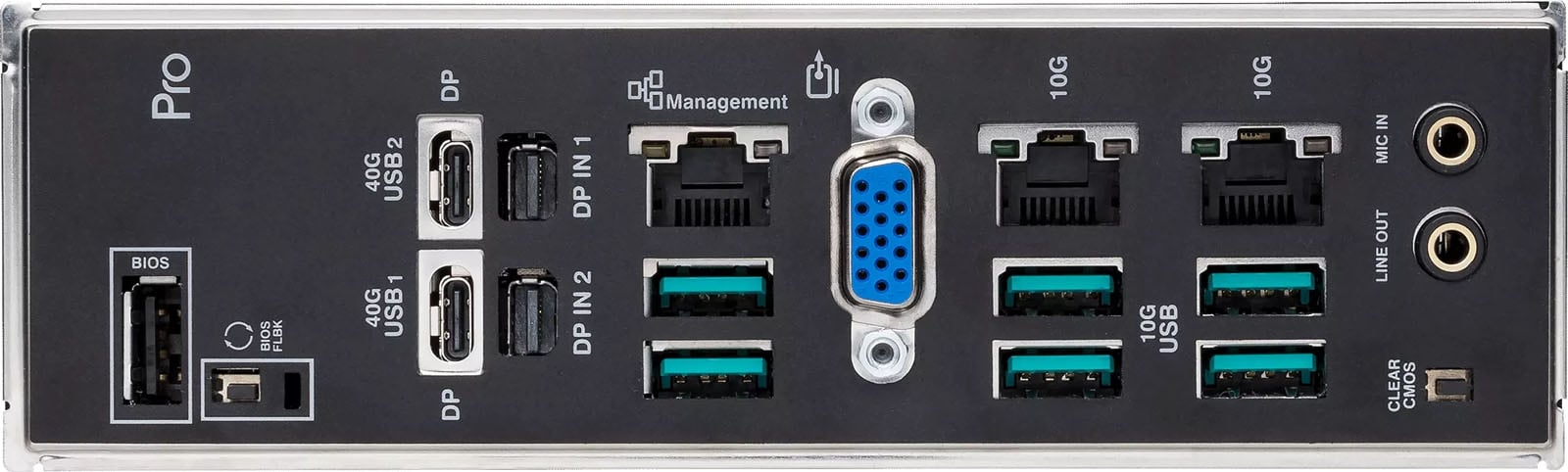

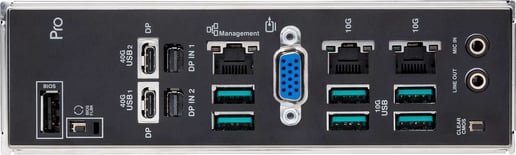

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
6 x USB 3.1
1 x USB 2.0
DisplayPorts 2 x Mini-DisplayPort IN
VGA Port 1 x D-Sub
RJ-45 Ports 3 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x W_PUMP+ header
5 x Chassis fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
4 x 8-pin PCIe
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
2 x SlimSAS (PCIe Gen4)1 x M.2 slot, Key E

Memory

Memory Type DDR5 RDIMM ECC only
Maximum RAM 2048 GB
Memory Slot 8 x DIMM

Motherboard

Northbridge AMD WRX90
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 7 x PCI Express 5.0 x16 slots (6 @ x16, 1 @ x8)

Graphics Device

Integrated Graphics Supported No

Sound

Integrated Sound Realtek ALC1220P

Warranty

Warranty 3 Years

Network

Integrated Network 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel© dual 10Gb Ethernet
Network Speeds Supported Up to 10 Gbps
Wireless LAN No
Bluetooth No

System

Jumpers 1 x LN2 Mode
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor SSI EEB Motherboard

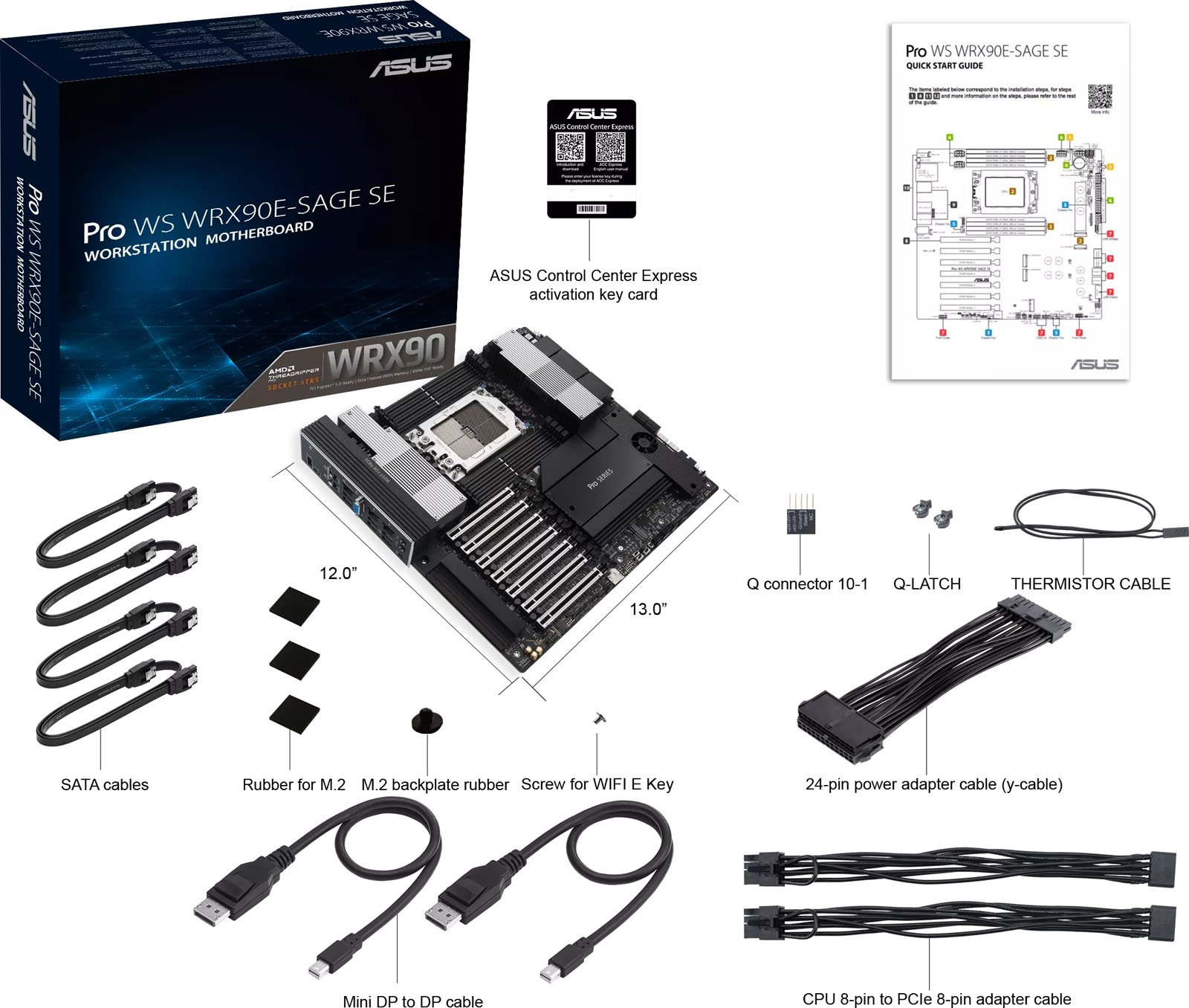

In The Box Motherboard
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
1 x ACC Express Activation Key Card
1 x Quick start guide
Width 330 mm
Length 305 mm

Key Features

Internal USB Type-C Header Yes
Power Requirement (auto) 150 W
CPU Power Pins (female) 16
PCI Express Power Pins (female) 32
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported Yes
RDIMM Memory Required Yes
Wireless Network No
Motherboard Width 330 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Quad
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 9 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection No
DisplayPort Connection No
Motherboard Form Factor SSI EEB
Motherboard (EPS) Power Connectors 4 x 8-Pin
Motherboard Chipset AMD WRX90
Thunderbolt No
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None
RGB Header Type None
Addressable RGB No

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1FW0-M0EAY0
Alternative Part Number PRO WS WRX90E-SAGE SE
EAN 4711387441145
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1FW0-M0EAY0
