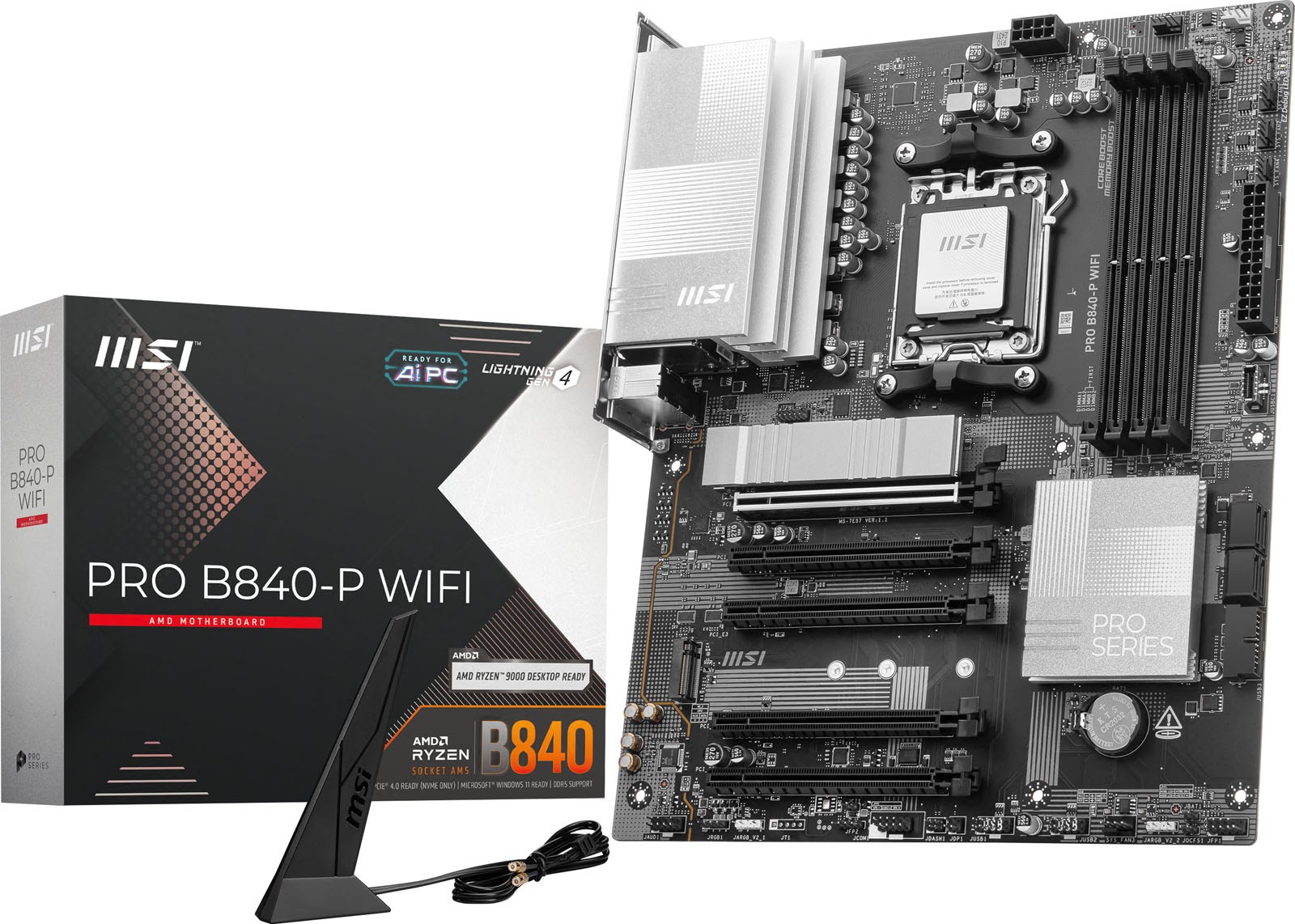

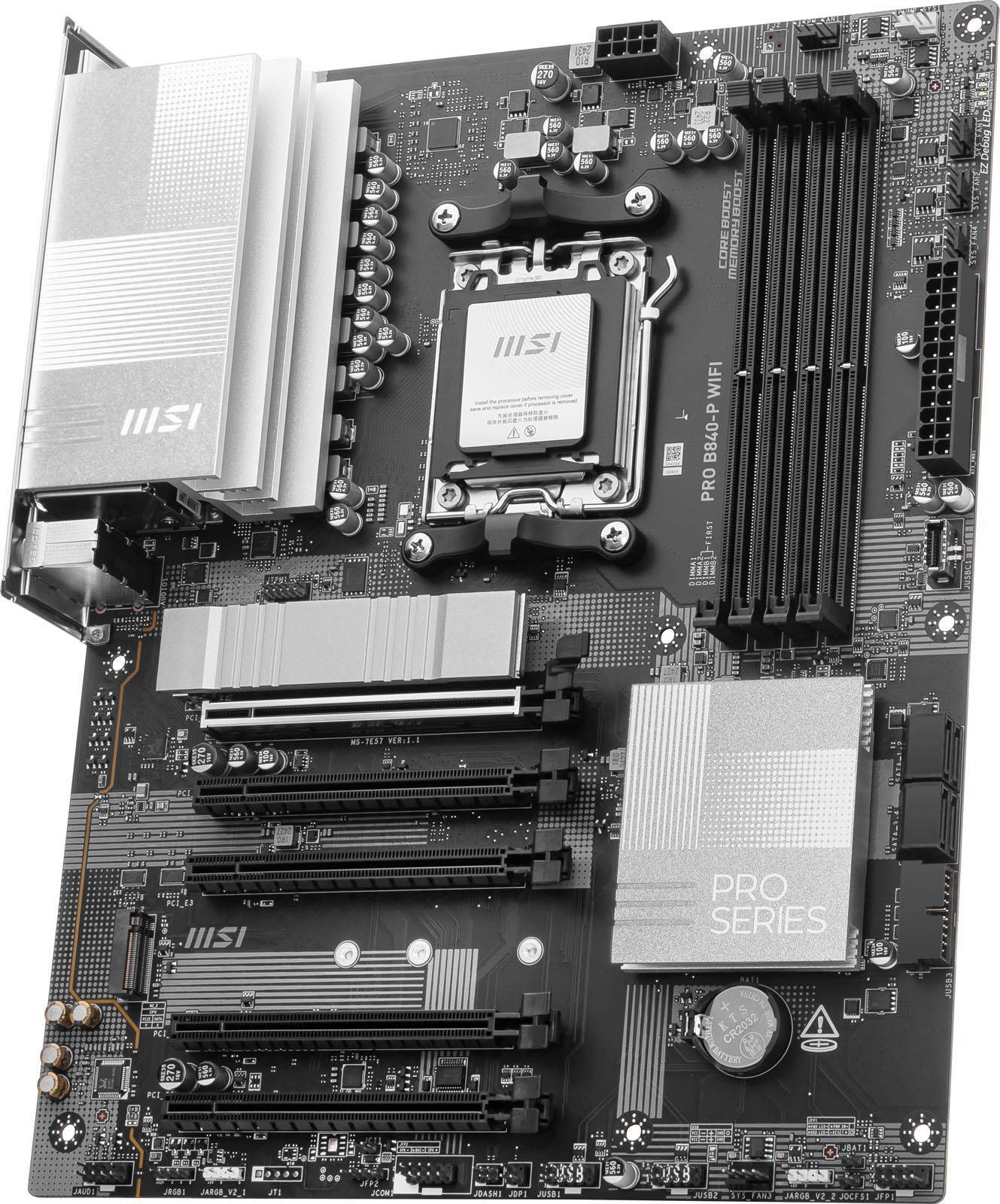

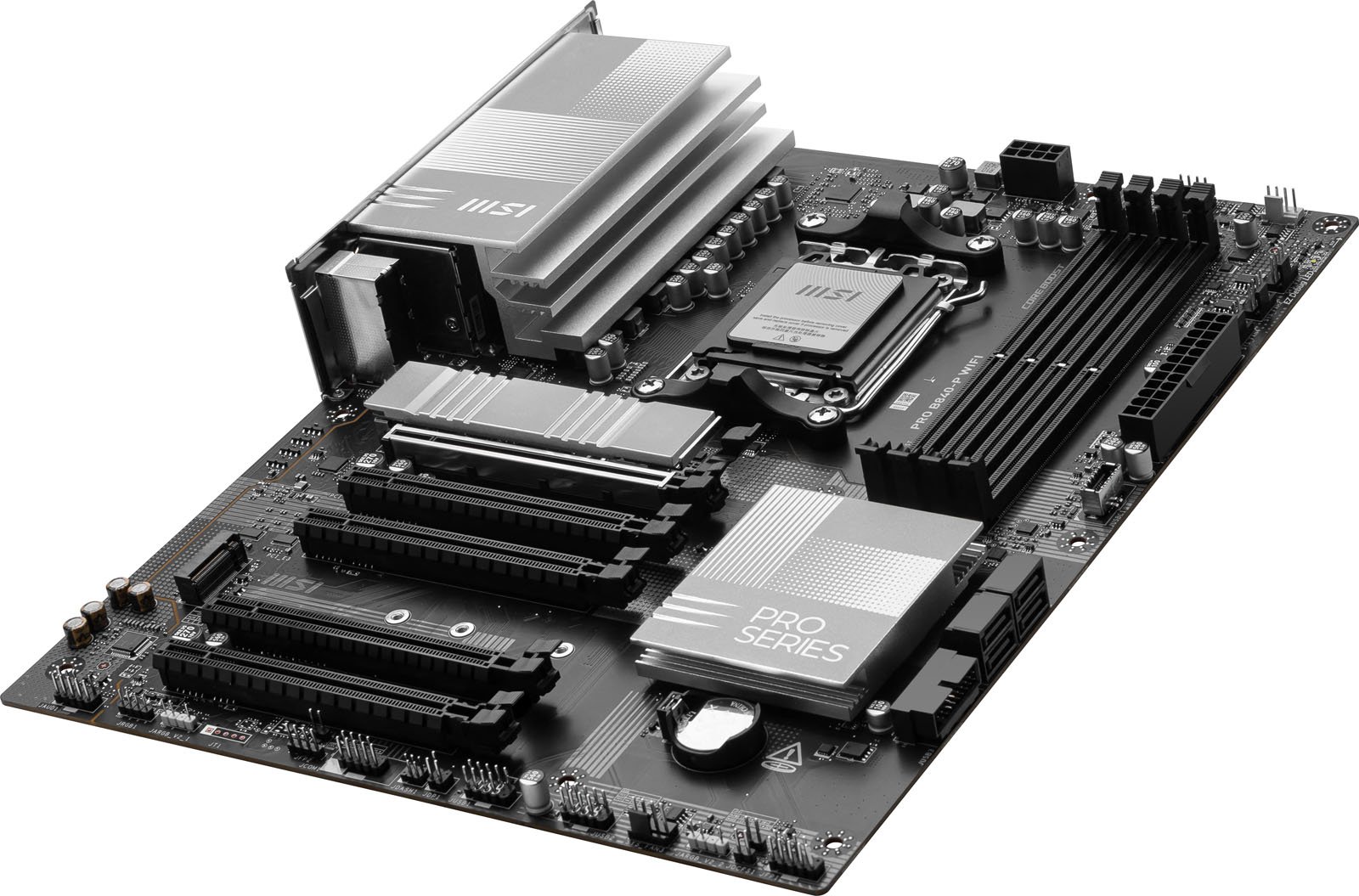

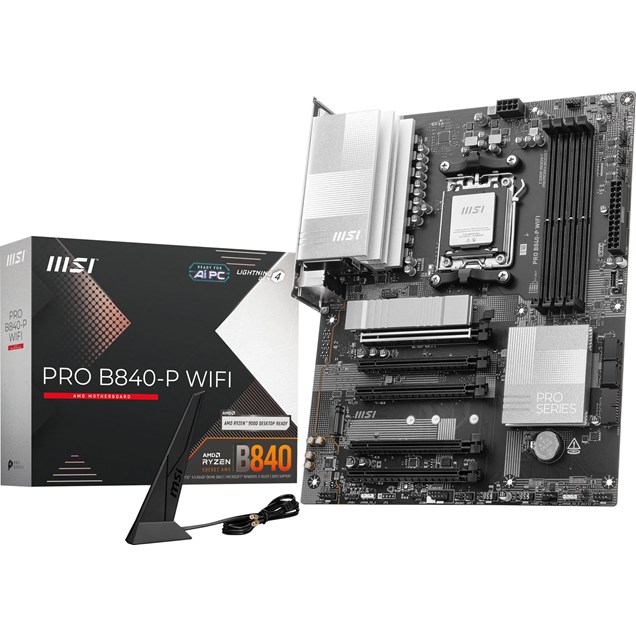

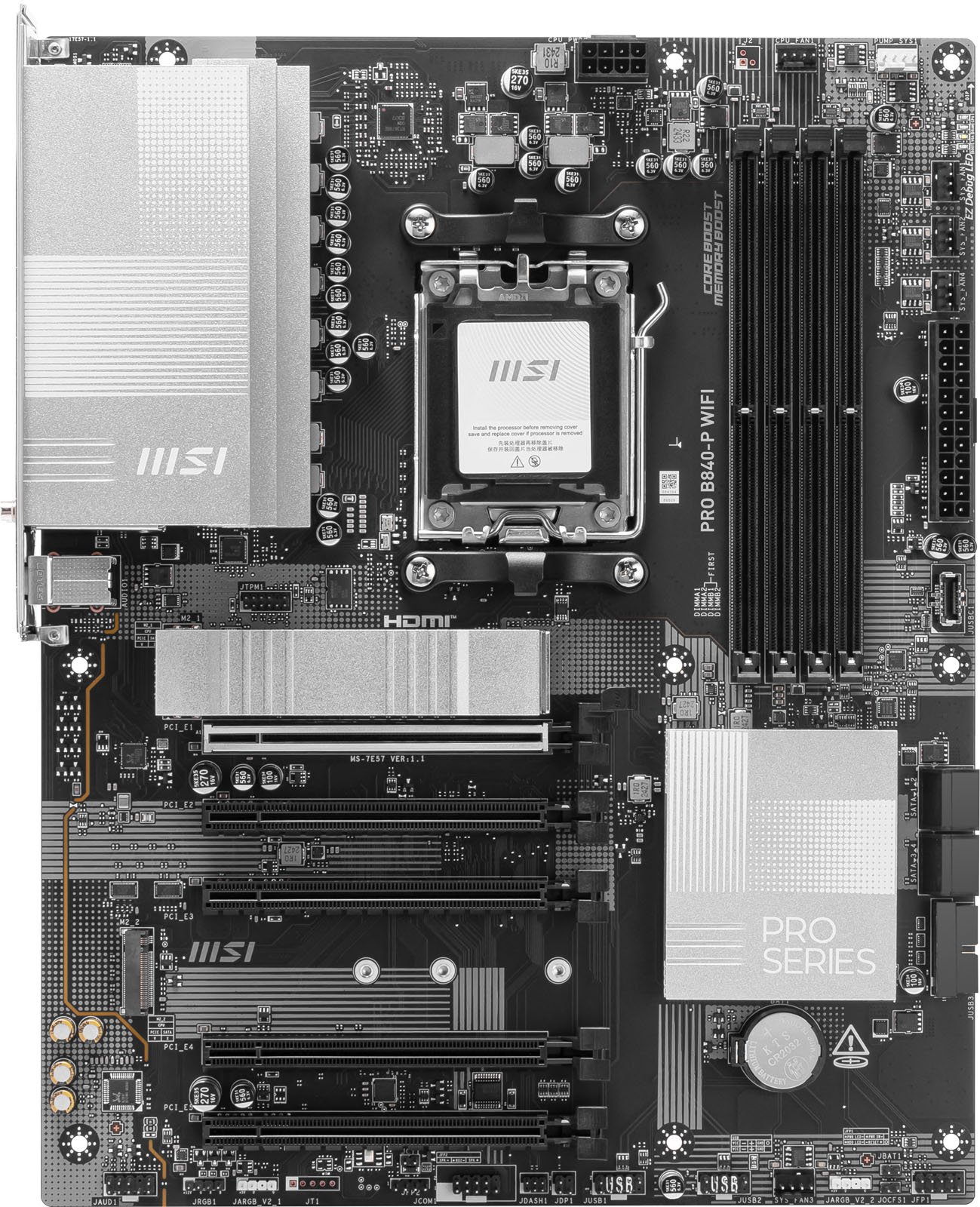

MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs

MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3813

Coming soon

Notify Me
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs

Grab a free Lian Li anti-sag bracket with every ATX motherboard purchase!**

MSI PRO B840-P WIFI ATX Motherboard for AMD AM5 CPUs

PRO B840-P WIFI

Key Features:

  • ATX Form Factor
  • AMD B840 Chipset
  • Socket AM5
  • 2 x M.2 & 8 x USB & 4 x SATA
  • HDMI
CCL Code: MBD3813

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

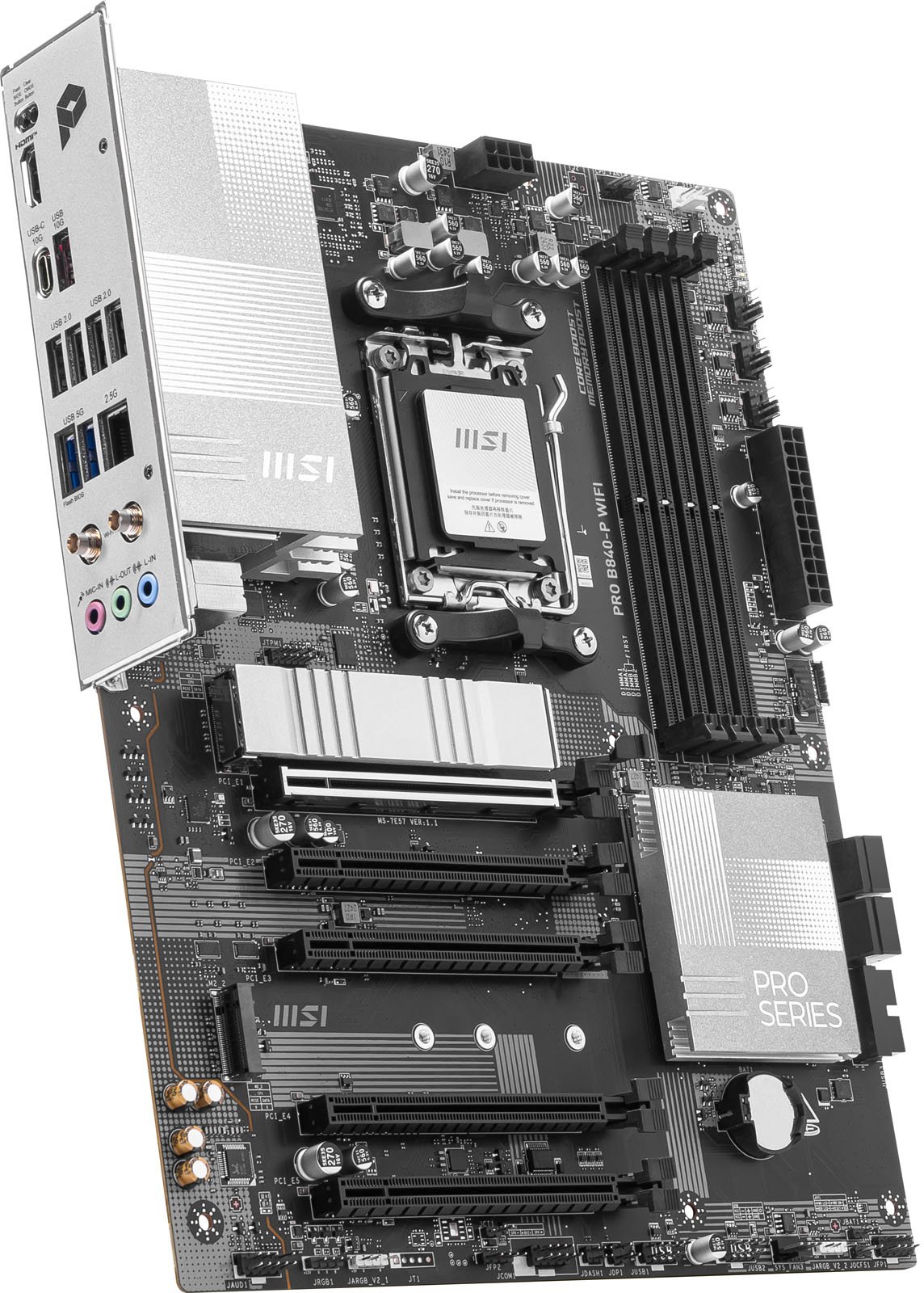

PRO B840-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, and PCIe 4.0 M.2 with EZ M.2 Shield Frozr II, ready for the AMD Ryzen™ 9000 series processors.

Promotions

GRAB A SOUGHT-AFTER PC ACCESSORY FREE WITH EVERY ATX MOTHERBOARD!

For a limited time, every purchase of an ATX motherboard qualifies for a 100% discount on a Lian Li GB-002 anti sag bracket, one of the better methods to keep your shiny new graphics card from succumbing to gravity!! Simply add the bracket to your basket alongside the motherboard and discount will be applied.

CLICK TO VIEW AND ADD THE LIAN LI GB-002 TO YOUR BASKET

Bracket advertised as compatible with ATX/eATX motherboards, however high-end boards with large thermal-shielding may interfere with mounting compatibility.

Offer valid 25th December to 31st January, and whilst stocks last.

Bracket

Lian Li GB-002 Anti Sag Bracket for Graphics Cards

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support Yes
Socket AM5

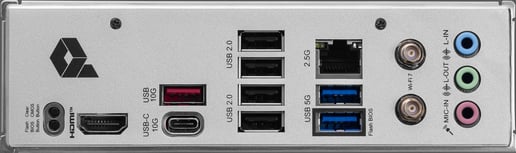

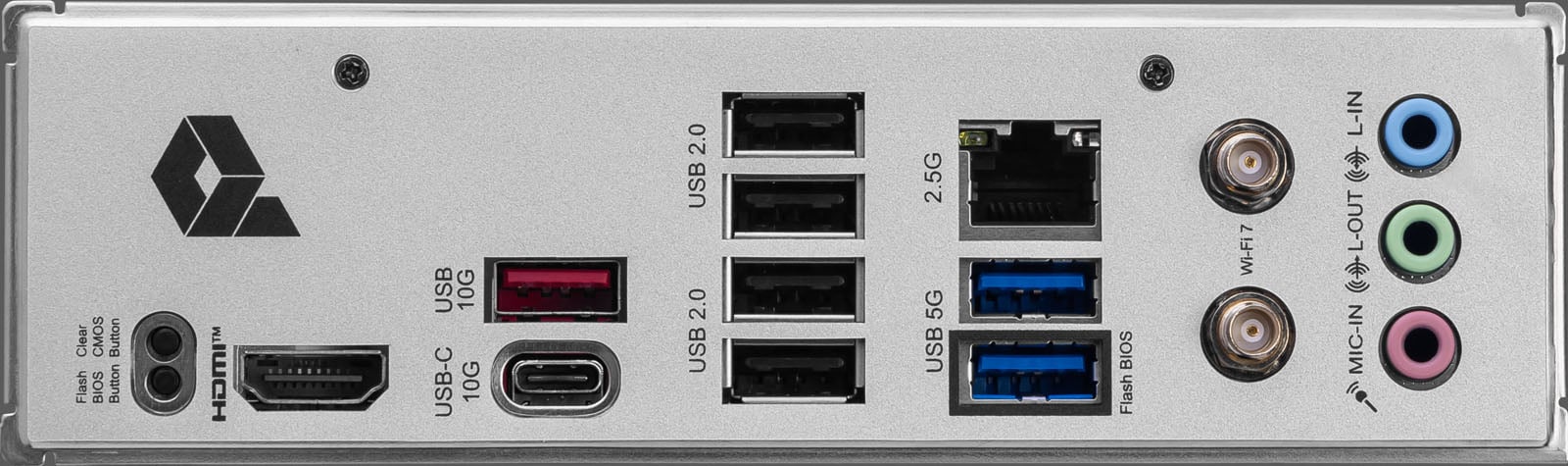

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Combo fan header
4 x System fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4)
2 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B850
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
4 x PCI Express 3.0 x16 slots (@ x1/x1/x4/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek 8125D
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 7)
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

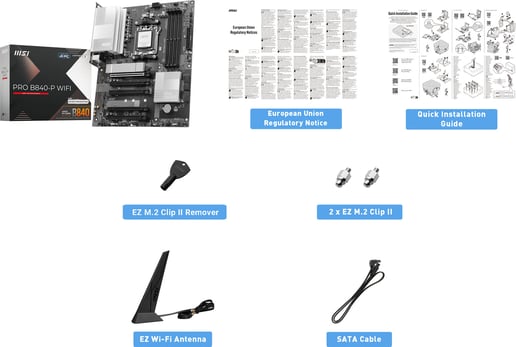

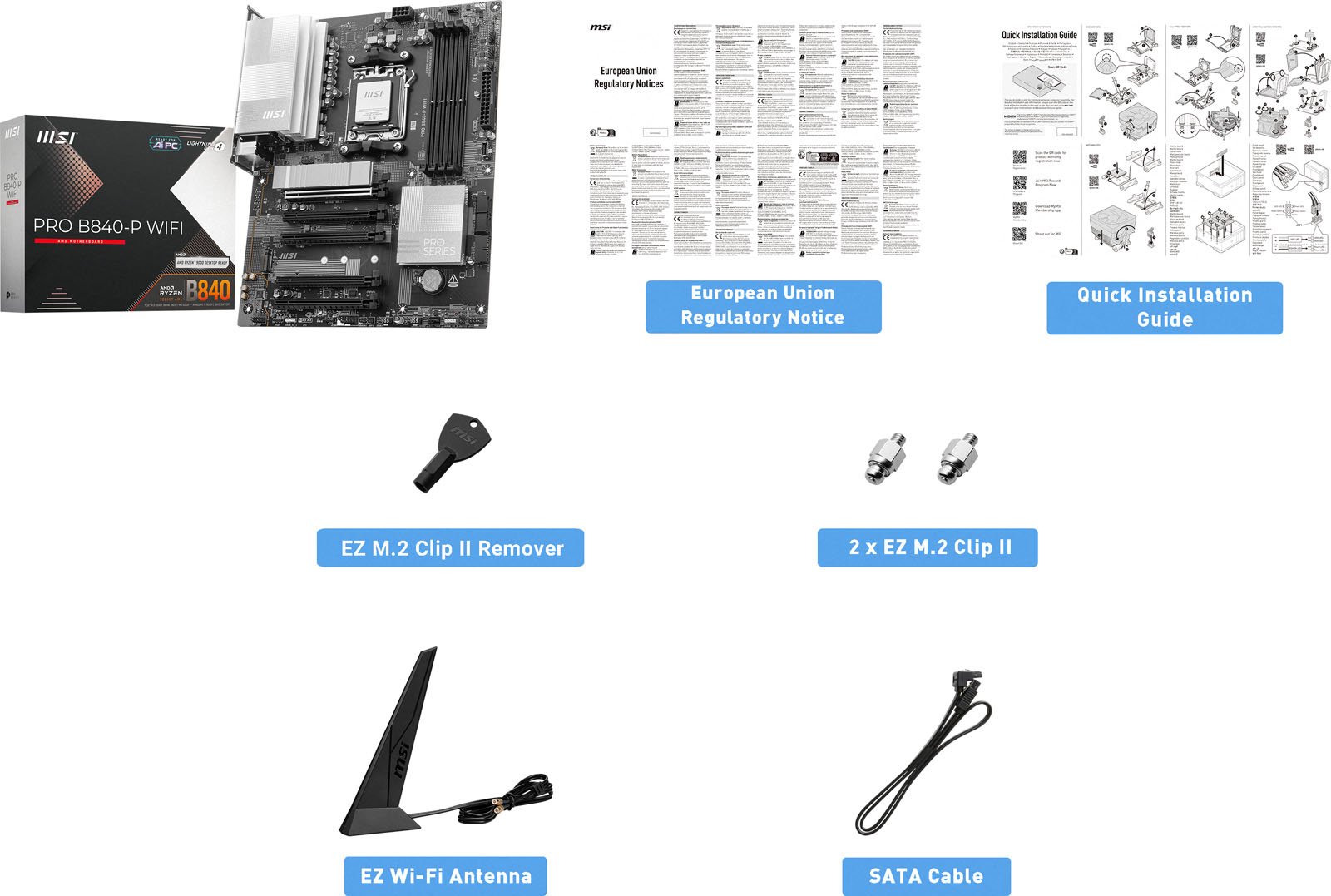

In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
EZ M.2 Clip II Remover
2 x EZ M.2 Clip II
EZ Wi-Fi Antenna
SATA Cable
Width 244 mm
Length 305 mm

Key Features

Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 2
SATA ports 4
Back Connect Support No
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B840
Thunderbolt No
Motherboard Model MSI PRO B840-P WIFI
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes

Item Details

Manufacturer MSI
Manufacturer Code PRO B840-P WIFI
EAN 4711377286596
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code PRO B840-P WIFI
