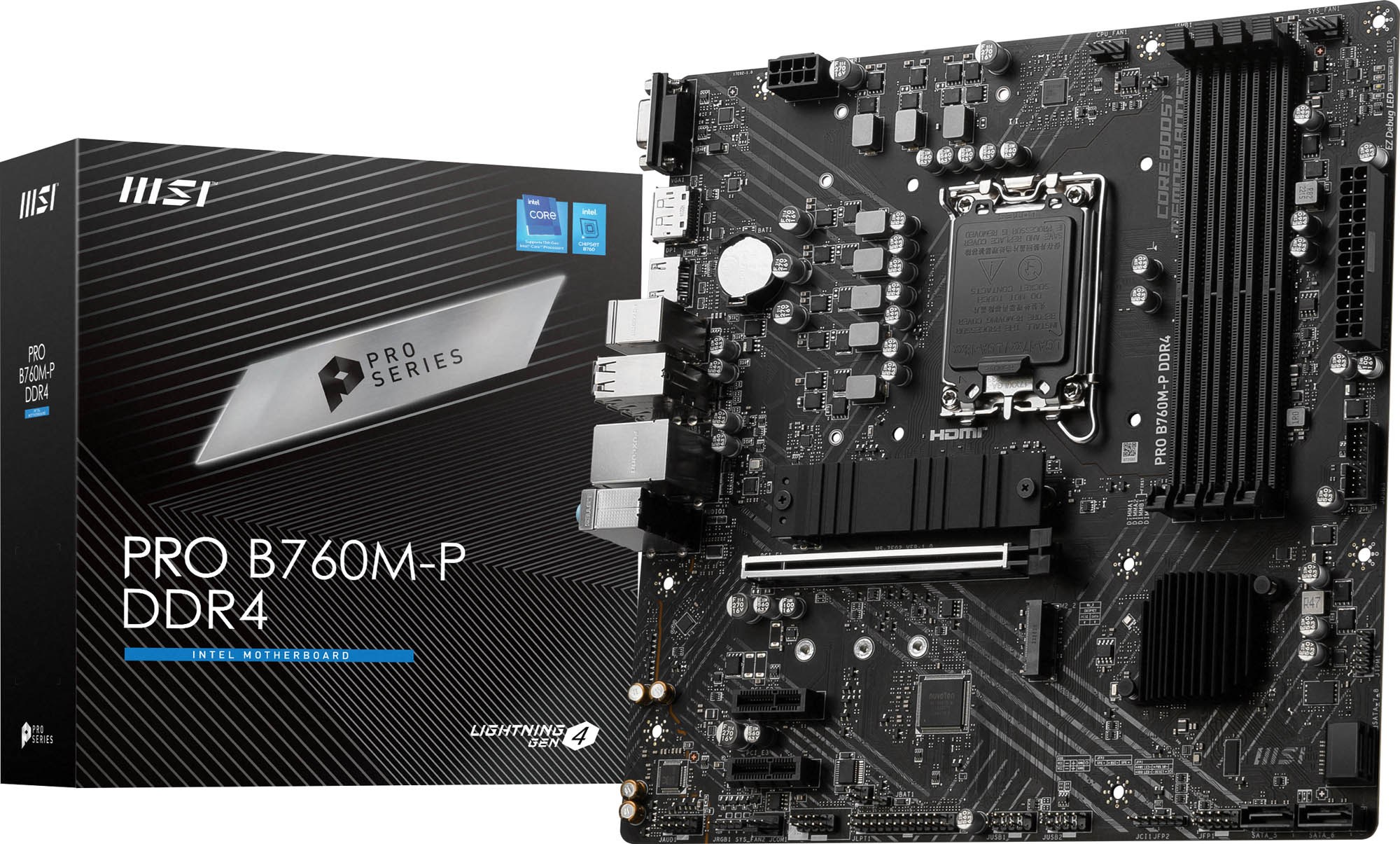

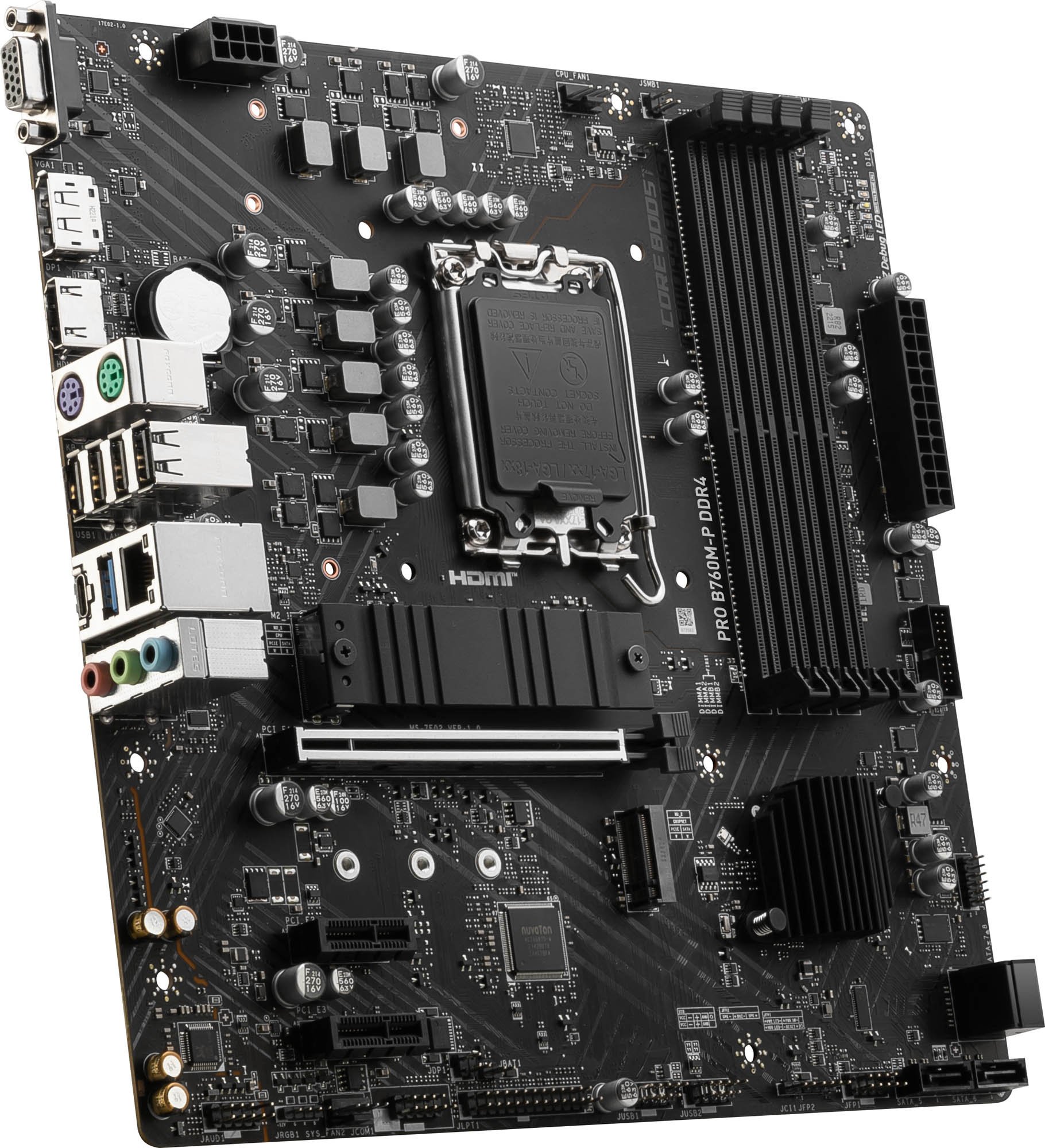

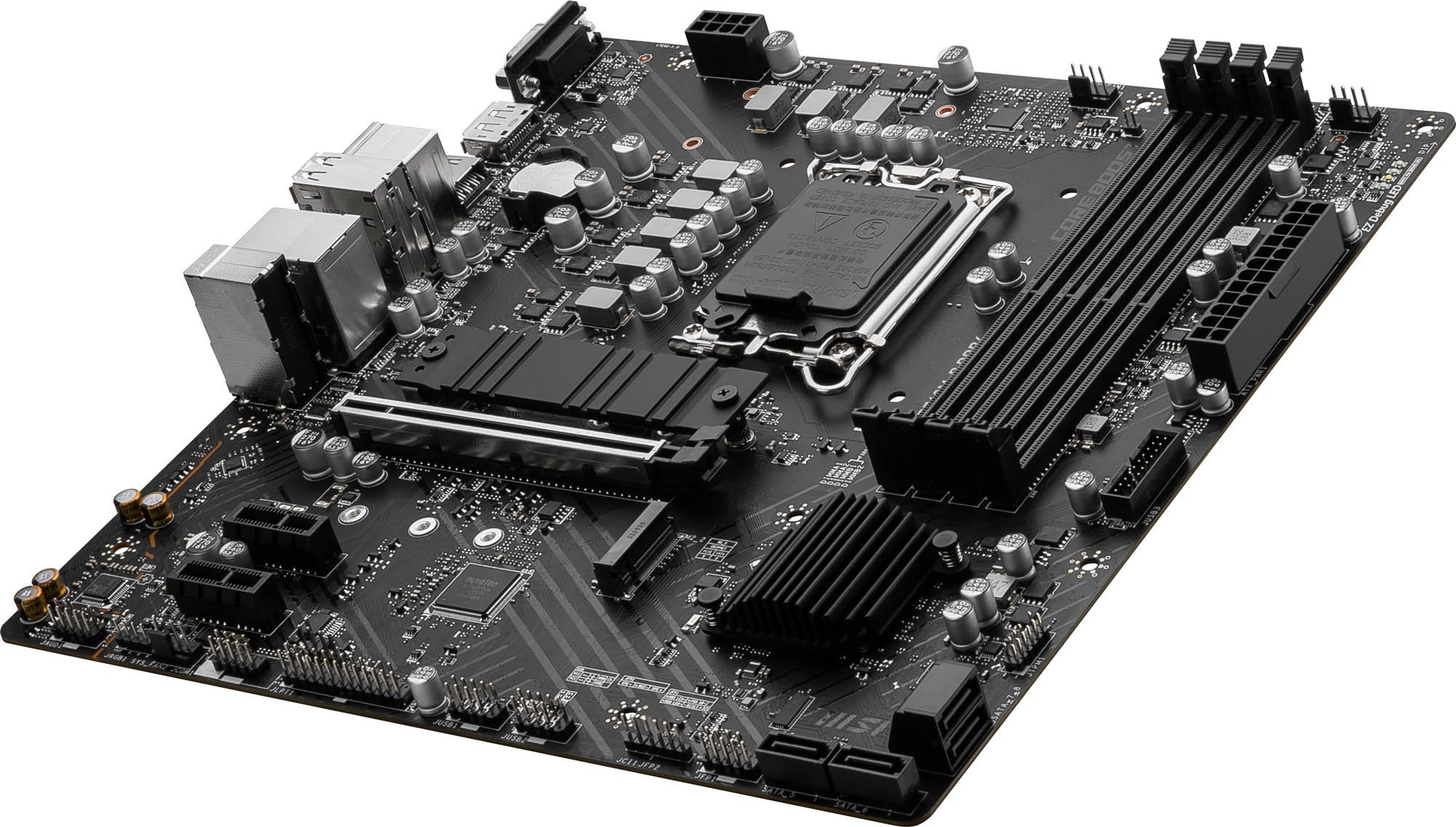

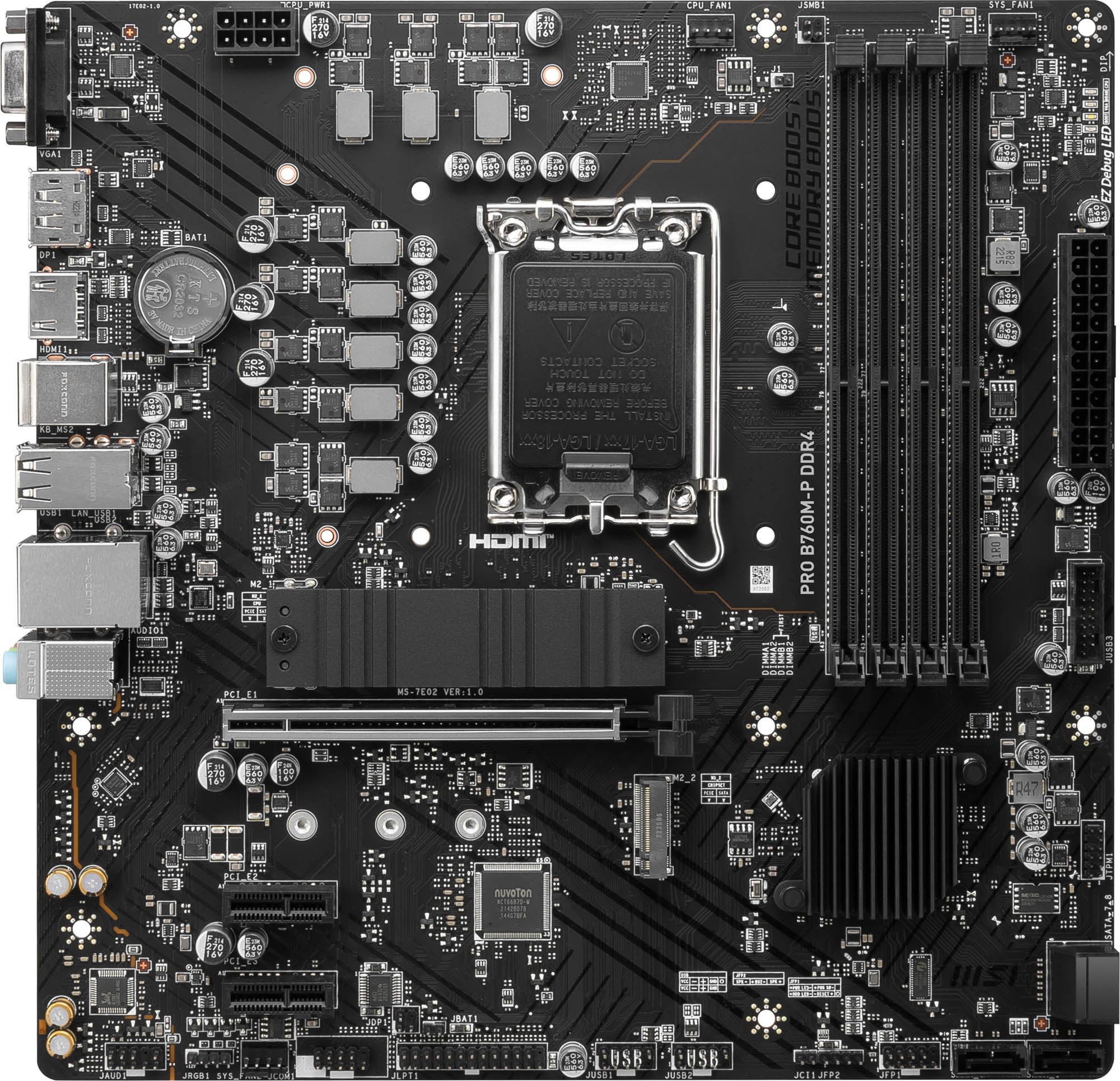

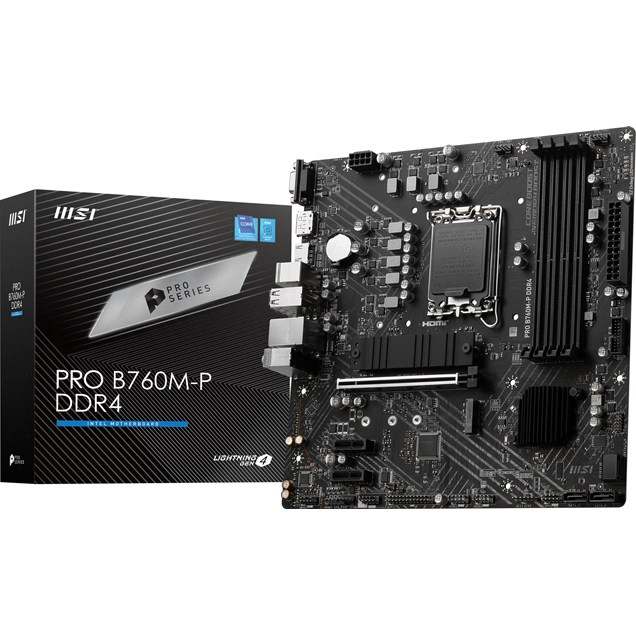

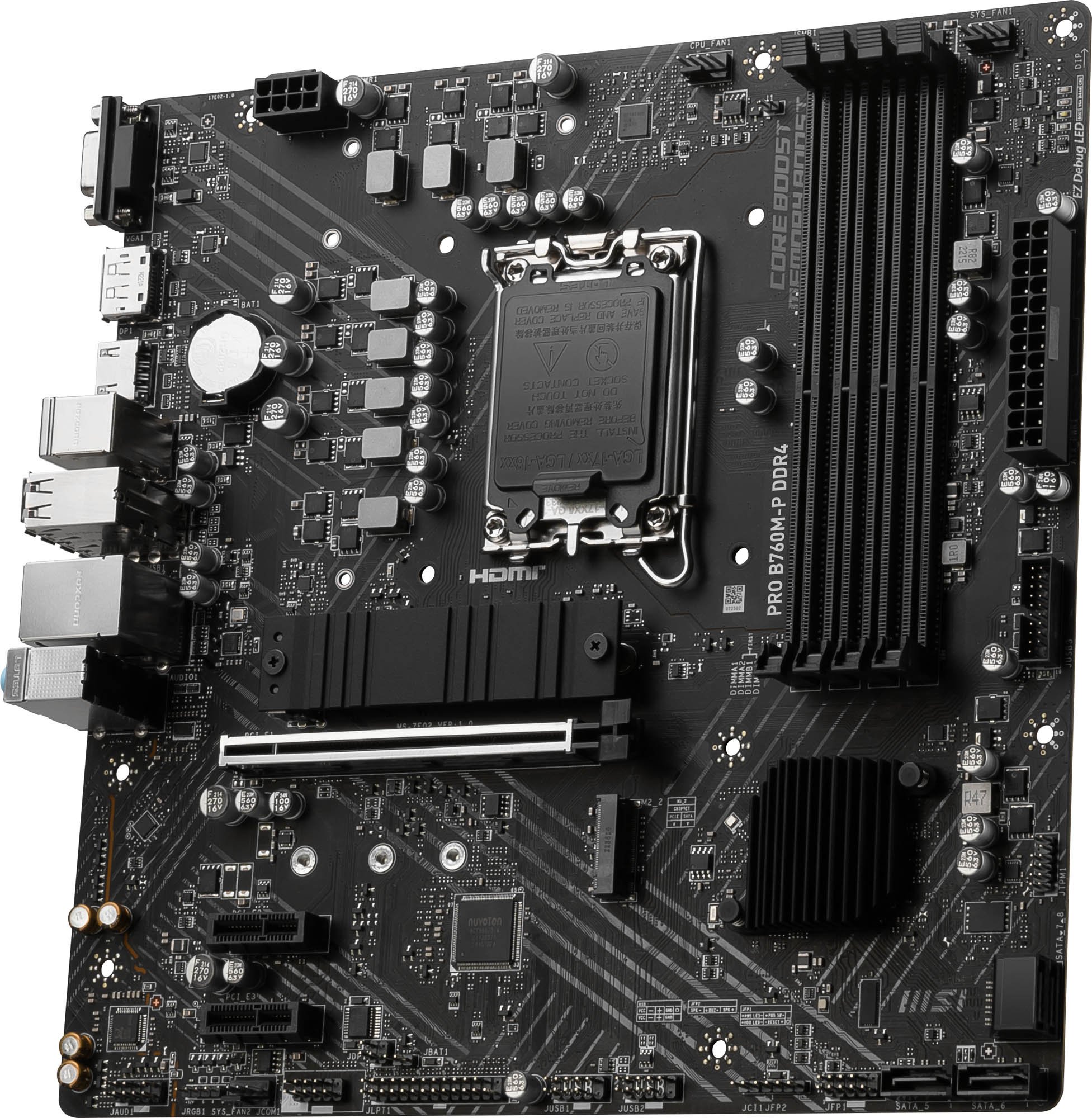

MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs

MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3430

Was £106.34

SAVE £15

Now only

£90.99 inc VAT

  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs

RO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.

MSI PRO B760M-P DDR4 mATX Motherboard for Intel LGA1700 CPUs

PRO B760M-P DDR4

RO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.

Was £106.34

SAVE £15

Now only

£90.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

Hurry, only 1 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3430
Overview

Business Elegance

The PRO B760M-P DDR4 is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.

Supports Intel Core 12th & 13th Gen Processors

The PRO B760M-P DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel B760

Integrated Cooling Features

Chipset Heatsink: Provides passive cooling.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

4 x DDR4 Dual Channel (4800 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP.

Fortified PCIe 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)

2 x PCIe 4.0/3.0 x1 slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Gen4 M.2 Connectors

The PRO B760M-P DDR4 motherboard features MSI's Gen4 M.2 slots:

2 x Gen4 x4 64Gbps slots*

*1 with M.2 Shield Frozr

Connectivity

1G LAN: A 1Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Diplay Outputs: Include HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz) and legacy VGA.

Main Features

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

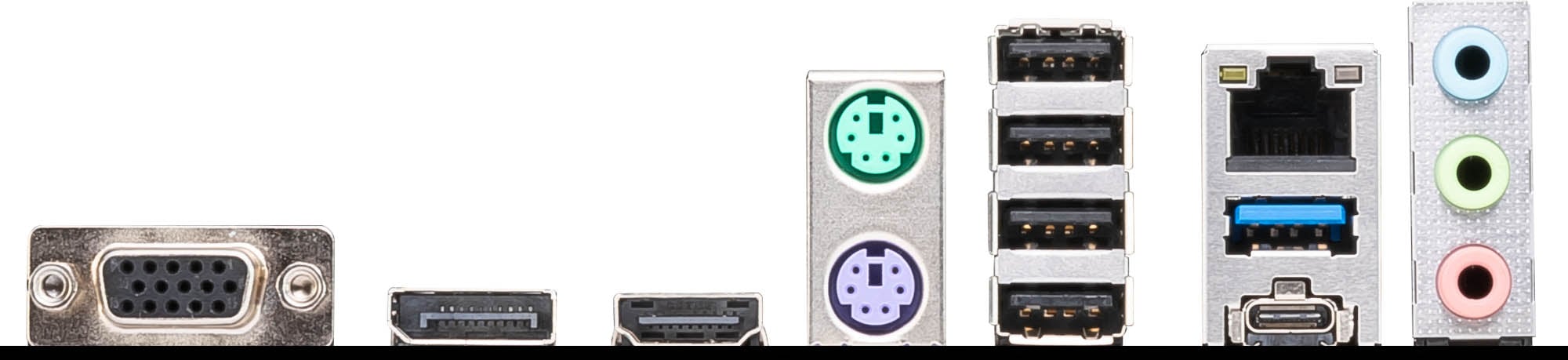

Rear Panel I/O Ports

USB Ports 1x USB-C 3.2 Gen2
1x USB 3.2 Gen1
4x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 1.4
VGA Port 1 x D-Sub
RJ-45 Ports 1x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4x SATA III
USB Connectors 2x USB 3.2 Gen1
4x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
Parallel Connectors 1 x LPT header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 4800+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8111H
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor MicroATX Motherboard

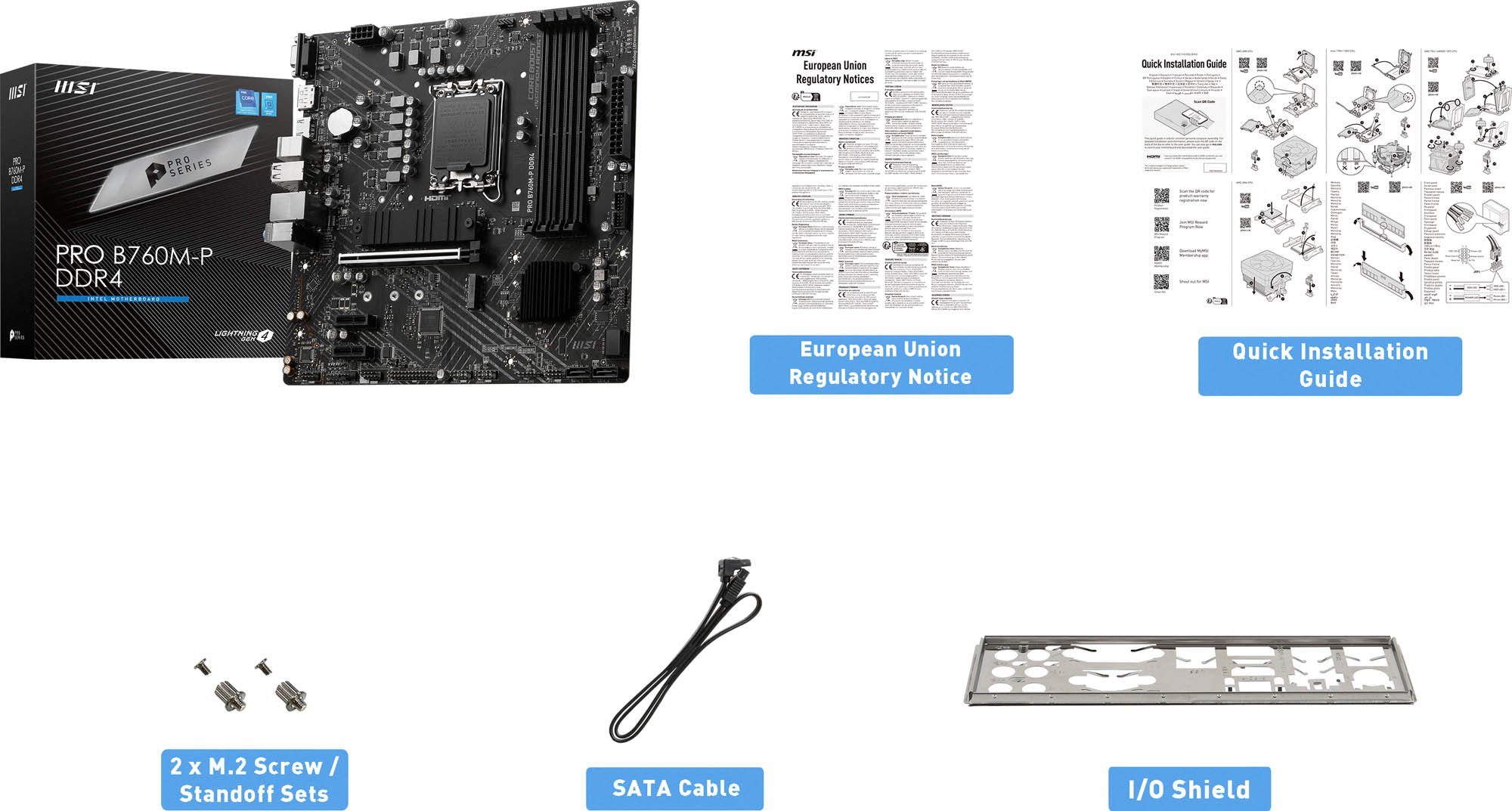

In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
2 x M.2 Screw / Standoff Sets
SATA Cable
I/O Shield
Width 243.84 mm
Length 243.84 mm

Key Features

Addressable RGB No
Internal USB Type-C Header No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 5333 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
PCI-e slots 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model MSI PRO B760M-P DDR4
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 5333 MT/s
RGB Header Type 4-Pin RGB

Item Details

Manufacturer MSI
Manufacturer Code PRO B760M-P DDR4
EAN 4711377030991
UPC 824142308240
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code PRO B760M-P DDR4
Reviews
4.0 / 5 1 review

Joel Sorrell

April 2023

Good motherboard and does what I need however it is probably worth stepping up to a 90 class motherboard if you have a powerful CPU as it can suffer from throttling due to the VRM (this is using an I5 13600kf)
