MSI PRO B760-P DDR4 II ATX Motherboard for Intel LGA1700 CPUs

MSI PRO B760-P DDR4 II ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3545

Coming soon

Notify Me

MSI PRO B760-P DDR4 II ATX Motherboard for Intel LGA1700 CPUs

PRO B760-P DDR4 II

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 5 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3545

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

More stock is expected around 04/12/2024.

Notify Me
Overview

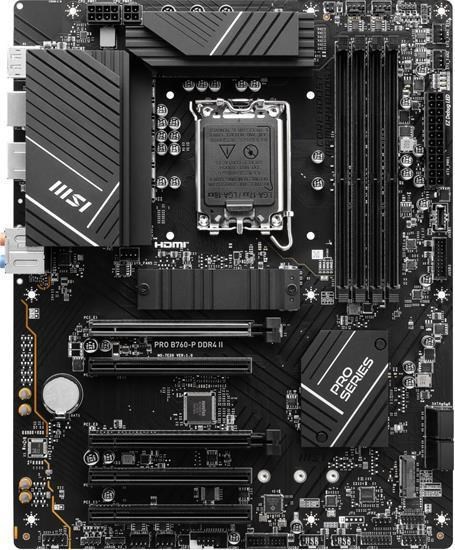

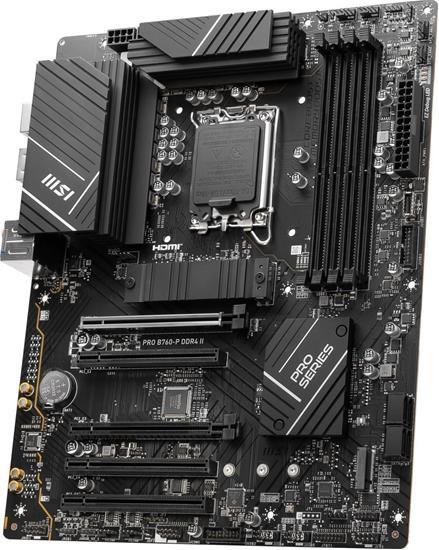

MSI PRO B760-P DDR4 II ATX INTEL SOCKET 1700 MOTHERBOARD

Bring your system a memory capacity of 128GB, premium thermal solutions and exceptional performance. Built with MSI Steel Armor components can be installed with reinforced, heavy soldered connections. Experience DDR4 memory solutions, premium materials and lightning fast connectivity, you can be sure that performance is always delivered. Enhance your system even further with intergrated RGB lighting.

INTEGRATED COOLING

Equipped with a range of cooling features will ensure your system is cooled enough to maintain high performance. Experience VRM Cooling with an extended heatsink, thermal pads and chokes, PCB Cooling with thickened copper, SSD Cooling that prevents thermal throttling and Frozr AI Cooling to adjust fan settings and system temperatures. This enhanced MSI motherbaord is optimised and designed to support water cooling, whilst offering full fan control to aid with CPU temperatures.

CONNECTIVITY

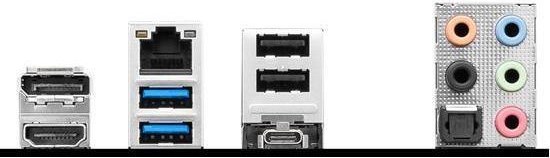

Be connected in more ways than one, featuring DisplayPort, HDMI and USB connectivity available. For lighting fast connections there is a USB Type C port so you can connect, charge and even share data. Benefit from a 2.5G LAN for an upgraded network solution, delivering a secure, safe and stable network connection.

Specifications

Wireless Communications

Bluetooth No

Key Features

Socket LGA1700
Installed Processors (Max) 0 (1)
Integrated Graphics Supported Yes
Maximum RAM 128 GB
RAID Supported Yes
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Number of PCI Express Slots 5 slot(s)
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 5 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Memory Type DDR4
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 4+4-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model MSI PRO B760-P DDR4 II
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 5333 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1

CPU

CPU Socket Socket 1700
CPU Brand Intel

Warranty

Warranty 1 Year

Item Details

Manufacturer MSI
Manufacturer Code PRO B760-P DDR4 II
EAN 4711377128889
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer MSI
Manufacturer Code PRO B760-P DDR4 II
