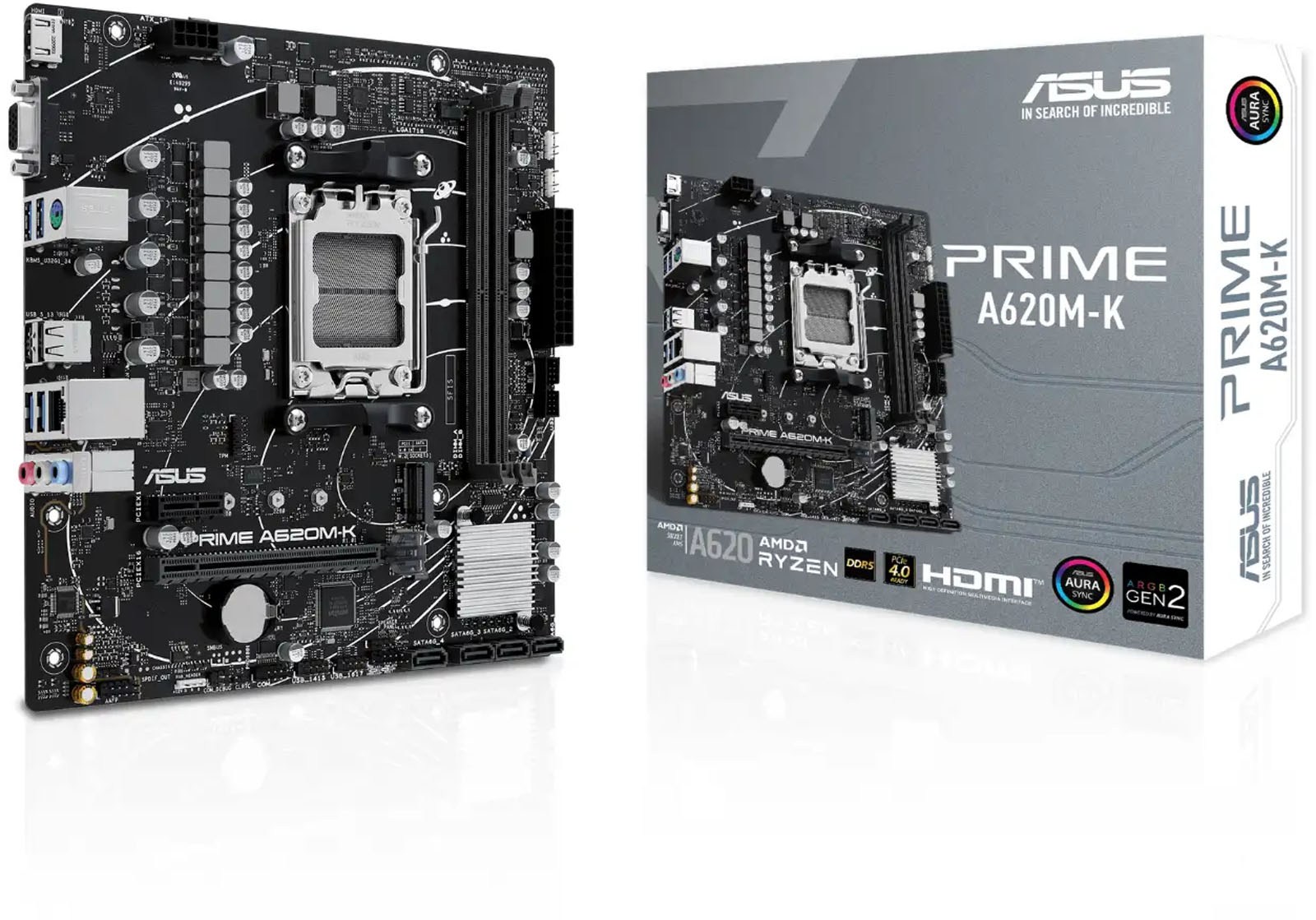

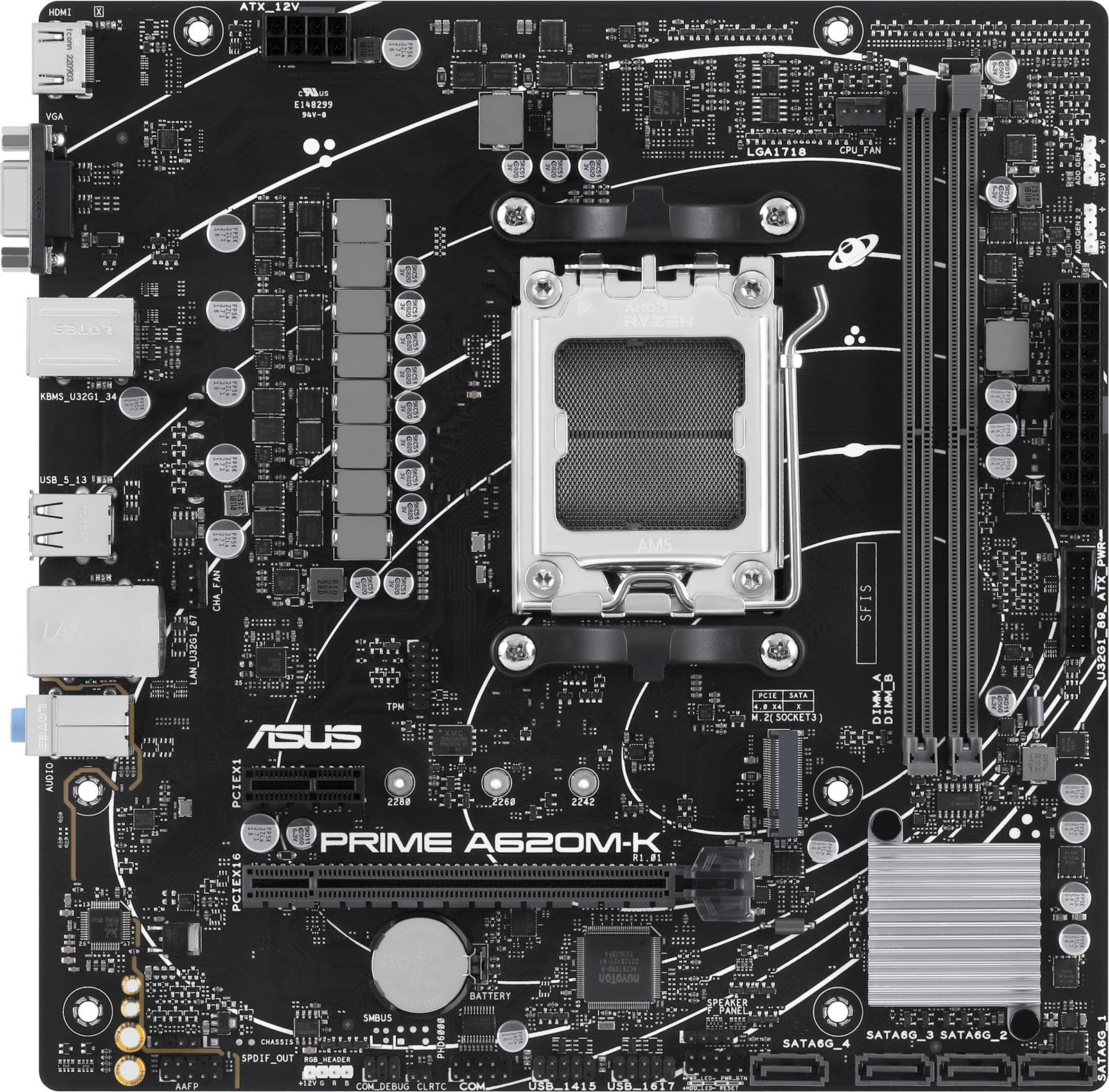

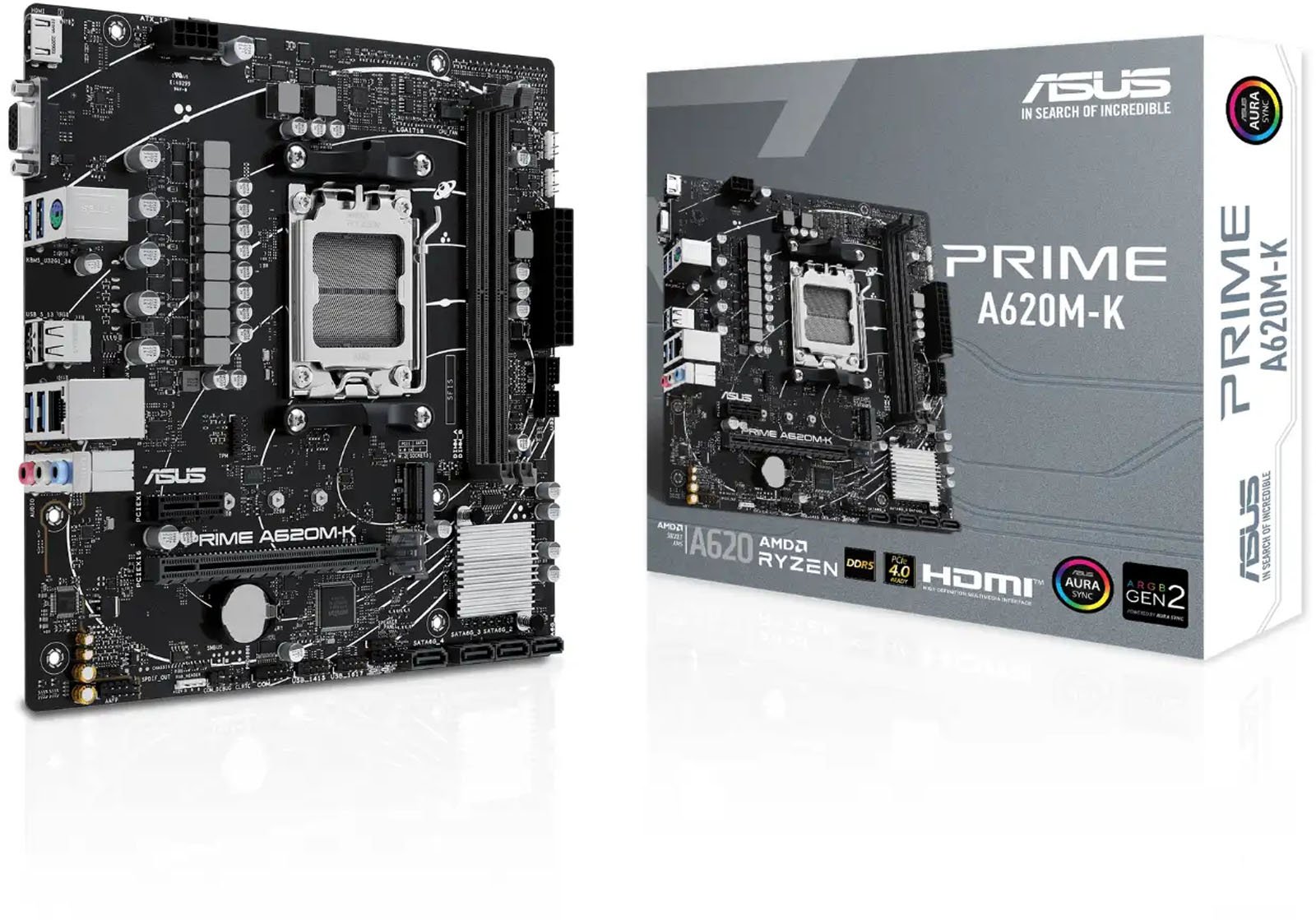

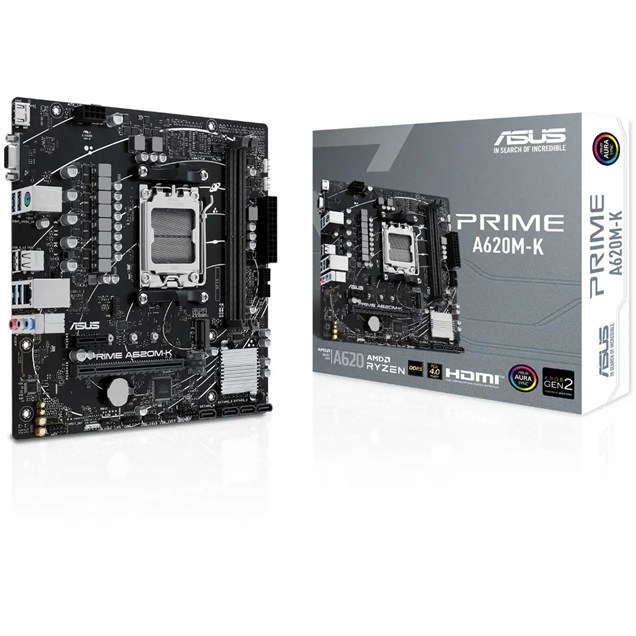

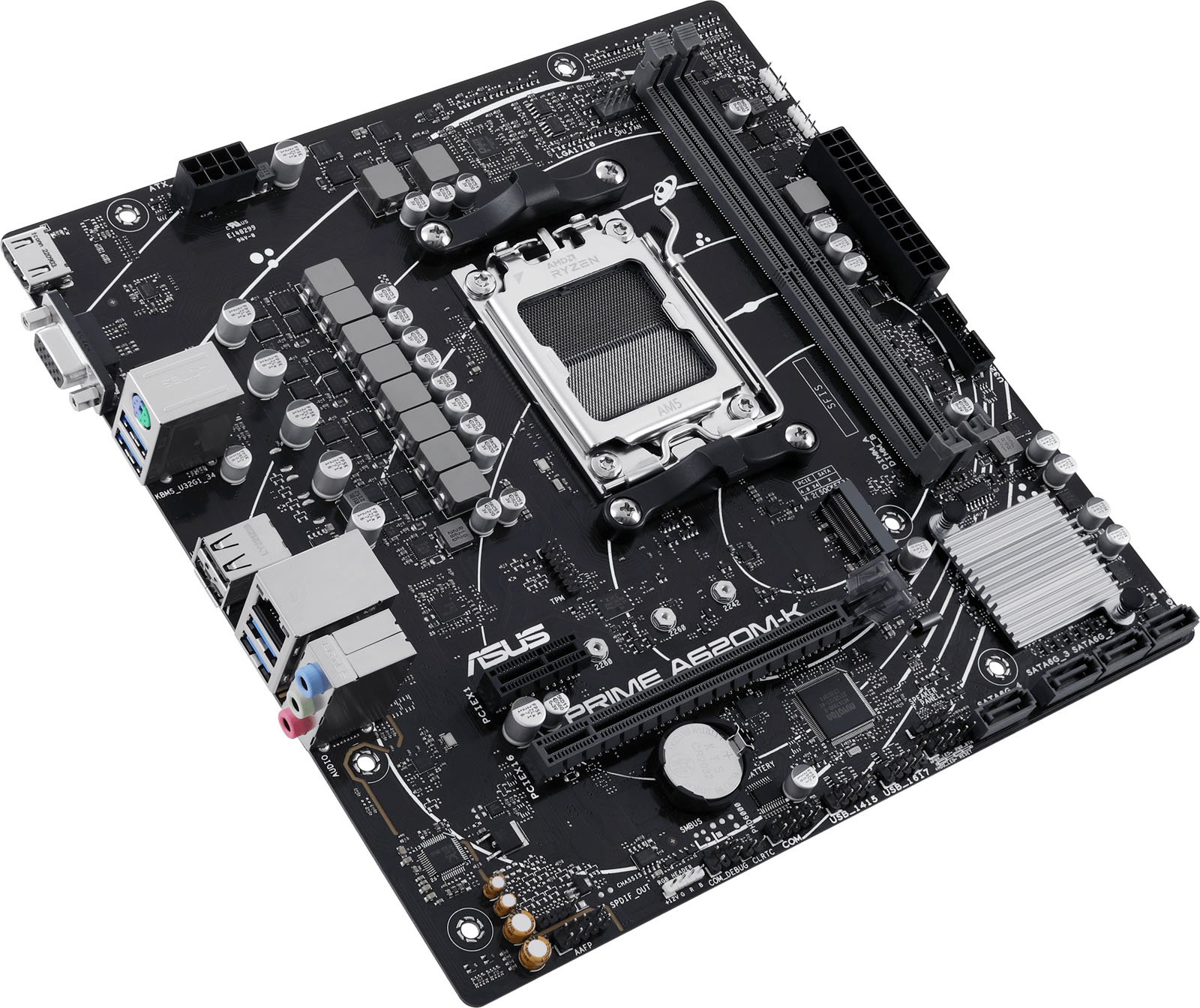

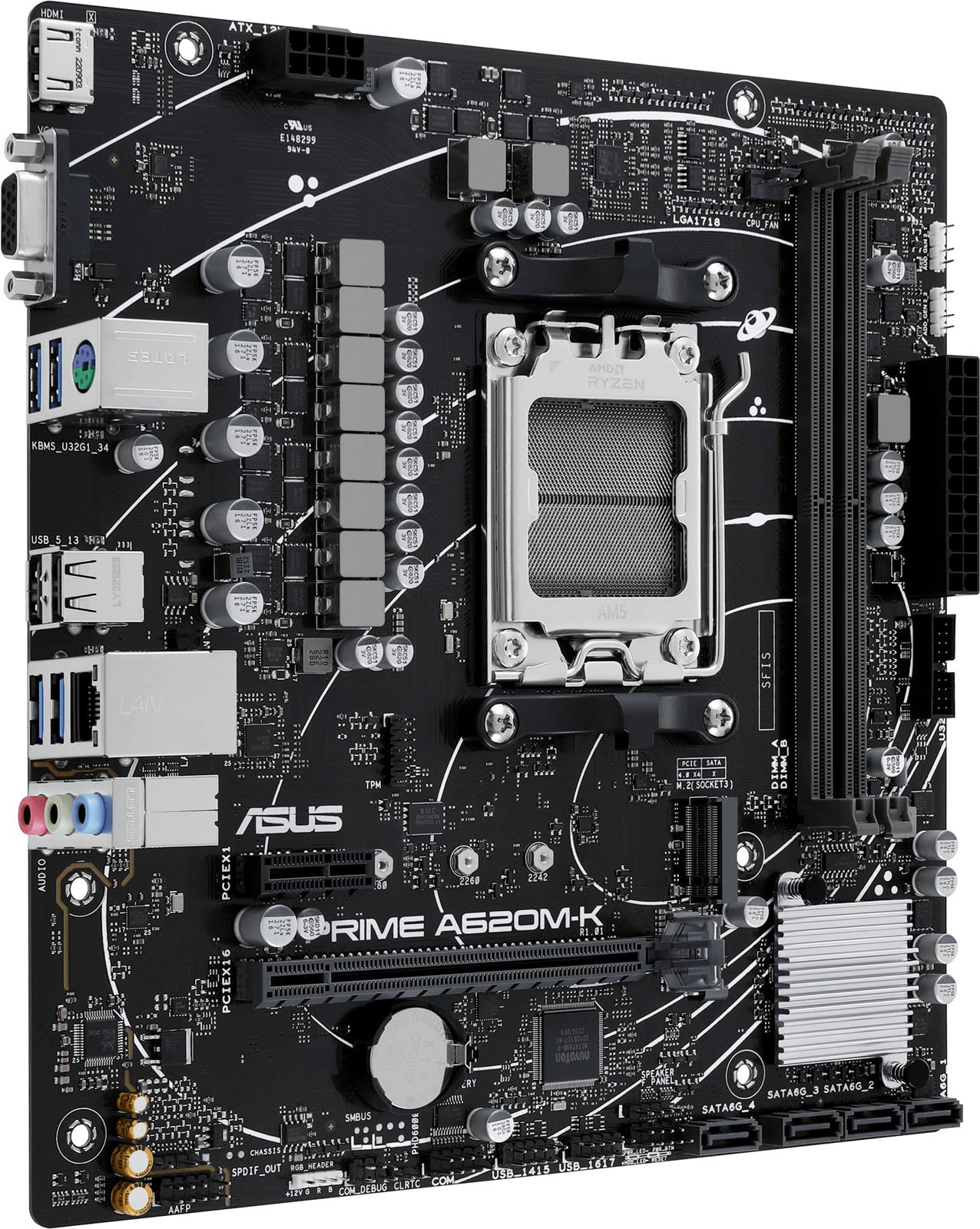

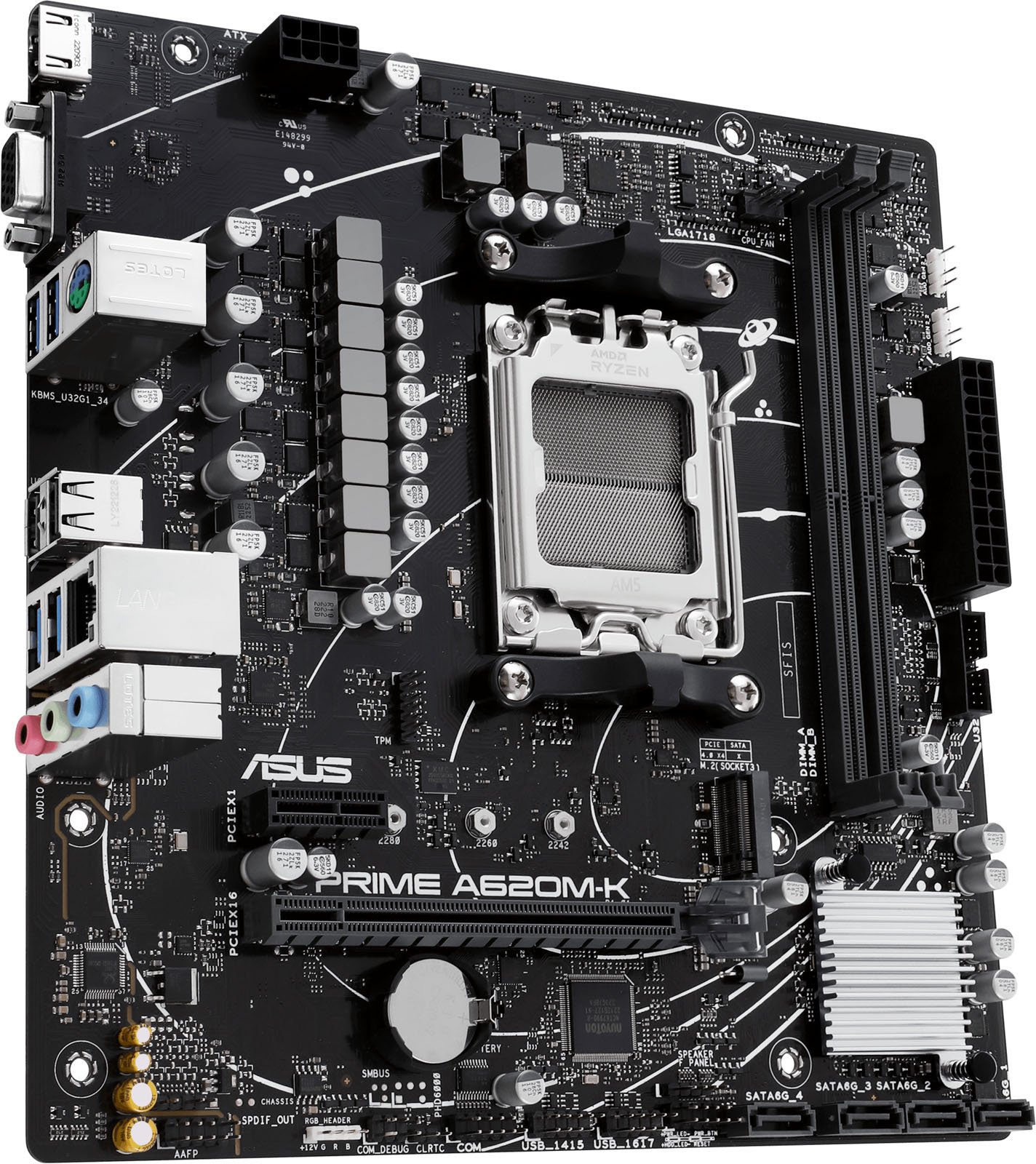

ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs

ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3517

Was £107.10

SAVE £10

Now only

£96.99 inc VAT

  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs
  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs
  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs
  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs
  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs
  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs
  • ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

ASUS Prime A620M-K mATX Motherboard for AMD AM5 CPUs

90MB1F40-M0EAY0

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Was £107.10

SAVE £10

Now only

£96.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • AMD A620 Chipset
  • Socket AM5
  • DDR5 (Max: 96GB / 2 slots)
  • 1 x M.2 & 6 x USB & 4 x SATA
  • HDMI and VGA
CCL Code: MBD3517
Overview

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Main Features

  • AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors
  • Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
  • Comprehensive Cooling: PCH heatsink and Fan Xpert
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 7000 Series/ 8000 Series Desktop Processors
64-bit Support Yes
Socket AM5

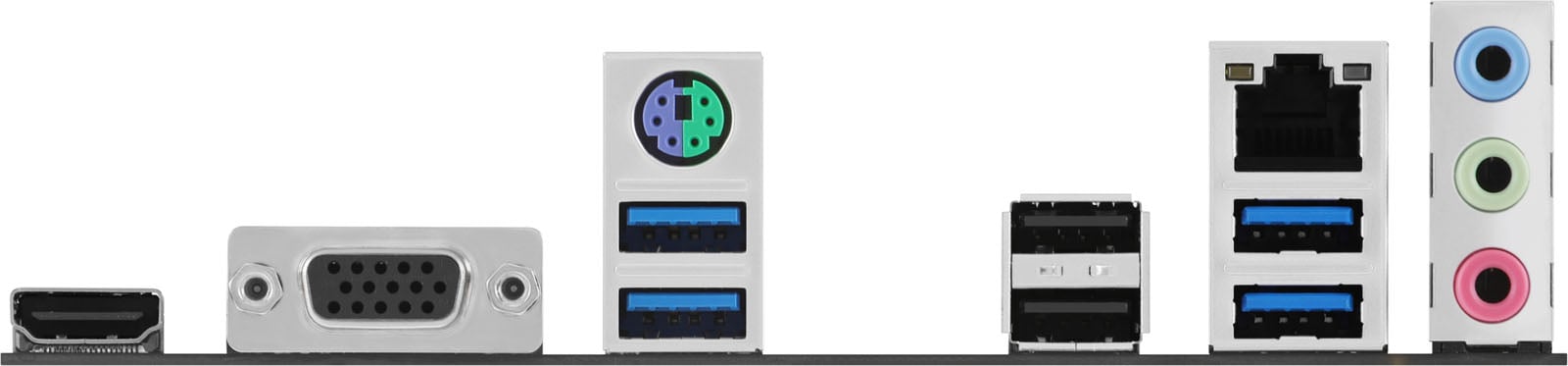

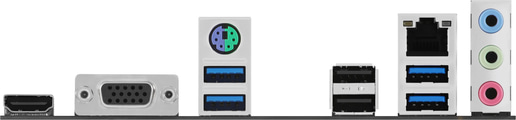

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Chassis fan header
S/PDIF Connectors 1 x S/PDIF Out header
Serial Connectors 1 x COM header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 96 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge AMD A620
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

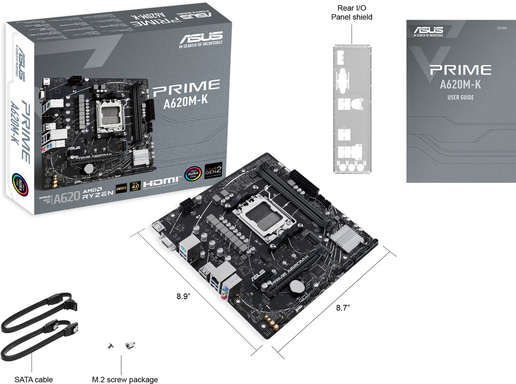

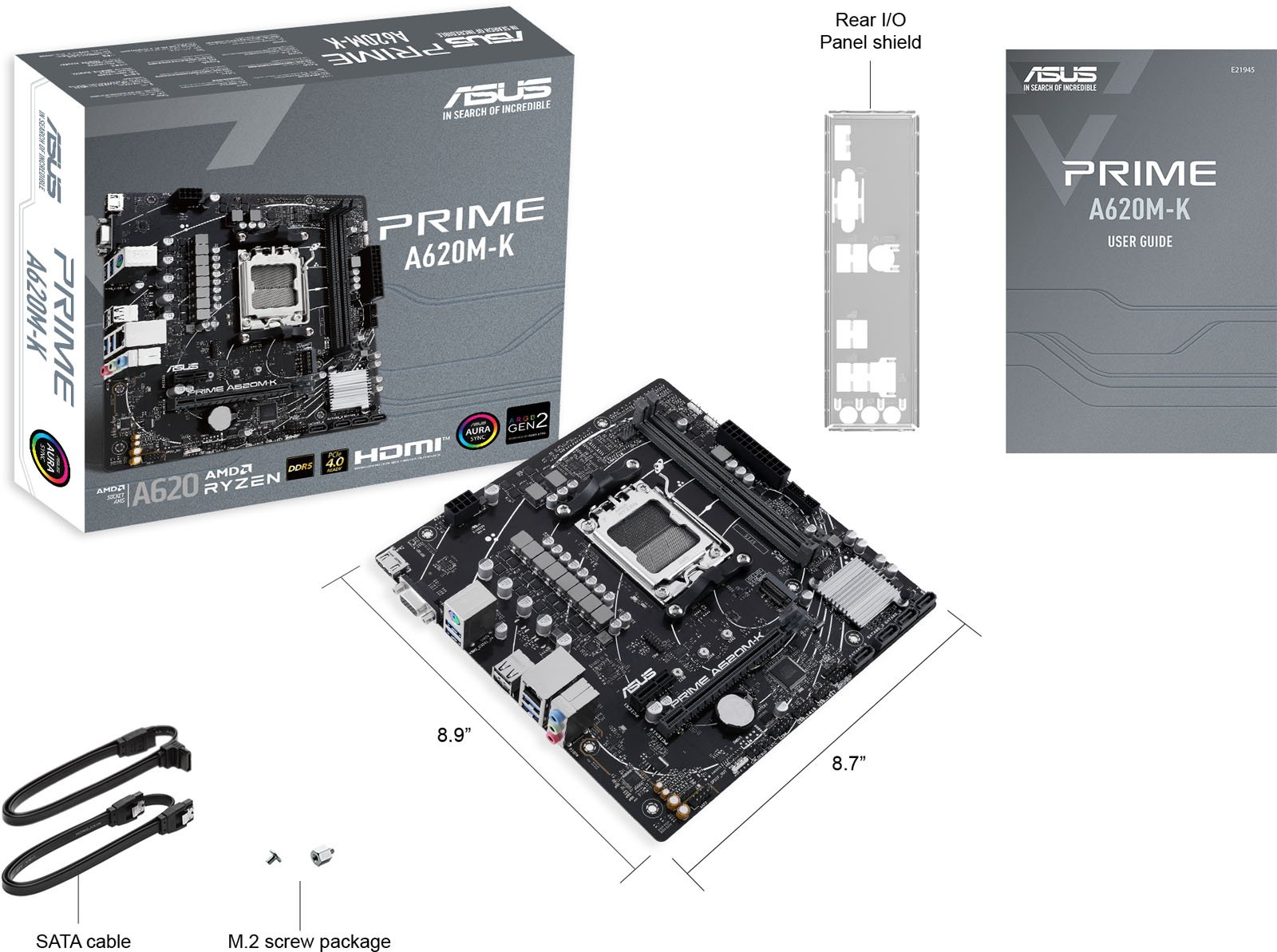

In The Box Motherboard
2 x SATA Cables
I/O Shield
M.2 Screw
User Guide
Width 221 mm
Length 226 mm

Key Features

Addressable RGB Yes
Internal USB Type-C Header No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network No
Motherboard Width 221 mm
Motherboard Height 226 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD A620
Thunderbolt No
Motherboard Model ASUS Prime A620M-K
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1F40-M0EAY0
Alternative Part Number PRIME A620M-K
EAN 4711387242087
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1F40-M0EAY0
Reviews
No reviews have been received for this product yet
