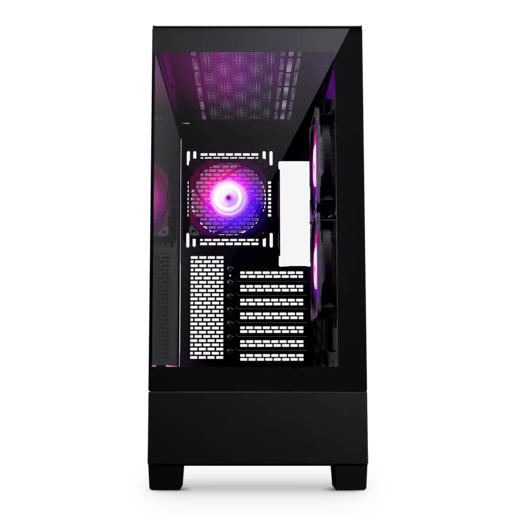

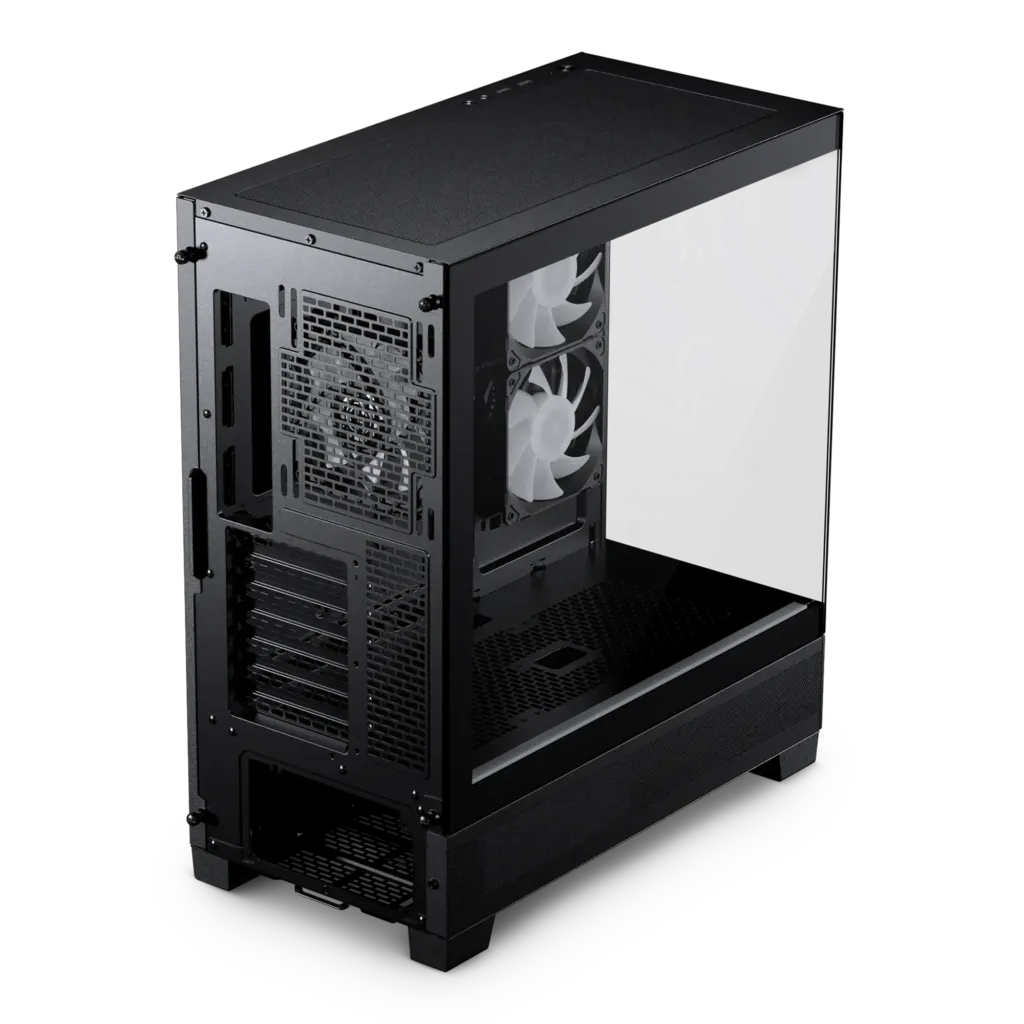

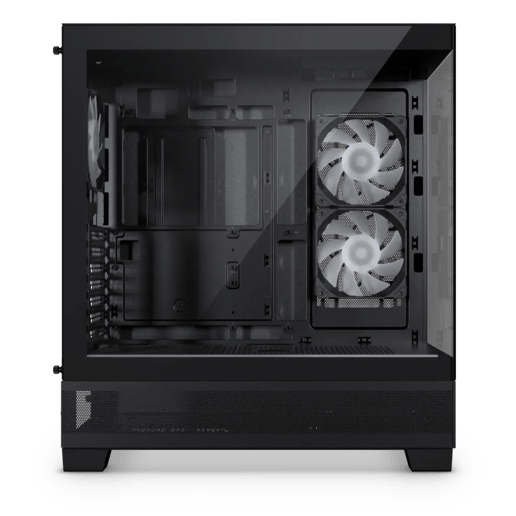

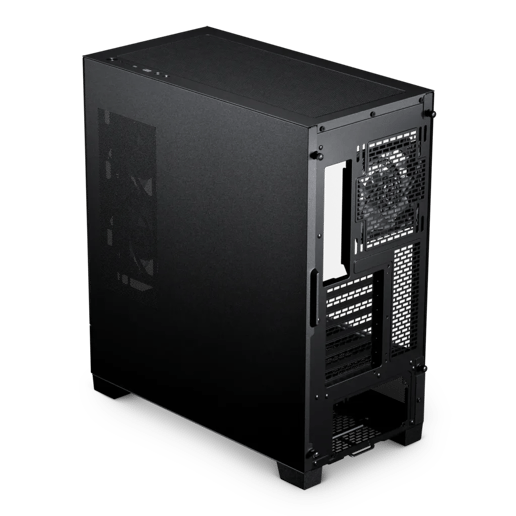

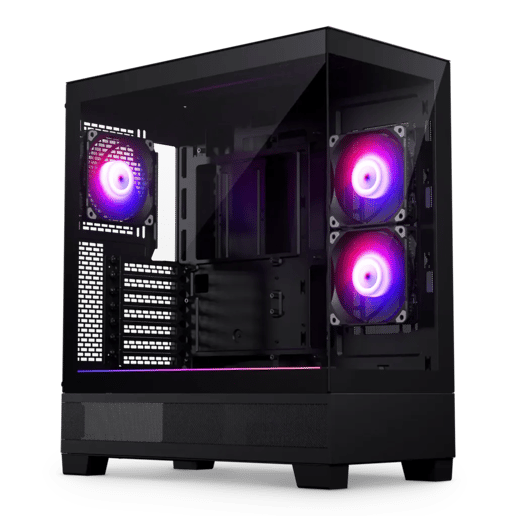

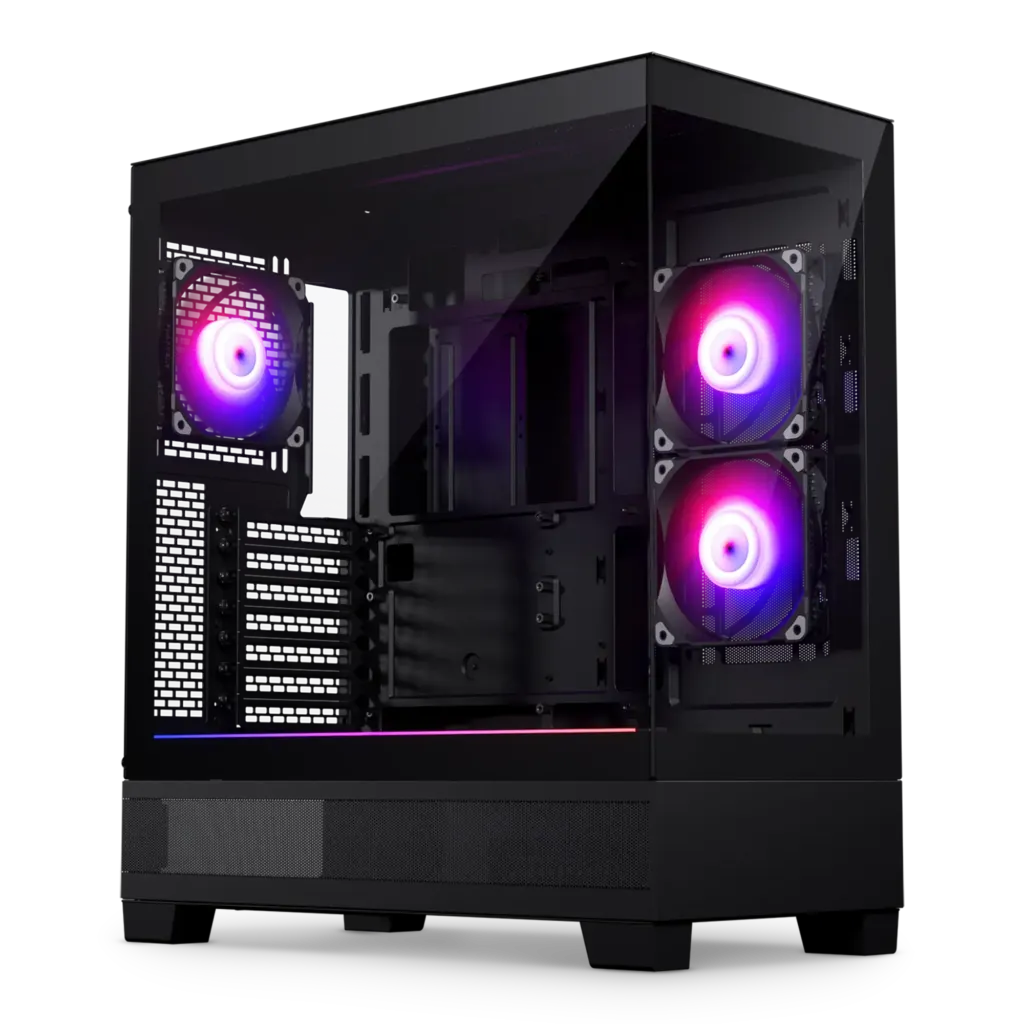

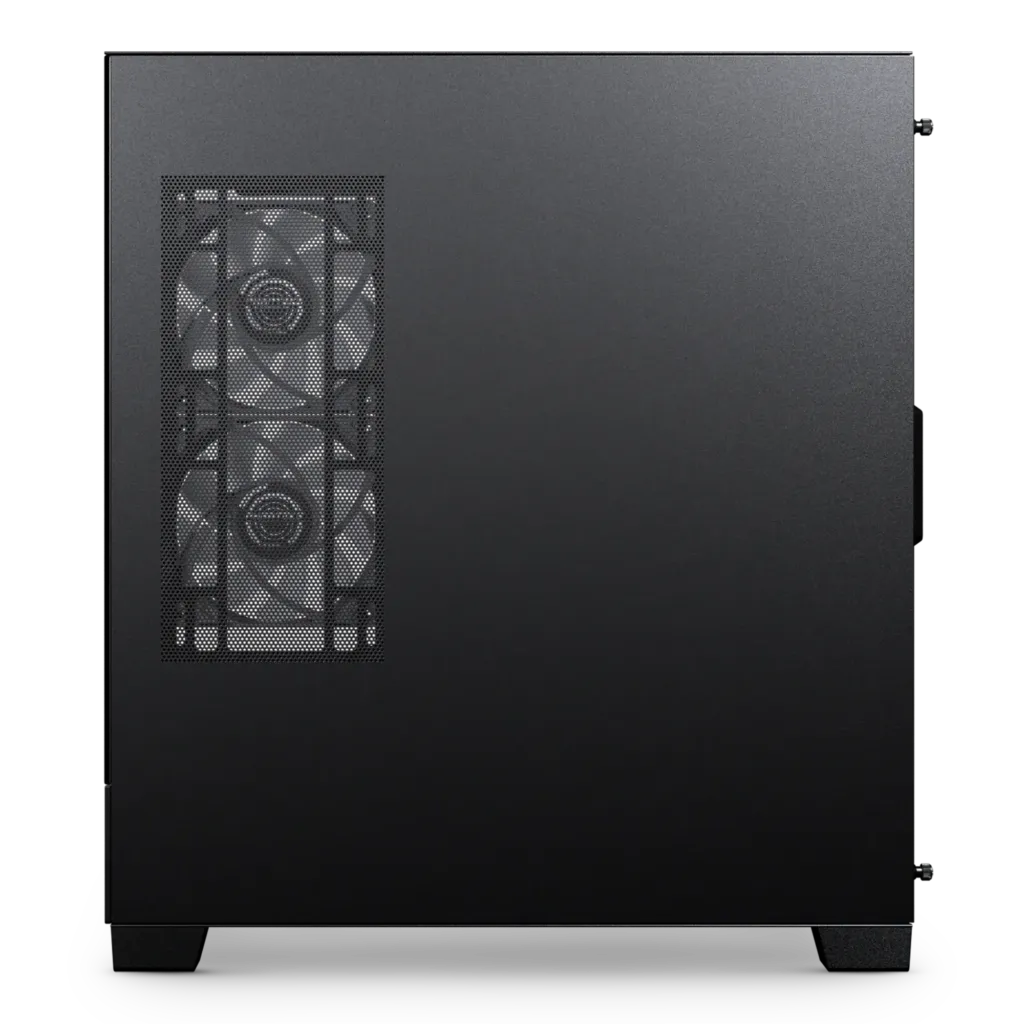

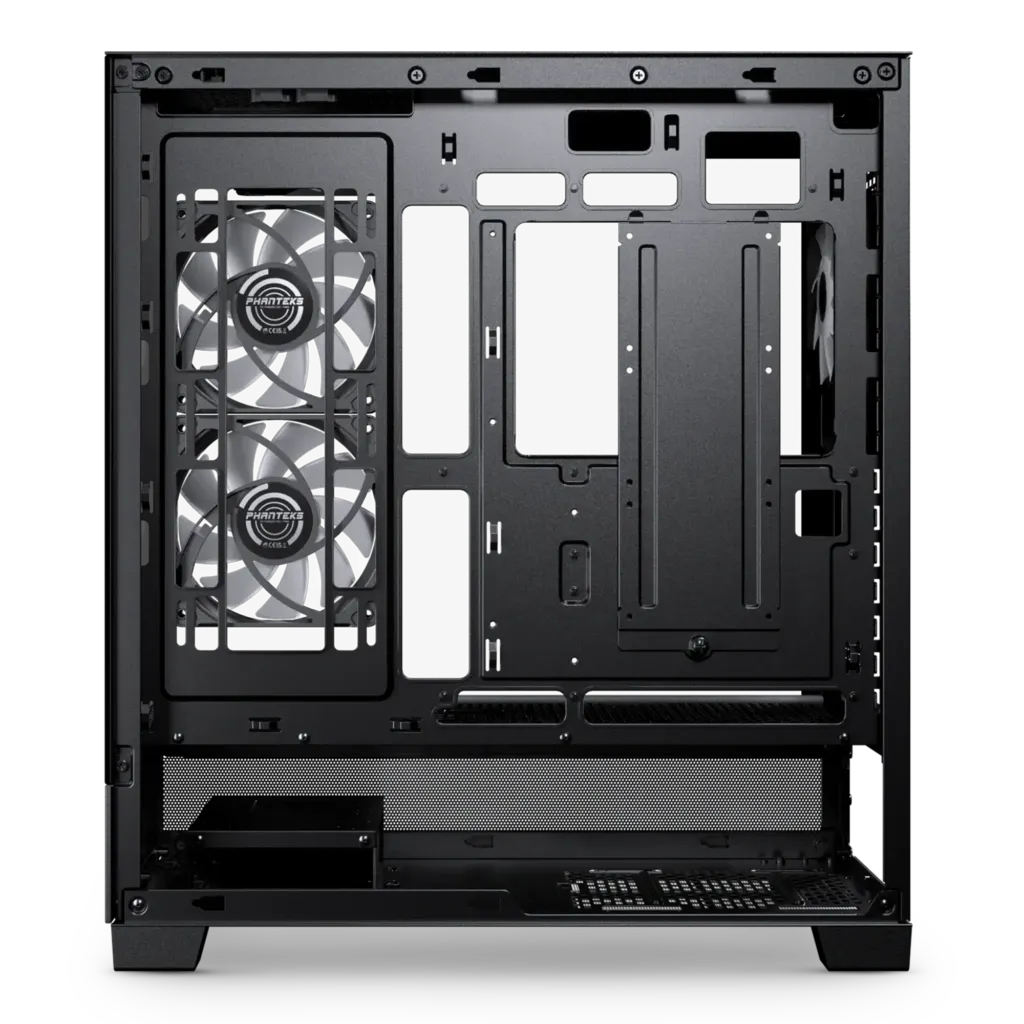

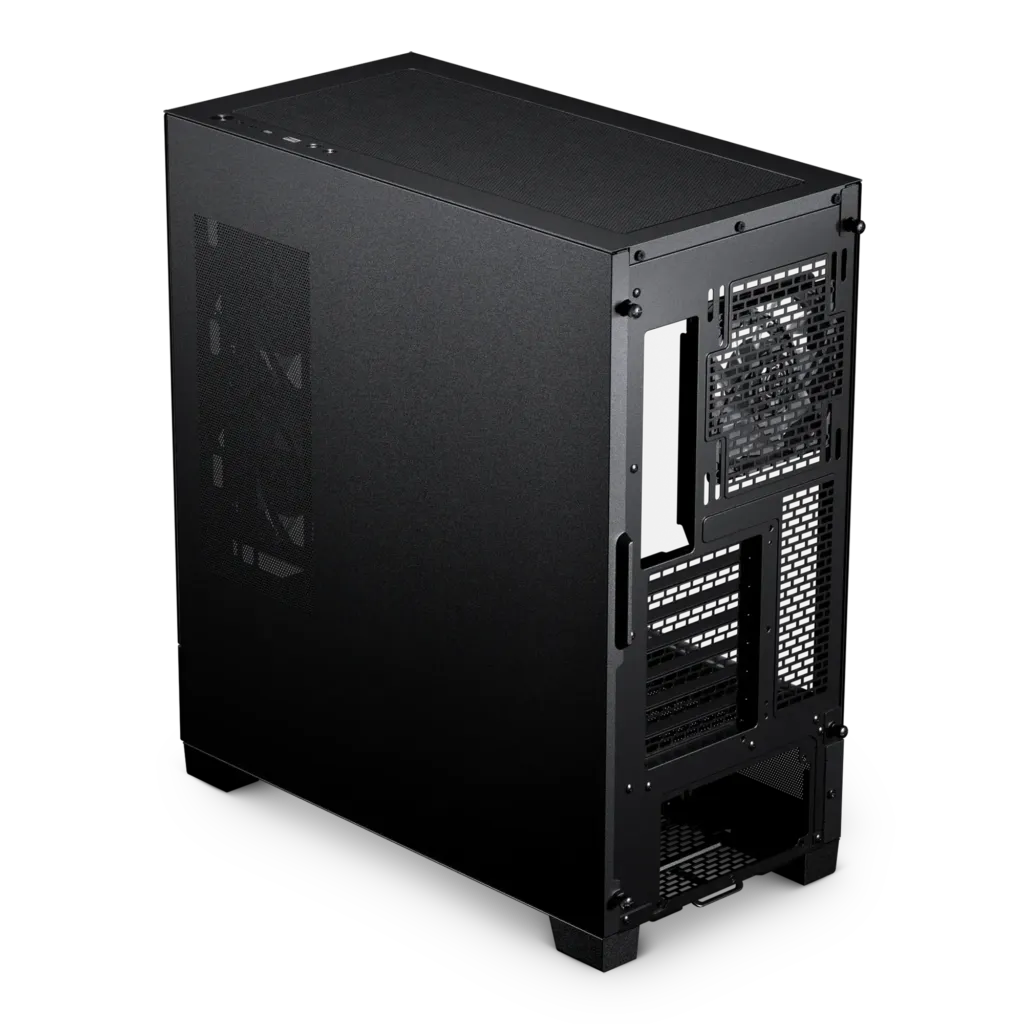

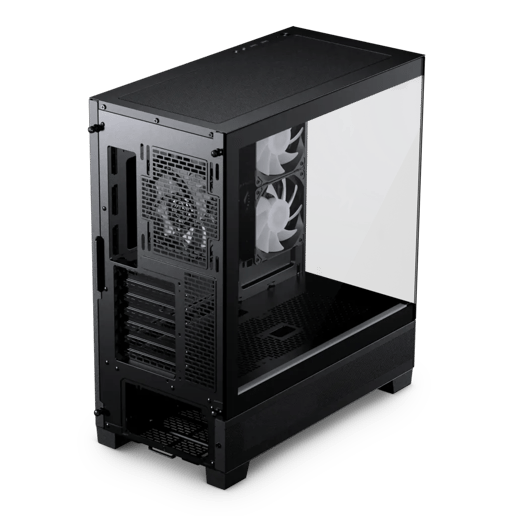

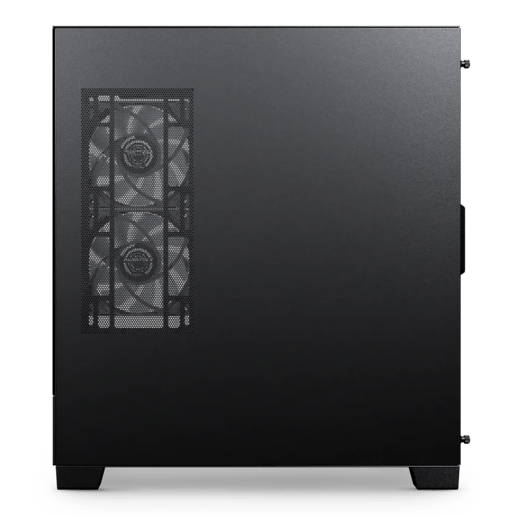

Phanteks XT View Mid Tower Gaming Case - Black

Phanteks XT View Mid Tower Gaming Case - Black

CCL Code: CAS5056

Sold out

Notify Me

Phanteks XT View Mid Tower Gaming Case - Black

PH-XT523V1_DBK01

Key Features:

  • Max Motherboard Size: E-ATX

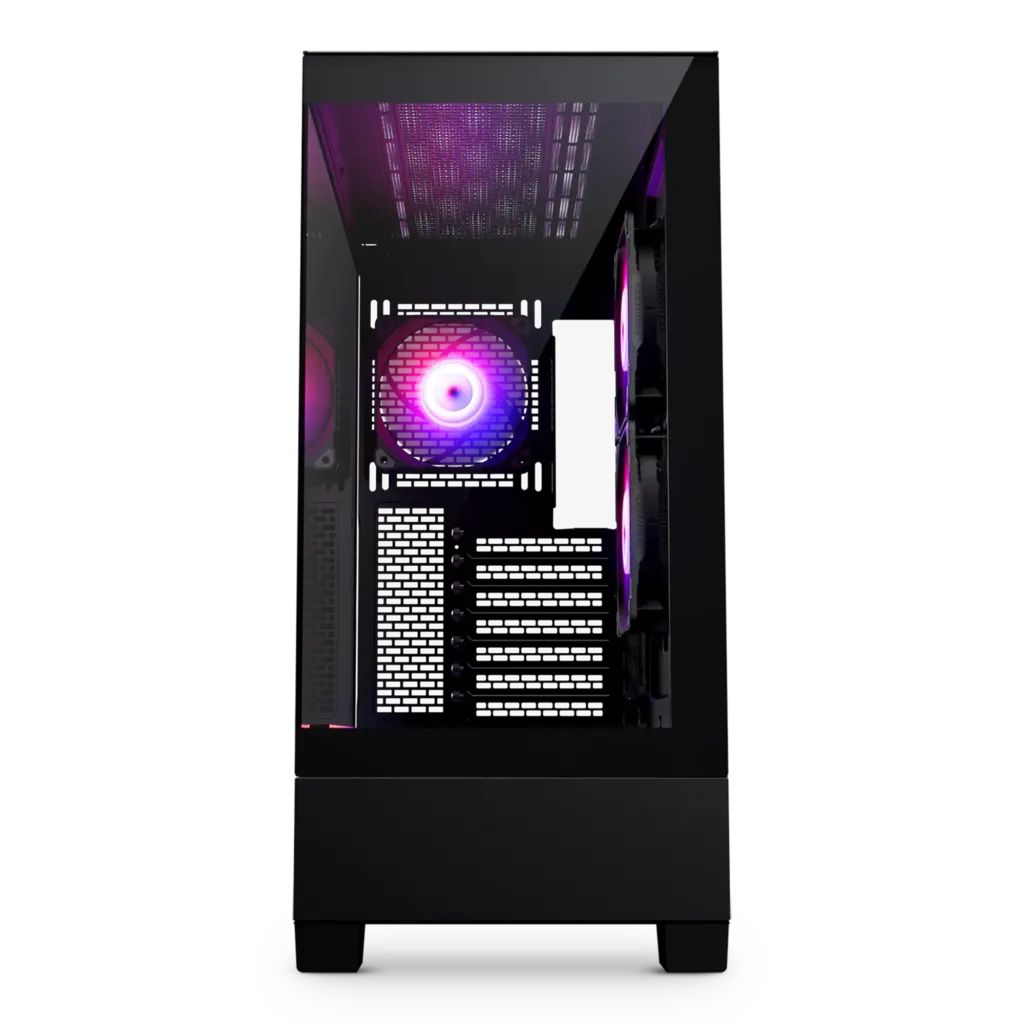

  • Tempered Glass Side with ARGB
  • Front USB Type-C Port
  • 5 x 2.5" / 2 x 3.5" Bay(s)
  • PSU Not Included
CCL Code: CAS5056

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling

Specifications

Storage

Internal Expansion Bays 5 x 2.5" + 1 x 3.5"
2 x 3.5" + 3 x 2.5"

Expansion

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.0
Headphone Ports 1 x 3.5mm COMBO Jack
Microphone In Port Shared with Headphone

Electrical

Cooling System Top: Supports 2 x 140mm or 3 x 120mm fans

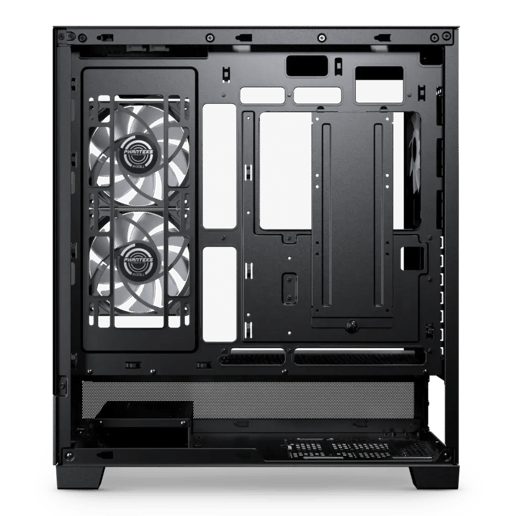

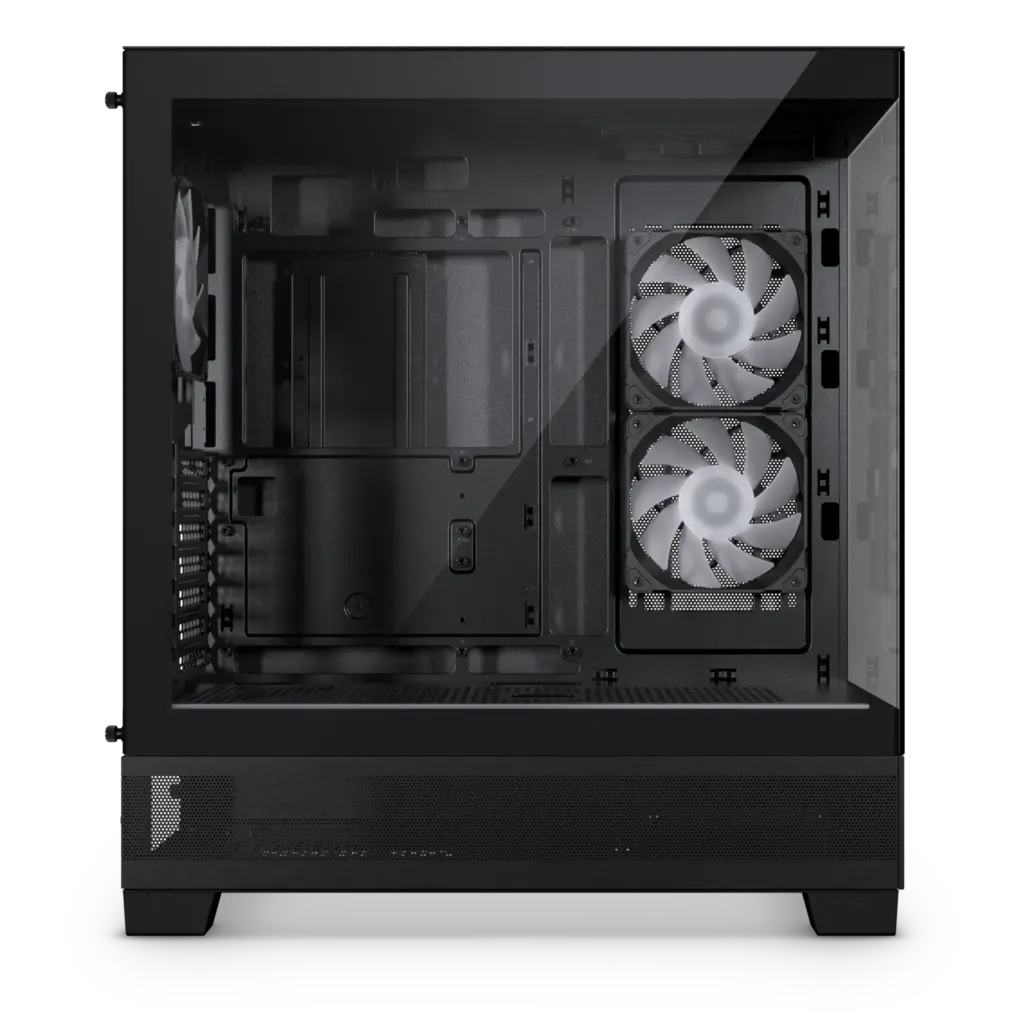

Side: Supports 3 x 140mm or 3 x 120mm fans (2 x 120mm D-RGB fans included)
Rear: Supports 1 x 120mm fan (D-RGB fan included)
PSU Shroud: Supports 3 x 120mm fans
Power Supply ATX Power Supply supported

Warranty

Warranty 5 Years

Physical

Form Factor Mid Tower Case
Case Colour Black
Material Steel
ABS
Tempered Glass
Motherboard Compatibility E-ATX (up to 280mm wide)
ATX
mATX
Mini-ITX
In The Box Case
Accessory Pack
Width 230 mm
Depth 440 mm
Height 500 mm
Weight 7.55 kg

Key Features

Max Motherboard Width 280 mm
Max Motherboard Height 305 mm
Supports AIO Cooler Yes
Power 7 W
Main Colour Black
Case Type Tower
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Illuminated Yes
L.E.D Fan ARGB
Max 3.5" Drives 2
Max 2.5" Drives 5
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 184 mm
Built-in Card Reader No
USB Type-C Support Yes
Side Panel Type Tempered Glass
GPU Length 415 mm
PSU Depth 270 mm
Number of Fans 3 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported E-ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 6
Power Requirement (auto) 9 W
USB3.0 ports 1
USB-C ports 1
Low profile expansion No
Max Supported Radiator Length 360 mm
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer Phanteks
Manufacturer Code PH-XT523V1_DBK01
EAN 0886523303176
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Phanteks
Manufacturer Code PH-XT523V1_DBK01
Reviews
No reviews have been received for this product yet
