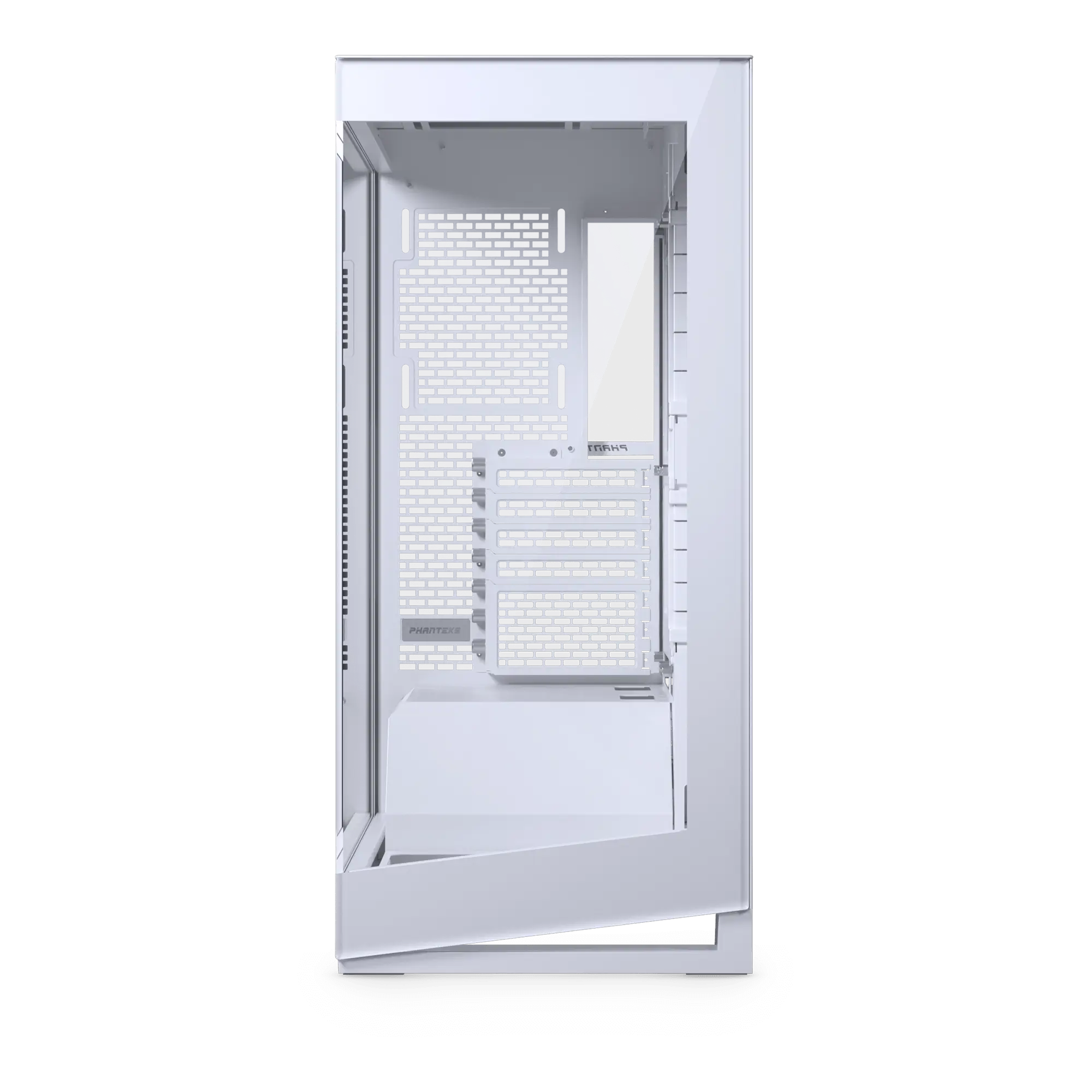

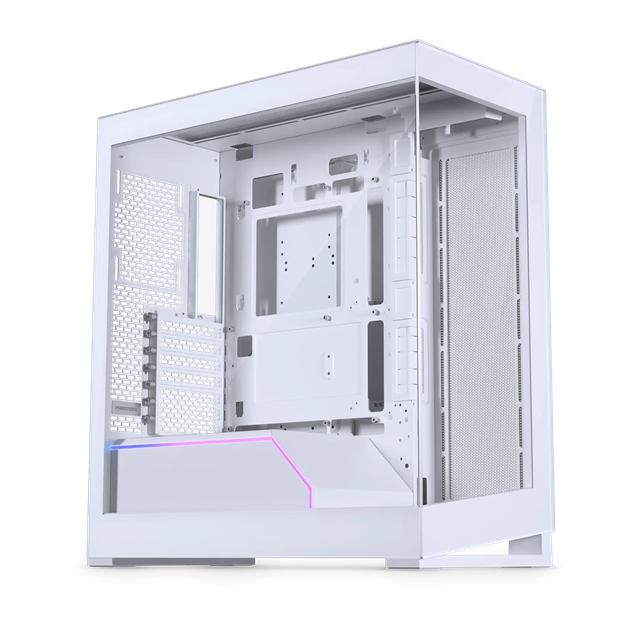

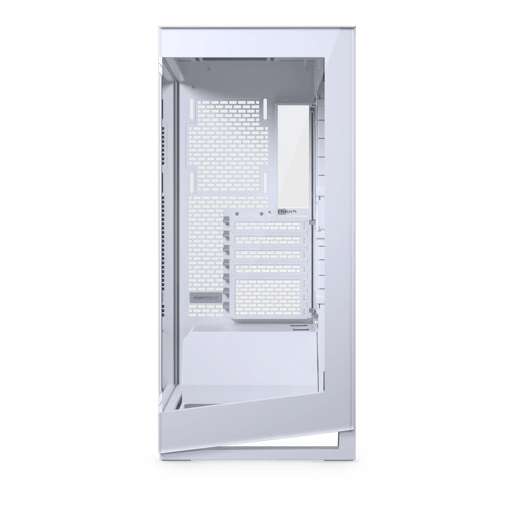

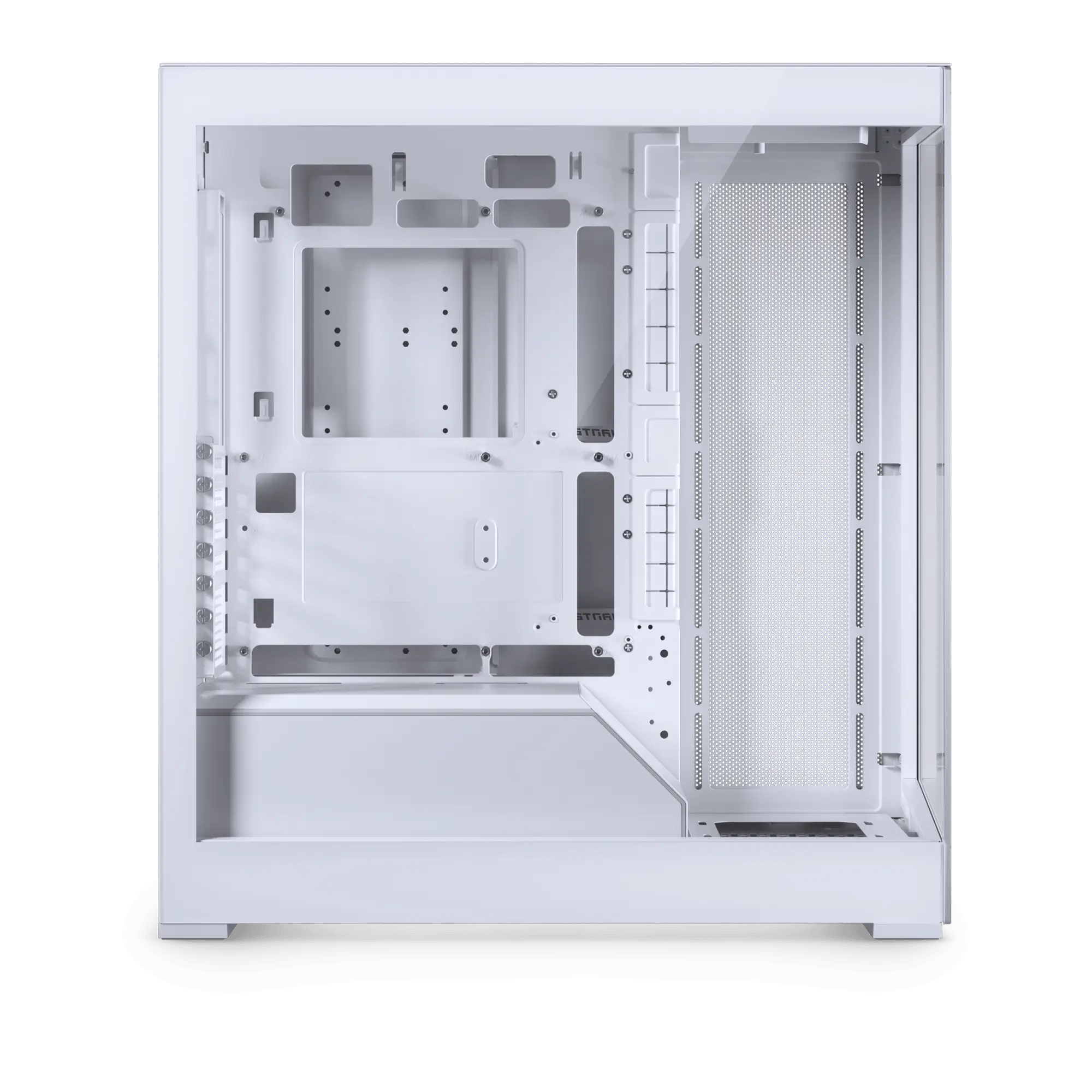

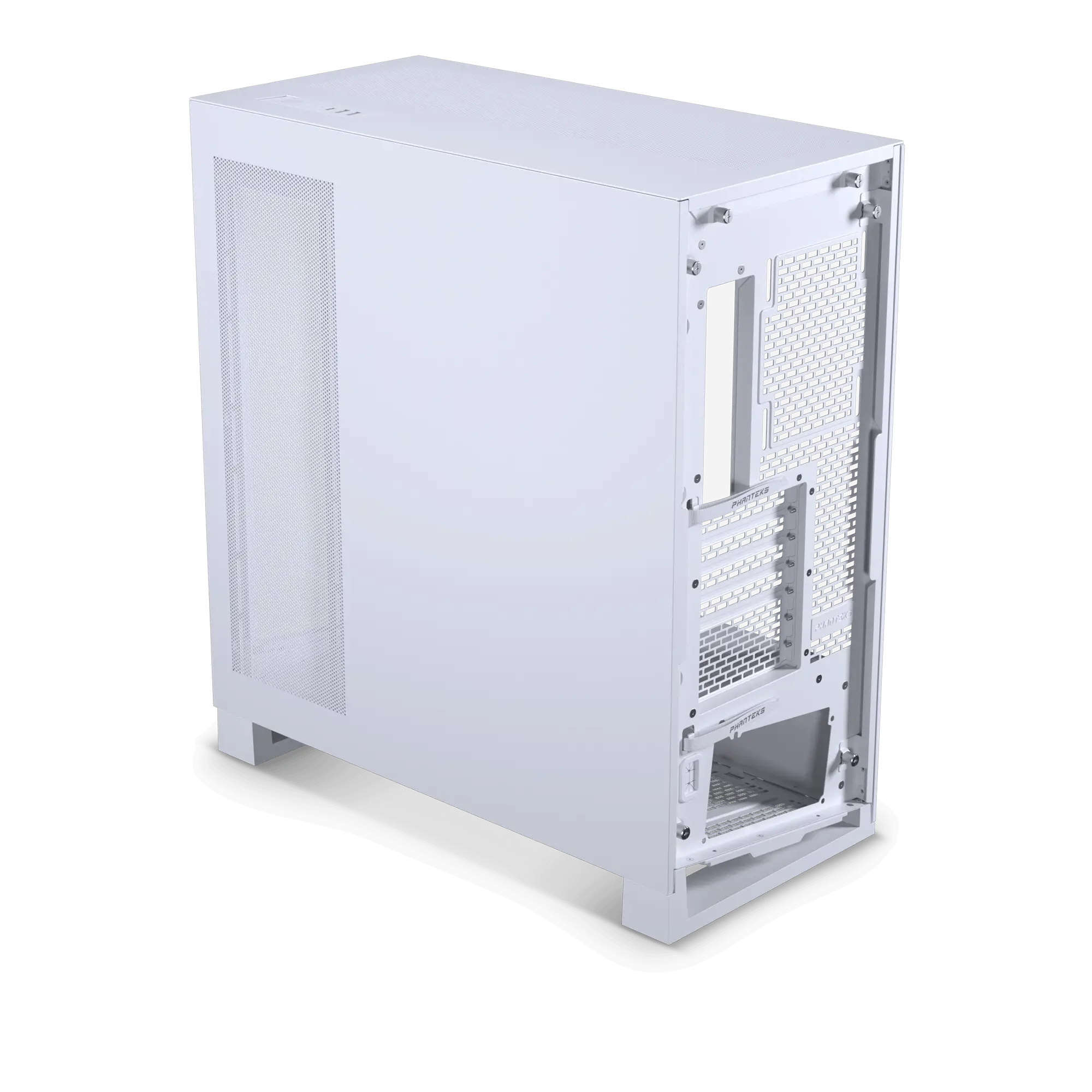

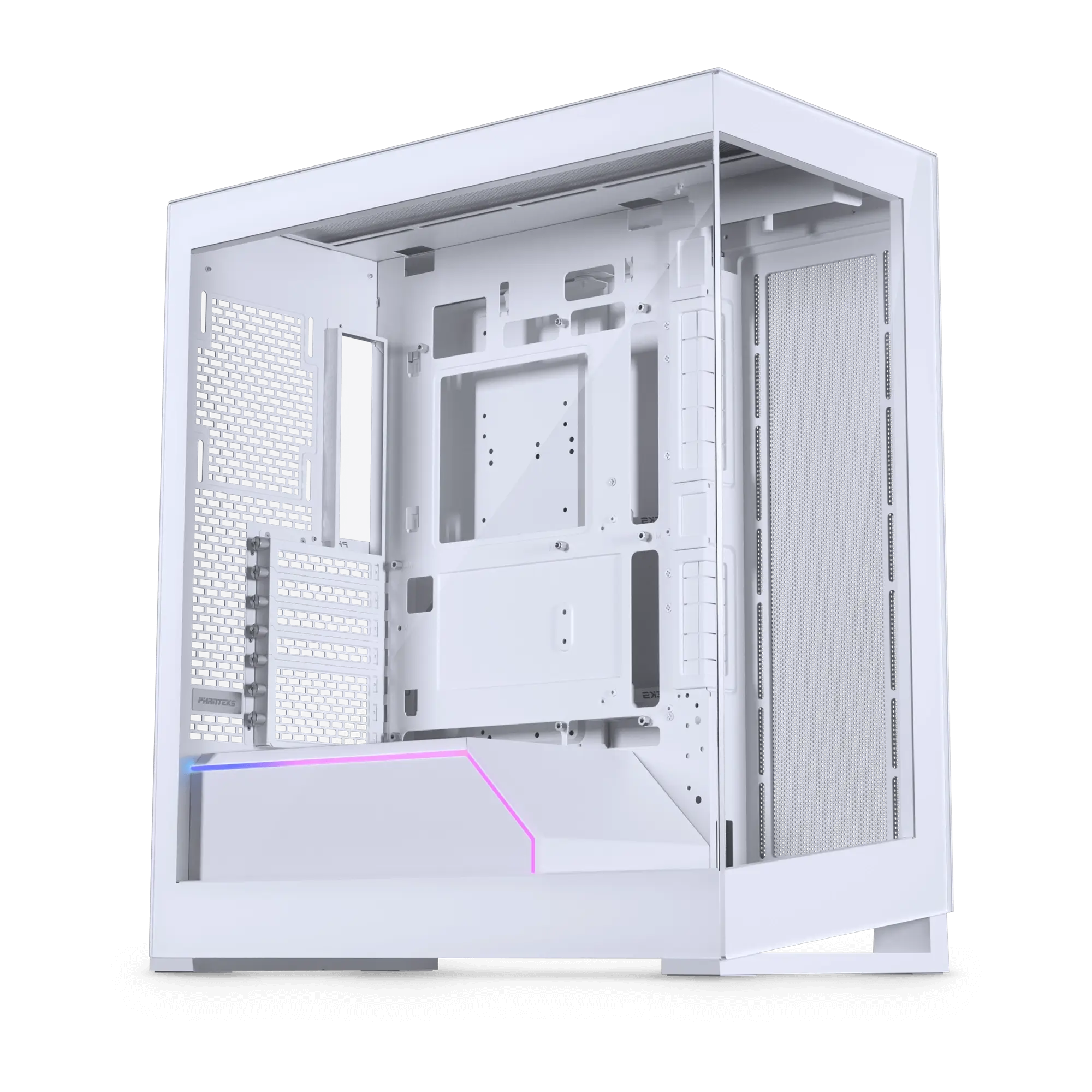

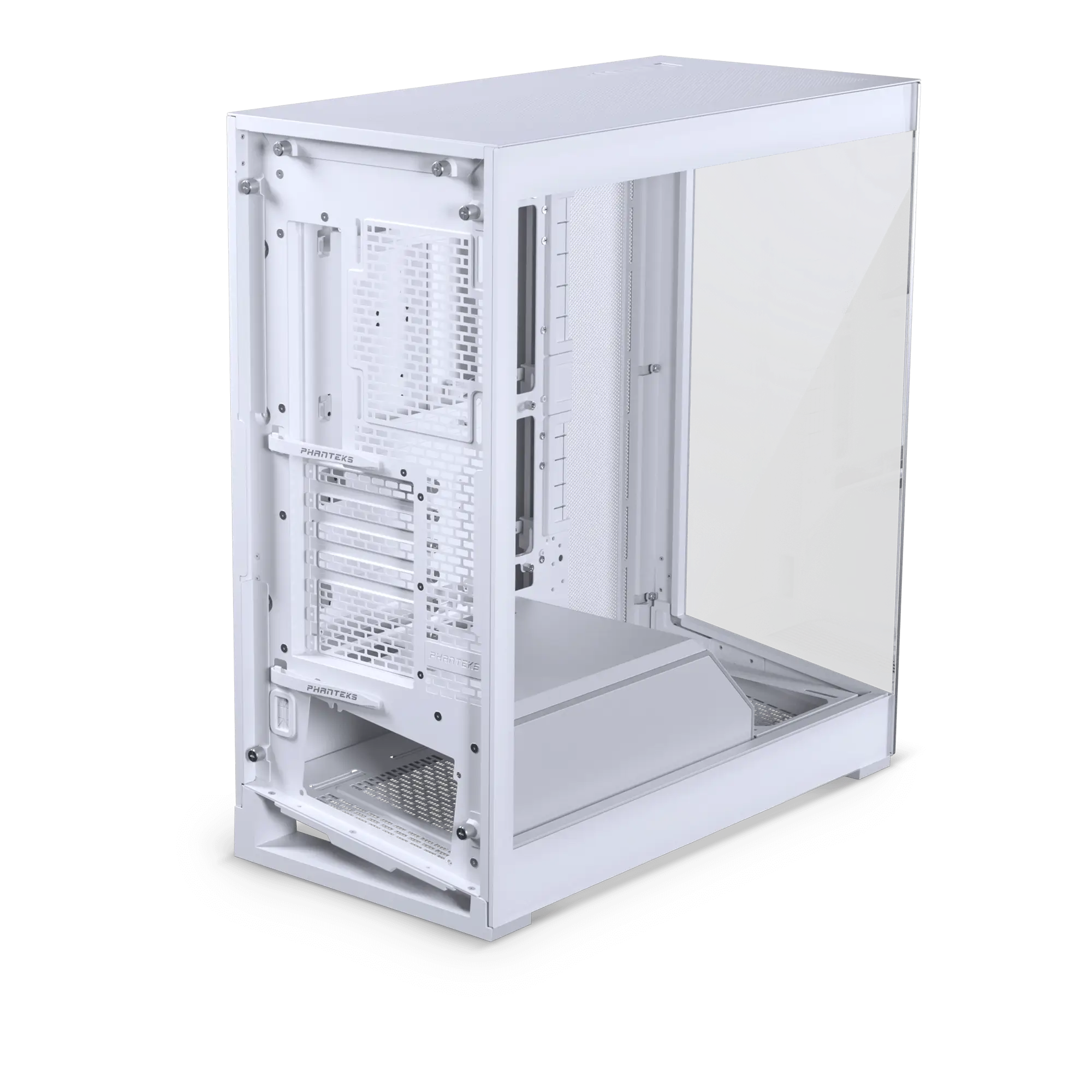

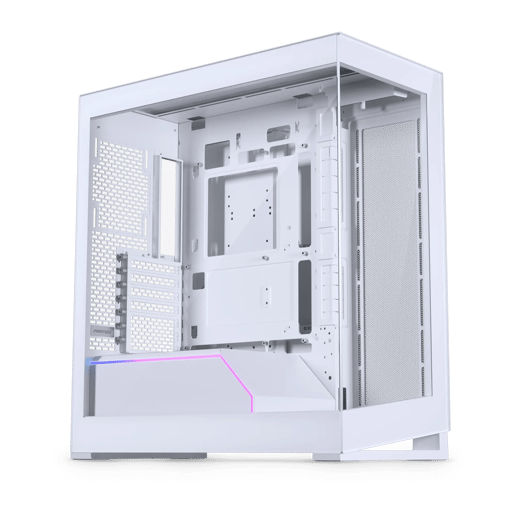

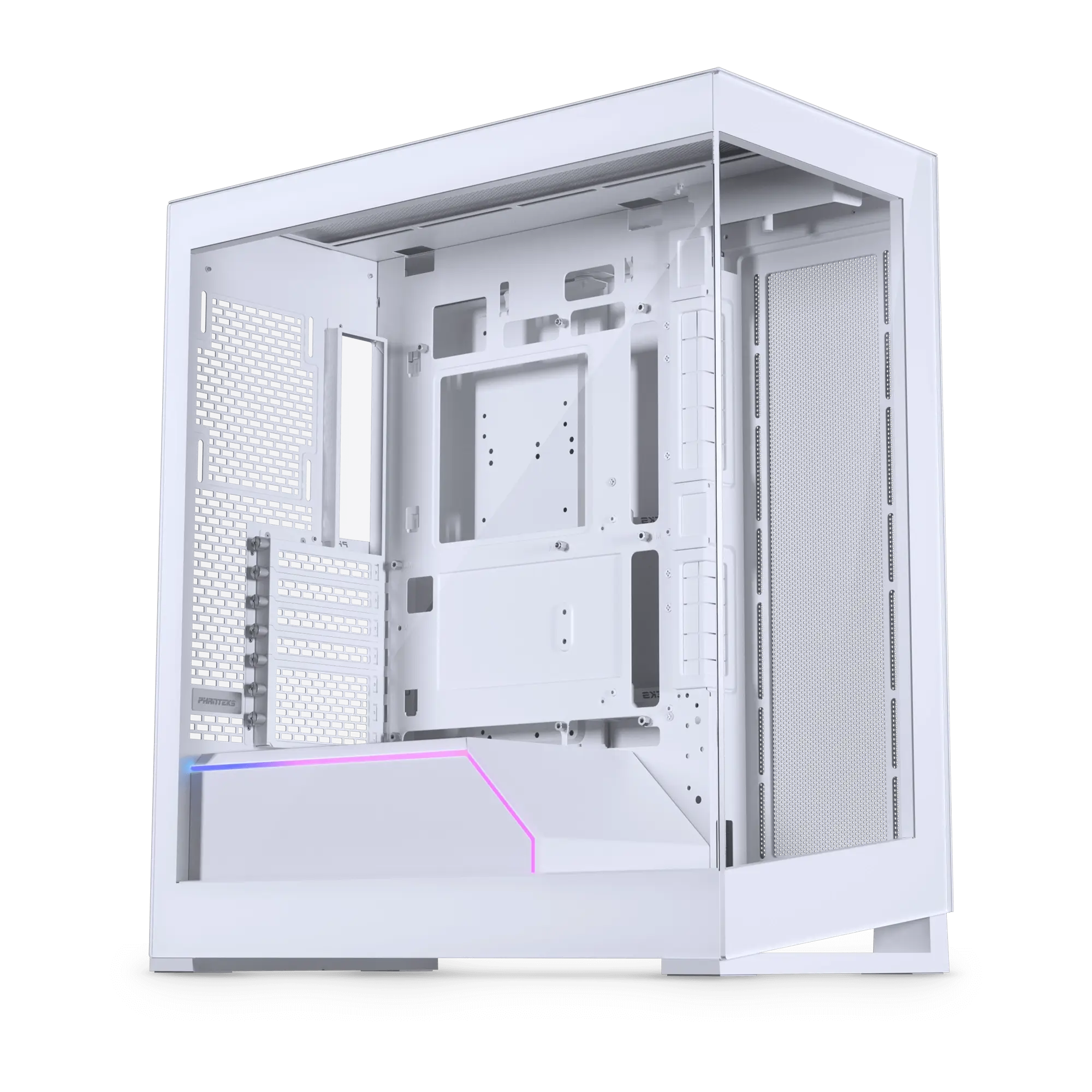

Phanteks NV5 MKII Mid Tower Gaming Case - White

Phanteks NV5 MKII Mid Tower Gaming Case - White

CCL Code: CAS5070

Coming soon

Notify Me

Phanteks NV5 MKII Mid Tower Gaming Case - White

PH-PLEDKT_NV5_DWT02

Key Features:

  • Max Motherboard Size: E-ATX
  • Tempered Glass Side
  • Front USB Type-C Port
  • 4 x 2.5" / 3 x 3.5" Bay(s)
  • PSU Not Included
CCL Code: CAS5070

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Colour:

Overview

Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.

Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.

PERFECT VIEW OF YOUR SYSTEM

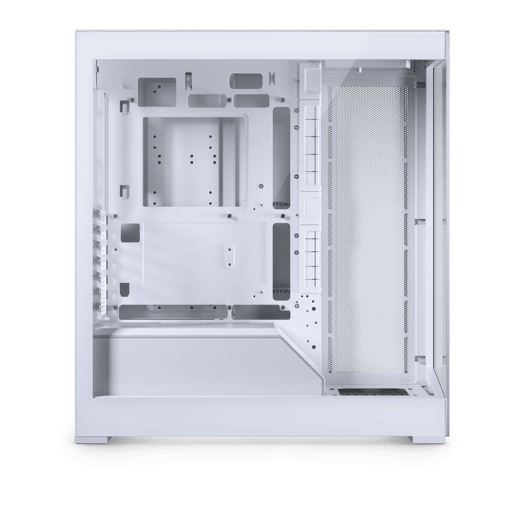

  • Near-seamless glass panels for a perfect view of all your system components.
  • Top and side panel with Ultra-fine performance mesh for high airflow and good dust filtration.
  • A total of eight 120 mm fan positions for high-end cooling performance.
  • Dual 360 radiator support in the top and side.

READY FOR MODERN GPUS

  • Increased chassis width to support wider GPUs and 12VHPWR cables.
  • GPU support bracket supports and holds the GPU securely to chassis and motherboard.
  • Dedicated GPU fan to provide direct airflow to the GPU from the bottom.
  • Removable PSU cover for easy access to power cables.

BUILD FOR THE FUTURE

  • UNLOCK THE ZERO-CABLE SETUP - Mainboards with hidden connectors on the rear-side are fully supported by the NV chassis.
  • Support for MSI Project Zero mainboards.
  • Support for ASUS BTF mainboards.

INTEGRATED D-RGB LIGHTING

  • Built-in Digital-RGB Controller.
  • Refined D-RGB lighting effects that just work, no software required.
  • Expand with more Digital-RGB lighting.
  • Optionally sync with motherboard and software.

MULTIPLE STORAGE OPTIONS

  • Support for 4x 2.5″ SSD.
  • Support 3x 3.5″ HDDs.
Specifications

User Controls

User Controls Power
D-RGB Mode
D-RGB Colour

Storage

Internal Expansion Bays 4 x 2.5"
3 x 3.5"

Expansion

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.0
Headphone Ports 1 x 3.5mm COMBO Jack
Microphone In Port Shared with Headphone

Electrical

Cooling System Top: Supports 3 x 120mm fans
Side: Supports 3 x 120mm fans
Rear: Supports 1 x 120mm fan
Bottom: Supports 1 x 120mm fan
Power Supply ATX Power Supply supported

Warranty

Warranty 5 Years

Physical

Form Factor Mid Tower Case
Case Colour Matte White
Material Steel
Tempered Glass
Motherboard Compatibility E-ATX (up to 280mm)
ATX
mATX
Min-ITX
In The Box Case
Accessory Kit
Width 239 mm
Depth 477 mm
Height 528 mm
Weight 11.28 kg

Key Features

Max Motherboard Width 330 mm
Max Motherboard Height 305 mm
Supports AIO Cooler Yes
Main Colour White
Case Type Tower
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Illuminated Yes
L.E.D Fan No LED
Max 3.5" Drives 3
Max 2.5" Drives 4
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 180 mm
Built-in Card Reader No
USB Type-C Support Yes
Side Panel Type Tempered Glass
GPU Length 440 mm
PSU Depth 230 mm
RGB LED Controller Included Yes
LED Strip(s) Included No
Maximum Motherboard Size Supported E-ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 7
USB3.0 ports 2
USB-C ports 1
Low profile expansion No
Max Supported Radiator Length 360 mm
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer Phanteks
Manufacturer Code PH-PLEDKT_NV5_DWT02
EAN 0886523003243
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Phanteks
Manufacturer Code PH-PLEDKT_NV5_DWT02
