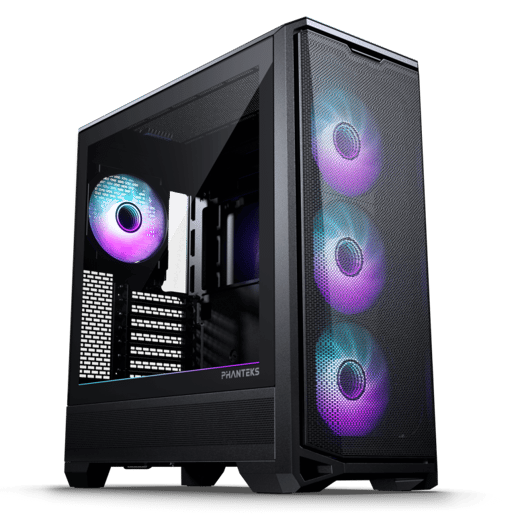

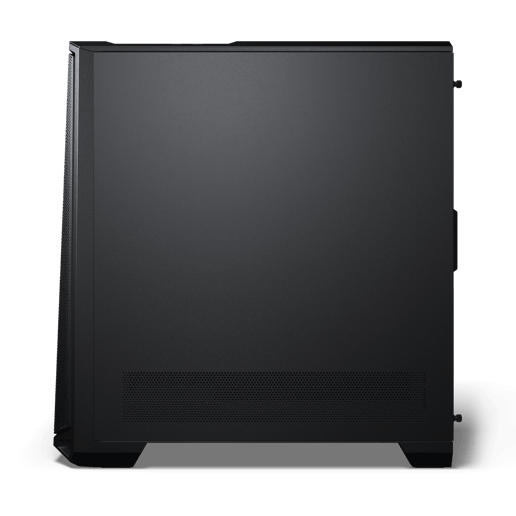

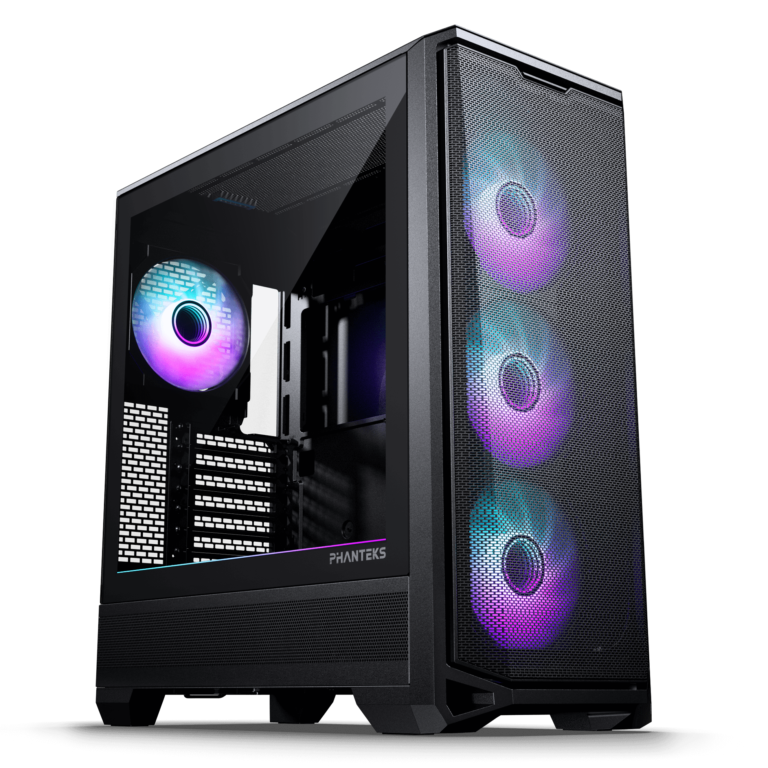

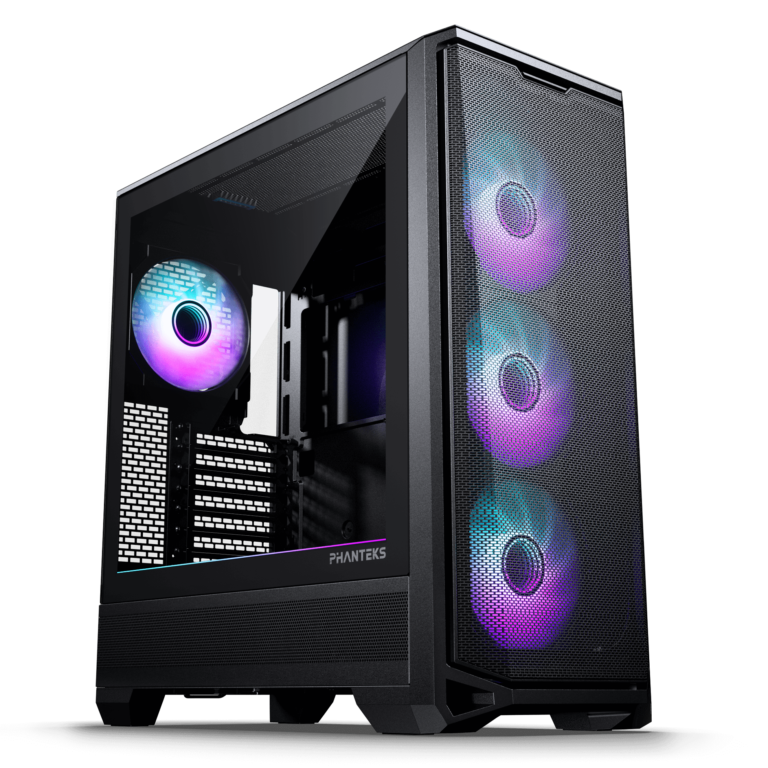

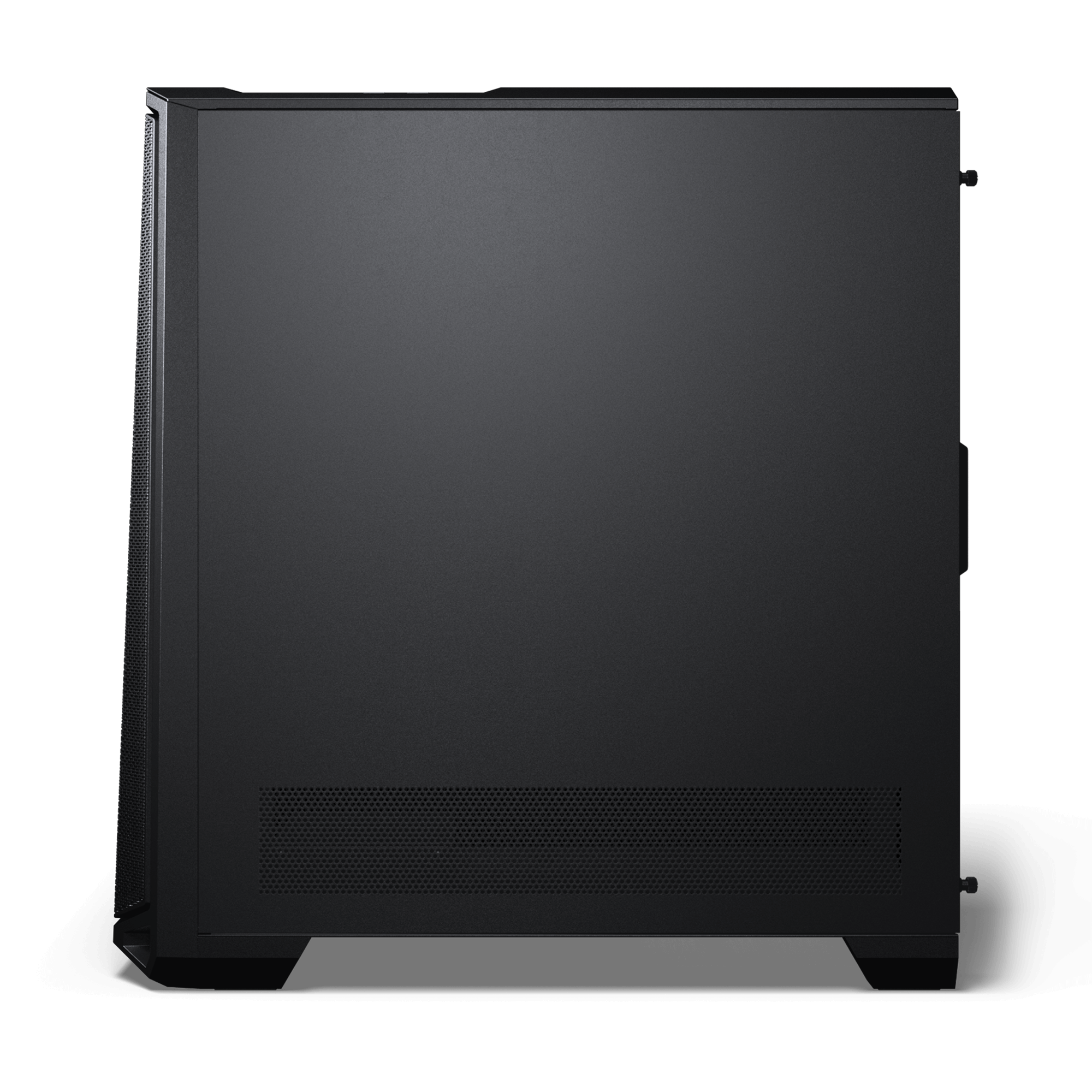

Phanteks Eclipse G400A Mid Tower Gaming Case - Black

Phanteks Eclipse G400A Mid Tower Gaming Case - Black

CCL Code: CAS5406

Coming soon

Notify Me

Phanteks Eclipse G400A Mid Tower Gaming Case - Black

PH-EC400GA_DBK01

Key Features:

  • Max Motherboard Size: E-ATX

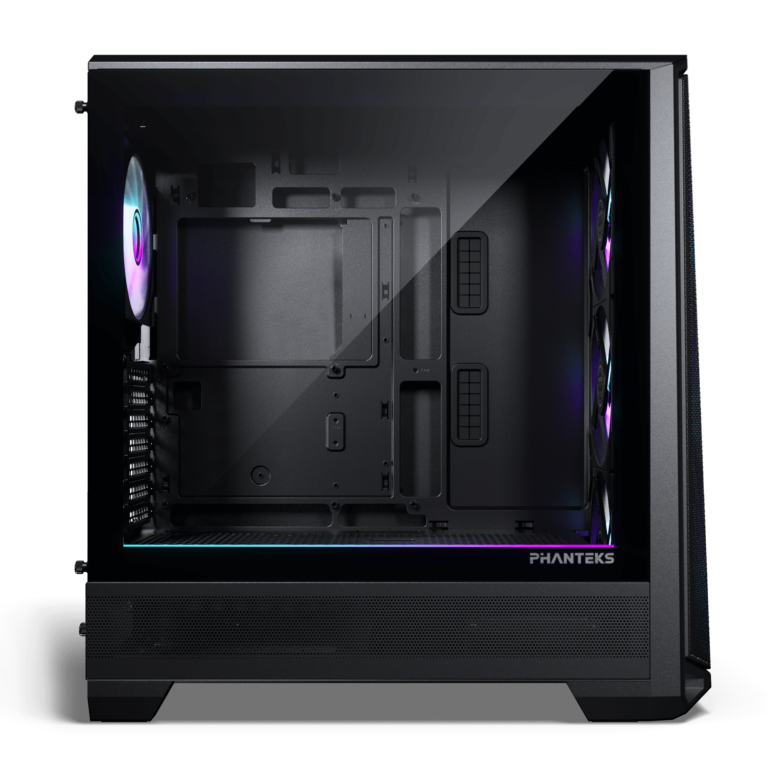

  • Tempered Glass Side with ARGB
  • 4 x 4-pin PWM Fan(s)
  • Front USB Type-C Port
  • 2 x 2.5" / 2 x 3.5" Bay(s)
CCL Code: CAS5406

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Colour:

Overview

The G400A is the upgraded successor to the popular P400A, featuring a completely redesigned and more spacious chassis. It’s perfect for clean, modern hardware setups, easily accommodating even the largest graphics cards while leaving ample room for cable management. With up to 10 fan mounting points, support for 140 mm fans, and dedicated radiator space at the top, cooling performance has been significantly enhanced.

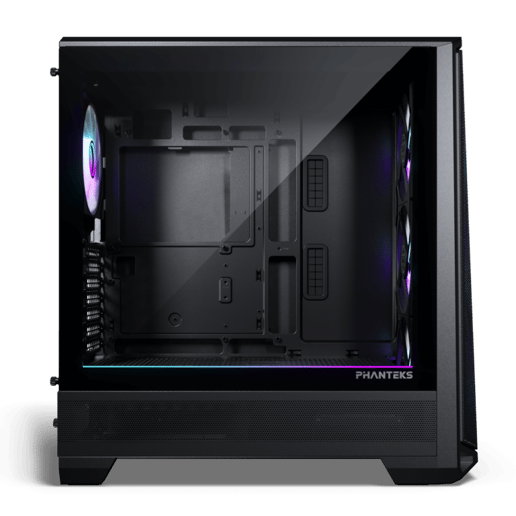

The G400A also supports the latest mainboards, with rear side connectors hidden to enable a cable-free appearance. Additionally, the graphics card benefits from direct cooling via three 120mm fan mounts on the mid-plate.

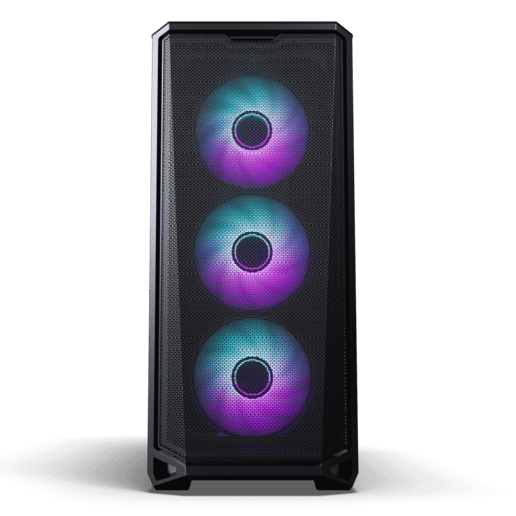

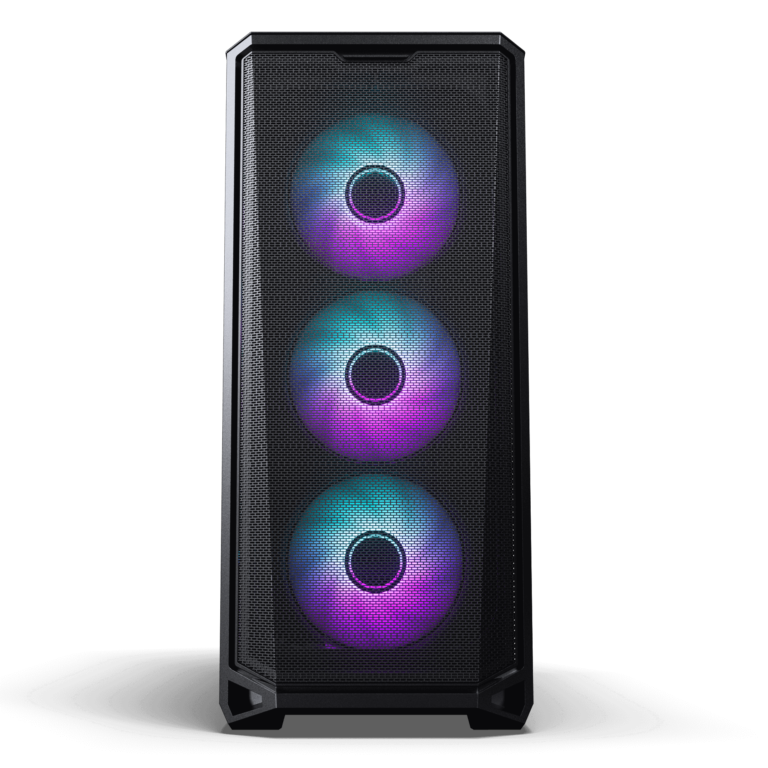

Clean front inlet design

  • Clean design allows for focused airflow.
  • 4x M25-140 Gen2 D-RGB fans included.
  • Dedicated 360 radiator support in the top without restrictions.

Improved Air Intake

  • 45% open surface for more air intake compared to standard mesh which only provides 35%.

Ultra-fine Performance Mesh

  • Large mesh intake areas on both side panels for high cooling performance.

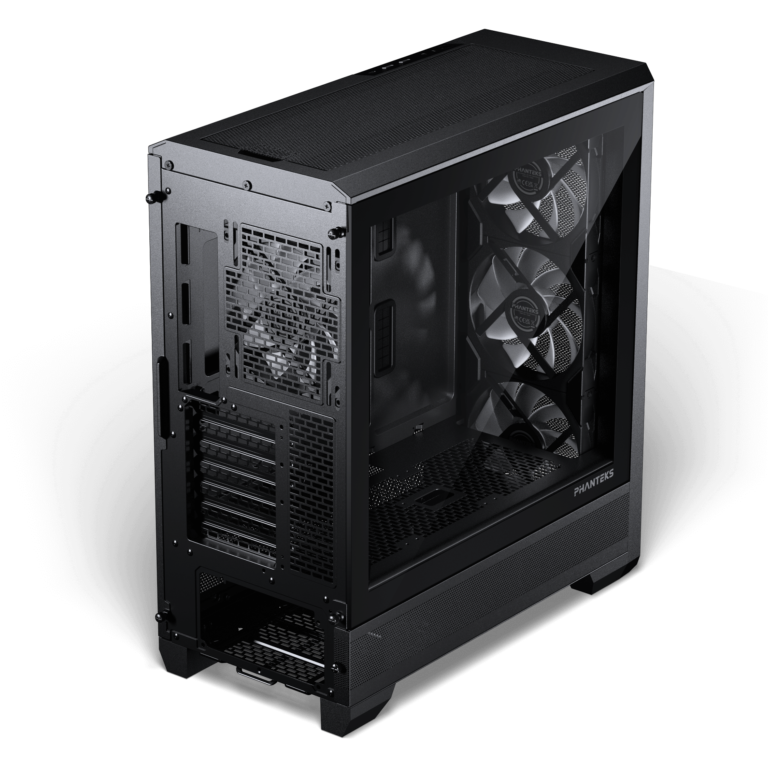

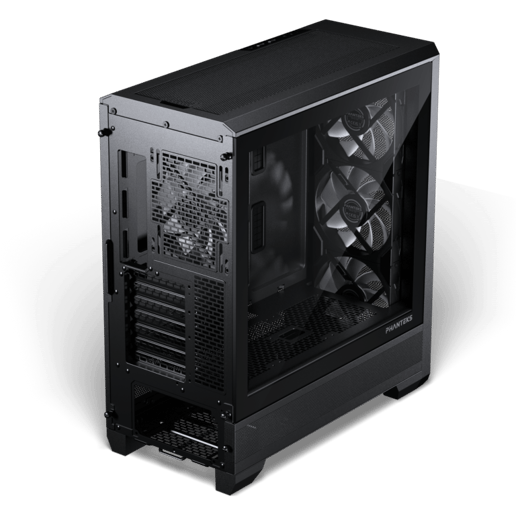

  • Triple mid-plate 120 fan locations for direct GPU cooling.
  • Support for the largest graphics cards without compromise.

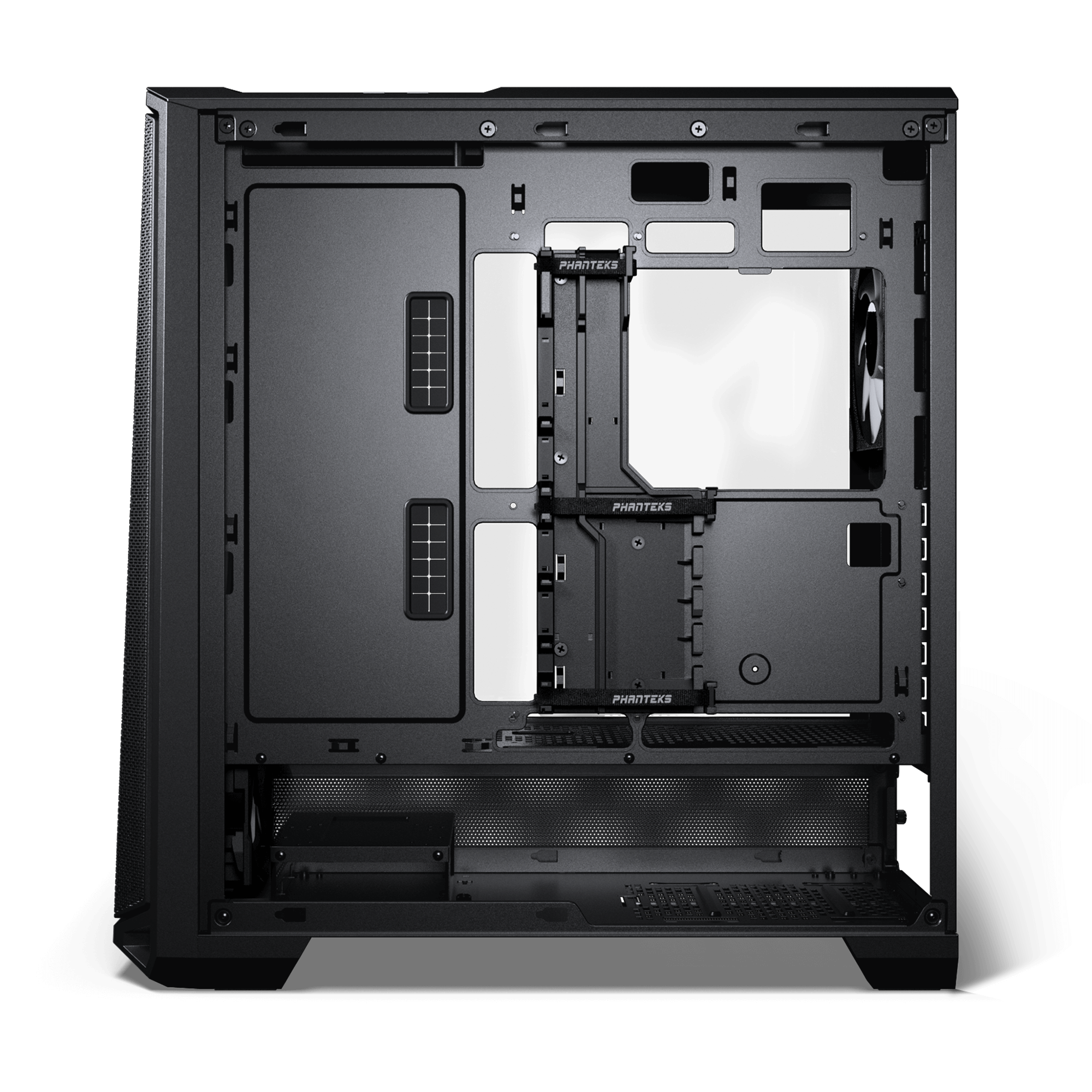

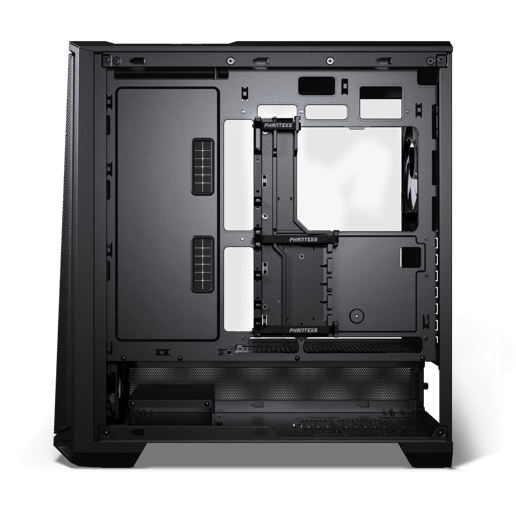

Clean Cable Management

  • Dedicated cable management tool.
  • Support for the latest rear-side connector mainboards.

New Generation D-RGB

  • 4x M25-140 Gen2 D-RGB fans pre-installed.
  • Build-in horizontal D-RGB strip.

NextLinq

Expand with more D-RGB by using our Nexlinq ecosystem, which makes both lighting and fan control a breeze with its lightweight software.

Specifications

User Controls

User Controls Power
Reset

Storage

Internal Expansion Bays 2 x 2.5" and 1 x 3.5" OR 2 x 3.5"

Expansion

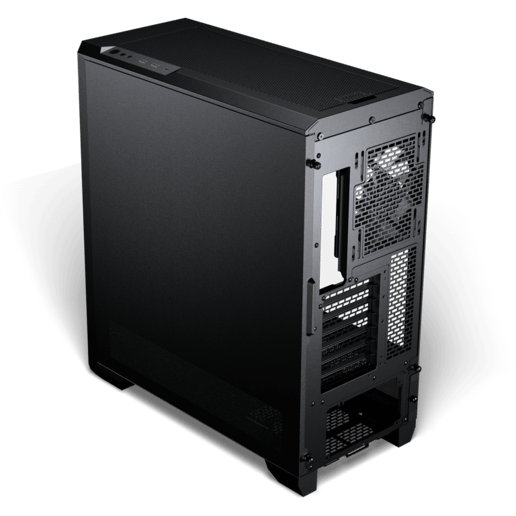

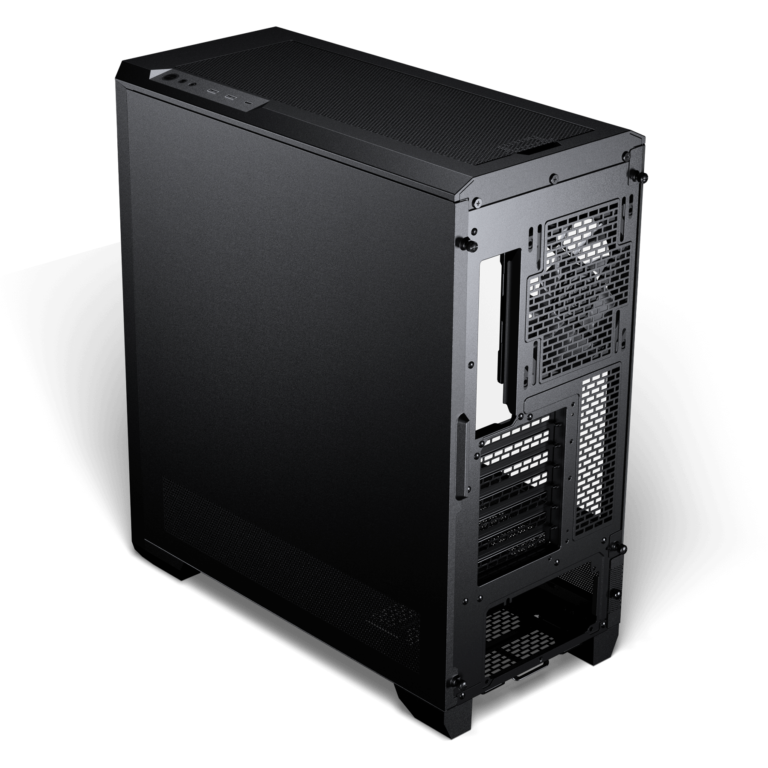

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.0
Headphone Ports 1 x 3.5mm COMBO Jack
Microphone In Port Shared with Headphone

Electrical

Cooling System Front: Supports 3 x 140mm fans (3 x ARGB fans included)
Top: Supports 2 x 140mm or 3 x 120mm fans
Rear: Supports 1 x 140mm or 120mm fan (140mm ARGB fan included)
Bottom: Supports 3 x 120mm fans
Power Supply ATX Power Supply supported

Physical

Form Factor Mid Tower
Case Colour Black
Material Steel
Tempered Glass
Motherboard Compatibility E-ATX (up to 280mm wide)
ATX
mATX
Mini-ITX
In The Box Case
Accessories
Width 230 mm
Depth 495 mm
Height 522 mm
Weight 8.63 kg

Warranty

Warranty 5 Years

Key Features

Max Motherboard Width 280 mm
Max Motherboard Height 305 mm
Supports AIO Cooler Yes
Main Colour Black
Case Type Tower
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Illuminated Yes
L.E.D Fan ARGB
Max 3.5" Drives 2
Max 2.5" Drives 2
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 184 mm
Built-in Card Reader No
USB Type-C Support Yes
Side Panel Type Tempered Glass
GPU Length 415 mm
PSU Depth 270 mm
Number of Fans 4 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Fan Connector 4-pin PWM
Maximum Motherboard Size Supported E-ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 2
Power Requirement (auto) 12 W
USB3.0 ports 1
USB-C ports 1
Low profile expansion No
Max Supported Radiator Length 360 mm
Create Your Own Gaming PC (CCL) Yes
Back Connect Support No

Item Details

Manufacturer Phanteks
Manufacturer Code PH-EC400GA_DBK01
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Phanteks
Manufacturer Code PH-EC400GA_DBK01
