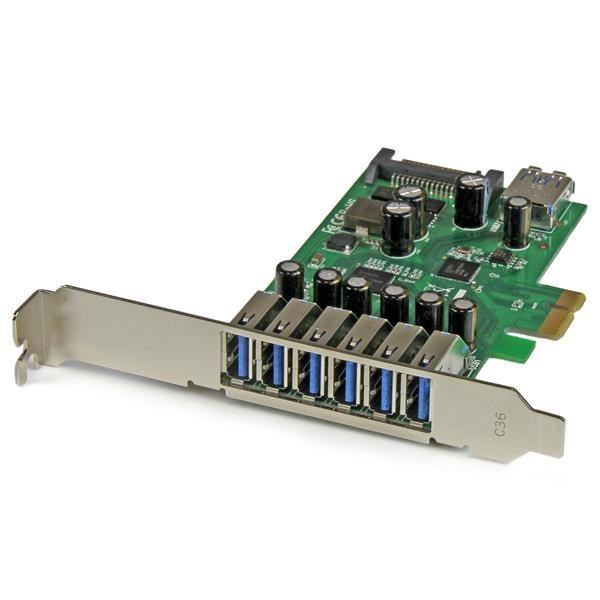

StarTech.com 7-Port PCI Express USB 3.0 Card - Standard and Low-Profile Design

StarTech.com 7-Port PCI Express USB 3.0 Card - Standard and Low-Profile Design

CCL Code: CNT0321

£66.99 inc VAT

StarTech.com 7-Port PCI Express USB 3.0 Card - Standard and Low-Profile Design

PEXUSB3S7

£66.99 inc VAT

Available for delivery from Wednesday 27th November

or Click & Collect from Wednesday 27th November

Buying in bulk? Contact our business team.

CCL Code: CNT0321
Overview

Handle your workload more efficiently. This USB 3.0 card expands your computer's capabilities by giving you seven extra USB 3.0 ports. It's engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers. More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they're ready to use when you need them. It's also economical - by being able to connect so many devices, you save the cost of extra hubs or cards. The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security. This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers. You'll be up and running in no time. The card automatically installs in Windows 8, and 8.1, with native operating system support. It's also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals. This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

Main Features

  • Extend your system capabilities by adding 7 USB 3.0 ports - 6 external and 1 internal - to any PCIe compatible computer
  • Unique dual-profile design fits standard and low-profile computers
  • Get up and running quickly with native OS support in Windows 8.1, 8, and Linux kernel 2.6.31 or later
  • Enjoy fast file transfers with USB 3.0 5Gbps and UASP support
  • Backward compatible with USB 2.0 and 1.x devices
  • SATA power connector with up to 900mA per port for high-power USB devices
  • PCIe x1 interface compliant with PCI Express 2.0 specifications
Specifications

Interfaces/Ports

Number of Ports 7
Port Connector USB

System Requirements

Operating Systems Supported Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2012, 2008 R2, 2003, Mac OS 10.6 And Later (Tested Up To 10.10), Linux

Environmental

Minimum Storage Temperature 5 °C
Maximum Storage Temperature 50 °C
Minimum Storage Humidity 20 %
Maximum Storage Humidity 80 %

Physical

Form Factor PCI Card
In The Box 1 - 7 Port PCI Express USB 3.0 Card • 1 - Low-Profile Bracket • 1 - Driver CD • 1 - Instruction Manual
Width 1.5 cm
Depth 10.5 cm
Height 12.0 cm
Weight 0.72 kg

Warranty

Warranty 2 Years Warranty

Key Features

Low Profile Yes
Card Width 1
PCIe Physical Slot required 1

Item Details

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S7
UPC 065030860345
Condition New
Warranty

Warranty Information

Warranty 2 Years Warranty

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S7
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Manual pdf 0.28MB
Datasheet pdf 0.21MB
