StarTech.com 4-Port PCI Express USB 3.0 Card

StarTech.com 4-Port PCI Express USB 3.0 Card

CCL Code: CNT0322

Sold out

Notify Me

StarTech.com 4-Port PCI Express USB 3.0 Card

PEXUSB3S42

CCL Code: CNT0322

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Here’s a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.

Enjoy convenient USB 3.0 port availability

With three external USB 3.0 ports you can connect more devices to your computer. The card provides easy access to commonly-used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device such as a flash drive inside your computer case, providing added security and convenience.

USB 3.0 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices.

Get up and running quickly

Setup is a breeze with native operating system support. The USB 3.0 adapter card automatically installs in Windows® 8.1, 8 and 7.

For convenient installation, this PCI Express USB 3.0 card features a dual-profile design that can be installed in almost any type of computer. It comes equipped with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems.

UASP support for more efficient data transfers

This high-performance USB 3.0 card is enhanced with UASP support, which can perform ~70% faster read speed and ~40% faster write speed over traditional USB 3.0, when paired with UASP-enabled enclosure.

The PEXUSB3S42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1, 8, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Main Features

  • Expands your computer connectivity with four extra USB 3.0 ports (3 external, 1 internal)
  • Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later
  • Fits standard or small form-factor computers, low-profile bracket included
  • Data transfer rates up to 5 Gbps plus UASP support
  • Backward compatible with USB 2.0 and 1.x devices
  • Built-in optional SATA power connector provides up to 900mA per USB port
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications
Specifications

Interfaces/Ports

External Connectors 3 - USB 3.0 A (9 pin; SuperSpeed) Female
Internal Connectors 1 - SATA Power (15 pin) Plug • 1 - USB 3.0 A (9 pin; SuperSpeed) Female
Connector 1 - PCI Express x1 Male

System Requirements

Operating Systems Supported Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Ce 5.0, Windows Server 2012, 2008 R2, 2003, Linux 2.4.X/2.6.X
System Requirements PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16) SATA power connector (recommended, but optional)

Warranty

Warranty 2 Years Warranty

Environmental

Operating Temperature 5 to 50 °C
Operating Humidity 20 to 80 %

Physical

Form Factor USB Card

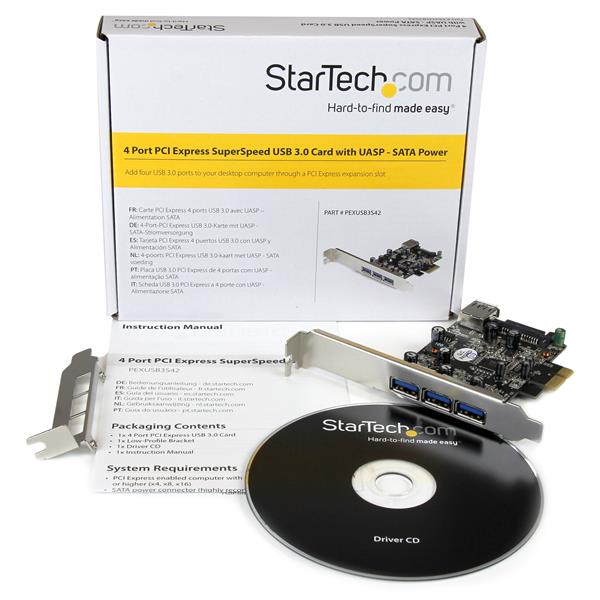

In The Box 1 - 4 Port PCI Express USB 3.0 Card • 1 - Low-Profile Bracket • 1 - Driver CD • 1 - Instruction Manual
Width 1.9 cm
Depth 8.7 cm
Height 12.0 cm
Weight 0.59 kg

Key Features

Low Profile Yes
Card Width 1
PCIe Physical Slot required 1

Item Details

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S42
EAN 0065030860321
UPC 065030860321
Condition New
Warranty

Warranty Information

Warranty 2 Years Warranty

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S42
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf 0.20MB
Manual pdf 0.26MB
