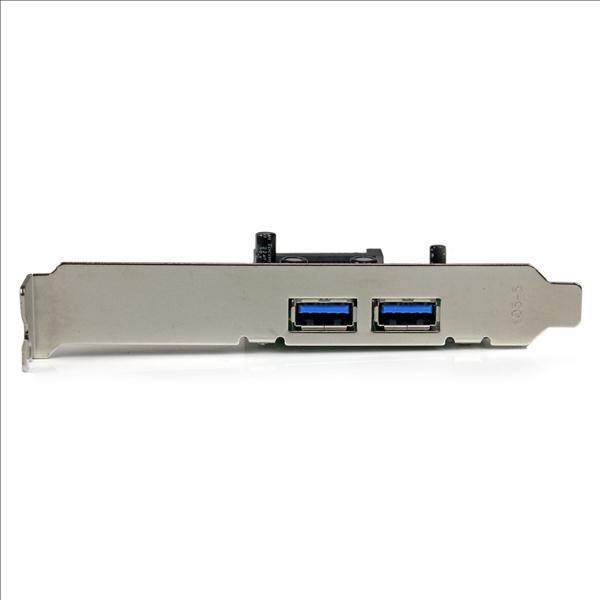

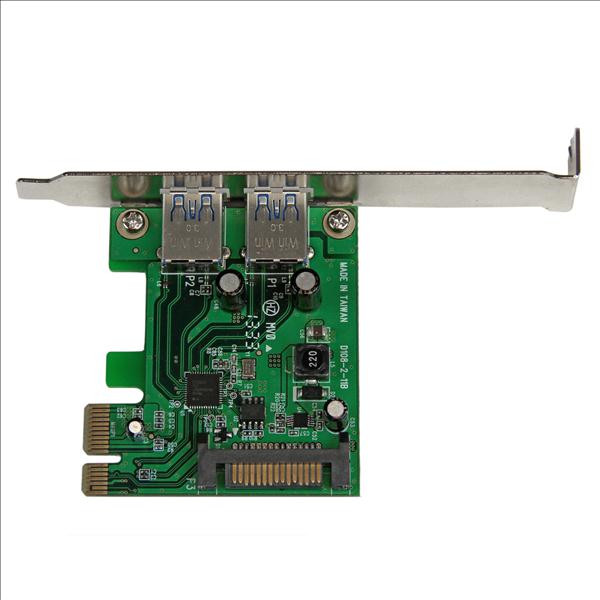

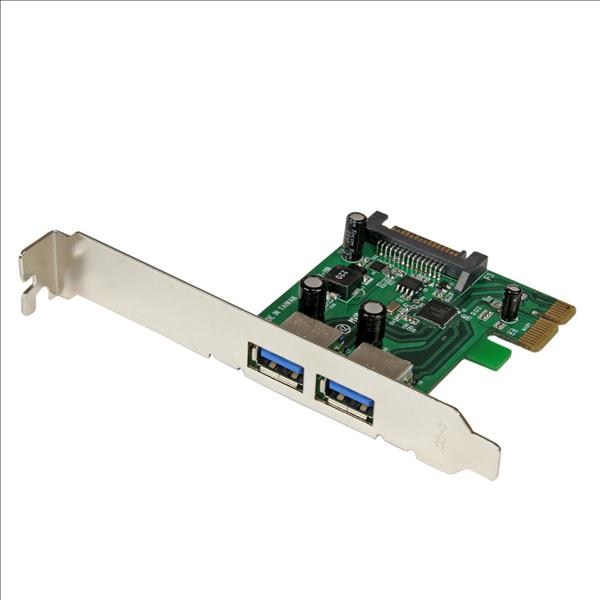

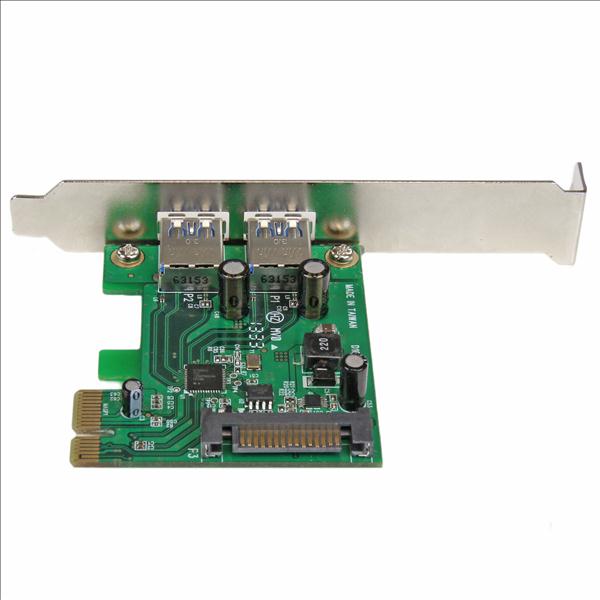

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adaptor with UASP - SATA Power

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adaptor with UASP - SATA Power

CCL Code: CNT0297

£26.99 inc VAT

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adaptor with UASP - SATA Power

PEXUSB3S24

£26.99 inc VAT

Available for delivery from Wednesday 27th November

or Click & Collect from Wednesday 27th November

Buying in bulk? Contact our business team.

Key Features:

  • Supports data rates up to 5 Gbps
CCL Code: CNT0297
Overview

The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Main Features

  • Provides two external USB 3.0 ports with UASP support
  • Supports data rates up to 5 Gbps
  • Compliant with PCI Express 2.0 specifications
  • Optional SATA power connector provides up to 900mA per USB port
  • Supports USB Battery Charging Specification 1.2
  • Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Includes a Low Profile/half-height installation bracket
Specifications

Interfaces/Ports

External Connectors 2 x USB 3.0
Internal Connectors 1 x SATA
Connector 1 - PCI Express x1 Male

System Requirements

Operating Systems Supported Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) • Windows Server 2012, 2008 R2, 2003(32/64) • Linux 2.6.31 or later

Environmental

Operating Temperature 5 to 50 °C
Operating Humidity 20 to 80 %

Physical

Form Factor PCI Card
In The Box 1 - PCI Express USB 3.0 Card • 1 - Low Profile Bracket • 1 - Driver CD • 1 - Instruction Manual
Width 1.8 cm
Depth 6.0 cm
Height 6.0 cm
Weight 0.40 kg

Key Features

Low Profile Yes
Card Width 1
PCIe Physical Slot required 1

Warranty

Warranty 1 Year

Item Details

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S24
EAN 0065030855587
UPC 065030855587
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S24
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Manual pdf 0.56MB
Datasheet pdf 0.27MB
