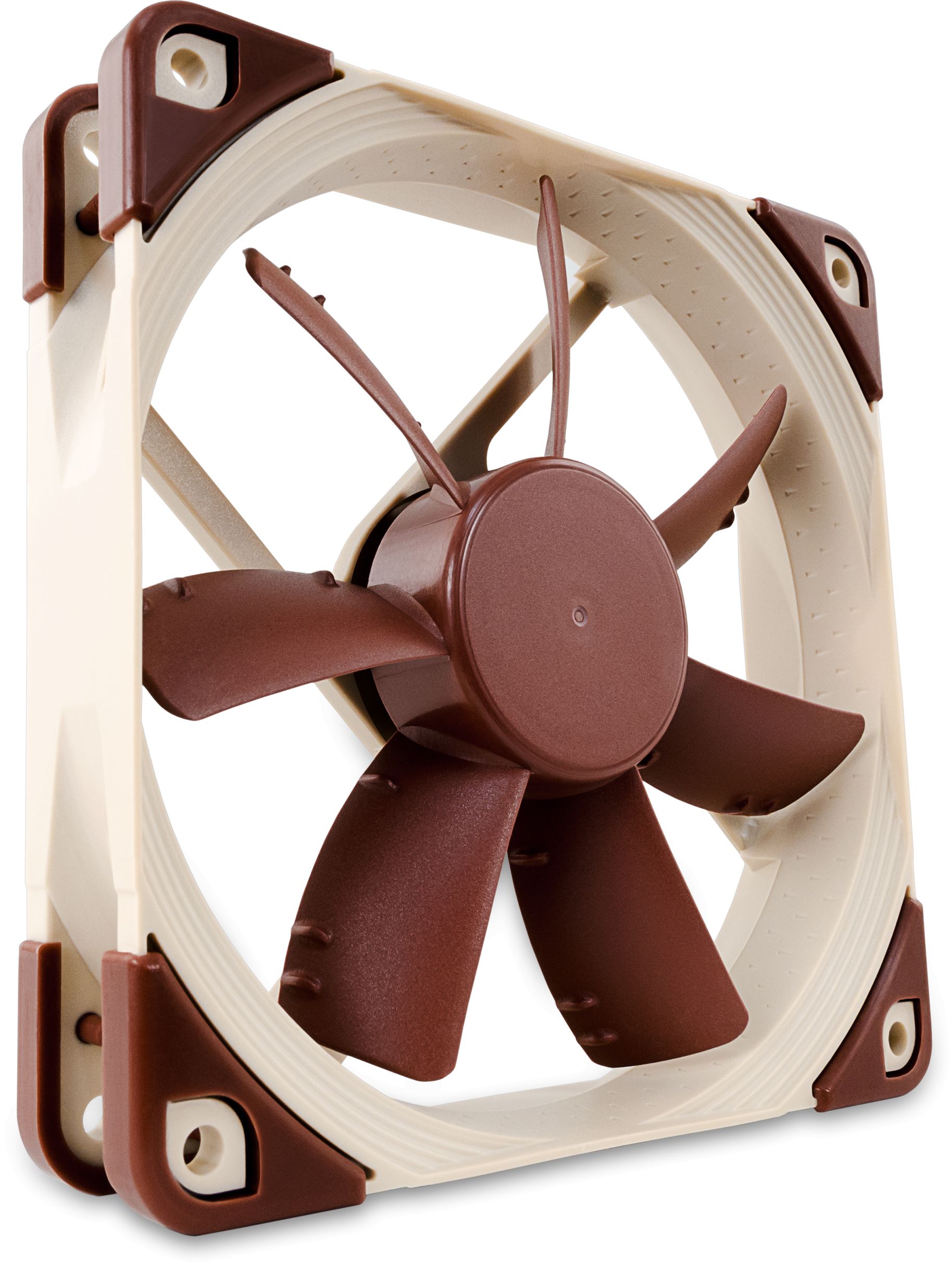

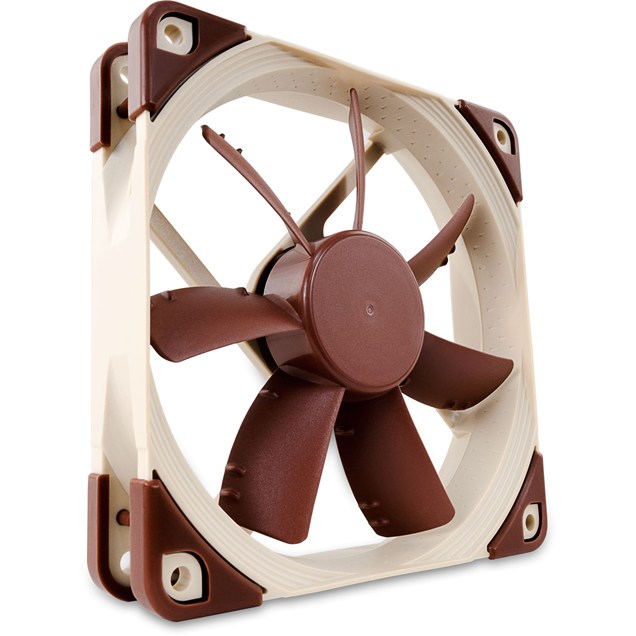

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO or Advanced Acoustic Optimisation frame. The NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The ULN version provides super-slow 800 / 600rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, SSO2-Bearings and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.

Specifications

• Size 120 x 120 x 25 mm

• Bearing SSO-Bearing

• Connector 3-Pin

• Blade Geometry S-Series with Anti-Stall Knobs

• Rotational Speed ±10% 800 PRM

• Rotational Speed with L.N.A. ±10% 600 RPM

• Airflow 43.73 CFM

• Airflow with L.N.A. 33.84 CFM

• Acoustical Noise 8.6 dB(A)

• Acoustical Noise with L.N.A. 6.7 dB(A)

• Static Pressure 0.62 mm H2O
• Static Pressure with L.N.A. 0.44 mm H2O

• Input Power 0.72 W

• Input Current 0.6 A

• Voltage Range 12 V

• MTBF > 150.000 h

• Warranty 72 months
