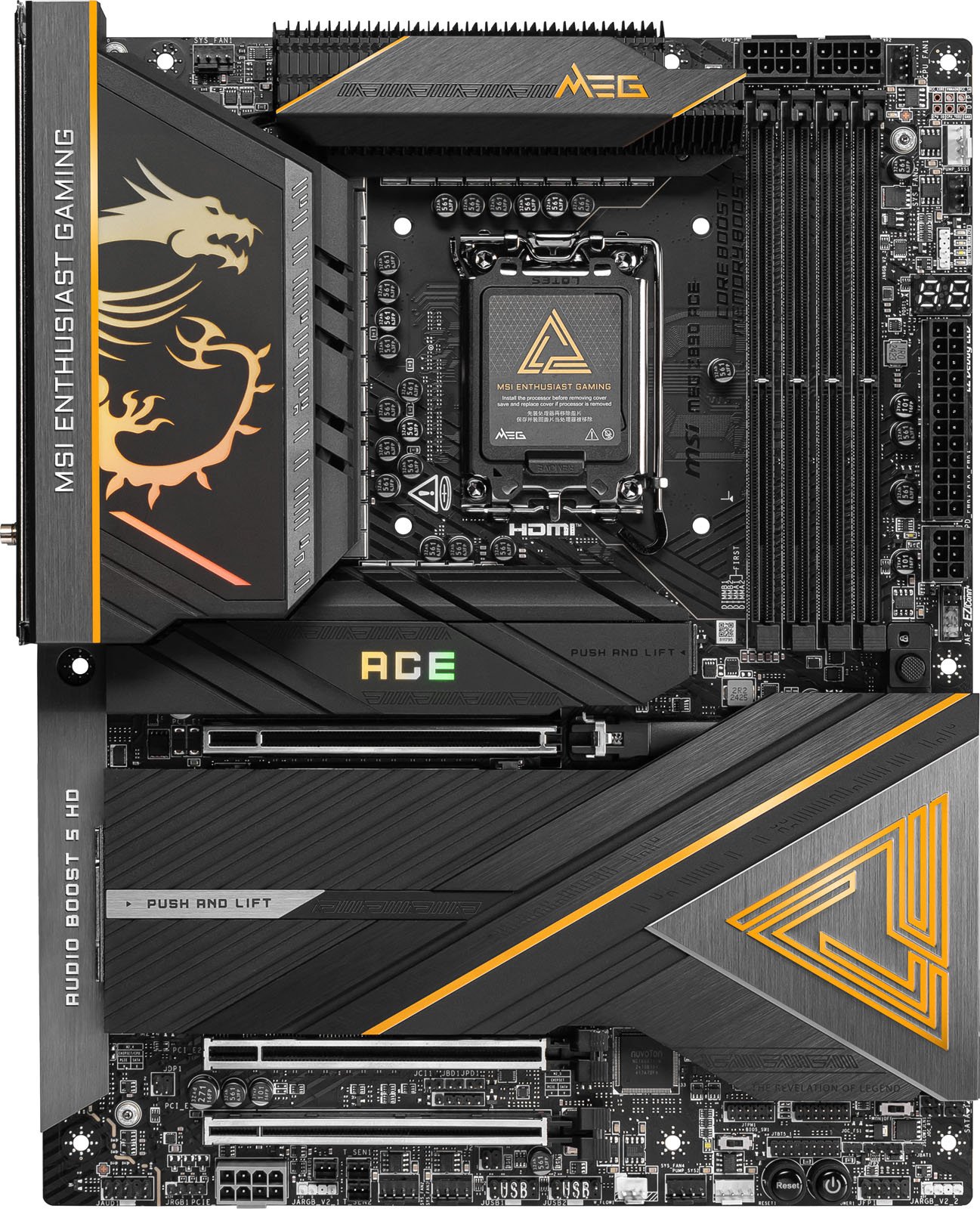

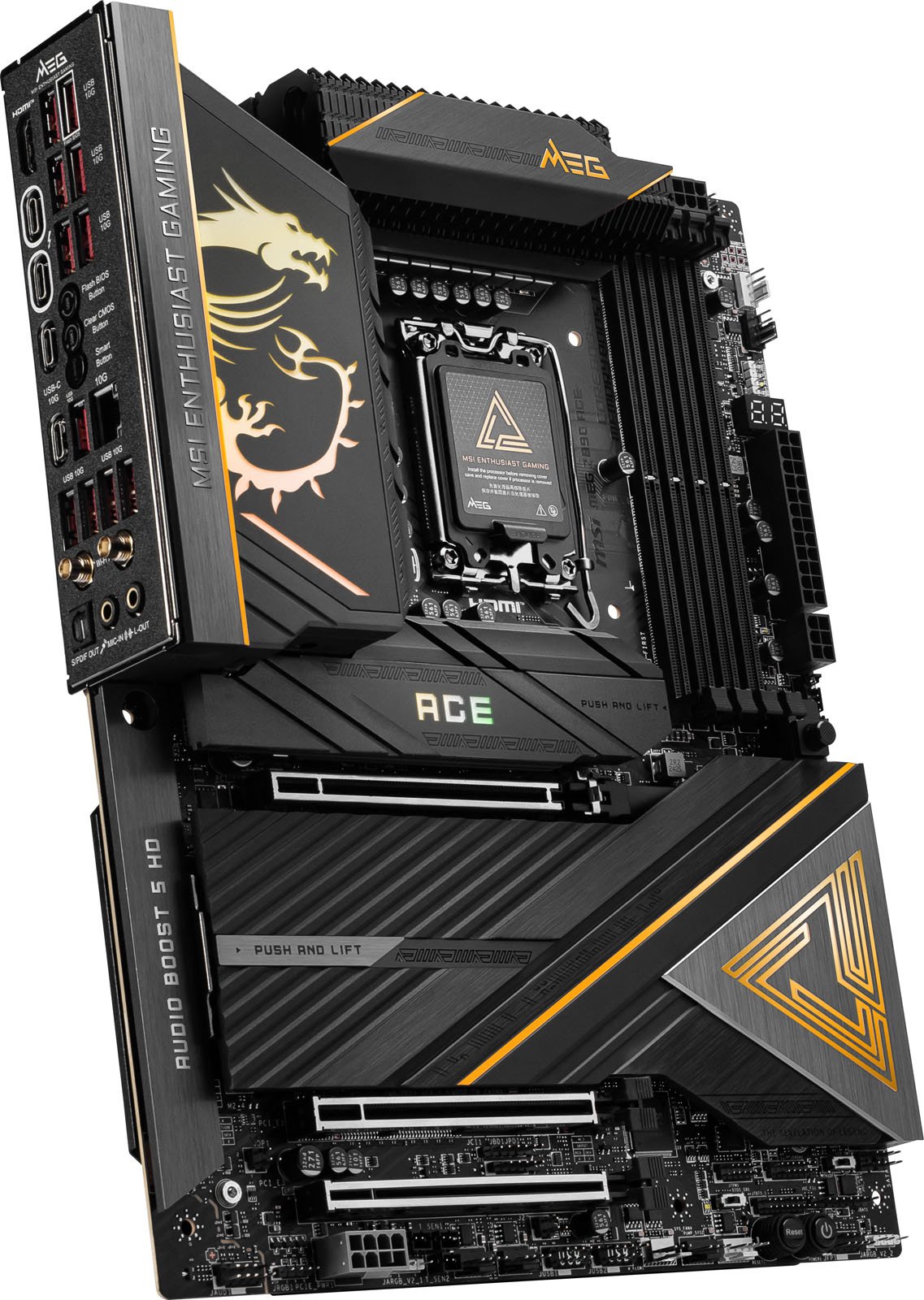

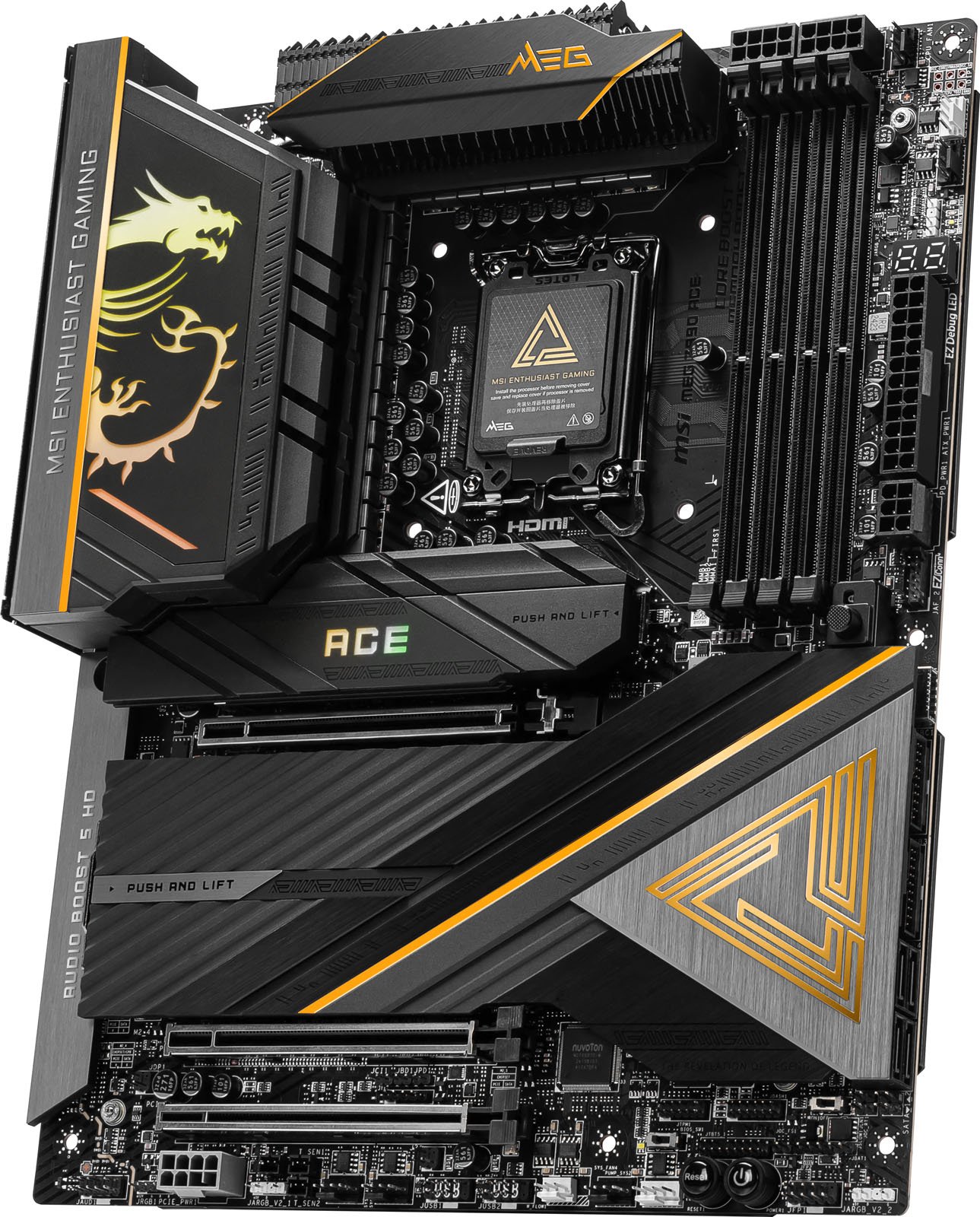

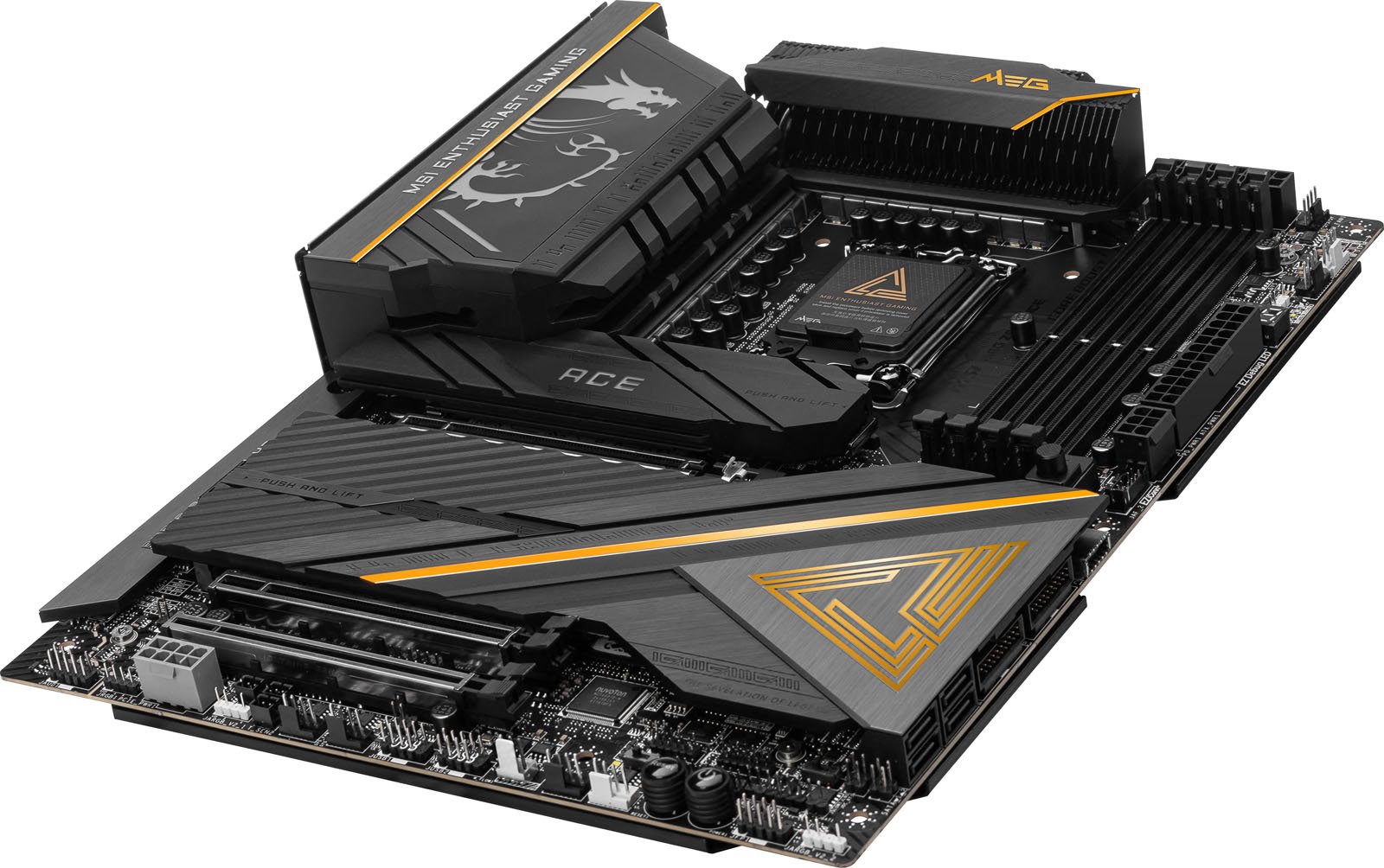

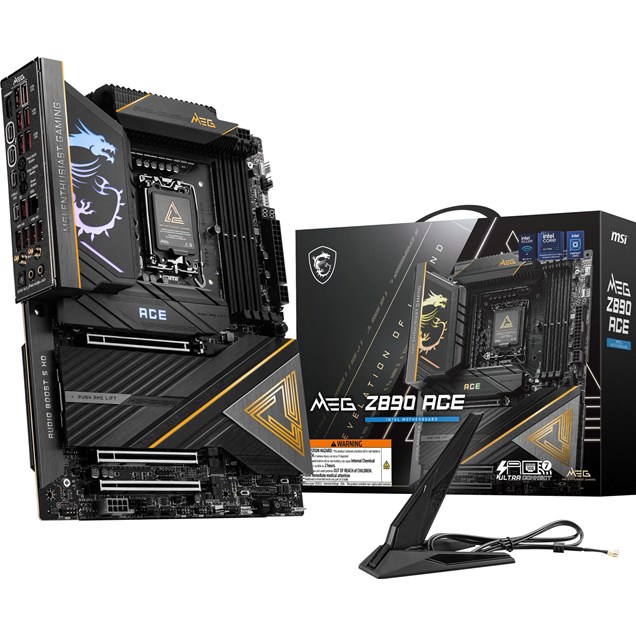

The MEG Z890 ACE motherboard supports Intel Core Ultra Processors (Series 2).

• Form Factor: ATX
• Socket Type: LGA 1851
• Chipset: Intel Z890

With exclusive Core Boost technology and EZ OC Tuning functions, the MEG Z890 ACE is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 24 Duet Rail Power System with 110A SPS
• 2-Phase SA Power
• 1-Phase GT Power
• 1-Phase VNNAON Power

Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads and Double-sided M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 9066+ MT/s, supports Intel XMP.

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.

• 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)
• 1 x PCIe 4.0/3.0 x4 slot*

*Supports x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

The MEG Z890 ACE motherboard features MSI's M.2 slots:

• 1 x Gen5 x4 128Gbps slot (with magnetic double-sided M.2 Shield Frozr)
• 4 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

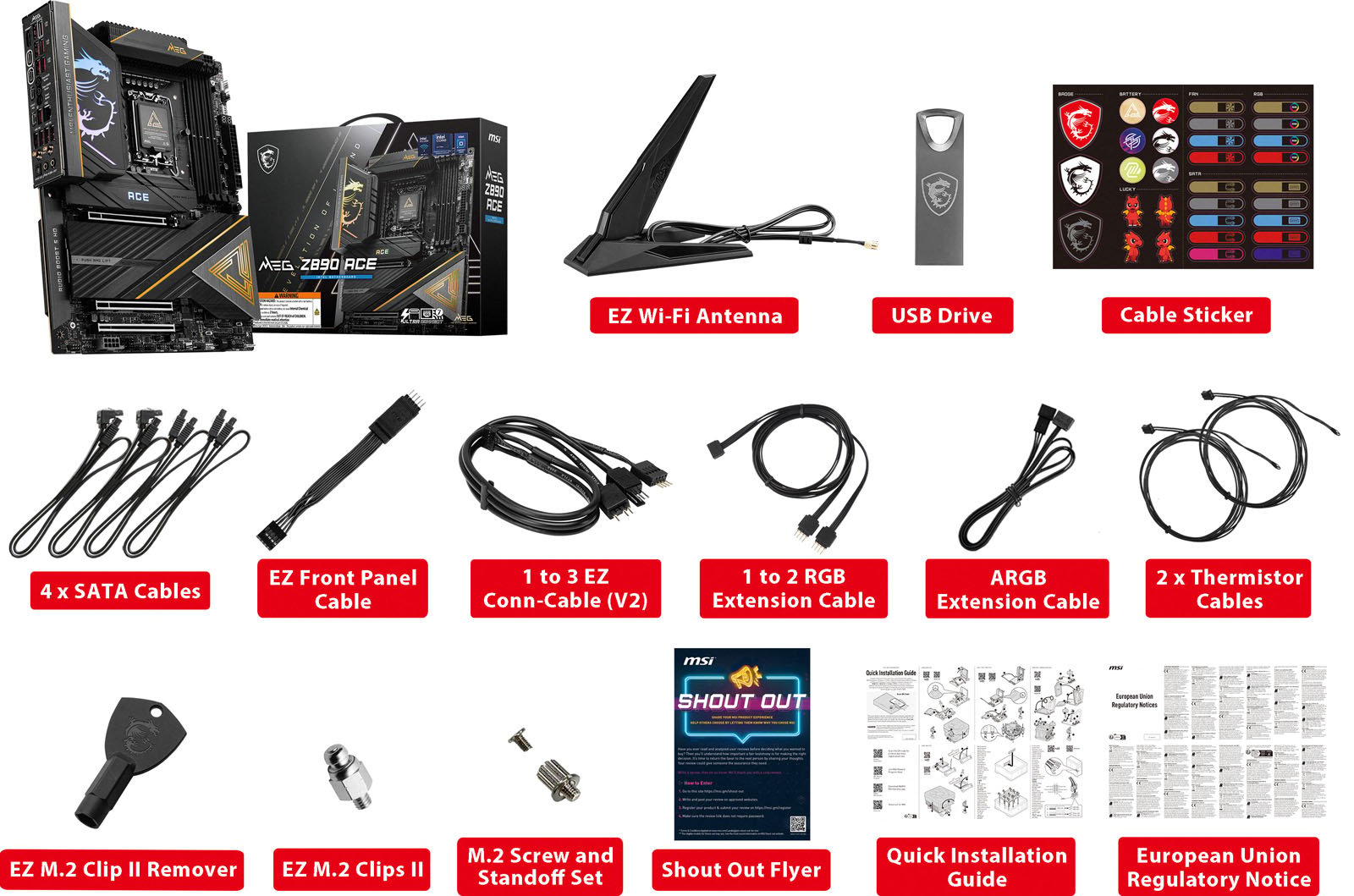

The DIY Friendly designs optimize the assemble process and experience.

EZ Magnetic M.2 Shield Frozr II: MSI patented magnetic Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

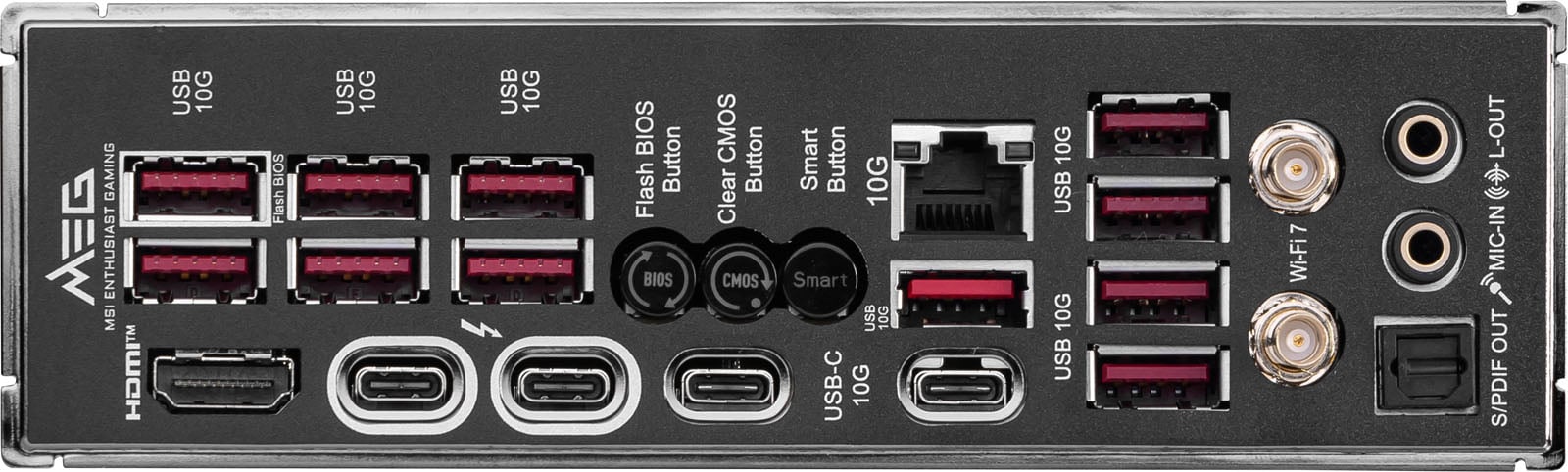

10G Super LAN: Premium Marvell 10Gbps Super LAN delivers an utmost network gaming experience.

Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support.*

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
