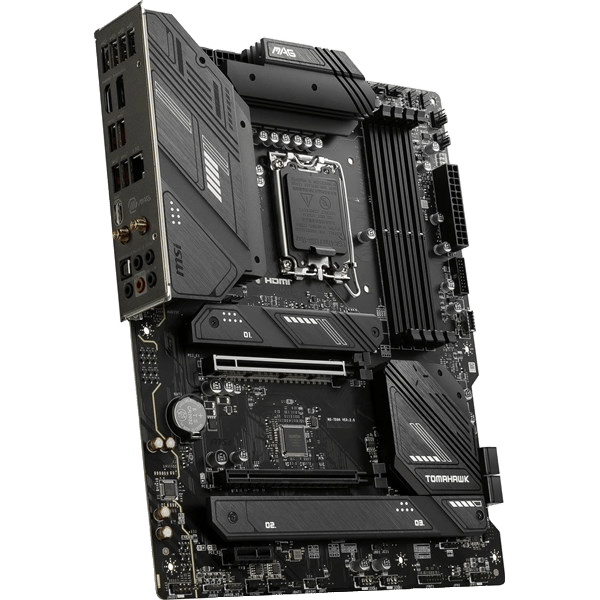

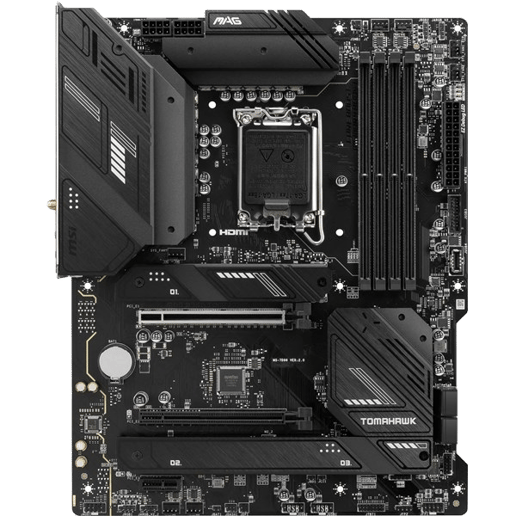

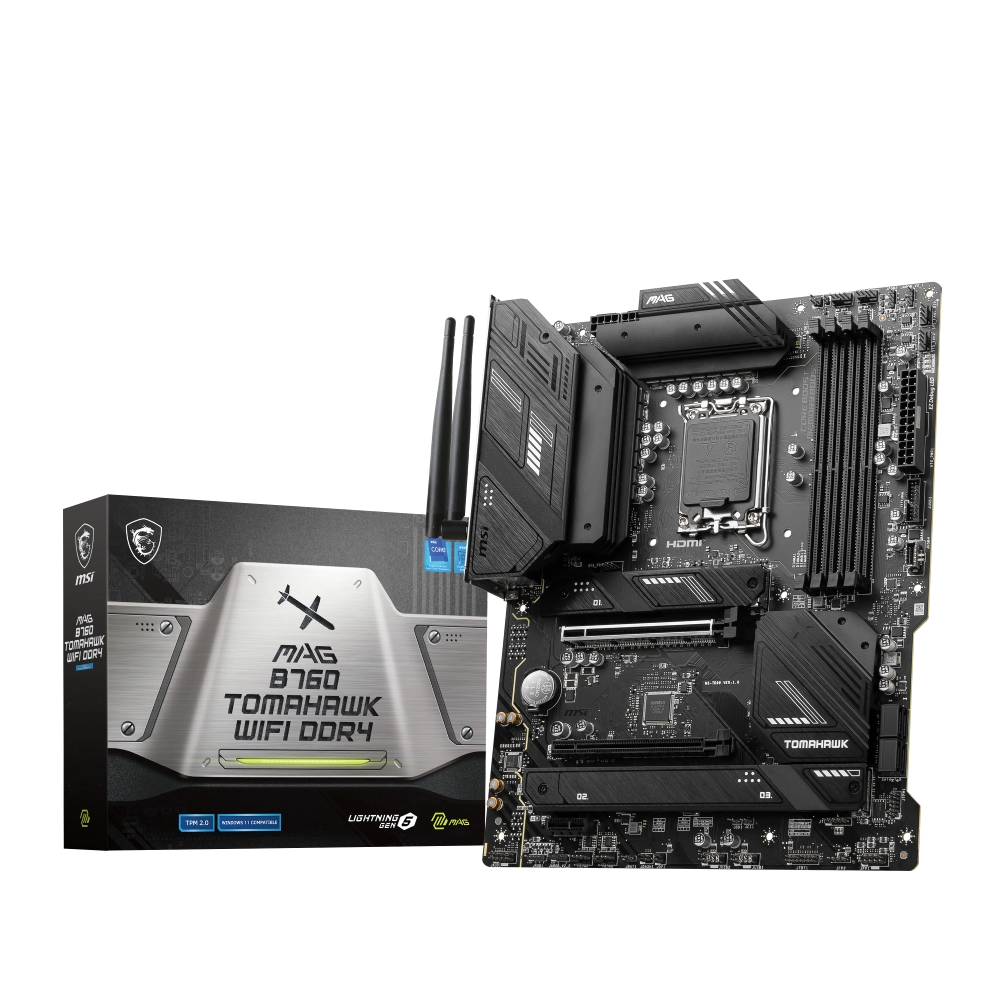

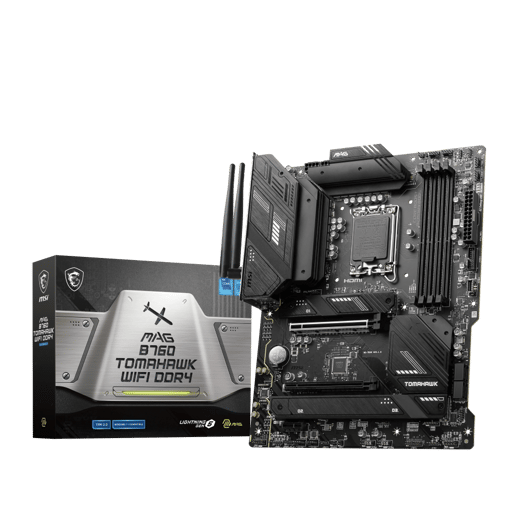

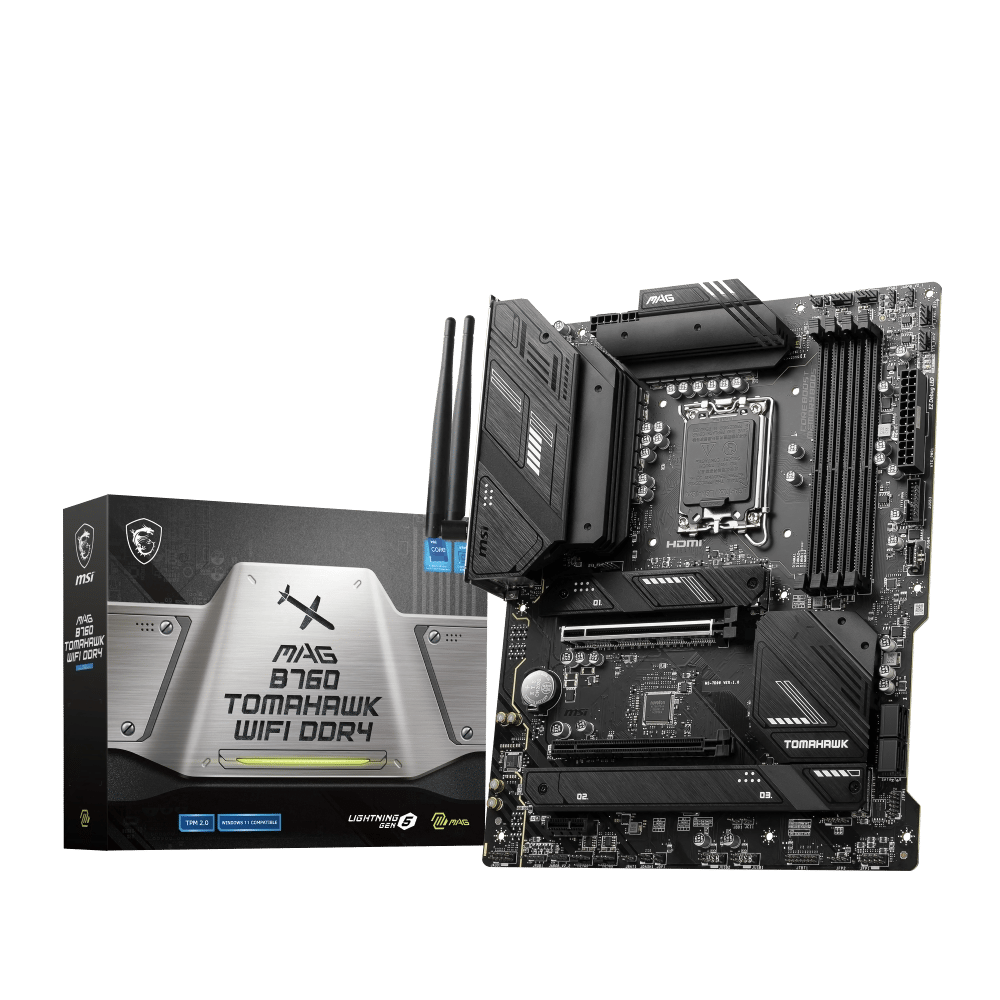

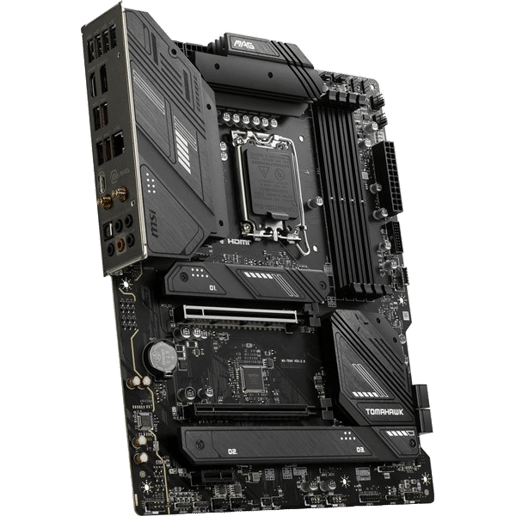

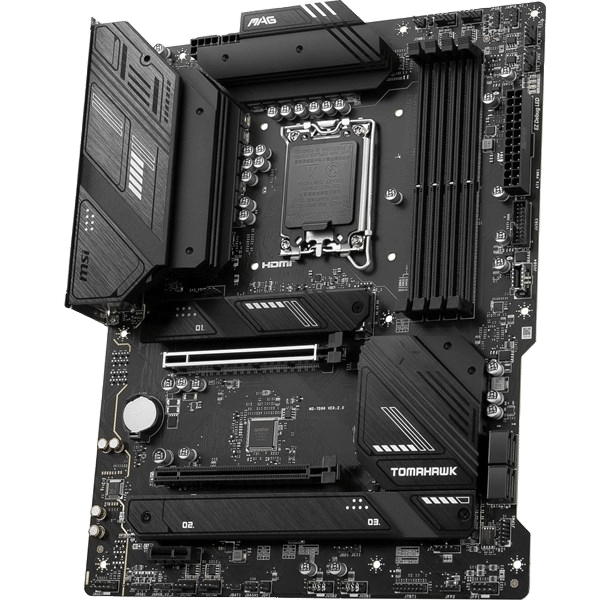

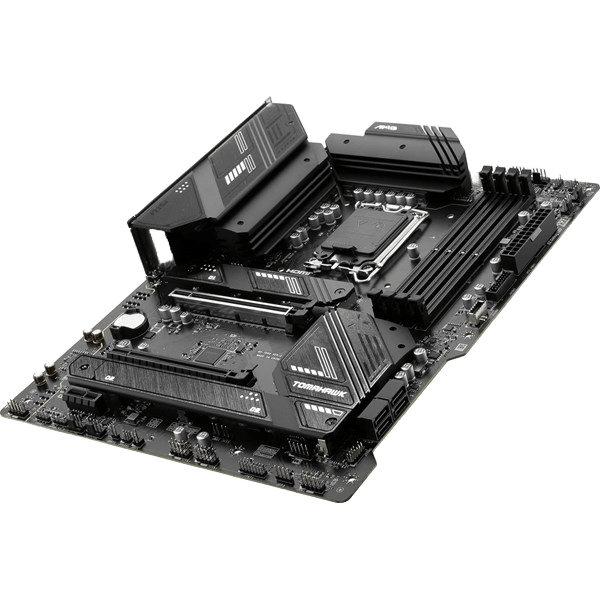

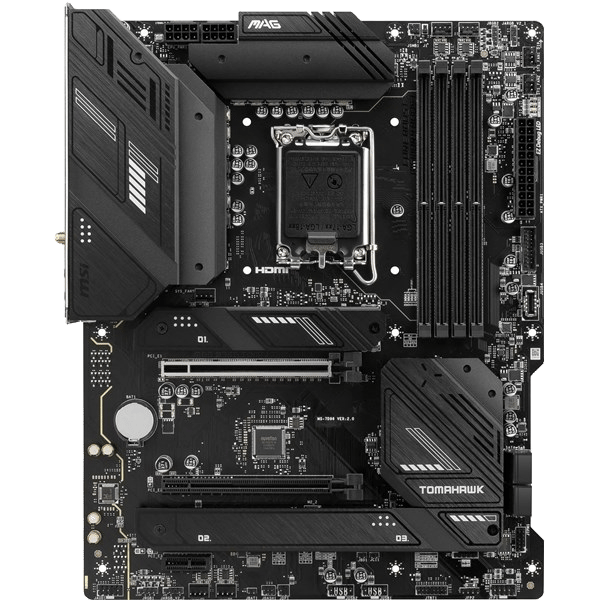

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3421

Was £272.15

SAVE £104

Now only

£167.99 inc VAT

  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

The MAG series fights alongside gamers in pursuit of honor.With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

MAG B760 TOMAHAWK WIFI

The MAG series fights alongside gamers in pursuit of honor.With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Was £272.15

SAVE £104

Now only

£167.99 inc VAT

Available for delivery from Friday 22nd November

or Click & Collect from Friday 22nd November

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 128GB / 4 slots)
  • 3 x M.2 & 9 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3421
Overview

Unite as One

The MAG B760 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel B760 chipset that balances value with premium hardware.

Supports Intel Core 12th & 13th Gen Processors

The MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1700

Chipset: Intel B760

12+1 Duet Rail Power System with 75A DrMOS

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

  1. Digital PWM IC
  2. 12-Phase Duet Rail CPU Power (DrMOS / 75A)
  3. 1-Phase GT Power
  4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7000 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7000+ MHz, supports Intel XMP.

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)

1 x PCI-e 3.0 x16 slot*

*Supports x16/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connectors

The MAG B760 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots:

3 x Gen4 x4 64Gbps slots*

*3 with M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps

HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

Main Features

  • Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7000+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications

CPU

CPU Brand Intel
CPU Socket Socket 1700
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

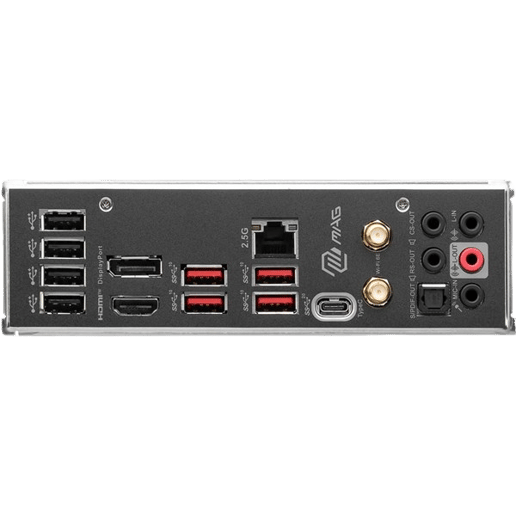

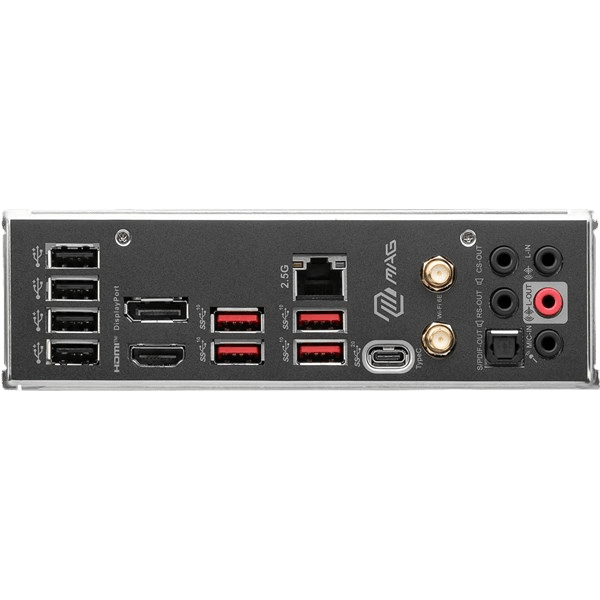

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
4 x USB 3.1
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
5 x System fan headers
Thunderbolt Port(s) 1 x TBT header (JTBT, supports RTD3)
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7,000+ MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RIAD 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

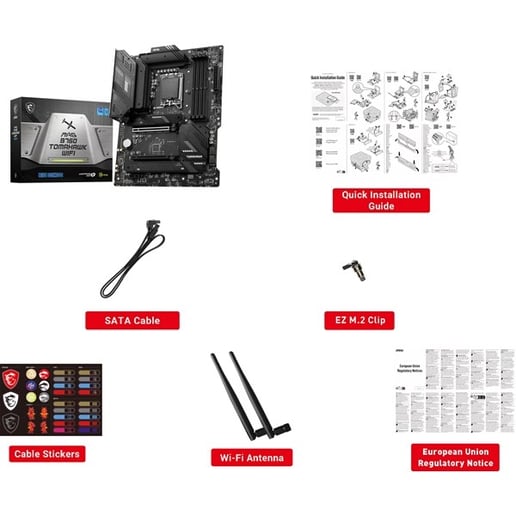

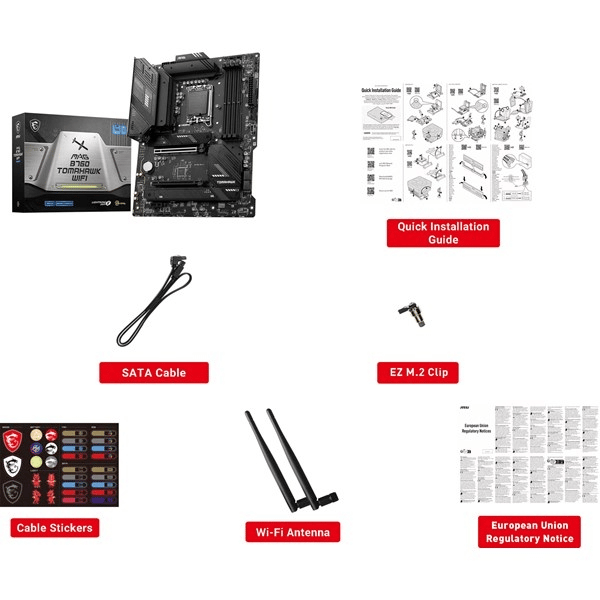

In The Box Motherboard
Quick Installation Guide
SATA Cable
EZ M.2 Clip
Cable Stickers
Wi-Fi Antenna
EU Regulatory Notice
Width 304.8 mm
Length 243.84 mm

Key Features

Wake on LAN
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model MSI MAG B760 TOMAHAWK WIFI
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 7000 MT/s
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Size mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 7000 MT/s
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 9 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX

Graphics

Graphics Chipset

Item Details

Manufacturer MSI
Manufacturer Code MAG B760 TOMAHAWK WIFI
EAN 4711377034210
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG B760 TOMAHAWK WIFI
Reviews
5.0 / 5 2 reviews

Jonathon England

August 2023

Amazing price for a great motherboard, has more than enough interfaces and the bios software was really easy to use. Definitely recommended

Szymon

June 2023

Great mid range motherboard witg tons of features
