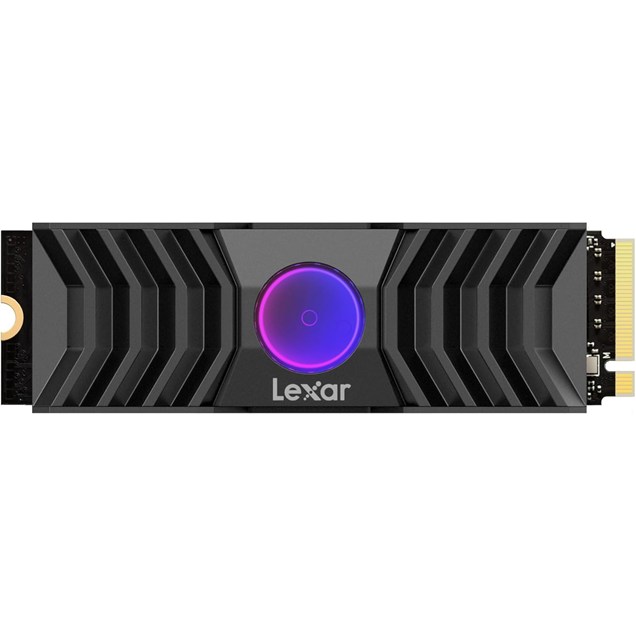

2TB Lexar NM1090 with Heatsink M.2 2280

2TB Lexar NM1090 with Heatsink M.2 2280

CCL Code: SSD1842

£299.99 inc VAT

2TB Lexar NM1090 with Heatsink M.2 2280

LNM1090002T-RNANG

£299.99 inc VAT

Available for delivery from Tuesday 26th November

or Click & Collect from Tuesday 26th November

Buying in bulk? Contact our business team.

Key Features:

  • PCIe 5.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 12GB/s Read
  • Up to 11GB/s Write
  • 4K IOPS Read: 1400K
  • 4K IOPS Write: 1400K
CCL Code: SSD1842

Capacity:

Overview

Twice as Fast as PCIe 4.02

PCIe 5.0 speeds of up to 12,000MB/s read, 11,000MB/s write1 deliver cutting-edge performance.

Exceptionally Cool Design

A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

Built to Perform

The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

CPU Compatibility

Compatible with Intel 13th and 14th gen and AMD Ryzen 7000 series CPUs.

Monitor Drive Health and Optimize Performance

Supports Lexar DiskMaster disk management tool.

Rigorously Tested

All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

1. Up to 14000MB/s read transfer, up to 12000MB/s write. Speeds based on internal testing. Actual performance may vary.
2. Comparison based on published performance of PCIe 4.0 drives. Actual performance may vary

Specifications

Storage

Solid State Capacity 2 TB
Storage Type SSD
Drive Size M.2-2280
Drive Capacity 2 TB

Performance

Read Speed Up to 12000 MB/s
Write Speed Up to 11000 MB/s
4K Random Read (AS SSD) Up to 1400 k IOPS
4K Random Write (AS SSD) Up to 1400 k IOPS
Data Storage Life 1400 TBW
Mean Time Between Failure (MTBF) 1,500,000 hours

Interfaces/Ports

Interface PCIe Gen5 x4 NVMe

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ +85 °C
Vibration (Non-Operating) 10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X,Y,Z)
Shock (Non Operating) 1500G, duration 0.5ms, Half Sine Wave

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Black
In The Box 1 x 2TB SSD
Width 24 mm
Depth 80 mm
Height 17.35 mm
Weight 72.5 g

Warranty

Warranty 5 Years

Key Features

Interface Type PCI Express 5.0 x4 NVMe
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 1400 k IOPS
Drive Interface Type PCIe 5.0 x4 NVMe
Write IOPS (4K) 1400 k IOPS
Intended Use Desktop
Power Requirement (auto) 5 W
PS5 Compatible No
Create Your Own Gaming PC (CCL) Yes
Bundle Config - Home (CB) No

Item Details

Manufacturer Lexar
Manufacturer Code LNM1090002T-RNANG
EAN 843367134359
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Lexar
Manufacturer Code LNM1090002T-RNANG
Reviews
No reviews have been received for this product yet
