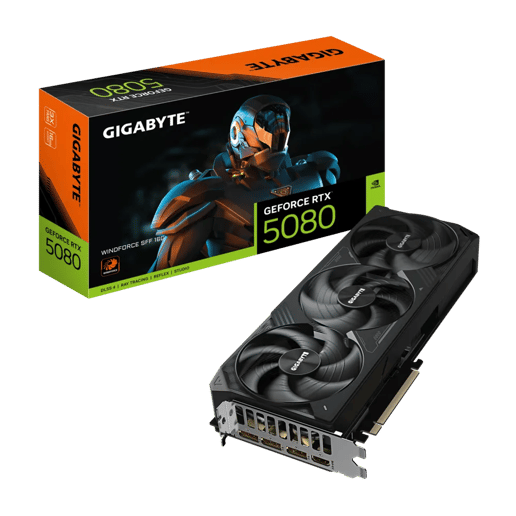

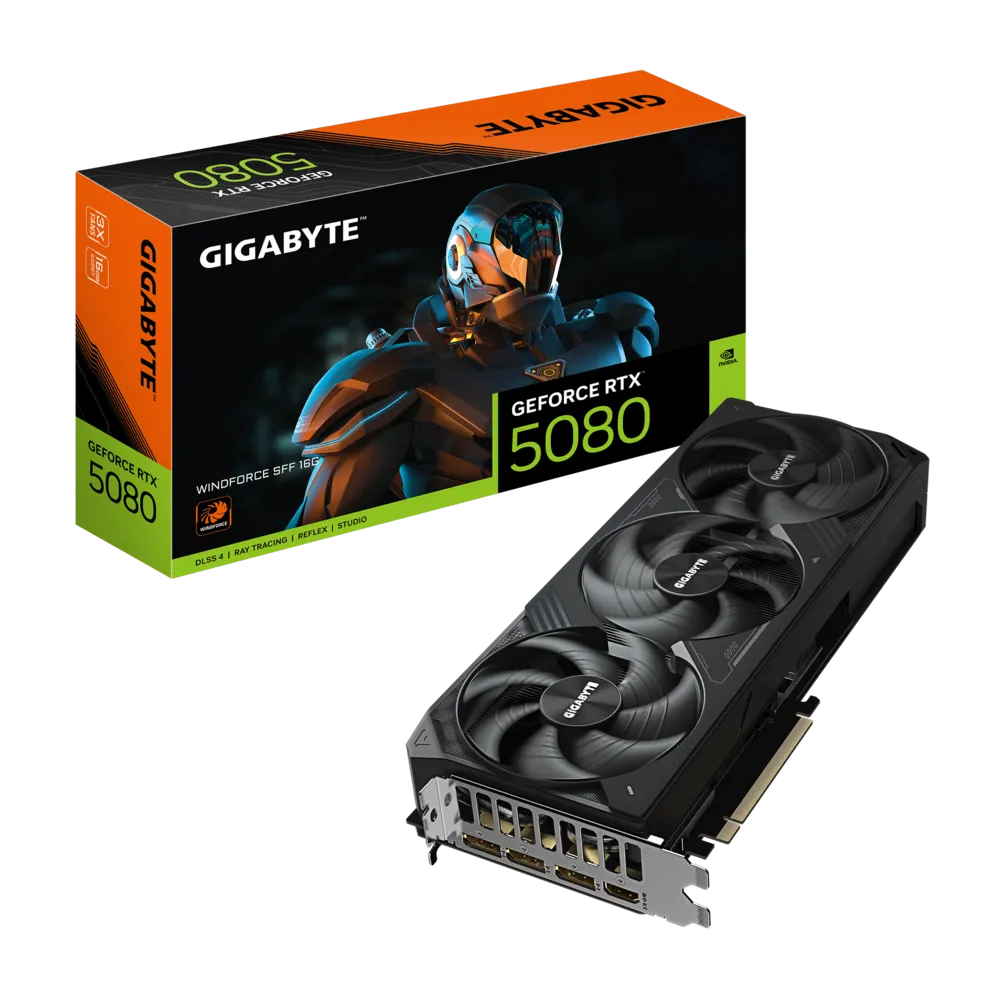

Gigabyte GeForce RTX 5080 WINDFORCE SFF 16GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5080 WINDFORCE SFF 16GB GDDR7 Graphics Card

CCL Code: VGA7199

Coming soon

Notify Me

Gigabyte GeForce RTX 5080 WINDFORCE SFF 16GB GDDR7 Graphics Card

GV-N5080WF3-16GD

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Outputs - HDMI and Display Port
CCL Code: VGA7199

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs.

LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

DUAL BIOS (Performance/ Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

NVIDIA SFF-READY

Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Main Features

  • Powered by GeForce RTX 5080
  • Integrated with 16GB GDDR7 256bit memory interface
  • WINDFORCE cooling system
  • Dual BIOS (Performance / Silent)
  • NVIDIA SFF-ready
  • Reinforced structure
  • Versatile VGA holder
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5080
Chipset Additional Information WINDFORCE SFF
Base Chip Clock 2295 MHz
Boost Chip Clock 2617 MHz
Number of Cores 10752
Graphics Core CUDA

Memory

Memory Size 16384 MB
Memory Clock 30 Gbps
Memory Type GDDR7
Memory Width 256 bit
Memory Bandwidth 960 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16
HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 or 3 x 8-pin PCIe
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Manual
1 x 12V-2x6 to 3 x 8-pin PCIe Adpater
VGA Holder
VGA Holder Manual
Width 50 mm (2.5 slot)
Depth 304 mm
Height 126 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5080
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 304 mm
Card Width 3
Power Requirement (auto) 360 W
GPU Power (TDP) 360 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5080

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N5080WF3-16GD
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N5080WF3-16GD
