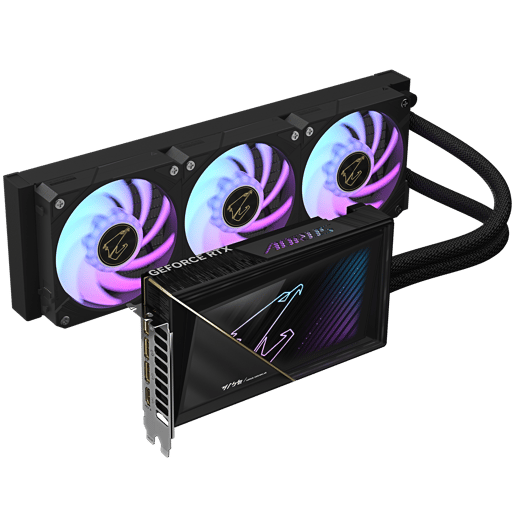

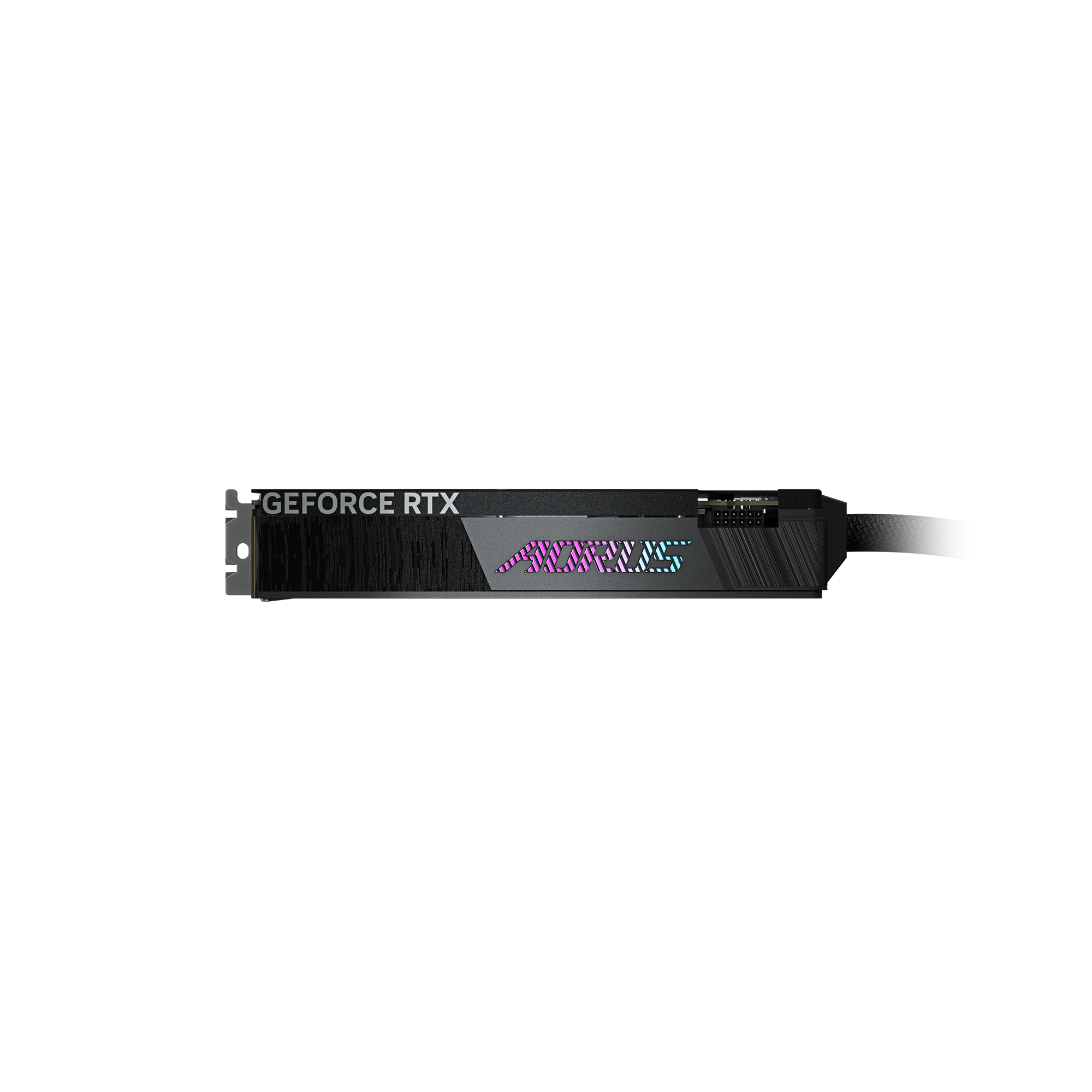

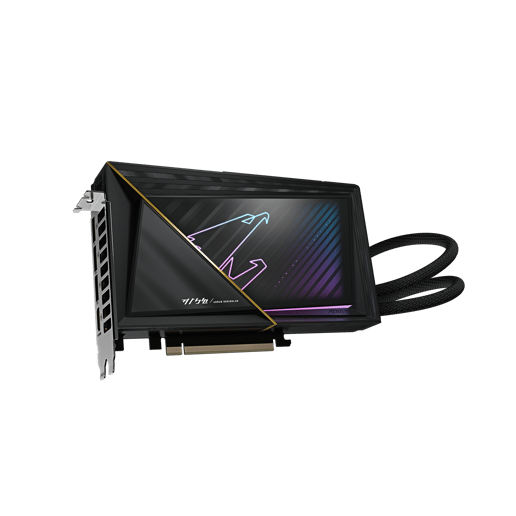

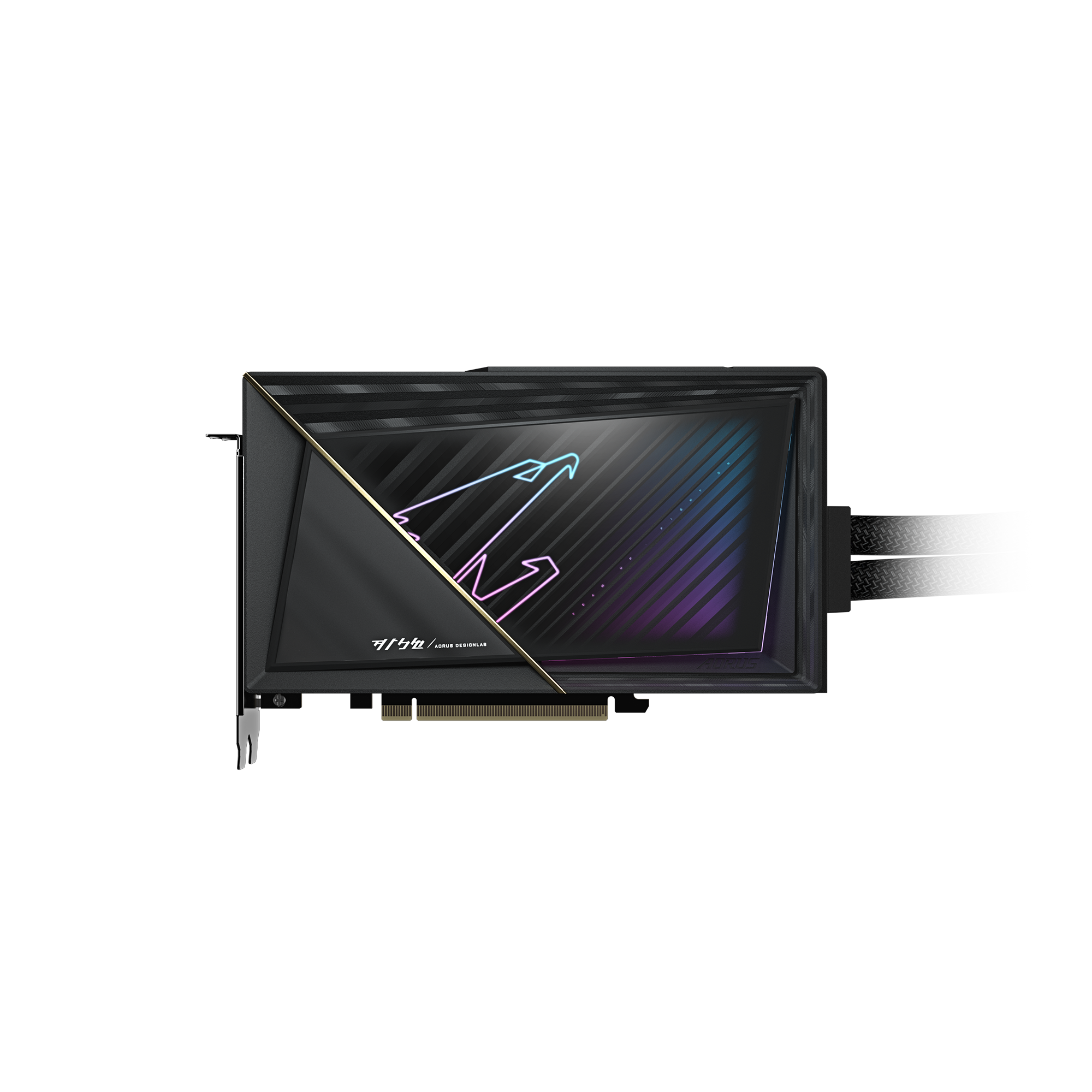

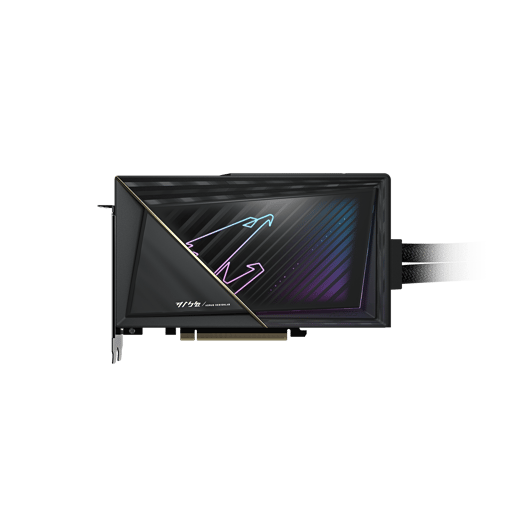

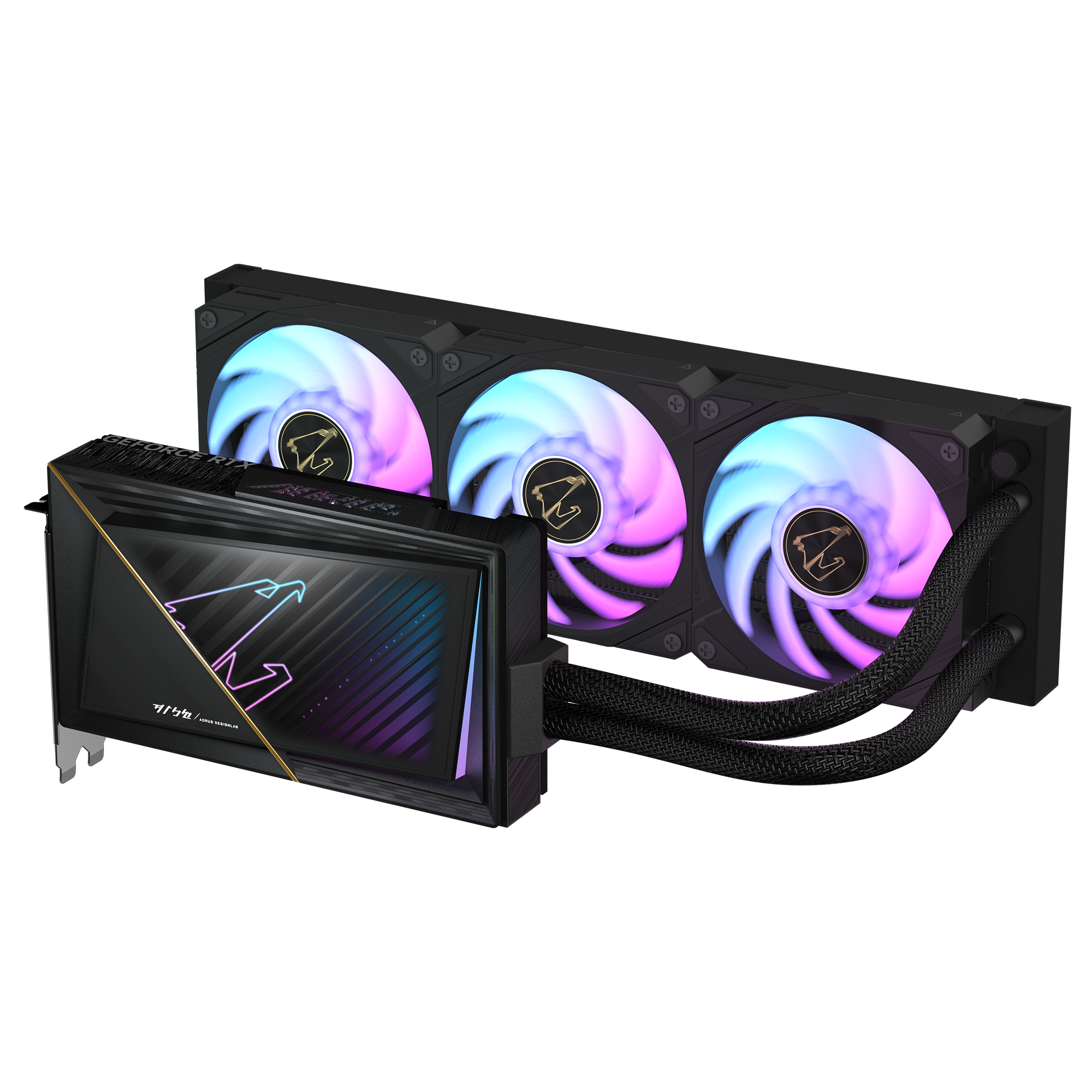

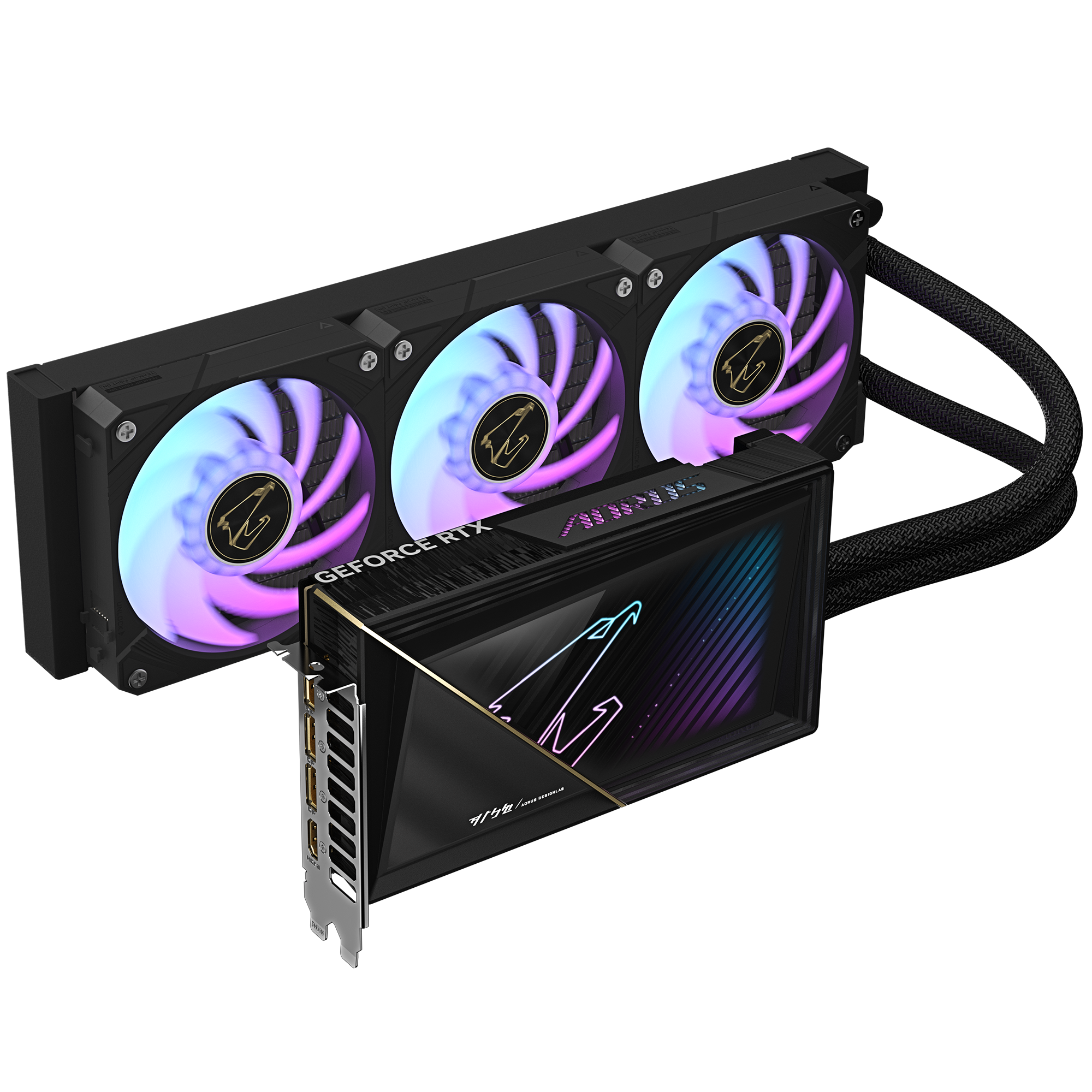

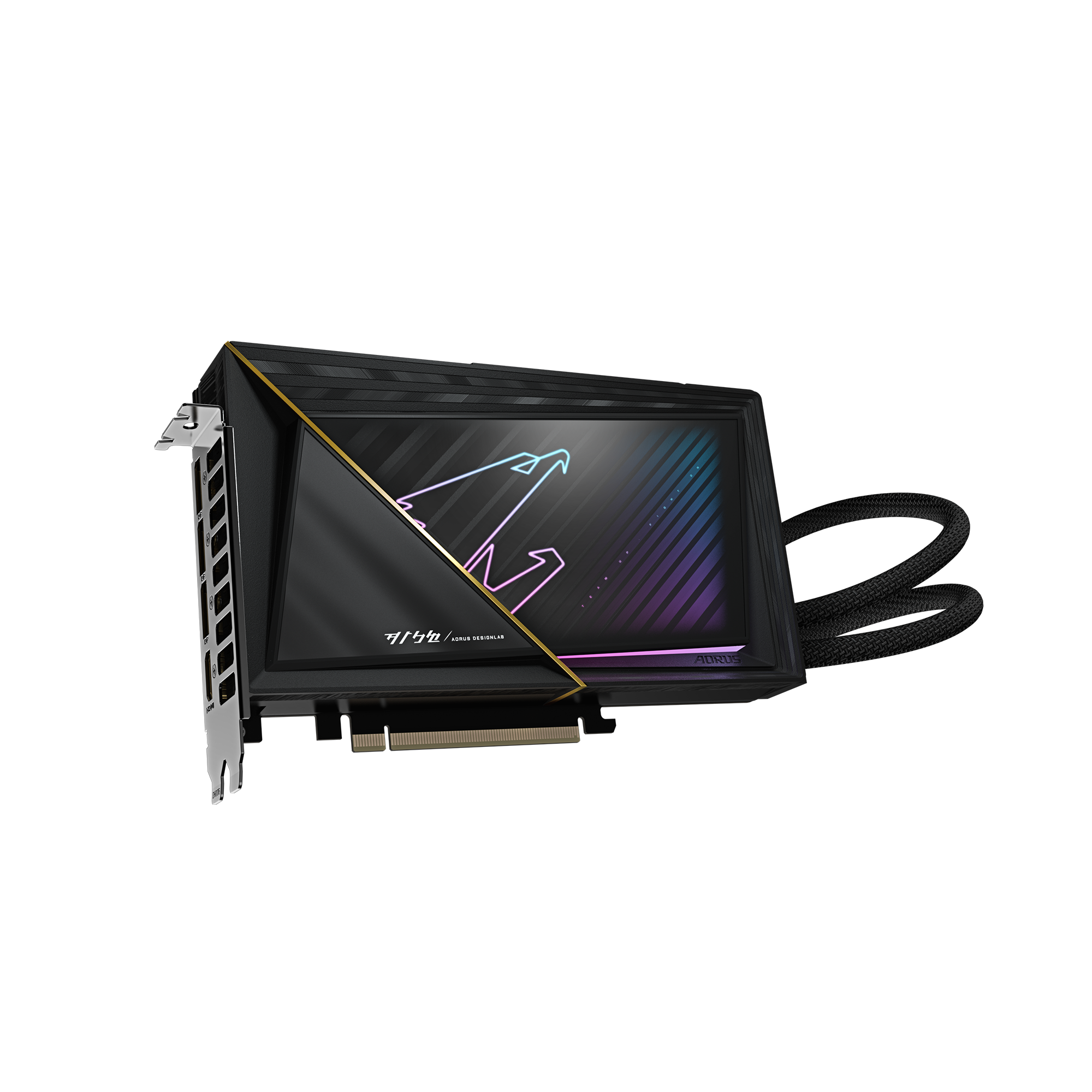

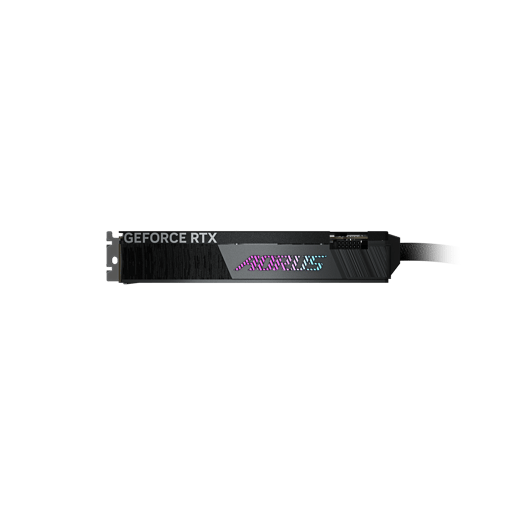

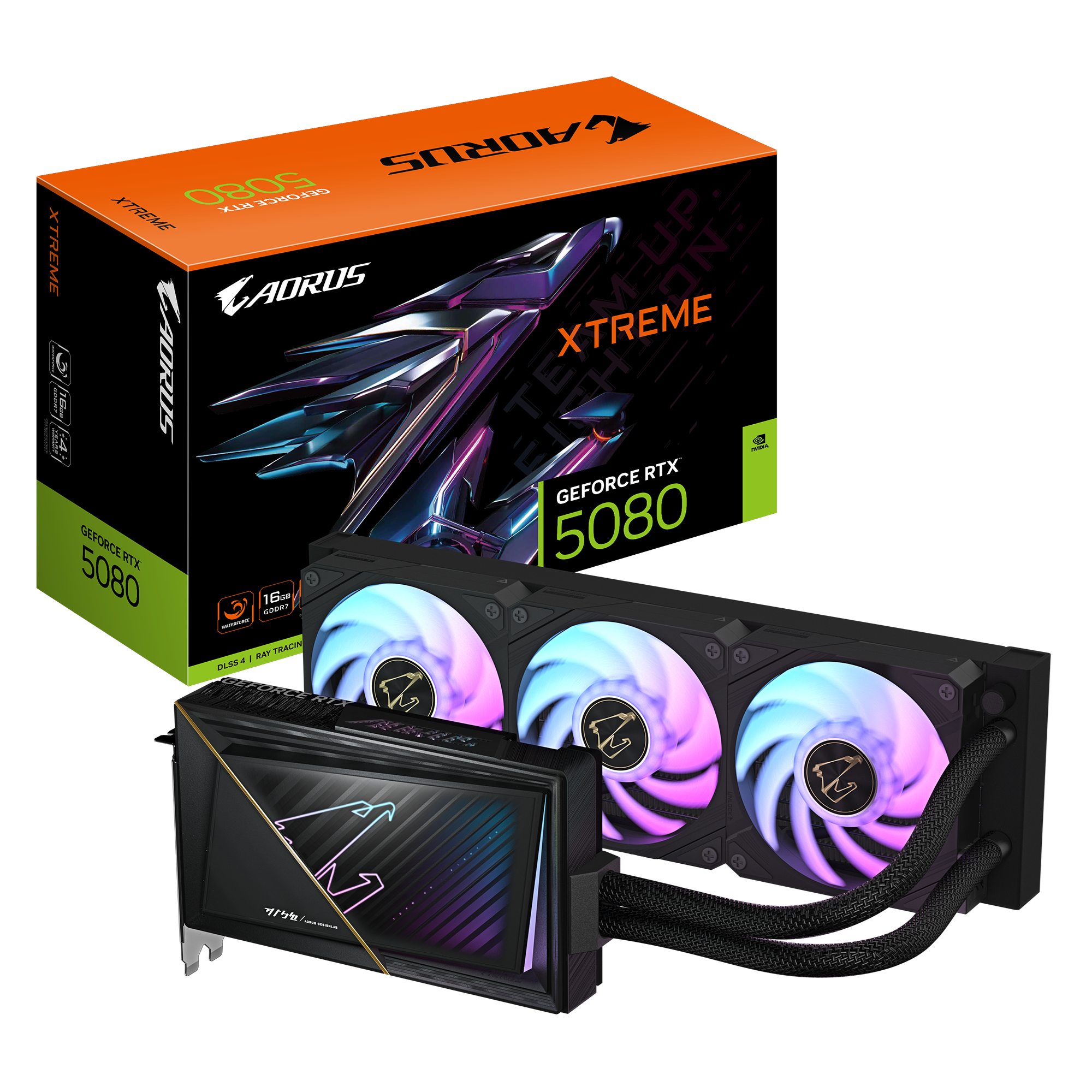

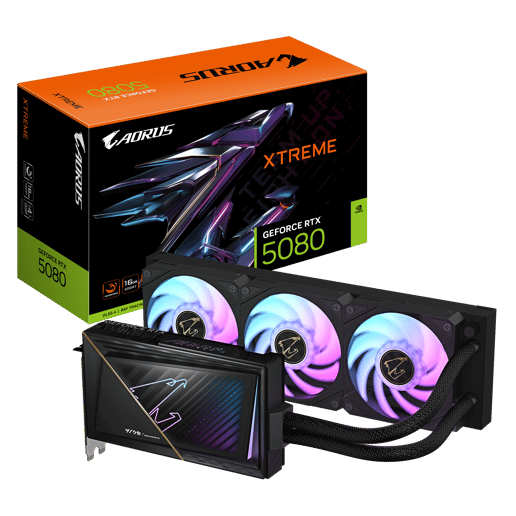

Gigabyte GeForce RTX 5080 Xtreme Waterforce OC 16GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5080 Xtreme Waterforce OC 16GB GDDR7 Graphics Card

CCL Code: VGA7206

Coming soon

Notify Me

Gigabyte GeForce RTX 5080 Xtreme Waterforce OC 16GB GDDR7 Graphics Card

GV-N5080AORUSX W-16GD

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA7206

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

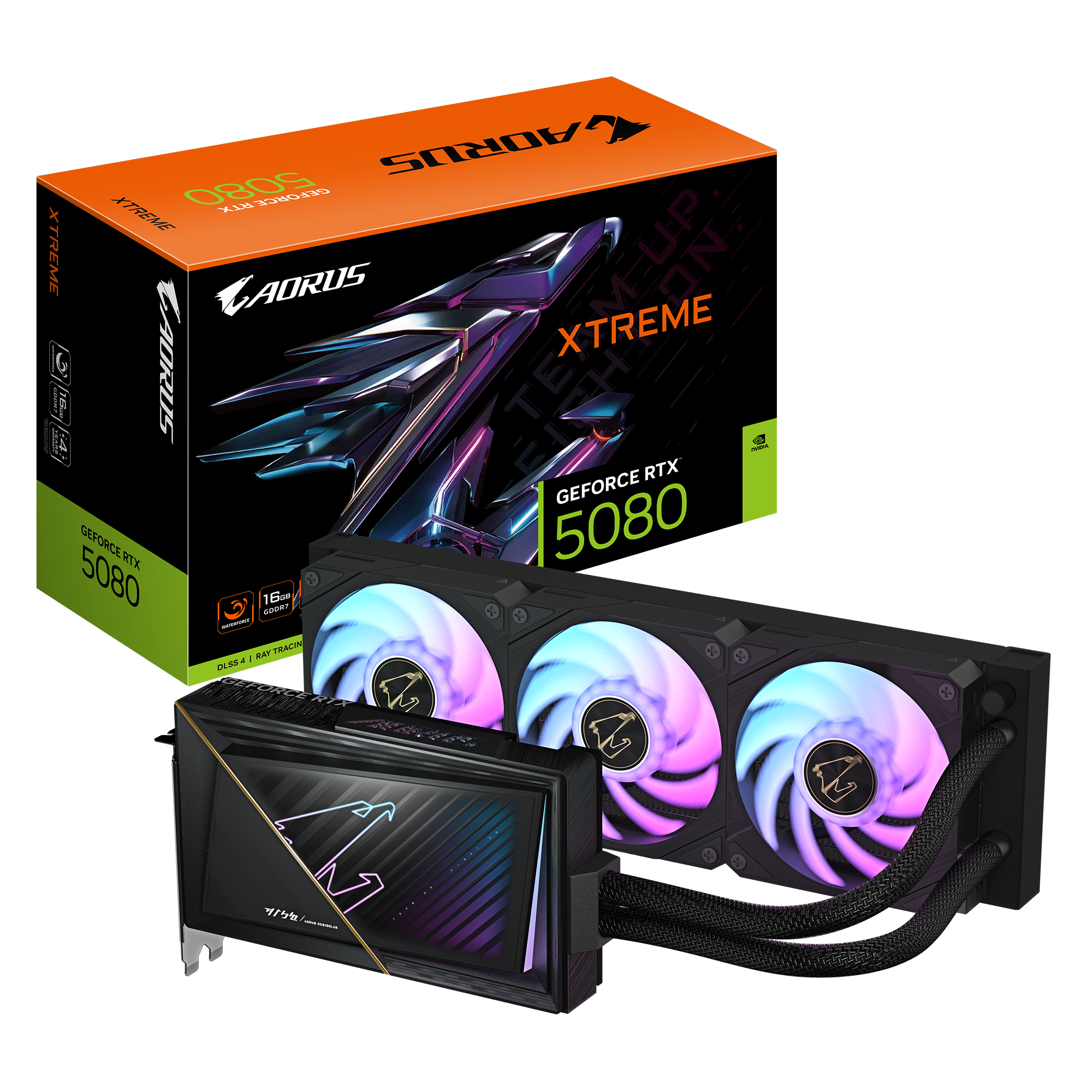

Gigabyte AORUS XTREME WATERFORCE GeForce RTX 5080 16GB OC Graphics Card

Main Features

  • Powered by GeForce RTX 5080
  • Integrated with 16GB GDDR7 256bit memory interface

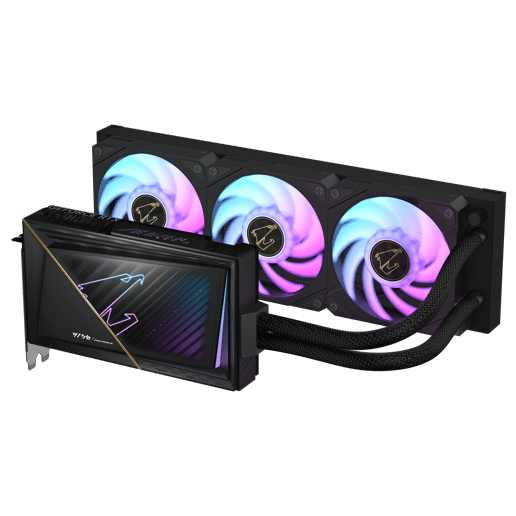

  • WATERFORCE all-in-one cooling system
  • 360mm radiator with three120mm ARGB fans
  • Liquid metal thermal grease for GPU
  • RGB Lighting

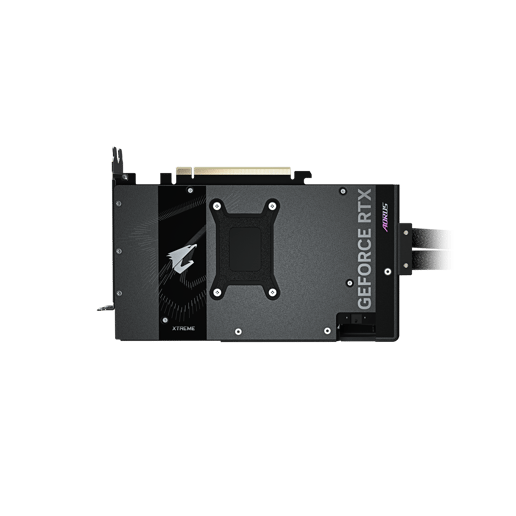

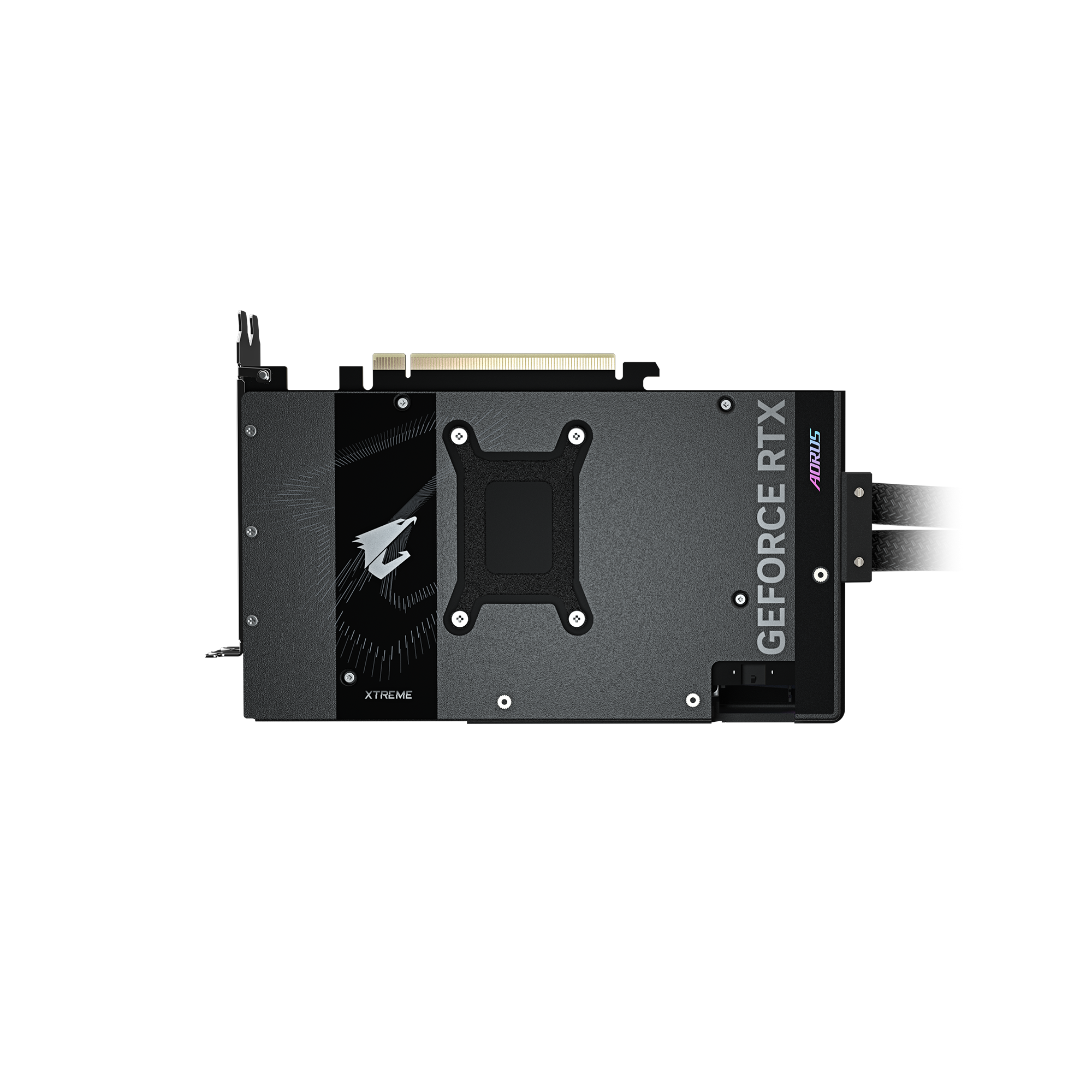

  • Protective metal back plate
  • 4 Years Warranty (Online registration required)
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5080
Chipset Additional Information AORUS XTREME WATERFORCE
Base Chip Clock 2295 MHz
Number of Cores 10752
Graphics Core CUDA

Memory

Memory Size 16384 MB
Memory Clock 30 Gbps
Memory Type GDDR7
Memory Width 256 bit
Memory Bandwidth 960 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16

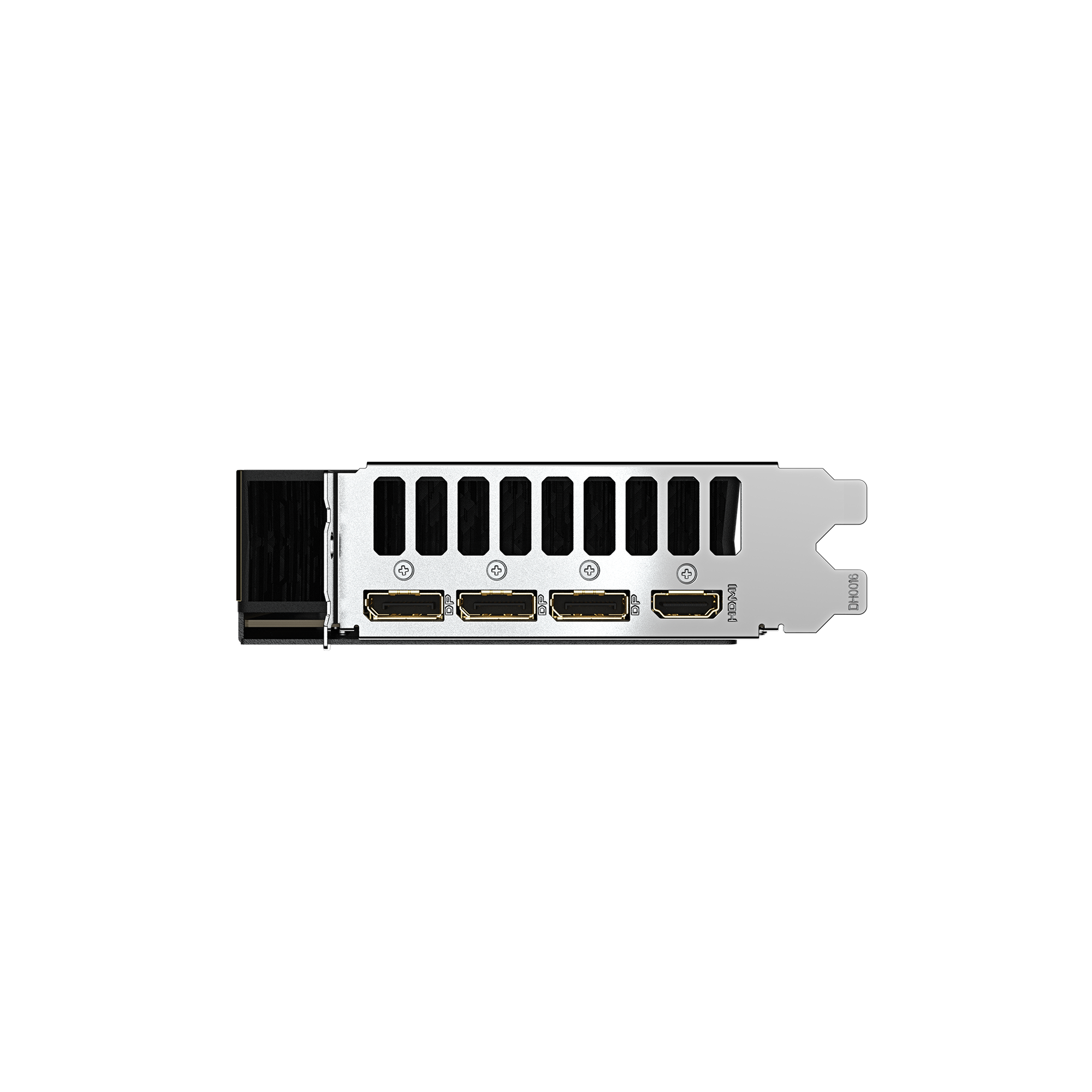

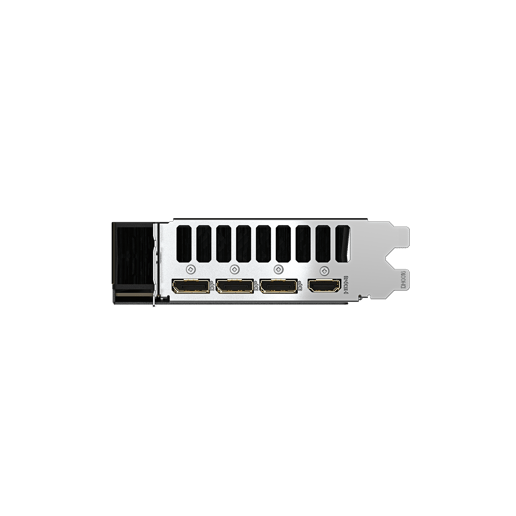

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot
Suitable 360mm radiator mounting

Electrical

Power Connector 1 x 12V-2x6 or 3 x 8-pin PCIe
Power Consumption 360 W
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card
In The Box Graphcis Card
VGA Manual
Warranty Notice
1 x 12V-2x6 to 3 x 8-pin PCIe Adapter
AORUS Identity Stickers

Warranty

Warranty 3 Years
4 Years with online registration

Key Features

Interface Type PCI Express 5.0 x16
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Closed Loop Watercooler
Low Profile No
NVIDIA GeForce RTX 5080
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Liquid Cooling
VR Ready NVIDIA
Power Requirement (auto) 360 W
GPU Power (TDP) 360 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5080

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N5080AORUSX W-16GD
Condition New
Warranty

Warranty Information

Warranty 3 Years
4 Years with online registration

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N5080AORUSX W-16GD
