Fractal Design Prisma AL-12 PWM 120mm ARGB Chassis Fan

Fractal Design Prisma AL-12 PWM 120mm ARGB Chassis Fan

CCL Code: CLR2144

£14.65 inc VAT

Fractal Design Prisma AL-12 PWM 120mm ARGB Chassis Fan

FD-FAN-PRI-AL12-PWM

£14.65 inc VAT

Available for delivery from Tuesday 24th December

or Click & Collect from Tomorrow

12 In Stock Now

Buying in bulk? Contact our business team.

Key Features:

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

CCL Code: CLR2144
Overview

Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome

Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Let your system shine

Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.

  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring produce an exceptionally uniform glow

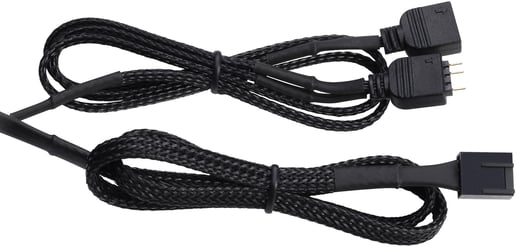

  • Chainable RGB cables simplify wiring and make the most of available connections
  • Black sleeved power cables offer an extra touch of style
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects

Uniform light

Specially designed white semi-opaque fan blades and outer ring produce an exceptionally uniform glow.

Vibrant colors

Six hub-mounted individually addressable RGB LEDs deliver powerful lighting in a full spectrum of color choices.

Full control

PWM control with a wide speed range ideal for CPU heatsinks and radiators.

Aerodynamic performance

  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Integrated vibration-damping corners made from high-quality synthetic rubber
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan

Main Features

  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring
  • Long Life Sleeve-bearings provide silent operation with a long lifespan
Specifications

Attributes

Fan Speed 500 ~ 2000 RPM
Air Flow 20.68 ~ 85.71 CFM
Bearing Type LLS
Connector 4-pin PWM power
3-pin 4V ARGB
Static Pressure 0.36 ~ 2.78 mmH2O
Lifetime 100,000 hours

Electrical

Voltage 12 V
Current 0.18 A

Environmental

Noise Level 14.8 ~ 32.7 dBA

Physical

Form Factor Chassis Fan
Case Colour Black
Cable length 500 mm
In The Box Prisma AL-12/PWM Fan
4 x Screws
Fan Width 120 mm
Fan Depth 120 mm
Fan Height 25 mm
Fan Weight 169 g

Key Features

Main Colour Black
Fan Size 120 mm
Display Model in Showroom No
L.E.D Fan RGB
Number of Fans 1 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Fan Connector 4-pin PWM
Power Requirement (auto) 3 W

Warranty

Warranty 1 Year

Item Details

Manufacturer Fractal
Manufacturer Code FD-FAN-PRI-AL12-PWM
EAN 7340172701590
UPC 843276101596
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Fractal
Manufacturer Code FD-FAN-PRI-AL12-PWM
