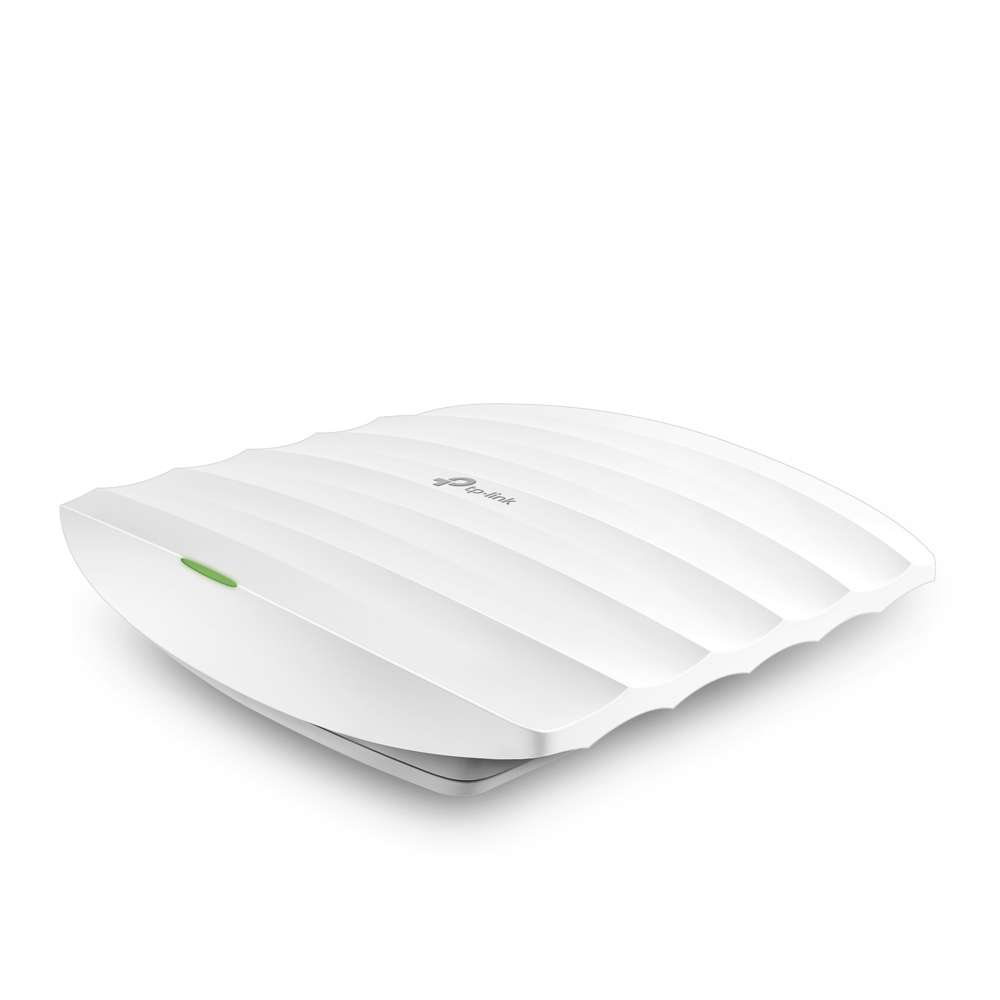

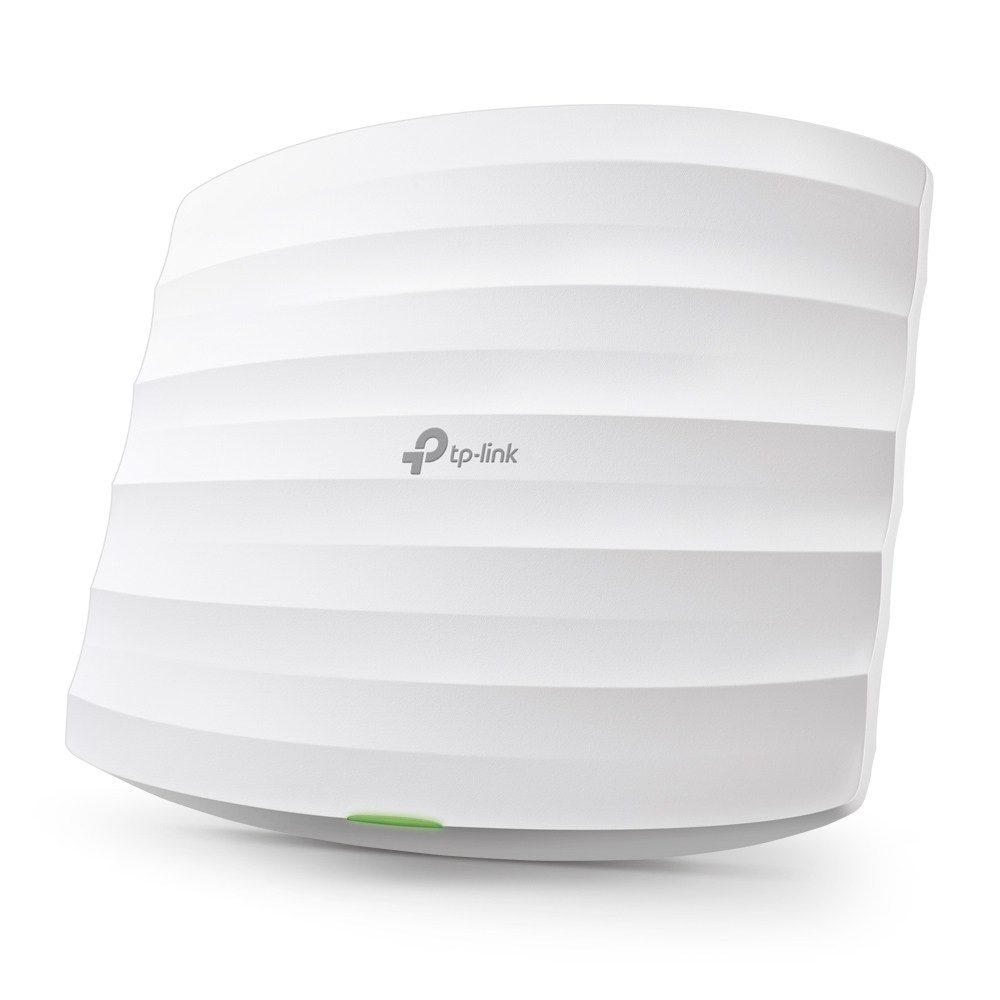

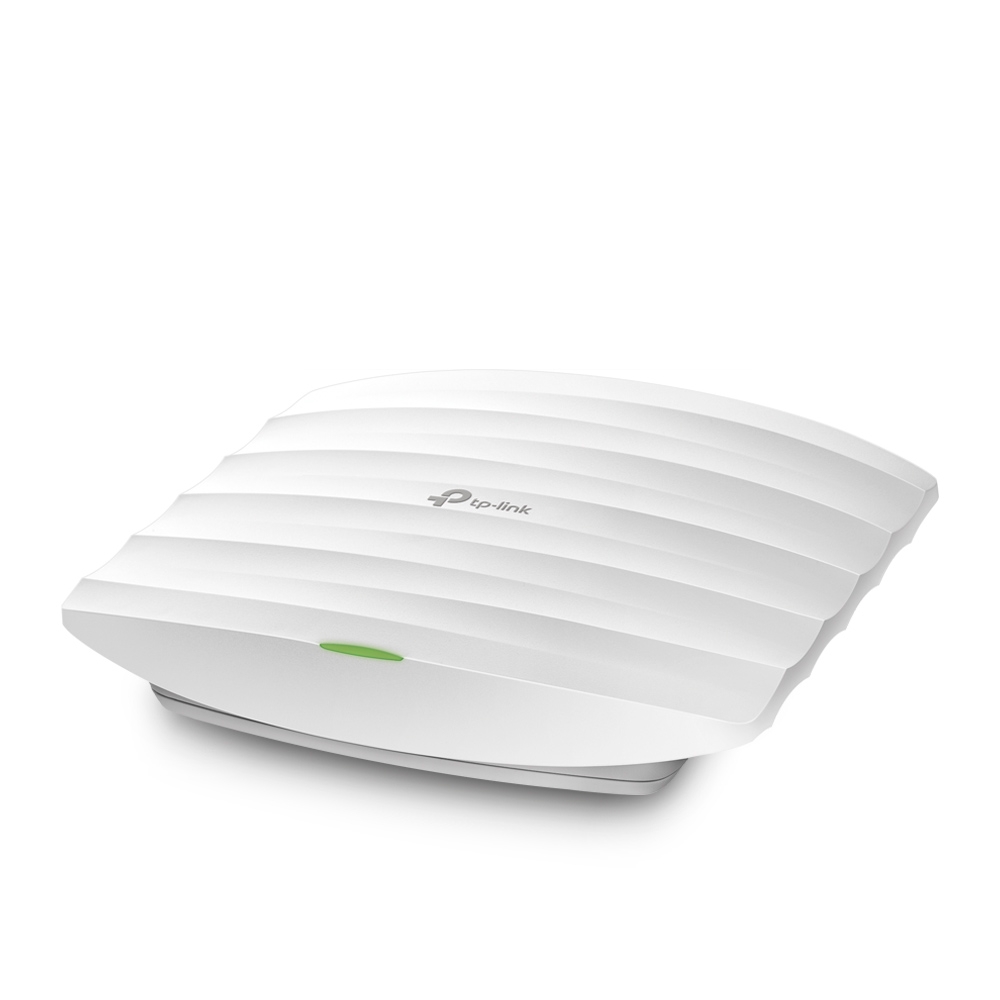

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

CCL Code: NET2548

Was £90.18

SAVE 20%

Now only

£71.99 inc VAT

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

EAP225

Was £90.18

SAVE 20%

Now only

£71.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Monday 25th November

Order within

Buying in bulk? Contact our business team.

CCL Code: NET2548
Overview

Boost Your Business with Wireless AC

With AC1200 Wi-Fi and advanced 2x2 MIMO technology, the EAP225 access point is perfect for small offices, campuses and the restaurant and hospitality industries. Band-Steering greatly improves the performance of connected dual-band devices, and high-gain antennas create a powerful signal that can easily pass through walls.

Layer 3 management capabilities combine with EAP Controller software to allow IT staff to easily manage hundreds of EAPs across multiple sites. Administrators can easily implement rate limiting to reserve bandwidth, creating a better Wi-Fi experience for all client devices. Additionally, Guest Access and Captive Portal features control connections to your network via vouchers or a credential authentication page for greater management flexibility.

Product Specifications

  • 2.4 GHz: 300 Mbps & 5 GHz: 867 Mbps
  • 1x Gigabit Ethernet
  • 802.3af PoE

Easy EAP Deployment

The EAP’s low profile chassis makes it easy to install on any wall or ceiling while blending in with existing décor. Power over Ethernet (PoE) increases the EAP’s flexibility for deployment with wired networks. Set up and configure your business network for faster performance without needing professional IT support or training.

EAP Controller Software

EAP Controller Software for Centralized Management Free EAP Controller Software makes it easy to set up and control hundreds of access points from a centralized location.

Easily monitor statistics, create a captive portal, manage traffic, map and run a free, customized site survey, upgrade and reboot your system and even scale your network. No added cost, special training or IT support needed.

Captive Portal

Captive portal improves network security while providing the administrative tools needed to create a secure and intuitive authentication experience for Wi-Fi guests.

Easily control connections to your network by using a voucher system and customized authentication page to provide a branded experience, advertise to customers or limit network access.

Load Balance

The Load Balance feature keeps your Wi-Fi running smoothly by distributing network traffic across multiple EAPs, so a single device is never burdened or overloaded with data. This level of redundancy provides a seamless and uninterrupted experience for customers and employees.

Dual Band Wi-Fi

Dual 2.4 GHz and 5 GHz bands deliver up to 1200 Mbps of Wi-Fi speed, allowing more devices to be connected to your wireless network at once. Send e-mails, stream in HD and share large files across your network without experiencing a drop in your network or standards of efficiency.

Lifetime Service and Industry-Leading Warranty

Need help setting up your TP-Link device? Our team is here 24/7 to provide no-cost technical support, including setup assistance, no matter when you purchased our product. Plus, our 2-year warranty gives you worry-free service.*

Features and Specifications

  • Better Wi-Fi with 1200 Mbps combined speeds (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz bands)
  • Multiple SSIDs for business segments
  • Easily setup, manage and monitor hundreds of EAP's from a single connection
  • Mountable chassis design make it easy to install on a wall or ceiling
  • Convenient employee and guest authentication with captive portal
  • Rate-limiting balacnes bandwith for all devices and clients
  • Supports the 802.3af Power over Ethernet (PoE) standard for convenient installation

Main Features

  • Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
  • Free EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Support Power over Ethernet(802.3af) for convenient and affordable installation
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Specifications

Network

Network Speeds Supported 10/100/1000 Mbps

Wireless LAN

Frequency Band 2.4GHz to 5 GHz
Speed Options 5GHz: 867Mbps • 2.4GHz: 300 Mbps
Transmit Power 27 dBm
Encryption 64/128/152-bit WEP
Antenna Type Internal Omni (2.4GHz 2 x 4dBi, 5GHz 2 x 4dBi)
RF Network Standard IEEE 802.11a/b/g/n/ac

Interfaces/Ports

LAN Ports 1 x RJ-45

System

Security Kensington Lock Slot • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, • WPA-PSK / WPA2-PSK
Management EAP Controller Software, Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP v1 v2c, System Logging Local/Remote Syslog, Telnet, Web-based Management HTTP/HTTPS, L3 Management, Multi-site Management
Internet Services Multiple SSIDs(Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Band Steering • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client

System Requirements

Operating Systems Supported Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Compliance

Certifications CE, FCC, RoHS

Electrical

Power Adaptor Output Voltage 12 V DC
Power Consumption 10 W
Power Adaptor Type External
Power over Ethernet Supported Yes
Power over Ethernet (PoE) Standards IEEE 802.3af

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Wireless Device
In The Box AC1200 Wireless Dual Band Gigabit Access Point EAP225 • Power Adapter • Mounting Kits • Installation Guide
Width 18.0 cm
Depth 18.0 cm
Height 4.75 cm
Case Colour White

Warranty

Warranty Three years warranty.

Key Features

Number of LAN Ports 1 port(s)
Main Colour White
LAN Port(s) Speed 10/100/1000
WiFi Speed 867 Mbps
AC Passthrough No

Wireless Communications

WiFi Type Wi-Fi 5

Item Details

Manufacturer TP-Link
Manufacturer Code EAP225
EAN 6935364096922
Condition New
Warranty

Warranty Information

Warranty Three years warranty.

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code EAP225
