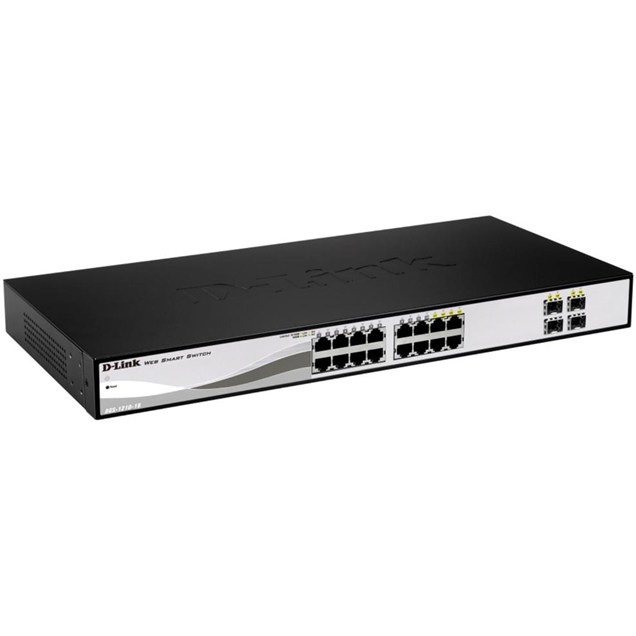

DLink DGS-1210-20 20-Port Gigabit Rackmount Switch

DLink DGS-1210-20 20-Port Gigabit Rackmount Switch

CCL Code: NET3331

Sold out

Notify Me

DLink DGS-1210-20 20-Port Gigabit Rackmount Switch

DGS-1210-20

Key Features:

  • 20 x Gigabit Ports
  • Switch Type: Managed
  • Form Factor: Rackmount
CCL Code: NET3331

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv61. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and medium sized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership. DGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required.

Main Features

  • Third generation design, with improved management and security functions
  • Fanless design ideal for use in open offices
  • Power-saving D-Link Green technology now in its 2nd generation
  • Solid security with 802.1X authentication and IP/MAC based Access Control Lists (ACL)
  • Malicious traffic and performance degradation prevention with D-Link Safeguard Engine
  • Auto Voice VLAN for the automatic prioritisation of digital voice traffic
  • Quality of service (QoS) and bandwidth control (down to 64 kbps)
  • High Reliability with Loopback Detection (LBD) and cable diagnostics
  • Simple Web based management
  • SmartConsole utility for the joint management of several switches
Specifications

Memory

Buffer Memory 0.5 MB

Performance

MAC Addresses 16,000

Interfaces/Ports

Number of Fixed Ports 16 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100/1000 Mbps
Number of Uplink Ports 4 port(s)
Uplink Port Connector SFP
Uplink Port Speed 10/100/1000 Mbps

System

Management Capabilities Web-based GUI • Compact CLI through Telnet • Telnet Server • TFTP Client • SNMP: Supports v1/v2/v3 • SNMP Trap • Trap for SmartConsole Utility • System Log: Max. 500 log entries, Supports IPv4 log server • BootP/DHCP Client • Time Setting: SNTP
Security 802.1X • Port Security: Supports up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control • Static MAC • D-Link Safeguard Engine • DHCP Server Screening • ARP Spoofing Prevention: Max. 64 entries • SSL: Supports v1/v2/v3, Supports IPv4

Electrical

AC Voltage Range 100 to 240 V AC
Electrical Frequency 50 to 60 Hz
Power Adaptor Type Internal

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 95 %

Physical

Form Factor Network Switch
Width 44.0 cm
Depth 21.0 cm
Height 4.4 cm
Weight 2.87 kg

Key Features

PoE Supported No
Switch Type Managed
Switch Form Factor Rackmount
LAN Port(s) Speed 10/100/1000
Number of LAN Port(s) 20
PoE+ Supported No

Warranty

Warranty 1 Year

Item Details

Manufacturer DLink
Manufacturer Code DGS-1210-20
EAN 790069373220
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer DLink
Manufacturer Code DGS-1210-20
Reviews
No reviews have been received for this product yet
