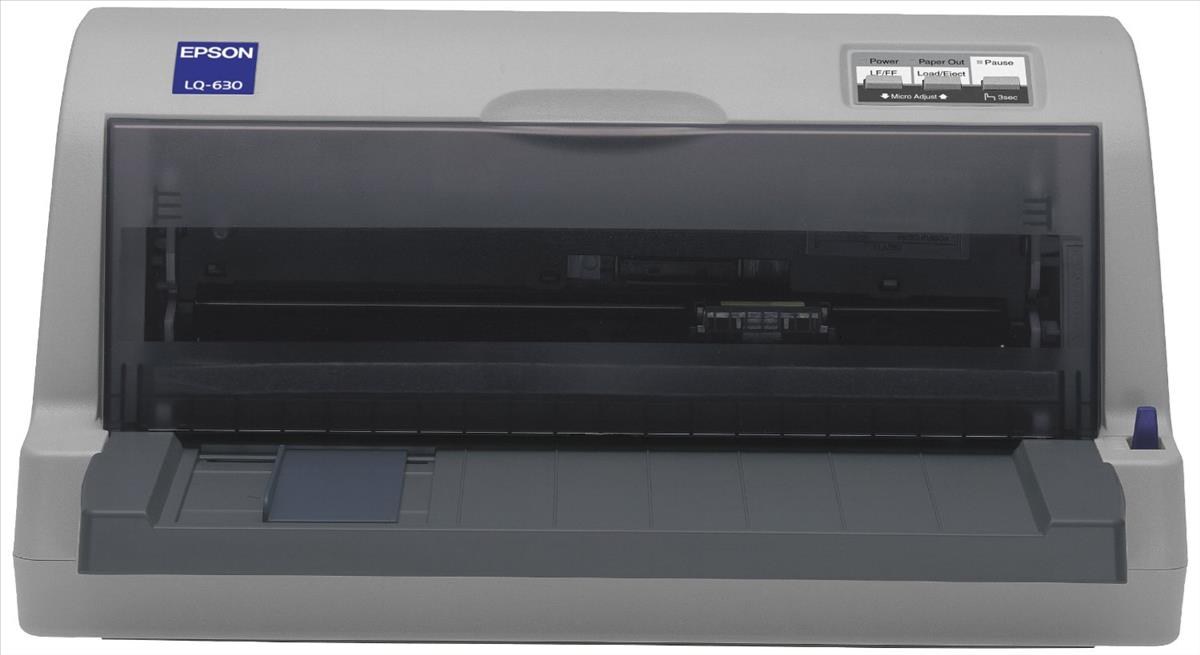

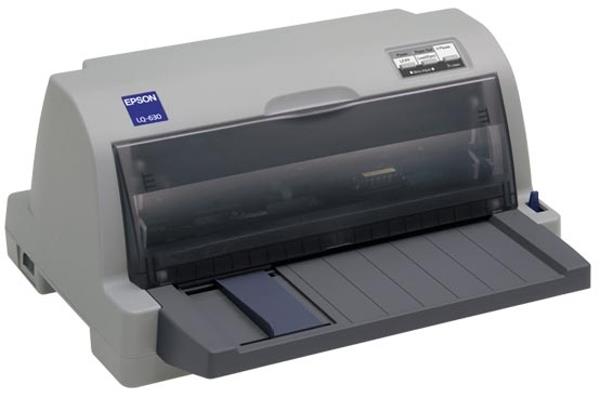

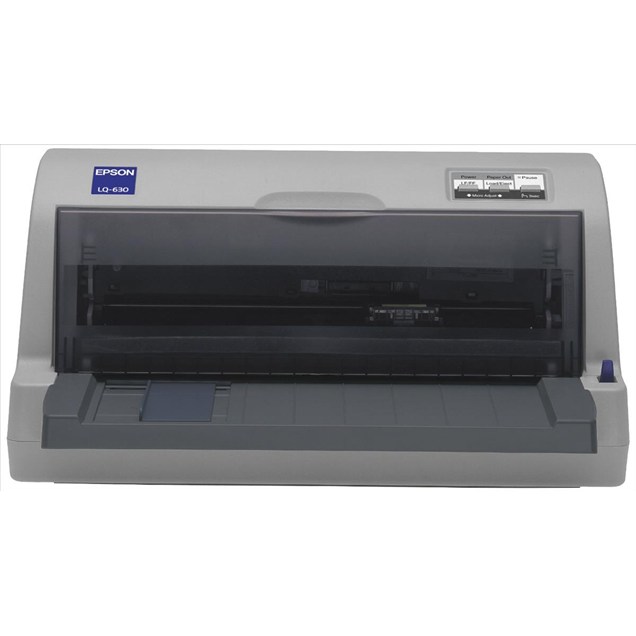

Epson LQ-630 (24 Pin) Dot Matrix Printer

Epson LQ-630 (24 Pin) Dot Matrix Printer

CCL Code: PRT3873

£471.99 inc VAT

Epson LQ-630 (24 Pin) Dot Matrix Printer

C11C480141A0

£471.99 inc VAT

Available for delivery from Tuesday 28th January

or Click & Collect from Tuesday 28th January

Buying in bulk? Contact our business team.

Key Features:

  • Fast print speed up to 360cps
  • Compact and robust design
  • Handles up to 1 original + 4 copies
CCL Code: PRT3873
Overview

The EPSON LQ-630 is a low cost, high quality dot matrix printer perfect for counter-top use, bringing high speed, flexibility and reliability to all environments including retail stores, banks, post offices, doctors' surgeries and ticket shops, as well as industrial, trade and service companies. A simple three button control panel ensures easy operation by both experienced and novice users, while the flatbed design enables small cut sheet paper to be inserted ergonomically from the front, with both cut sheet and continuous paper being ejected from the front side too. With a high Mean Volume Between Failure (MVBF) of the printer at 12 million lines, the EPSON LQ-630 is built to last. Cost effective and with advanced functionalities, the EPSON LQ-630 is the perfect solution for any business. A key feature of the EPSON LQ-630 is its control panel. This simple, clear three-button/three-LED panel provides the power to control all aspects of the printing process quickly, ensuring operation by even the most inexperienced users. A Lock-Out function is also available to restrict the use of any buttons on the front panel.

Main Features

  • Fast print speed up to 360cps
  • Compact and robust design
  • Handles up to 1 original + 4 copies
  • Flatbed technology for ergonomic front paper feed
  • Standard Centronics Parallel and USB 2.0 Interfaces
Specifications

Printer

Printer Type Dot Matrix
Mono or Colour Printer Mono
Technology Impact Dot Matrix
Printer Resolution True Vertical 360 dpi
Printer Resolution True Horizontal 180 dpi
Print Width 80 characters
Print Head Life 400,000,000 Characters
Ribbon Life 2,000,000 Characters
MTBF 10,000 Hours
Number of Pins 24 pins

Paper Handling

Paper Size Continuous forms and Cut sheet
Number of Copies 5 (original + 4 copies)
Media Supported Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper

Interfaces/Ports

Parallel Ports 1 x Parallel Port (with ECP and EEP)
USB Ports 1 x USB 2.0 (Type B)

Memory

Input Buffer 32 KB

System

Font Capabilities 1 Draft, 10 Bitmap, 4 Scalable, 8 Barcode
Printer Languages EPSON LQ ESC/P 2 IBM PPDS
Software Included (may be trial or restricted) EPSON Status Monitor 3.

System Requirements

Operating Systems Supported Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP

Electrical

Electrical Voltage 220 to 240 VAC
Electrical Power Consumption Printing 20 W
Electrical Power Consumption Standby 4.8 W

Warranty

Warranty 12 Months Carry-in

Environmental

Operating Temperature 5 to 35 °C
Operating Humidity 10 to 80 %
Noise Level 57 dbA

Physical

Form Factor Desktop
In The Box Printer • Driver and utilities (CD) • Power cable • Ribbon • Setup guide • Software (CD) • User manual (CD) • Warranty document
Width 38.6 cm
Depth 30.6 cm
Height 18.5 cm
Weight 3.5 kg

Item Details

Manufacturer Epson
Manufacturer Code C11C480141A0
EAN 8715946540566
Condition New
Warranty

Warranty Information

Warranty 12 Months Carry-in

Manufacturer Information

Manufacturer Epson
Manufacturer Code C11C480141A0
