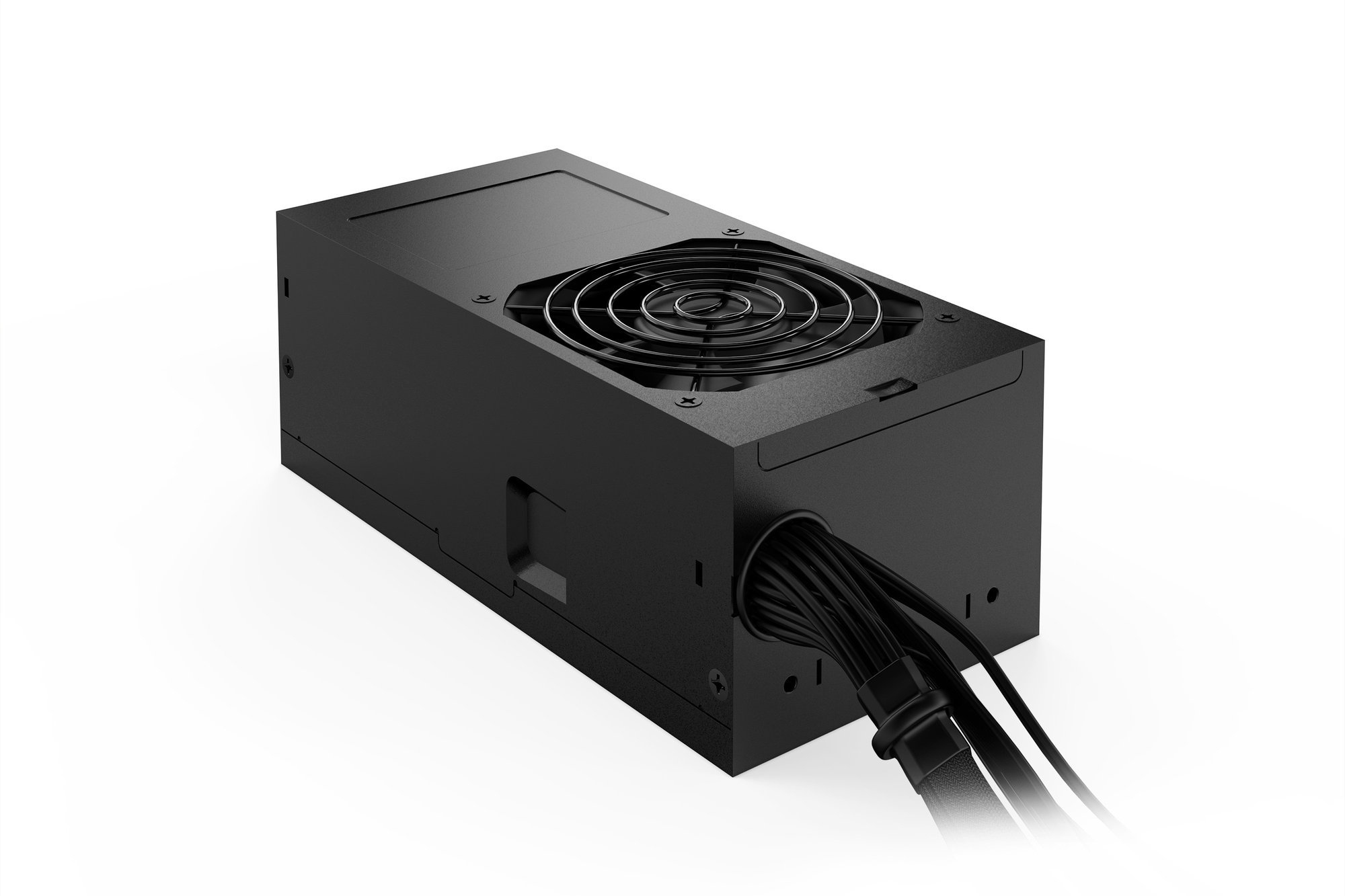

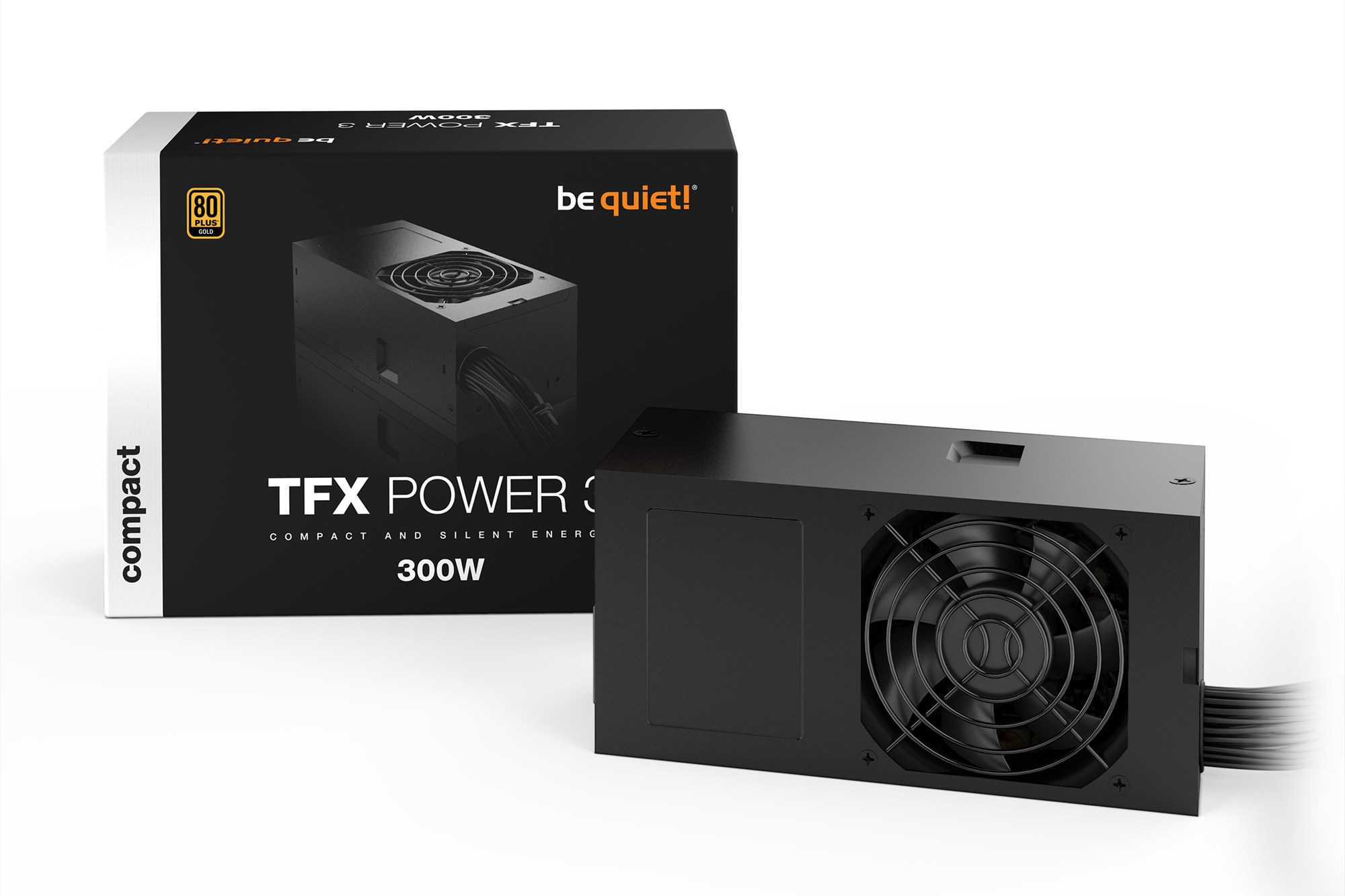

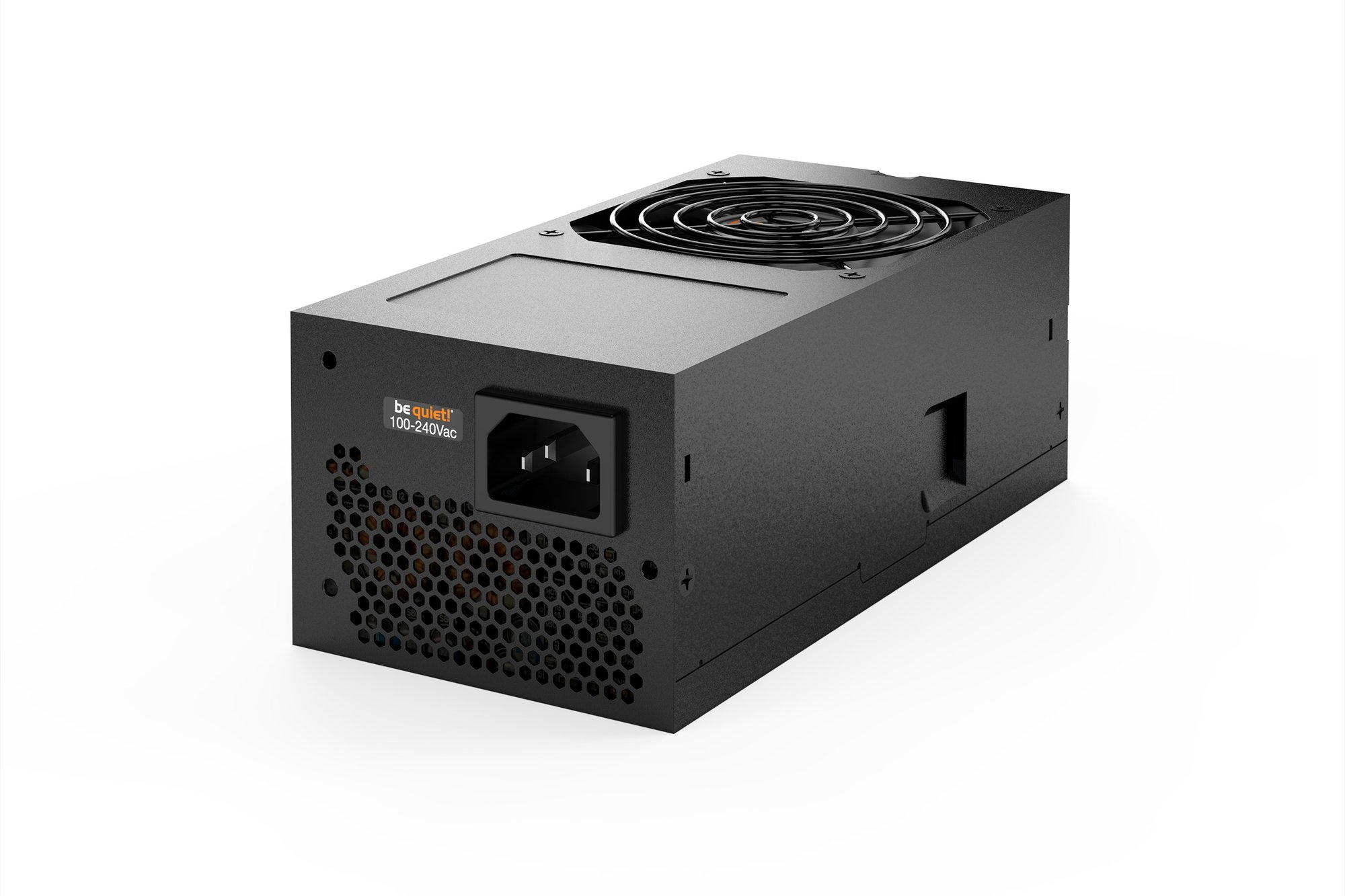

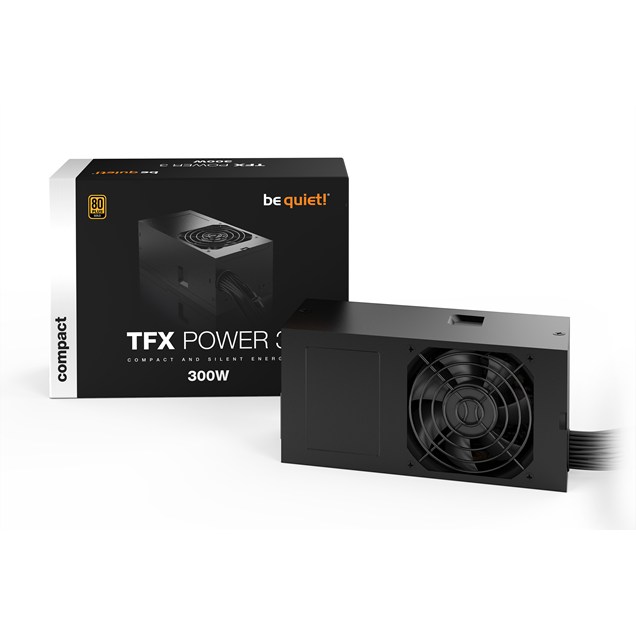

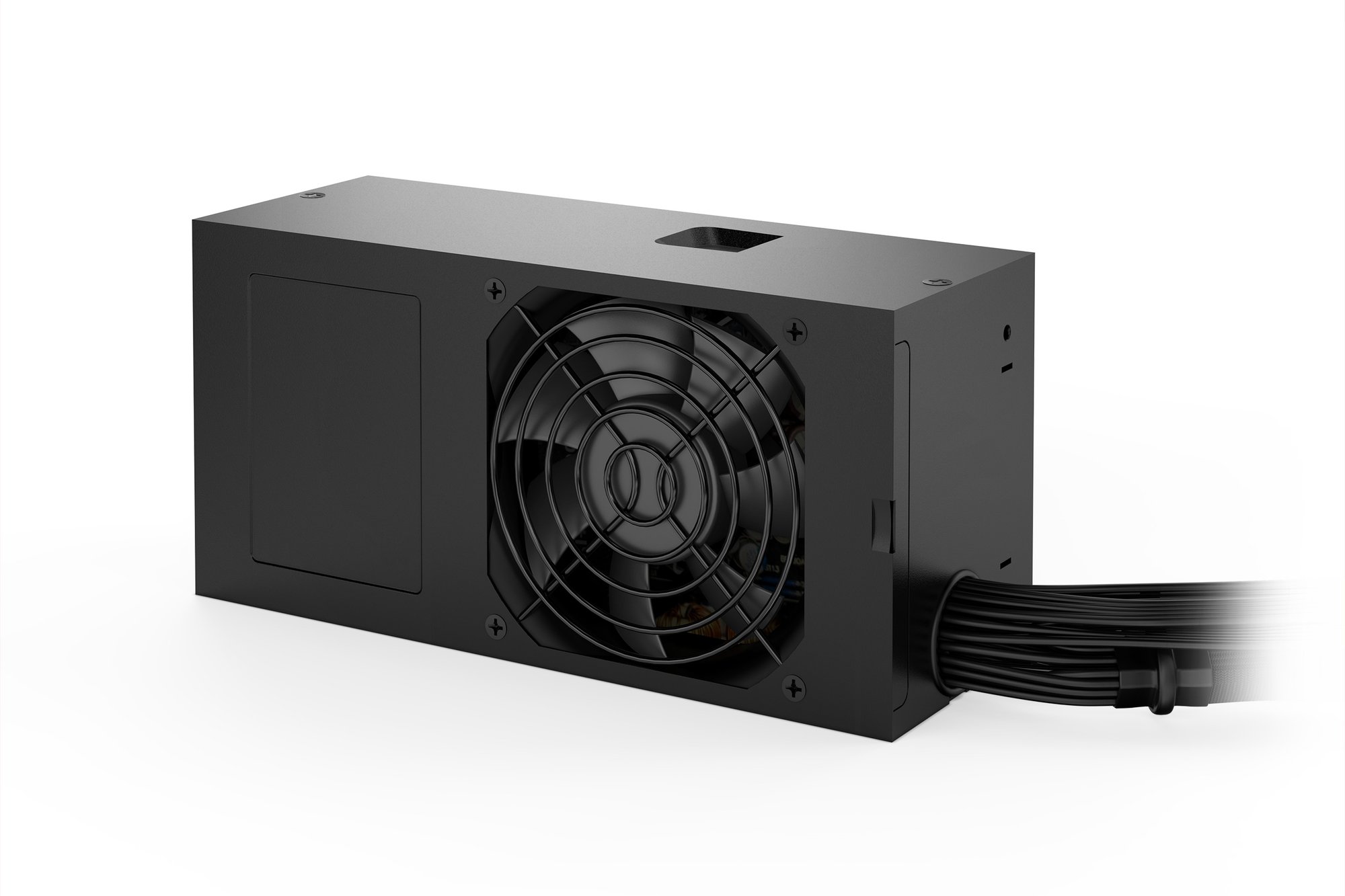

300W Be Quiet! TFX Power 3 80 Plus Gold PSU

300W Be Quiet! TFX Power 3 80 Plus Gold PSU

CCL Code: PSU1963

Discontinued

  • 300W Be Quiet! TFX Power 3 80 Plus Gold PSU
  • 300W Be Quiet! TFX Power 3 80 Plus Gold PSU
  • 300W Be Quiet! TFX Power 3 80 Plus Gold PSU
  • 300W Be Quiet! TFX Power 3 80 Plus Gold PSU

COMPACT AND SILENT ENERGY

300W Be Quiet! TFX Power 3 80 Plus Gold PSU

BN323

Key Features:

  • TFX Form Factor
  • 4-Pin EPS CPU
  • 2 x 6+2-Pin PCIe
  • 3 x SATA
  • 2 x Molex
CCL Code: PSU1963

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

TFX Power 3 300W Gold: the upgraded be quiet! high-efficiency PSU for mini and media PCs with 80 PLUS® Gold certification and PCIe graphics card support.

80 PLUS® GOLD CERTIFICATION

Very high operating efficiency

TFX Power 3 300W Gold is certified 80 PLUS Gold with an efficiency rating of up to 91.7%. With this outstanding energy efficiency, the TFX Power 3 300W Gold ensures low power consumption and by that lower costs alike.

STRONG DUAL 12V RAIL

For a stable operation

The dual 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included.  This makes the TFX Power 3 300W Gold the ideal PSU for all who strive for enough power to support small systems at low noise.

QUIET AND SAFE

Optimized for low-noise operation

The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Gold meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.

Main Features

  • Certified 80 PLUS Gold efficiency (up to 91.7%)
  • Strong dual 12V-rails for high stability and PCIe graphics card support
  • 300W of continuous power
  • High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A)
  • Sleeved or flat black cables up to 60cm long
  • Meets the latest safety and efficiency requirements
  • Standby draw less than 0.17 watts
  • Three-year manufacturer's warranty
  • Product conception, design and quality control in Germany
Specifications

Interfaces/Ports

SATA Connectors 3
CPU Connectors 1 x 4-pin EPS
PCI Connectors 2 x 6+2-pin PCIe
Motherboard Connectors 1 x 24-pin ATX
Molex Connectors 2
Floppy Connectors 1 x Floppy

Compliance

Standards 80 PLUS Gold Certified
CE, CB, TUV, CU (Russia)
Safety OCP, OVP, UVP, SCP, OTP, OPP

Electrical

Voltage 100 ~ 240 V
Power 300 W
Frequency Range 50 ~ 60 Hz
Power Cord No

Environmental

Operating Temperature 0 ~ 40 °C

Physical

Form Factor TFX Power Supply
Case Colour Black
In The Box Power Supply
Screws
Cable Ties
User Manual
Width 85 mm
Depth 175 mm
Height 65 mm
Weight 1.1 kg

Warranty

Warranty 3 Years

Key Features

Main Colour Black
Modular Cables No
80Plus Rated 80 Plus Gold
PSU Form Factor TFX
PCIe Connectors 2
Floppy Connector 1
Motherboard (EPS) Power Connectors 4-Pin
PCIe Pin Type 6+2-Pin
PSU Depth 175 mm
CPU Power Pins (male) 4
PCIe Power Pins (male) 16
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer Be Quiet!
Manufacturer Code BN323
EAN 4260052188293
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Be Quiet!
Manufacturer Code BN323
