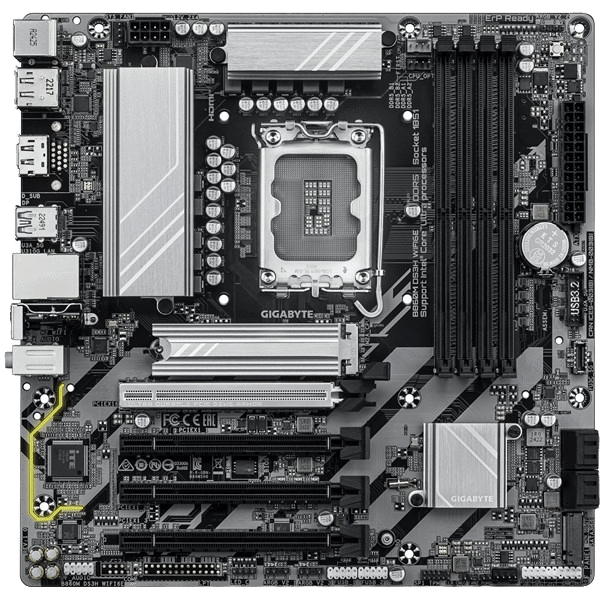

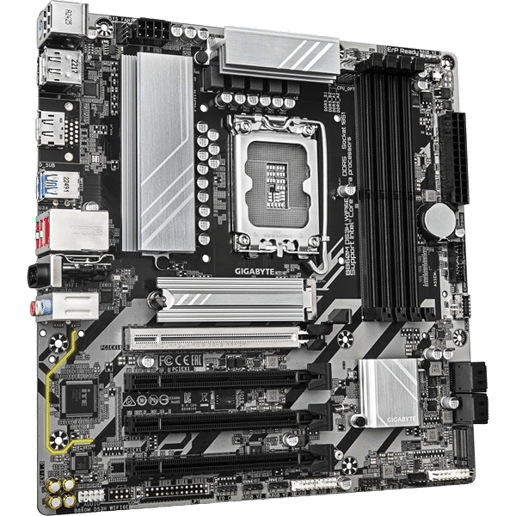

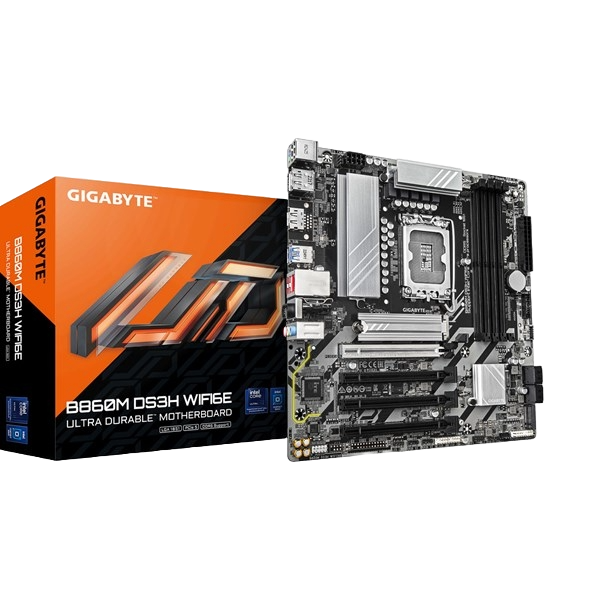

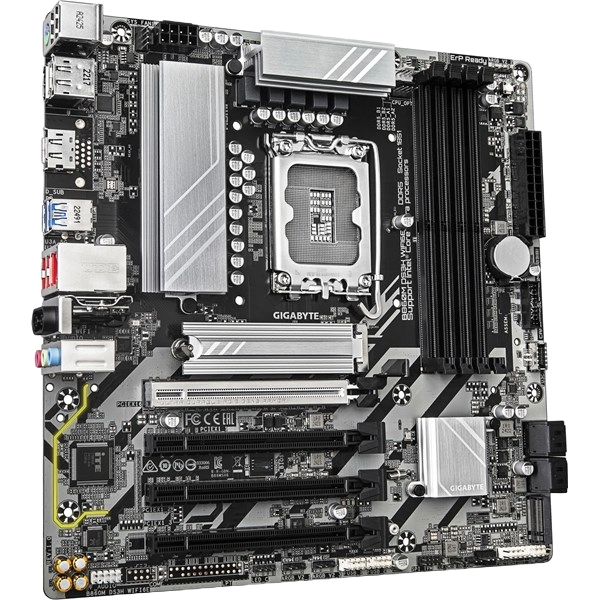

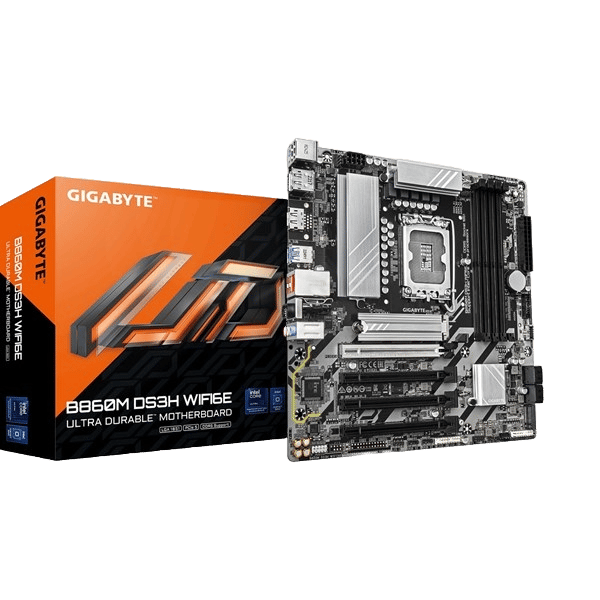

Gigabyte B860M DS3H WIFI6E mATX Motherboard for Intel LGA1851 CPUs

Gigabyte B860M DS3H WIFI6E mATX Motherboard for Intel LGA1851 CPUs

CCL Code: MBD3835

£165.99 inc VAT

New to CCL

Gigabyte B860M DS3H WIFI6E mATX Motherboard for Intel LGA1851 CPUs

B860M DS3H WIFI6E

£165.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Today

Hurry, only 2 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B860 Chipset
  • Socket 1851
  • DDR5 (Max: 256GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3835
Overview

Infinite Memory Performance

UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Hybrid VRM Design

The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Comprehensive Thermal

UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware Design

Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ Debug Zone

Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

Main Features

  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 5+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • M.2 Thermal Guard : To Ensure M.2 SSD Performance
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity : 2*DisplayPort, HDMI
Specifications

CPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors
64-bit Support Yes
Socket LGA1851

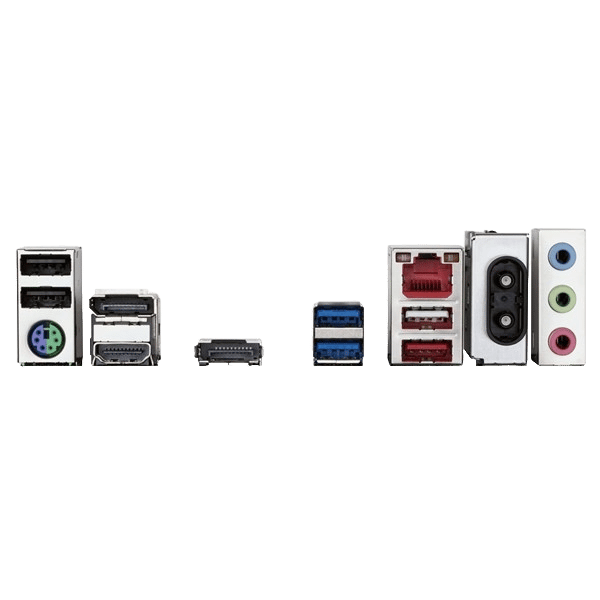

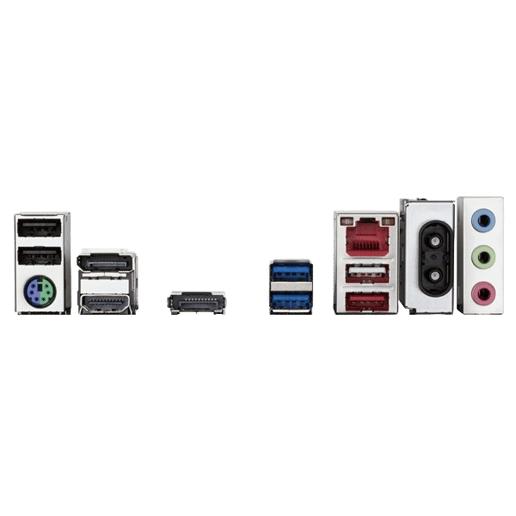

Rear Panel I/O Ports

USB Ports 1 x USB 3.1
2 x USB 3.0
3 x USB 2.0
DisplayPorts 1 x DisplayPort 2.1
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water Cooling pump header
1 x System fan header
1 x System fan/Water Cooling pump header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen5)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 9066 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B860
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
3 x PCI Express 4.0 x16 slots (@ x1/x1/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
1 x Reset
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
Width 244 mm
Length 244 mm

Key Features

Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 6400 MT/s
Max Memory Speed Supported (overclocked) 9066 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B860
Thunderbolt No
Motherboard Model Gigabyte B860M DS3H WIFI6E
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code B860M DS3H WIFI6E
EAN 4719331866815
UPC 889523046265
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B860M DS3H WIFI6E
