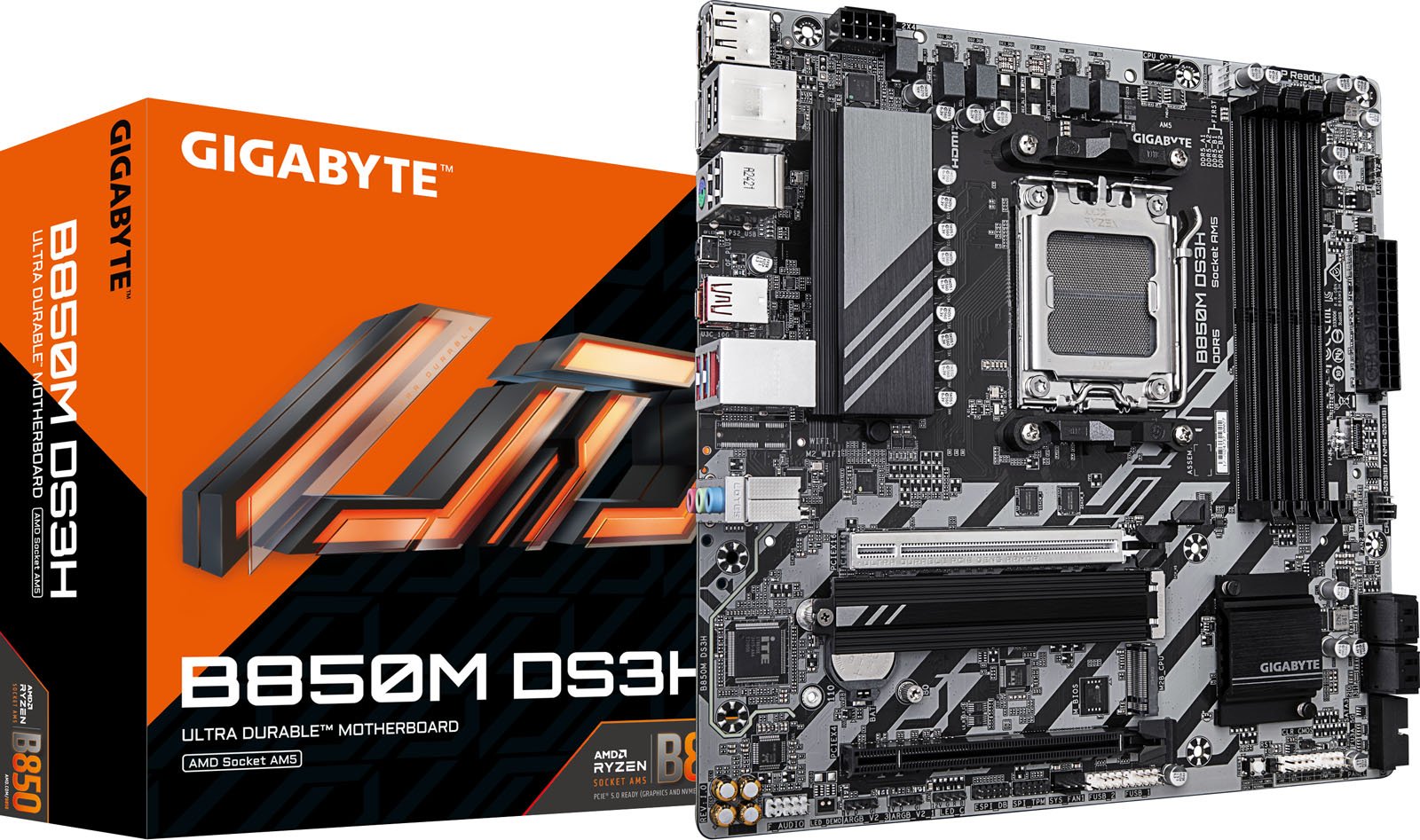

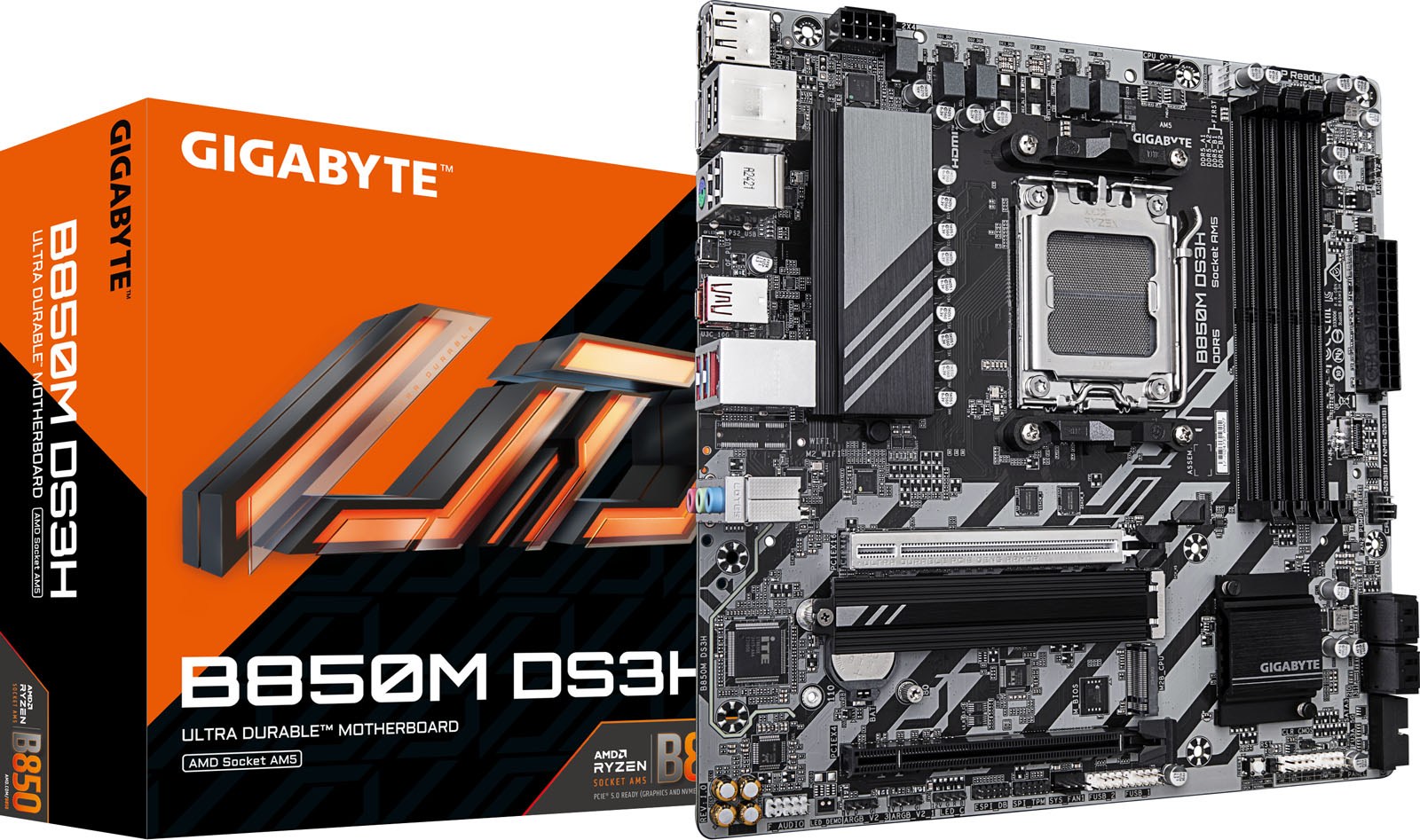

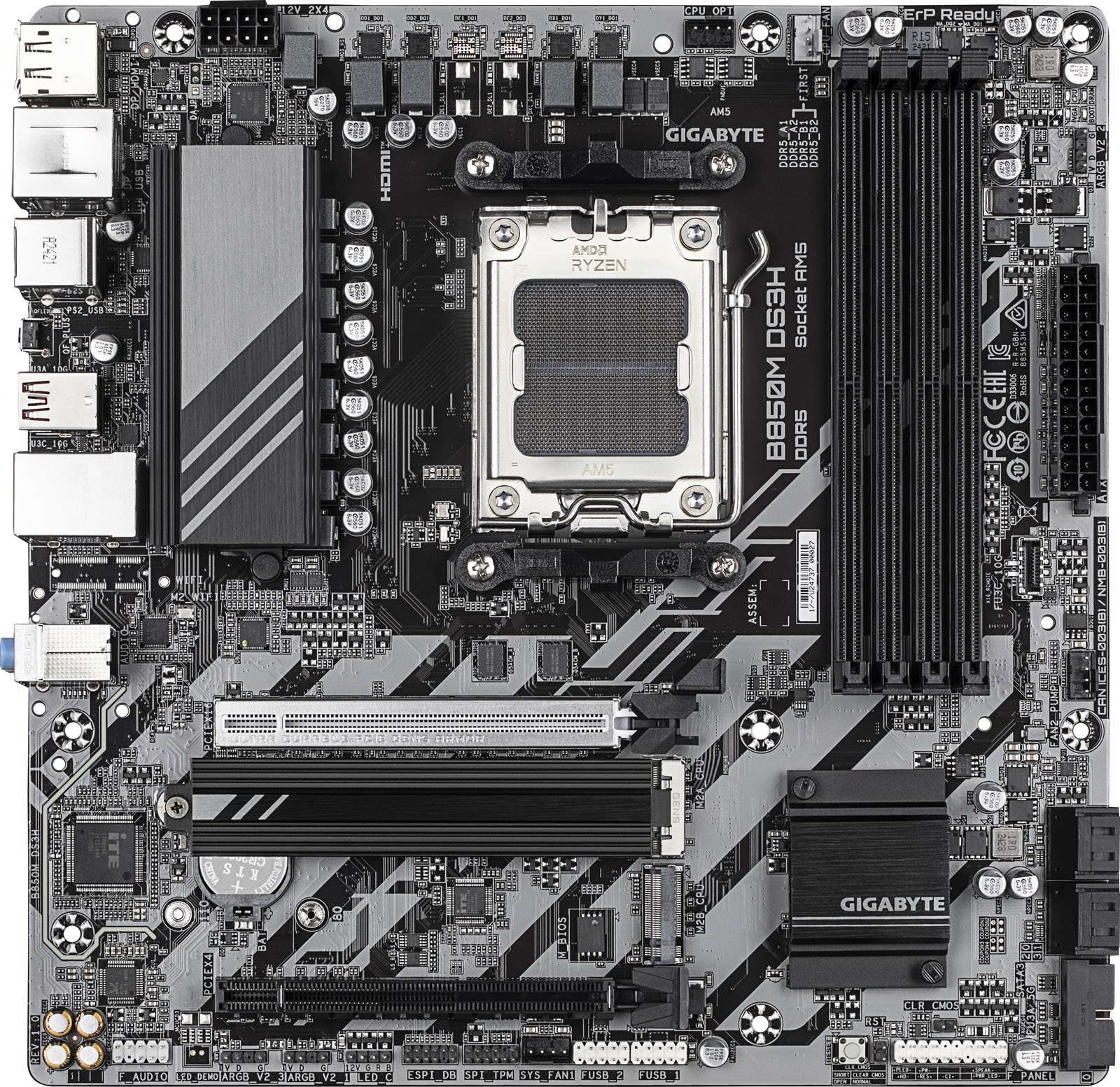

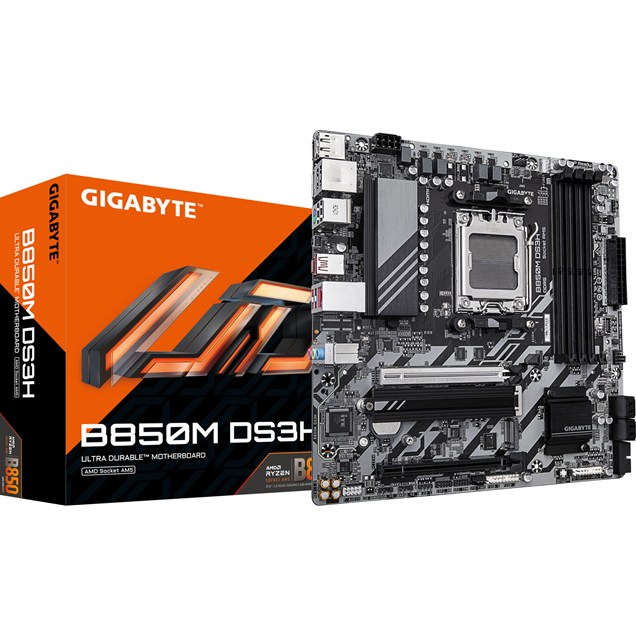

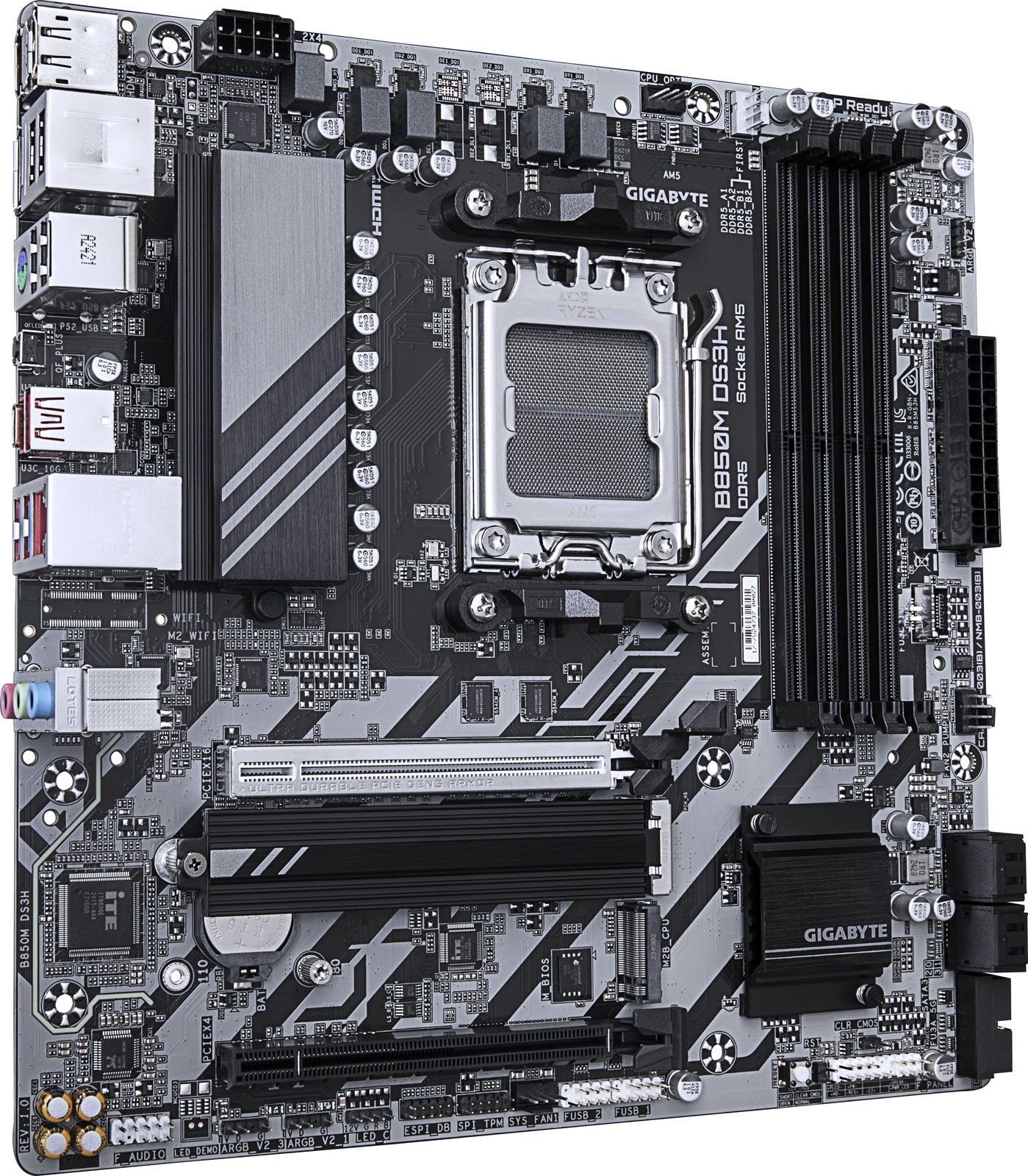

Gigabyte B850M DS3H mATX Motherboard for AMD AM5 CPUs

Gigabyte B850M DS3H mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3824

£143.99 inc VAT

Gigabyte B850M DS3H mATX Motherboard for AMD AM5 CPUs

B850M DS3H

£143.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Tomorrow

Hurry, only 2 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • AMD B850 Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 2 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3824
Overview

Gigabyte B850M DS3H AMD Socket AM5 mATX Motherboard

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support Yes
Socket AM5

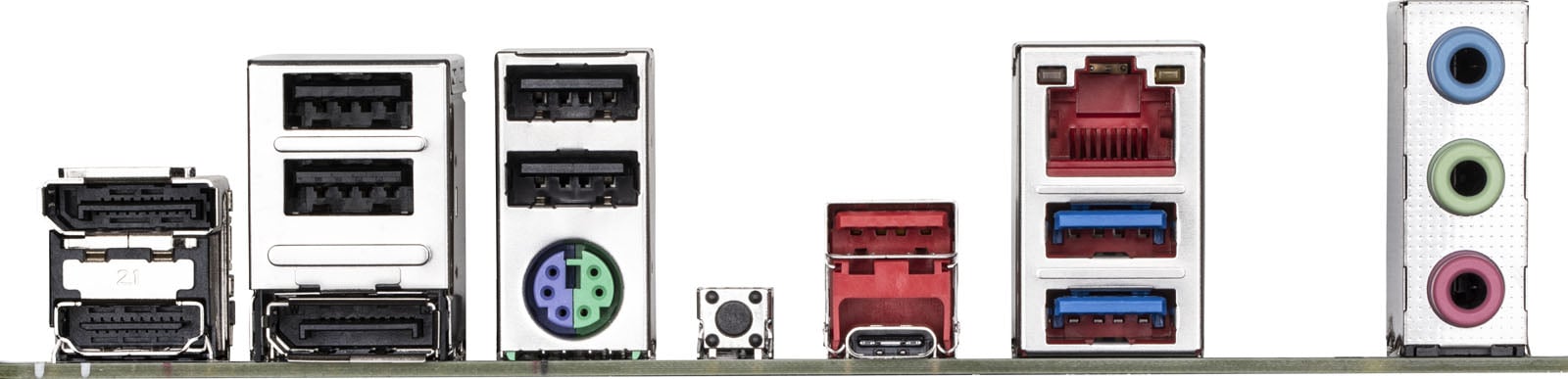

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
1 x USB-3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 2 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/AIO pump header
1 x System fan header
1 x System fan/AIO pump header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280.2580/22110/25110 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280.2580/22110/25110 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 8200 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B850
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x4 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
1 x Reset
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
Width 244 mm
Length 244 mm

Key Features

RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B850
Motherboard Model Gigabyte B850M DS3H
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 8200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No

Item Details

Manufacturer Gigabyte
Manufacturer Code B850M DS3H
EAN 4719331866518
UPC 889523046180
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B850M DS3H
