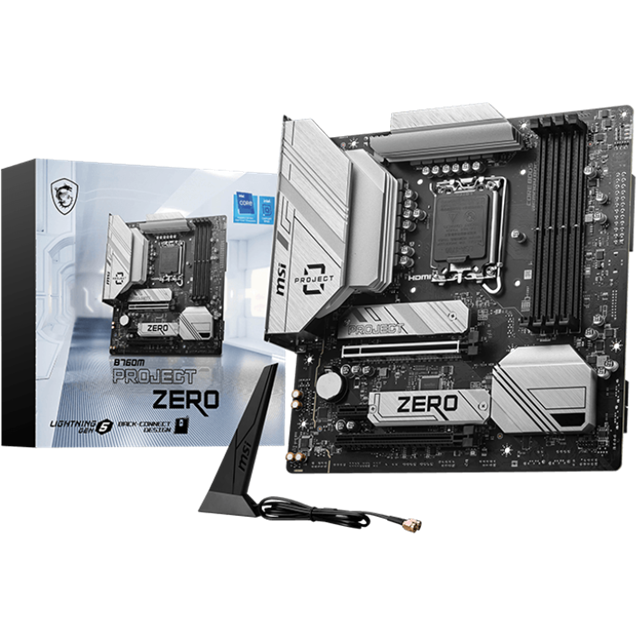

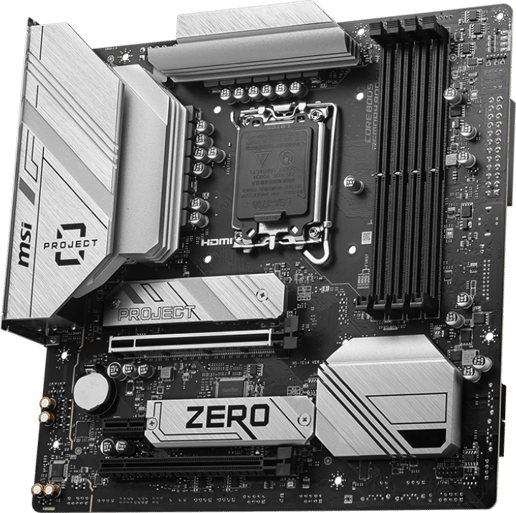

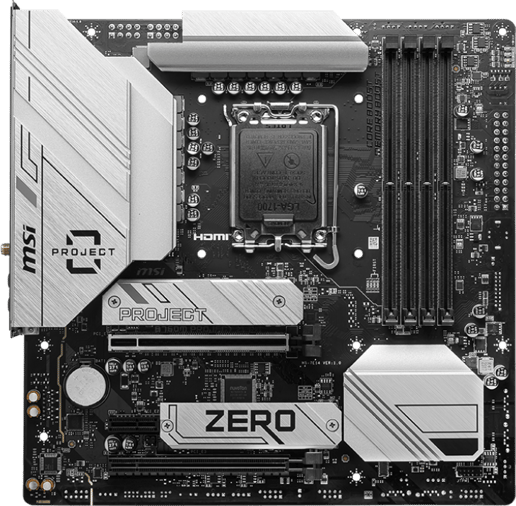

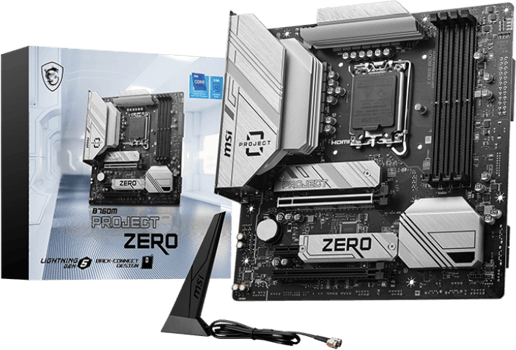

Name: MSI B760M PROJECT ZERO mATX Motherboard for Intel LGA1700 CPUs
Brand: MSI
SKU: MBD3683
Price: 209.99 GBP
Availability: InStock

MSI B760M PROJECT ZERO mATX Motherboard for Intel LGA1700 CPUs

Compare

The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.

£209.99 inc VAT

Available for delivery from Friday 23rd August

or Click & Collect from Friday 23rd August

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

mATX Form Factor
Intel B760 Chipset
Socket 1700
DDR5 (Max: 256GB / 4 slots)
2 x M.2 & 8 x USB & 4 x SATA
HDMI and Display Port

CCL Code: MBD3683

Overview

ABSOLUTE SIMPLICITY

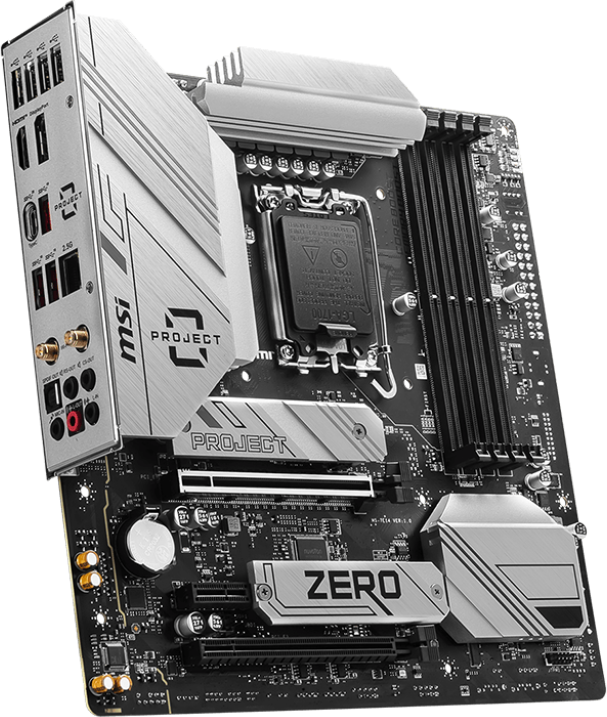

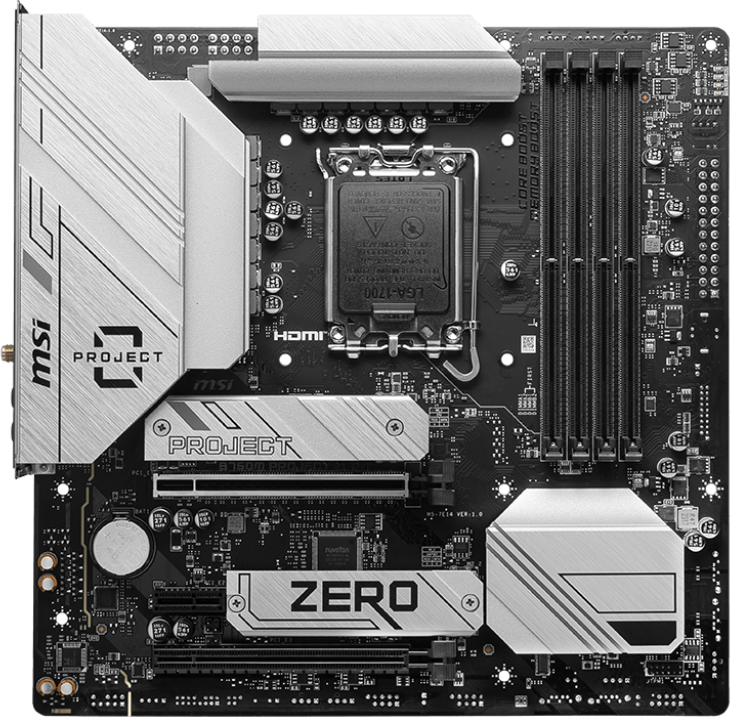

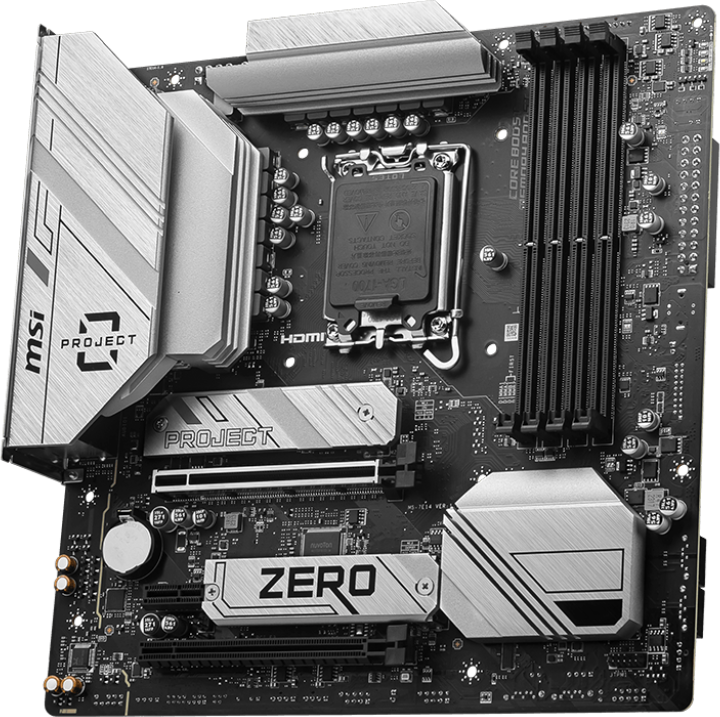

B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

Main Features

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

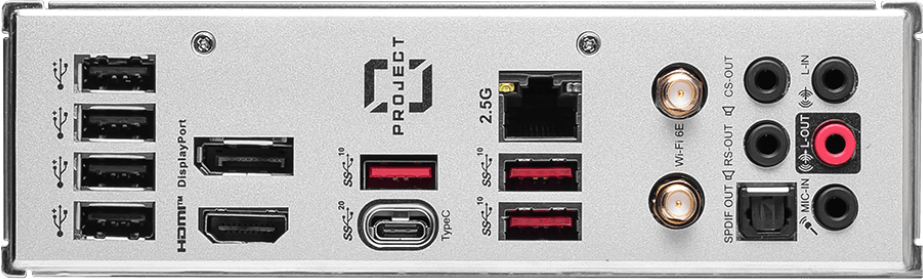

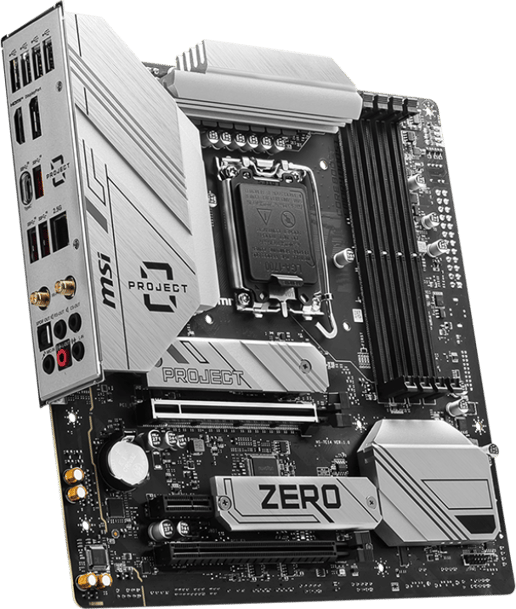

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 3 x USB 3.1 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Pump fan header 4 x System fan headers
Thunderbolt Port(s)	1 x TBT header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers 1 x Tuning Controller header

Memory

Memory Bus Speed	Up to 7600 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.3

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard

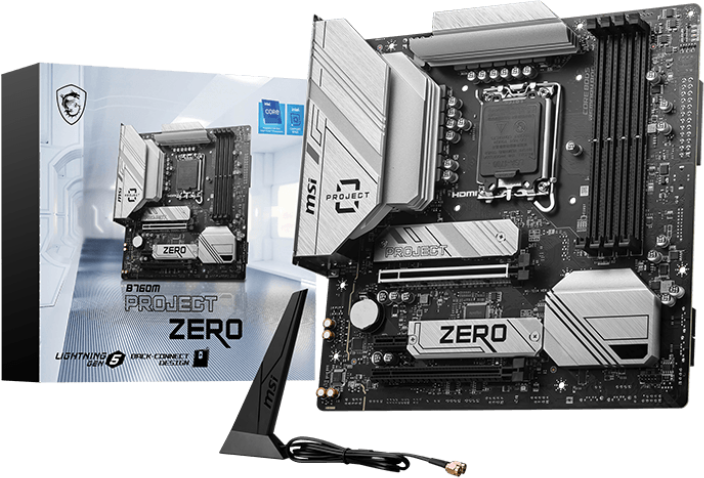

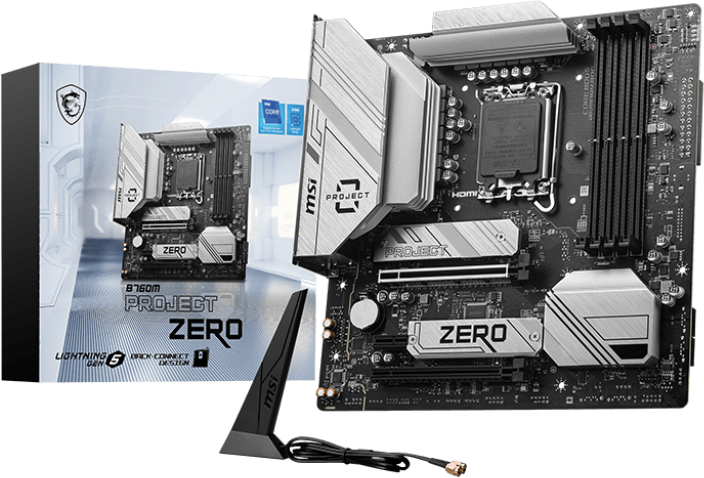

In The Box	Motherboard Quick Installation Guide SATA Cable EZ M.2 Clip Package M.2 Screw / Standoff Set Cable Stickers Wi-Fi Antenna EU Regulatory Notice
Width	244 mm
Length	244 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	MSI B760M PROJECT ZERO
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	7800 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
