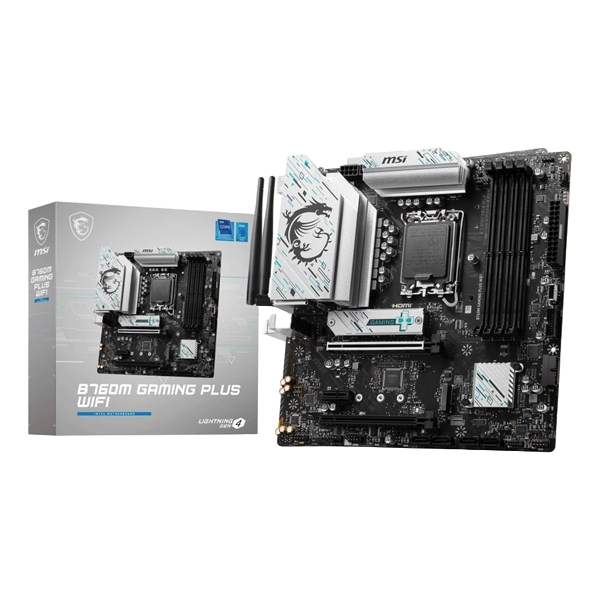

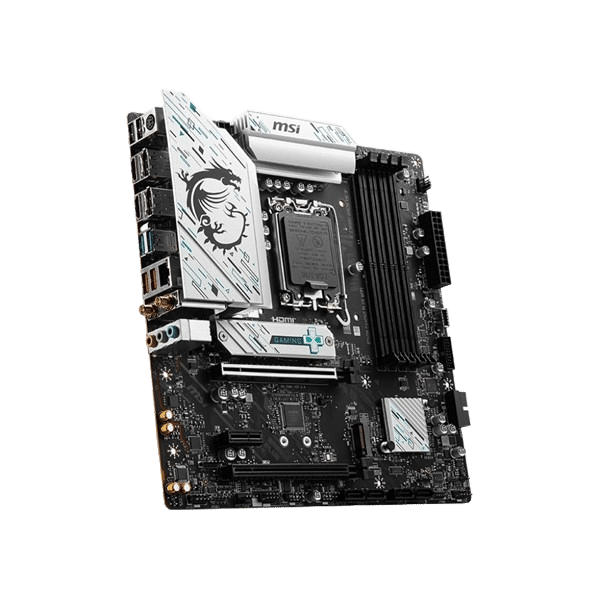

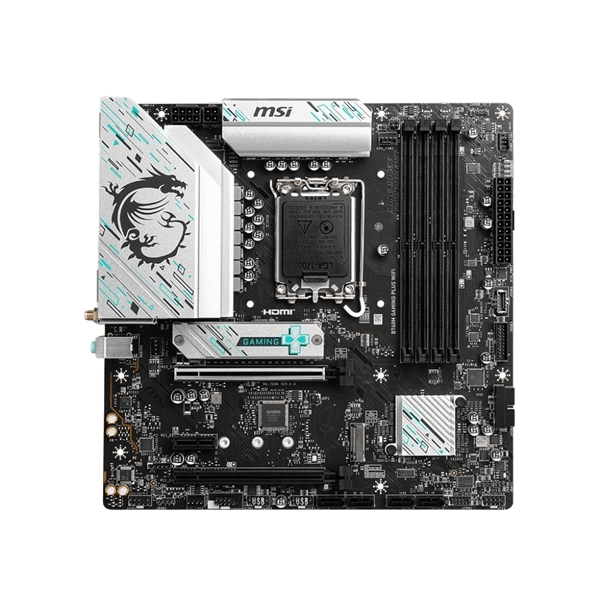

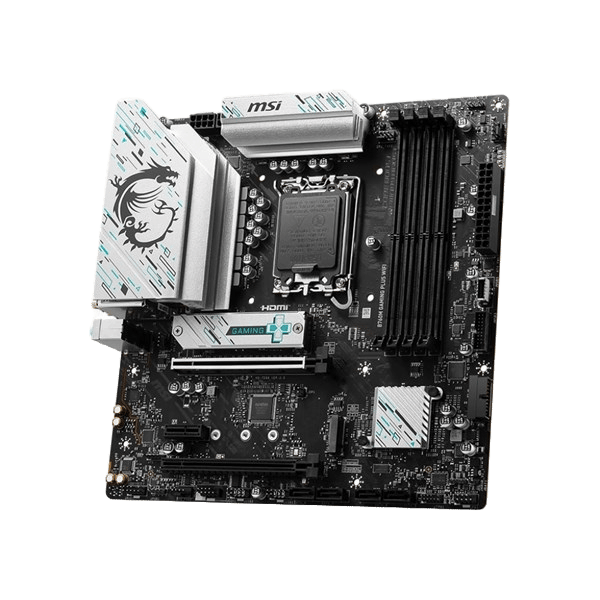

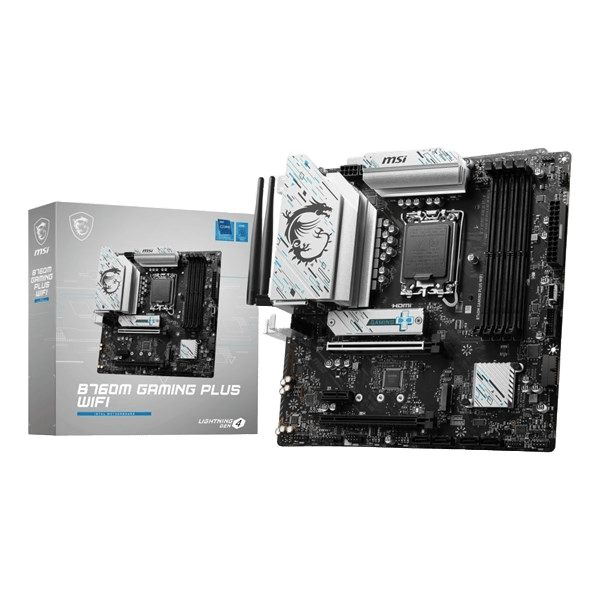

MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs

MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3573

Coming soon

Notify Me
  • MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs
  • MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs
  • MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs
  • MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs
  • MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

MSI B760M GAMING PLUS WIFI mATX Motherboard for Intel LGA1700 CPUs

B760M GAMING PLUS WIFI

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3573

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

More stock is expected around 04/12/2024.

Notify Me
Overview

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports

USB Ports 2 x USB 3.1
2 x USB 3.0
2 x USB 2.0
DisplayPorts 2 x DisplayPort 1.4
HDMI Port 2 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
2 x System fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
2 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 6800+ MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Windows 11 64-bit, Windows 10 64-bit

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
2 x M.2 Screw/Standoff Sets
SATA Cable
Wi-Fi Antenna
I/O Shield
Width 244 mm
Length 244 mm

Key Features

USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 6800 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model MSI B760M GAMING PLUS WIFI
WiFi Speed 2400 Mbps

Item Details

Manufacturer MSI
Manufacturer Code B760M GAMING PLUS WIFI
EAN 4711377154017
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code B760M GAMING PLUS WIFI
