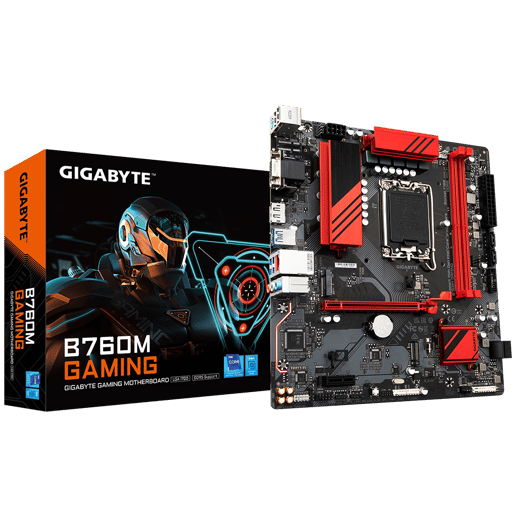

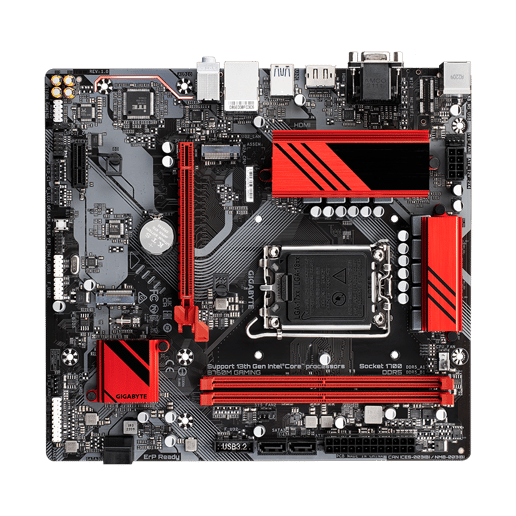

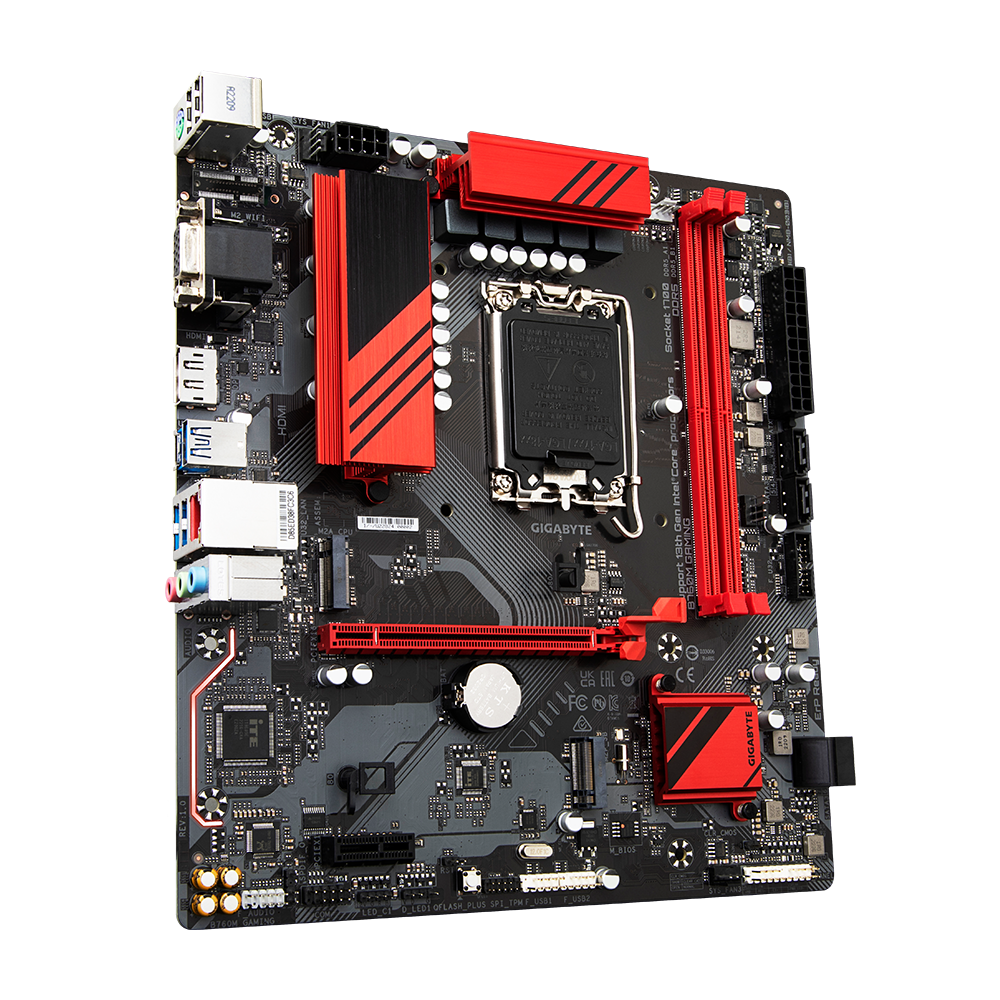

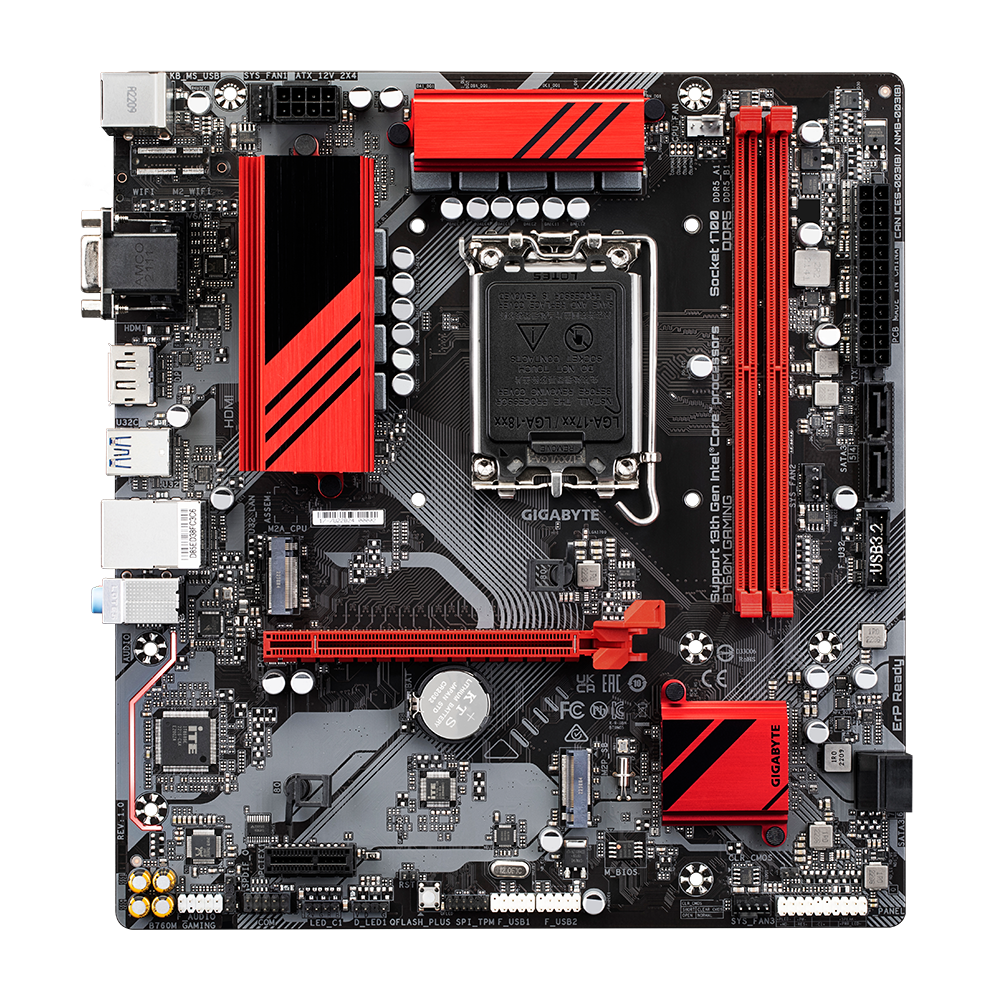

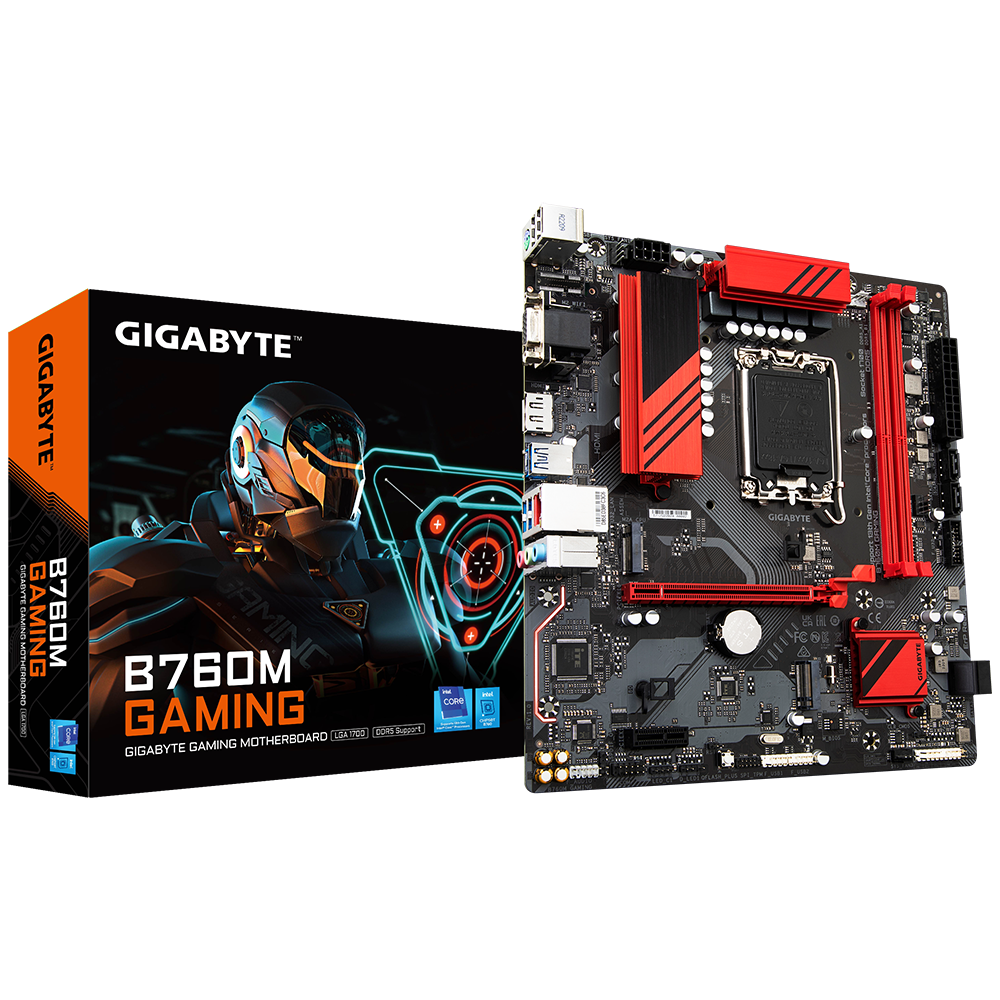

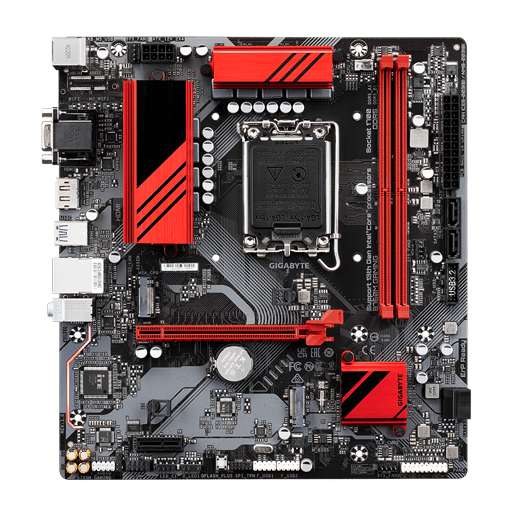

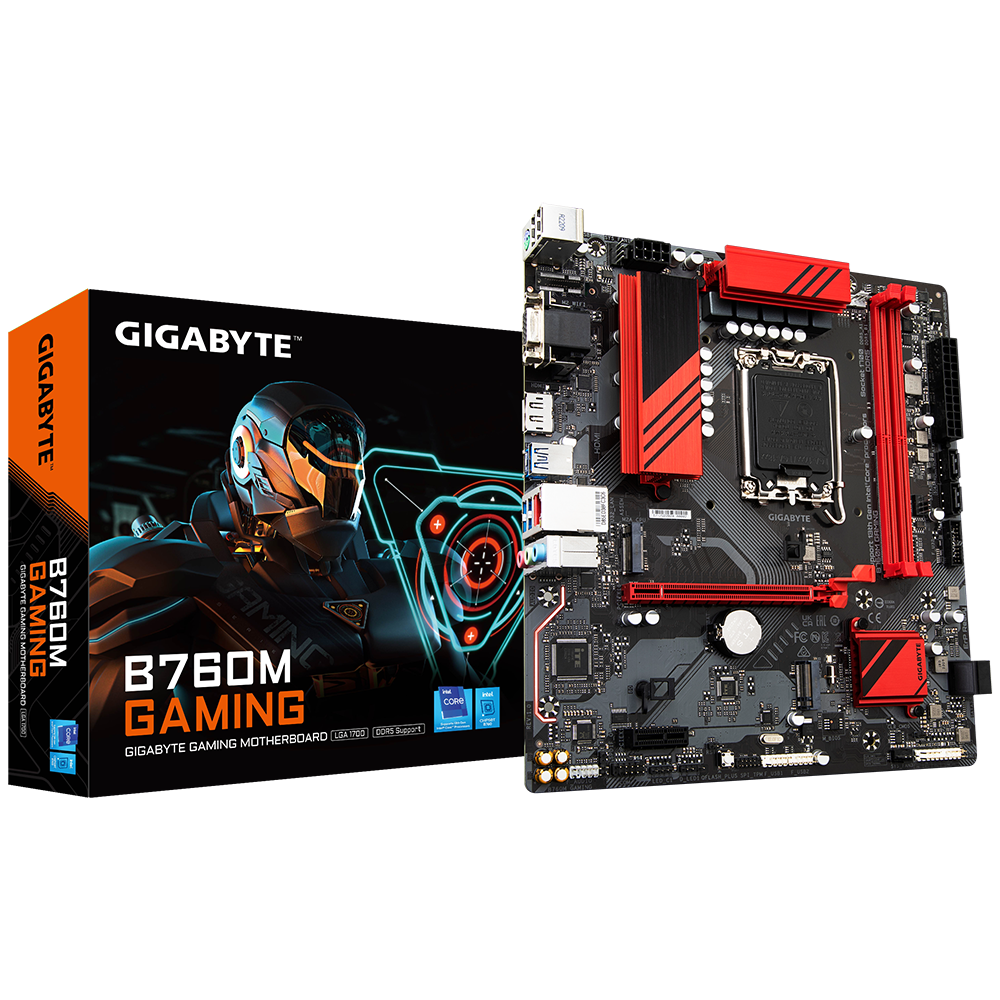

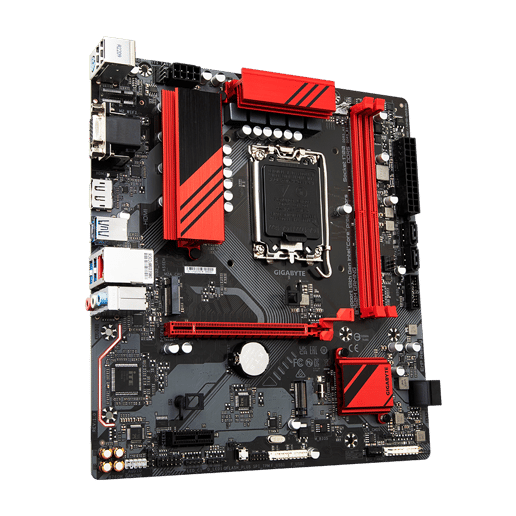

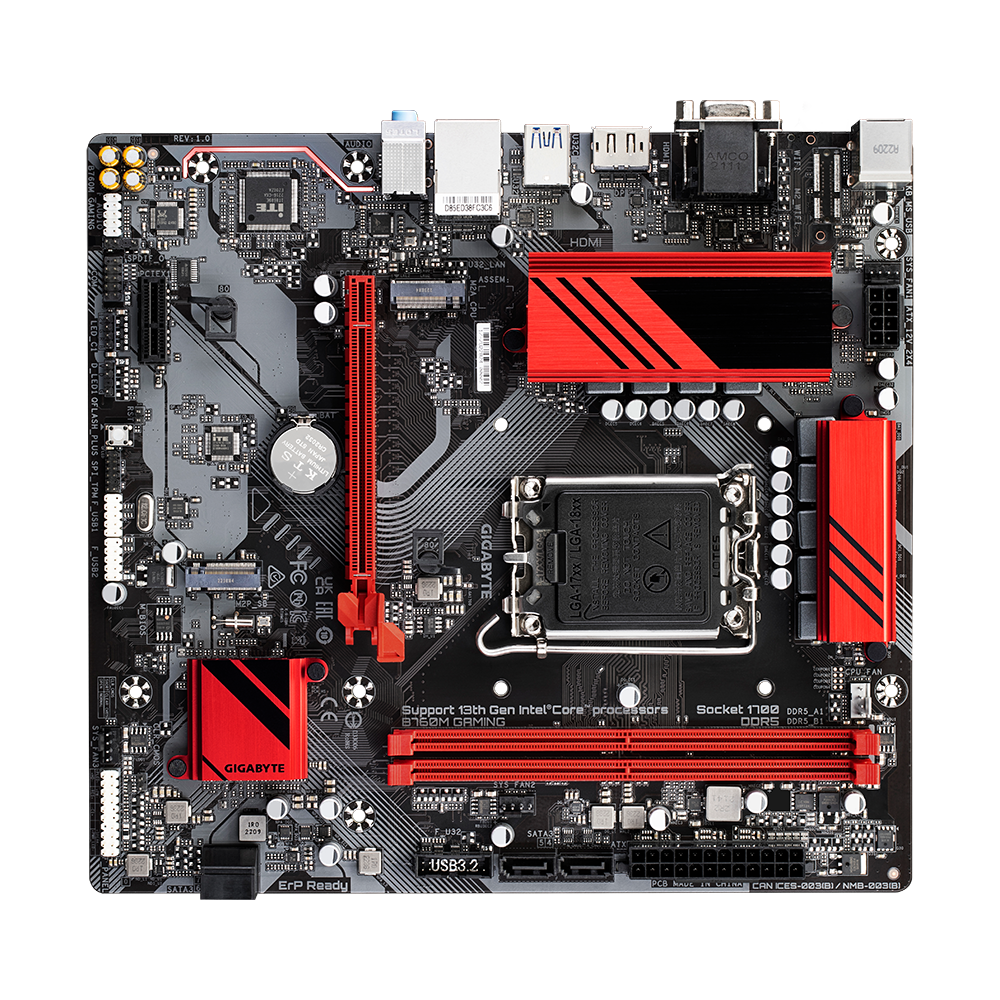

Gigabyte B760M GAMING mATX Motherboard for Intel LGA1700 CPUs

Gigabyte B760M GAMING mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3657

£114.15 inc VAT

Gigabyte B760M GAMING mATX Motherboard for Intel LGA1700 CPUs

B760M GAMING

£114.15 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

8 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 96GB / 2 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3657
Overview

Gigabyte B760M GAMING Motherboard

Main Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 2*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN
  • Extended Connectivity: Rear USB-C© 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

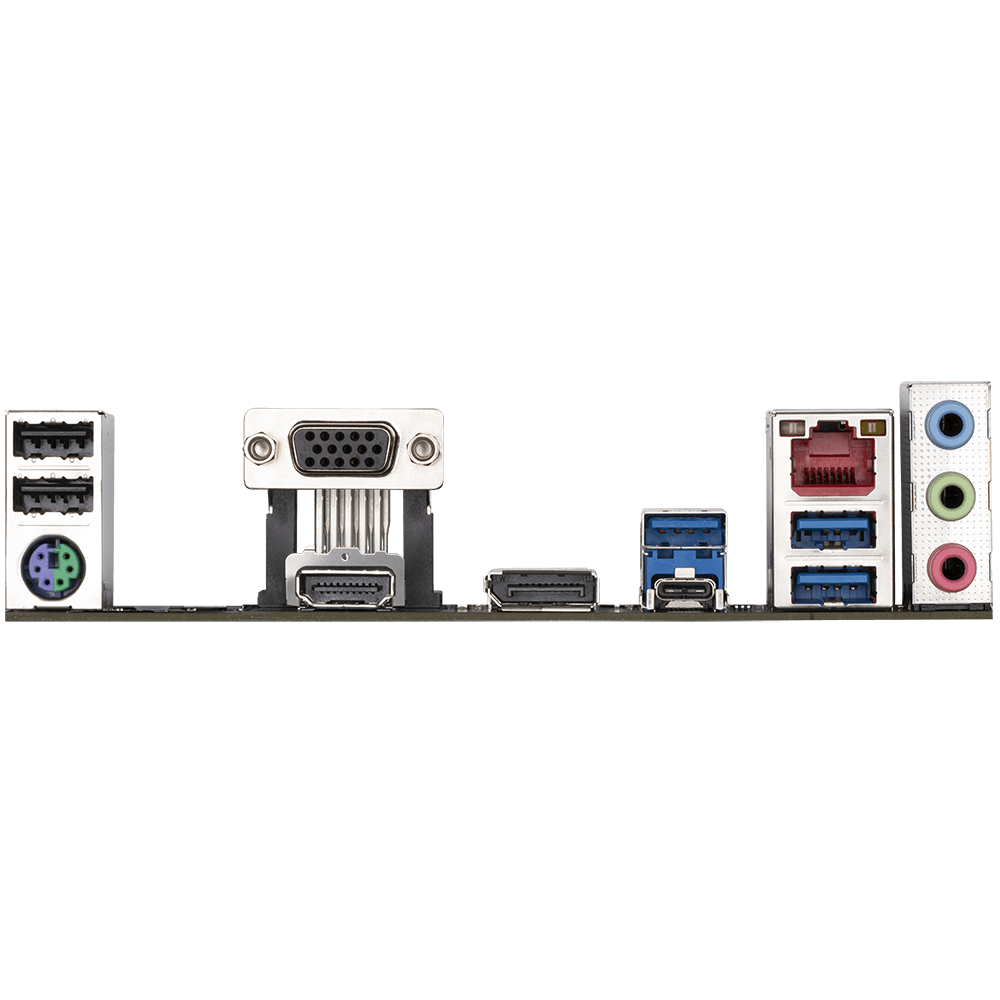

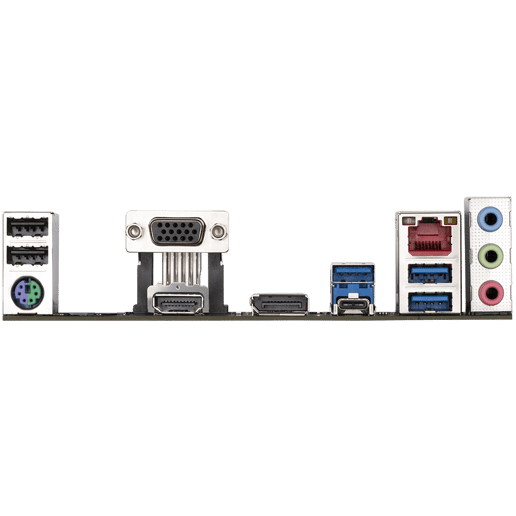

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.0
3 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
3 x System fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/C-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 2 x M.2 slots, Socket 3, M Key, Type 2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 5600 MT/s
Memory Type DDR5
Maximum RAM 96 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
Width 225 mm
Length 244 mm

Key Features

Max Memory Speed Supported (overclocked) 5600 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Wireless Network No
Motherboard Width 225 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model Gigabyte B760M GAMING
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 4800 MT/s

Item Details

Manufacturer Gigabyte
Manufacturer Code B760M GAMING
EAN 4719331853686
UPC 889523036075
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B760M GAMING
