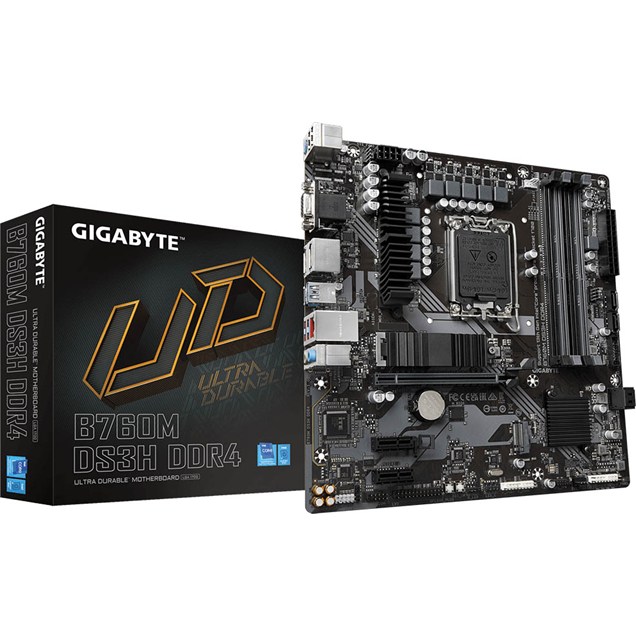

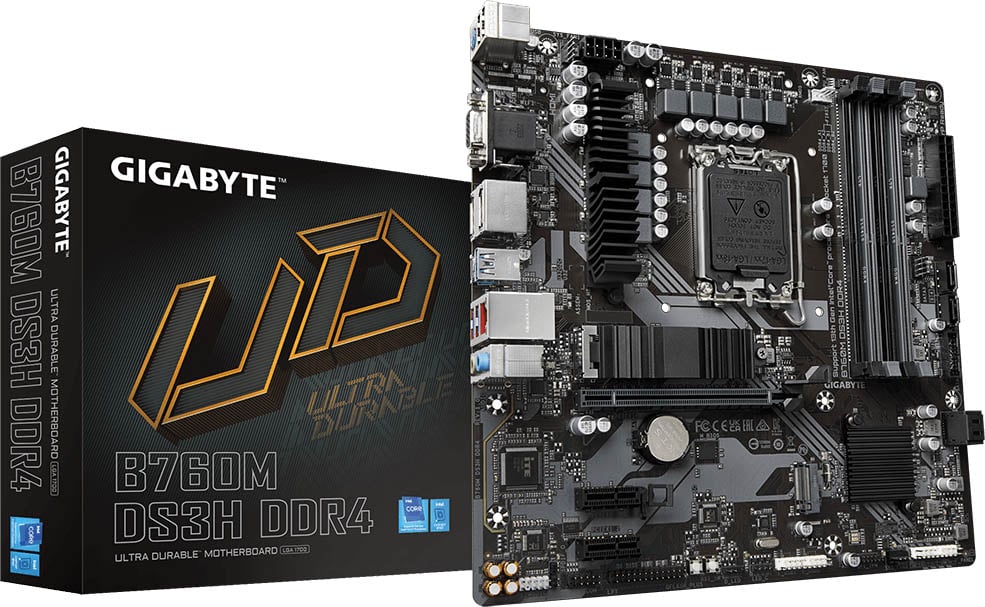

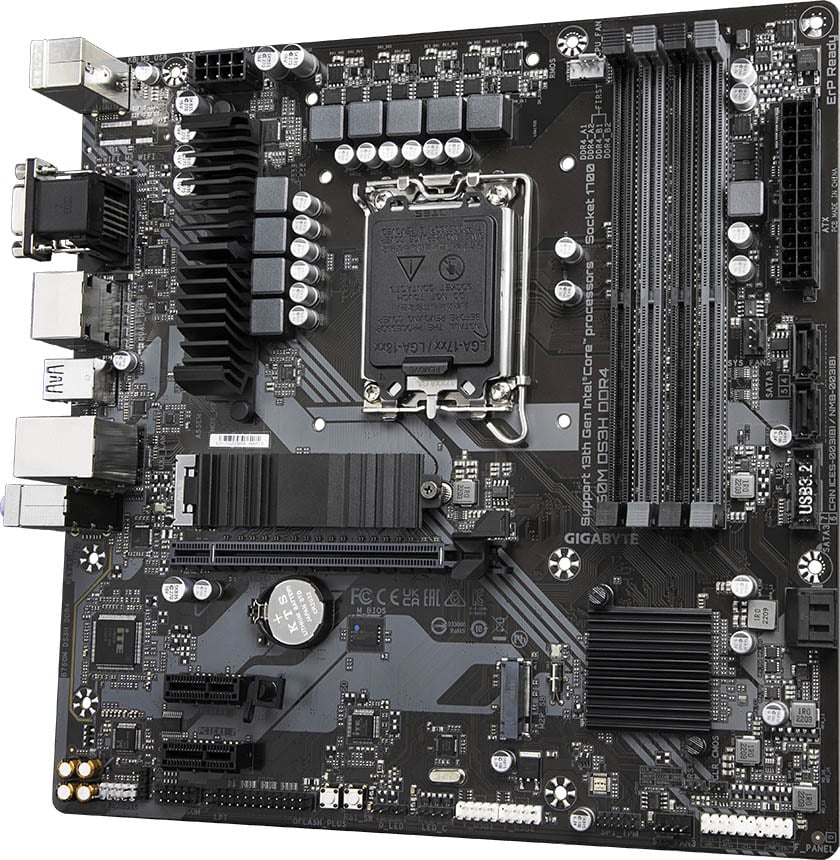

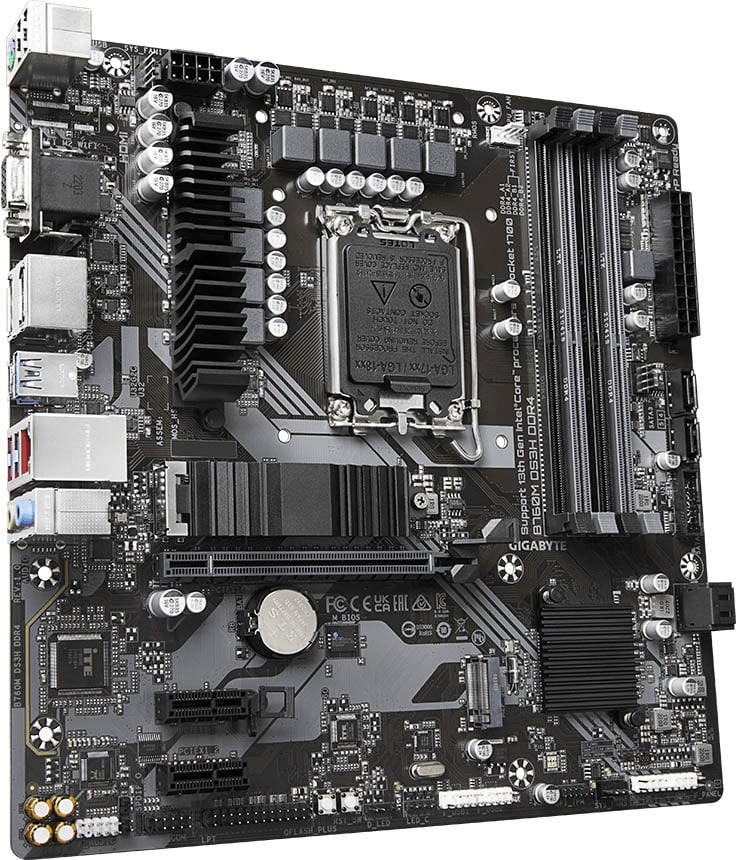

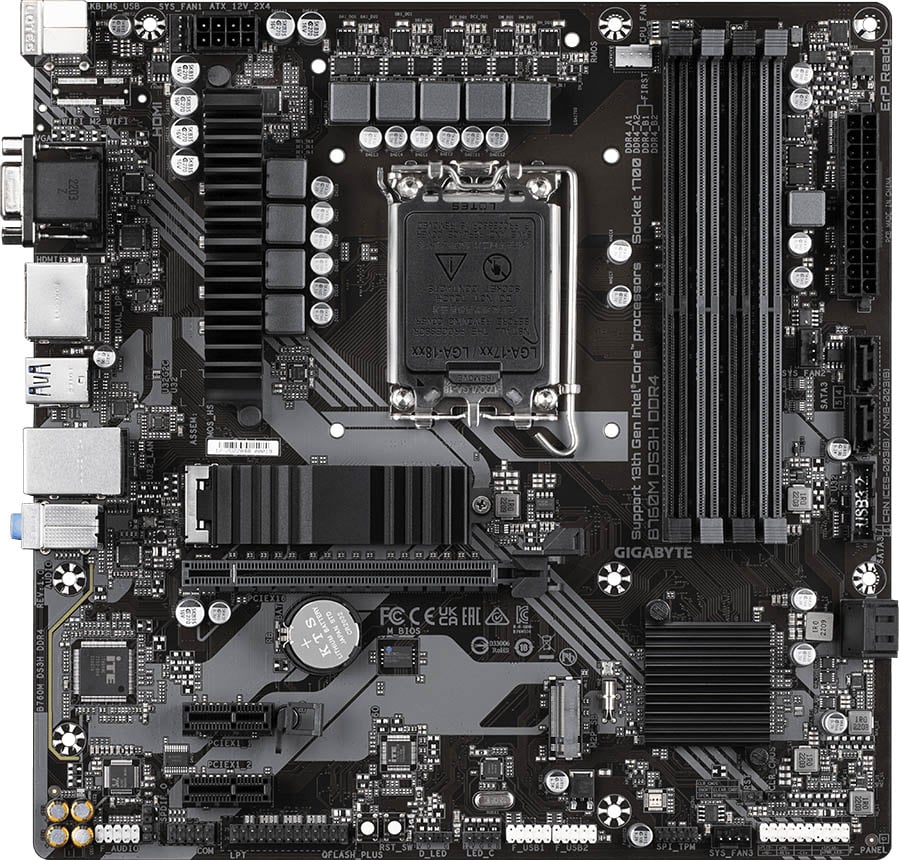

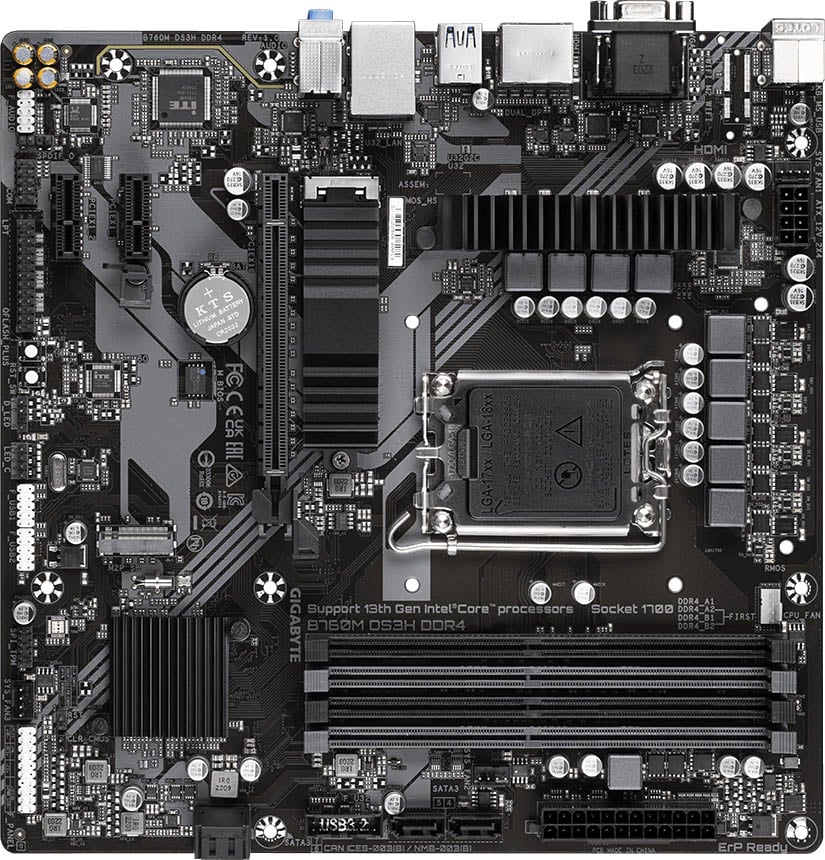

Gigabyte B760M DS3H DDR4 mATX Motherboard for Intel LGA1700 CPUs

Gigabyte B760M DS3H DDR4 mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3455

Was £112.14

SAVE £14

Now only

£97.79 inc VAT

Gigabyte B760M DS3H DDR4 mATX Motherboard for Intel LGA1700 CPUs

B760M DS3H DDR4

Was £112.14

SAVE £14

Now only

£97.79 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3455
Overview

Gigabyte B760M DS3H DDR4 Motherboard

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports

USB Ports 1x USB-C 3.2 Gen2
3x USB 3.2 Gen1
2x USB 2.0
DisplayPorts 2 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.0
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors SATA 6GBs
USB Connectors 1x USB-C 3.2 Gen1
2x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
3 x System fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Parallel Connectors 1 x LPT header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS

Memory

Memory Bus Speed Up to 5333+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel LGA 1700
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor Micro ATX Motherboard
Width 244 mm
Length 244 mm

Key Features

Thunderbolt No
Motherboard Model Gigabyte B760M DS3H DDR4
WiFi Speed Mbps
USB 3.1 Support No
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
Memory Speed 5333 MT/s
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No
Radiator Size mm
Microsoft Processor List
Power Requirement (auto) 60 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 5333 MT/s
CPU Power Pins (female) 8
PCI Express Power Pins (female)
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
PCI-e slots 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Wake on LAN
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset Intel B760

Graphics

Graphics Chipset

Item Details

Manufacturer Gigabyte
Manufacturer Code B760M DS3H DDR4
EAN 4719331850876
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B760M DS3H DDR4
