CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

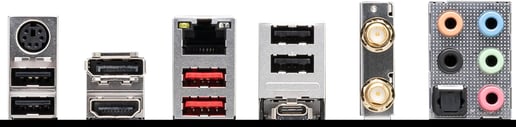

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.1 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Pump fan header 5 x System fan headers
Thunderbolt Port(s)	1 x TBT header (JTBT, supports RTD3)
Parallel Connectors	1 x LPT header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 22110/2280/2260/2242 (PCIe Gen4) 1 x M.2 slot, Type 2280/2260/2242 (PCIe Gen4) 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 6800 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 4.0 x16 slots (@ x16/x4) 3 x PCI Express 3.0 x16 slots (@ x1/x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Realtek RTL8125BG
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.3

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

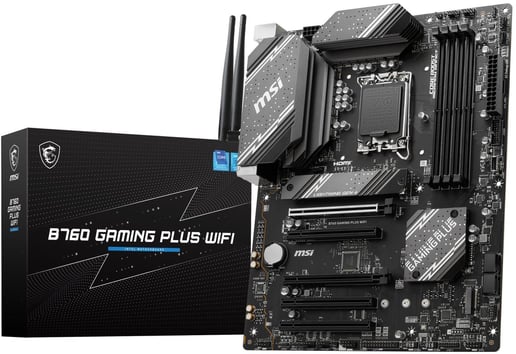

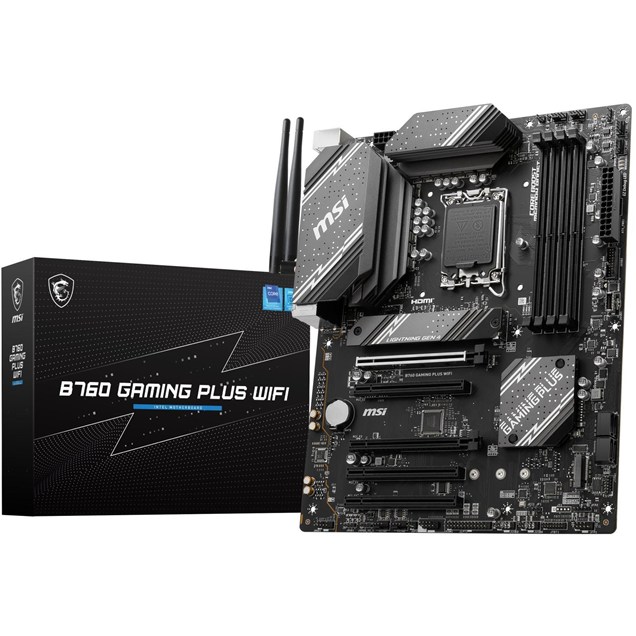

In The Box	Motherboard Wi-Fi Antenna SATA Cables M.2 Screw/Standoff Set I/O Shield Quick Installation Guide EU Regulatory Notice
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	7 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No

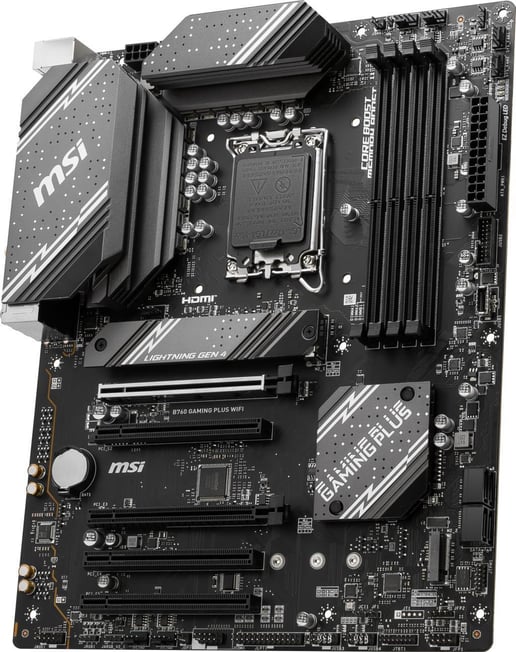

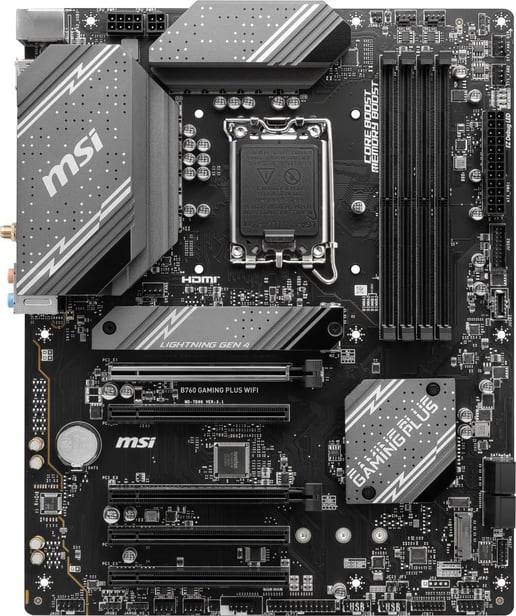

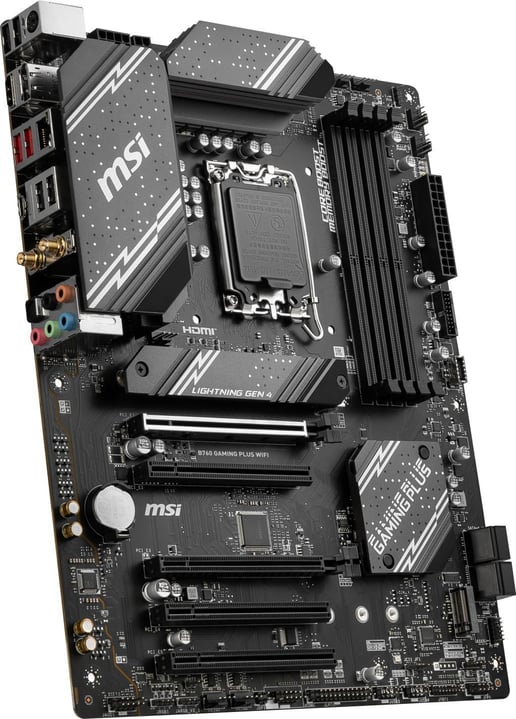

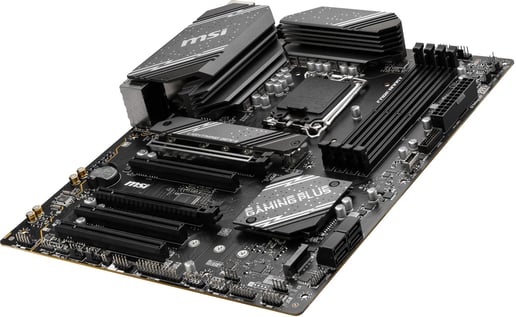

Motherboard Model	MSI B760 GAMING PLUS WIFI
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	6800 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1

Item Details

Manufacturer	MSI
Manufacturer Code	B760 GAMING PLUS WIFI
EAN	4711377086561
Condition	New

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	MSI
Manufacturer Code	B760 GAMING PLUS WIFI
