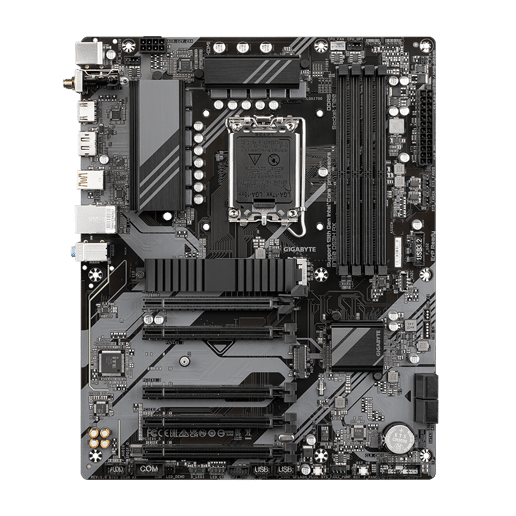

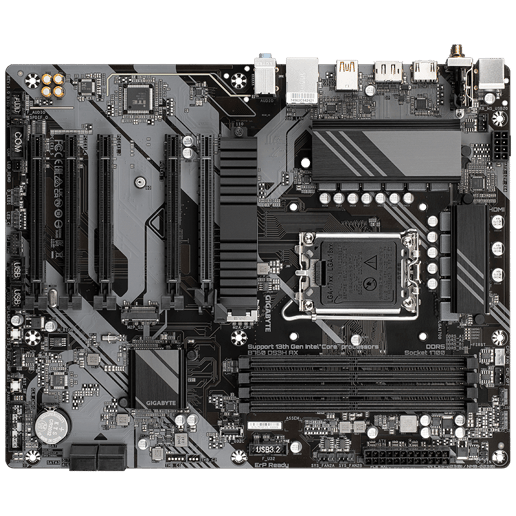

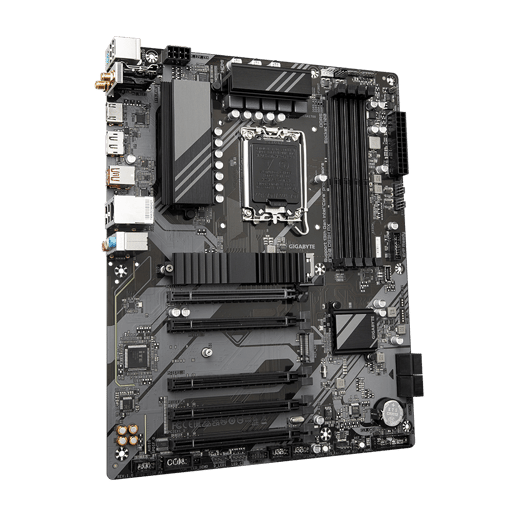

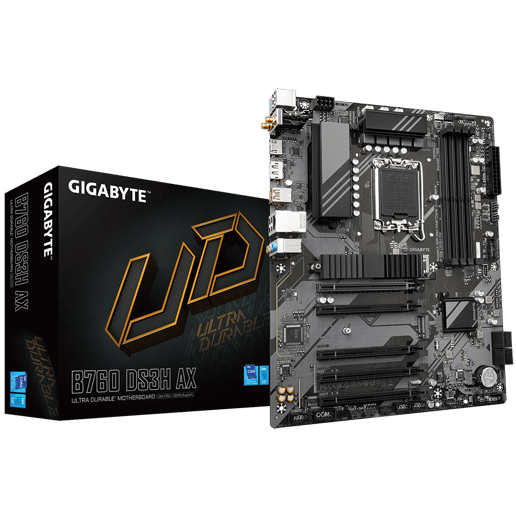

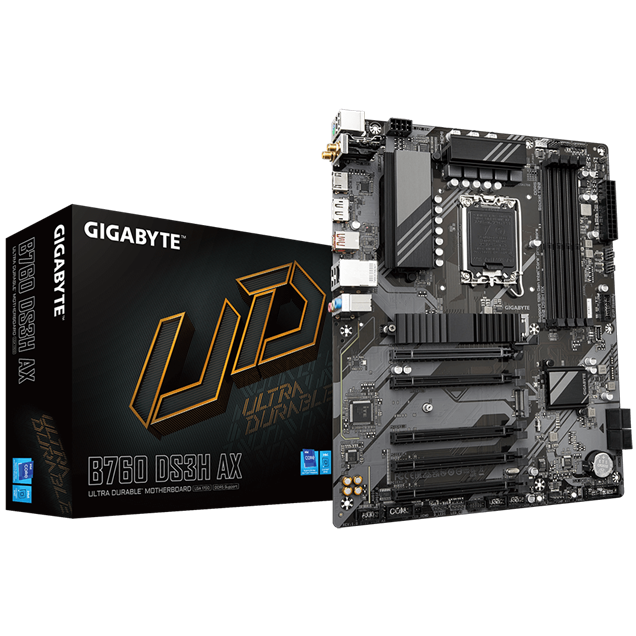

Gigabyte B760 DS3H AX ATX Motherboard for Intel LGA1700 CPUs

Gigabyte B760 DS3H AX ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3591

Was £166.31

SAVE £41

Now only

£124.99 inc VAT

Gigabyte B760 DS3H AX ATX Motherboard for Intel LGA1700 CPUs

B760 DS3H AX

Was £166.31

SAVE £41

Now only

£124.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

4 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3591
Overview

Gigabyte B760 DS3H AX Motherboard

Main Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

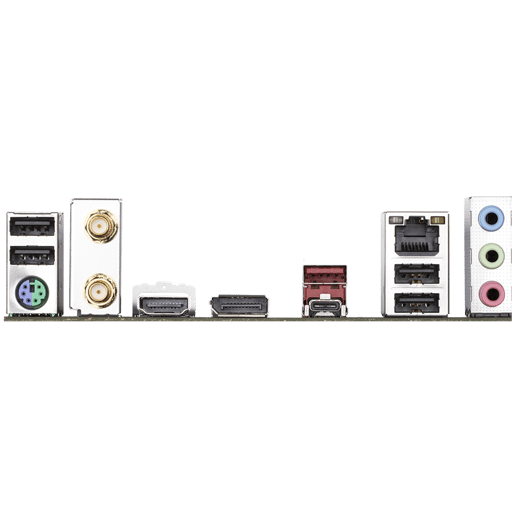

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x System fan/water cooling pump header
S/PDIF Connectors 1 x S/PDIF Out header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
4 x PCI Express 3.0 x16 slots (@ x1/x1/x1/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 1 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2400 Mbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 7600 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B760
Thunderbolt No
WiFi Speed 2400 Mbps
USB 3.1 Support Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code B760 DS3H AX
EAN 4719331852757
UPC 889523035979
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B760 DS3H AX
