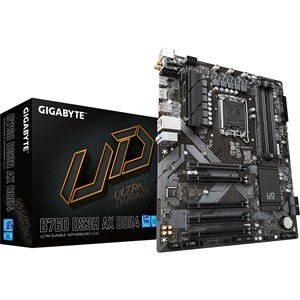

Gigabyte B760 DS3H AX DDR4 ATX Motherboard for Intel LGA1700 CPUs

Gigabyte B760 DS3H AX DDR4 ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3448

Was £155.30

SAVE £43

Now only

£111.99 inc VAT

Gigabyte B760 DS3H AX DDR4 ATX Motherboard for Intel LGA1700 CPUs

B760 DS3H AX DDR4

Was £155.30

SAVE £43

Now only

£111.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3448
Overview

Gigabyte B760 DS3H AX DDR4 Motherboard

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports

USB Ports 1x USB-C 3.2 Gen2x2
1x USB 3.2 Gen2
4x USB 2.0
DisplayPorts 1 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.0
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors SATA 6GBs
USB Connectors 1x USB-C 3.2 Gen1
1x USB 3.2 Gen1
2x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water Cooling pump header
3 x System fan headers
1 x System fan/Water Cooling pump header
S/PDIF Connectors 1 x S/PDIF Out header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 5333+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 DIMM

Motherboard

Northbridge Intel LGA 1700
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
4 x PCI Express 3.0 x1 slots (@ x1/x1/x1/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
Memory Speed 5333 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 5333 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
PCI-e slots 5
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model Gigabyte B760 DS3H AX DDR4
WiFi Speed 2400 Mbps

Item Details

Manufacturer Gigabyte
Manufacturer Code B760 DS3H AX DDR4
EAN 4719331850999
UPC 889523034842
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B760 DS3H AX DDR4
