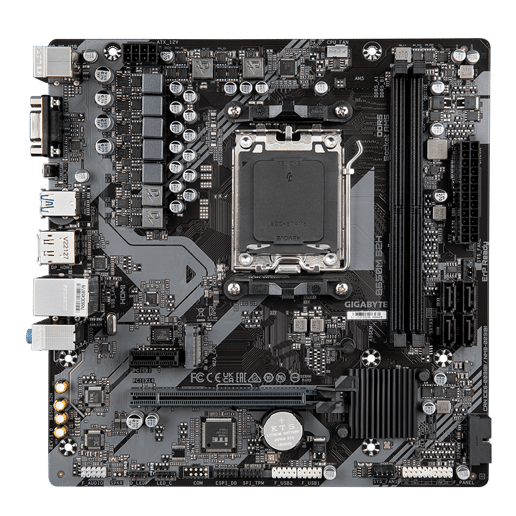

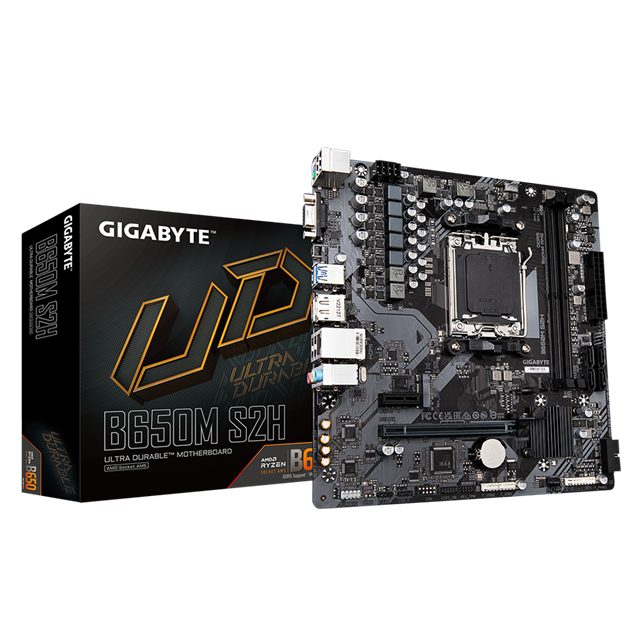

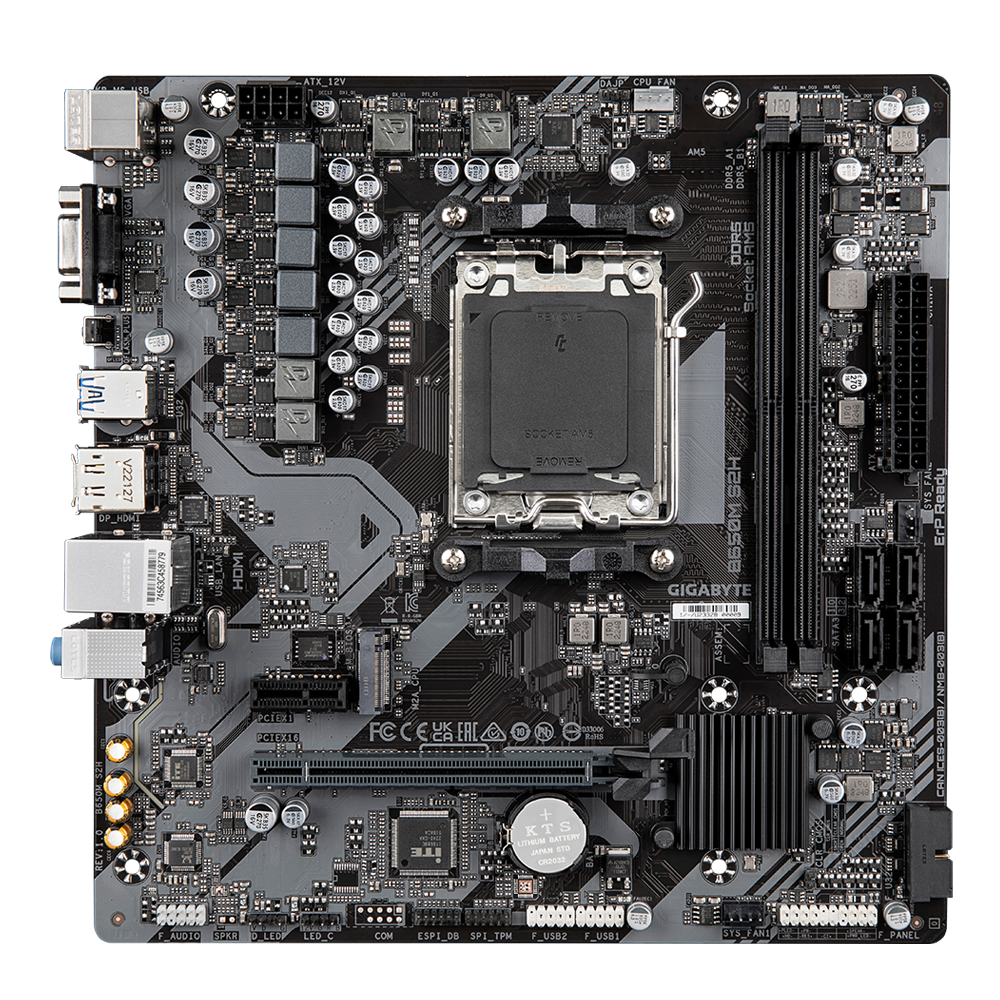

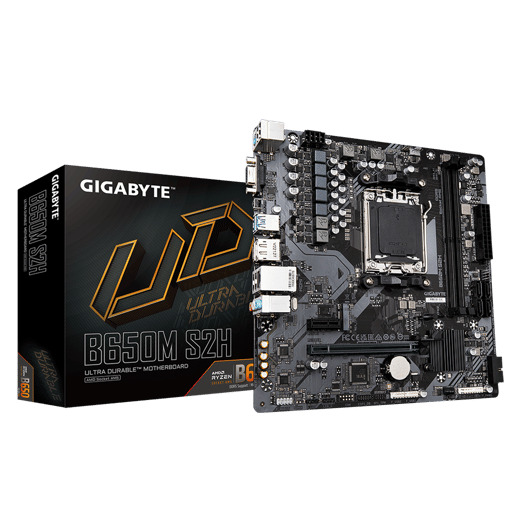

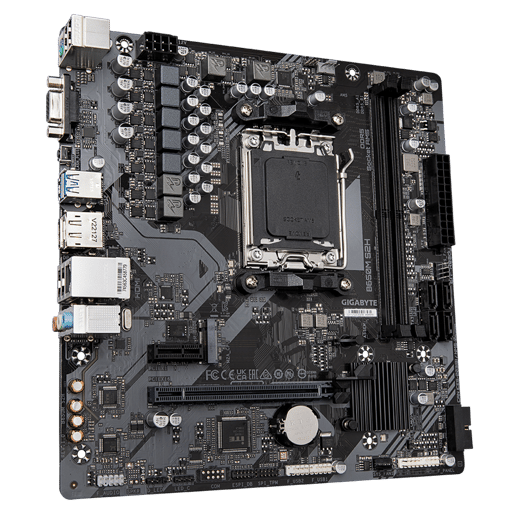

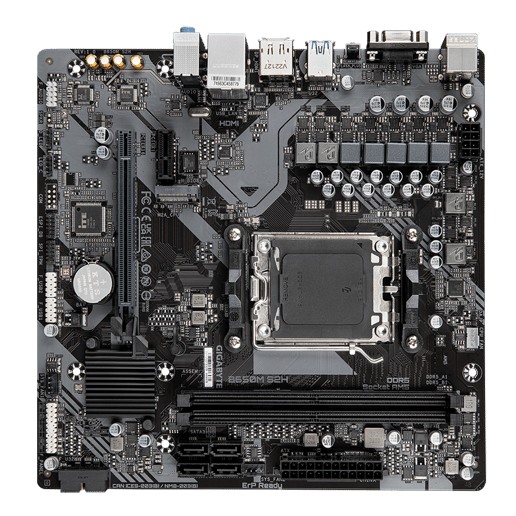

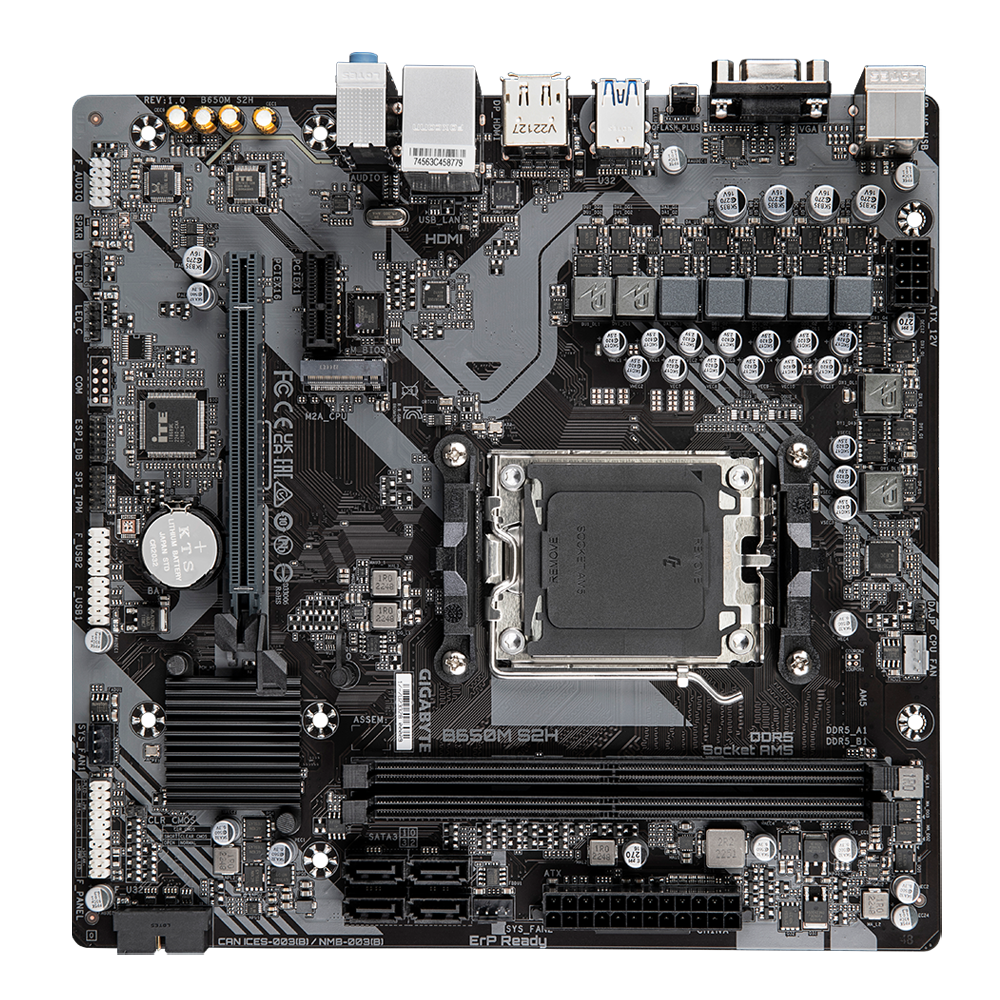

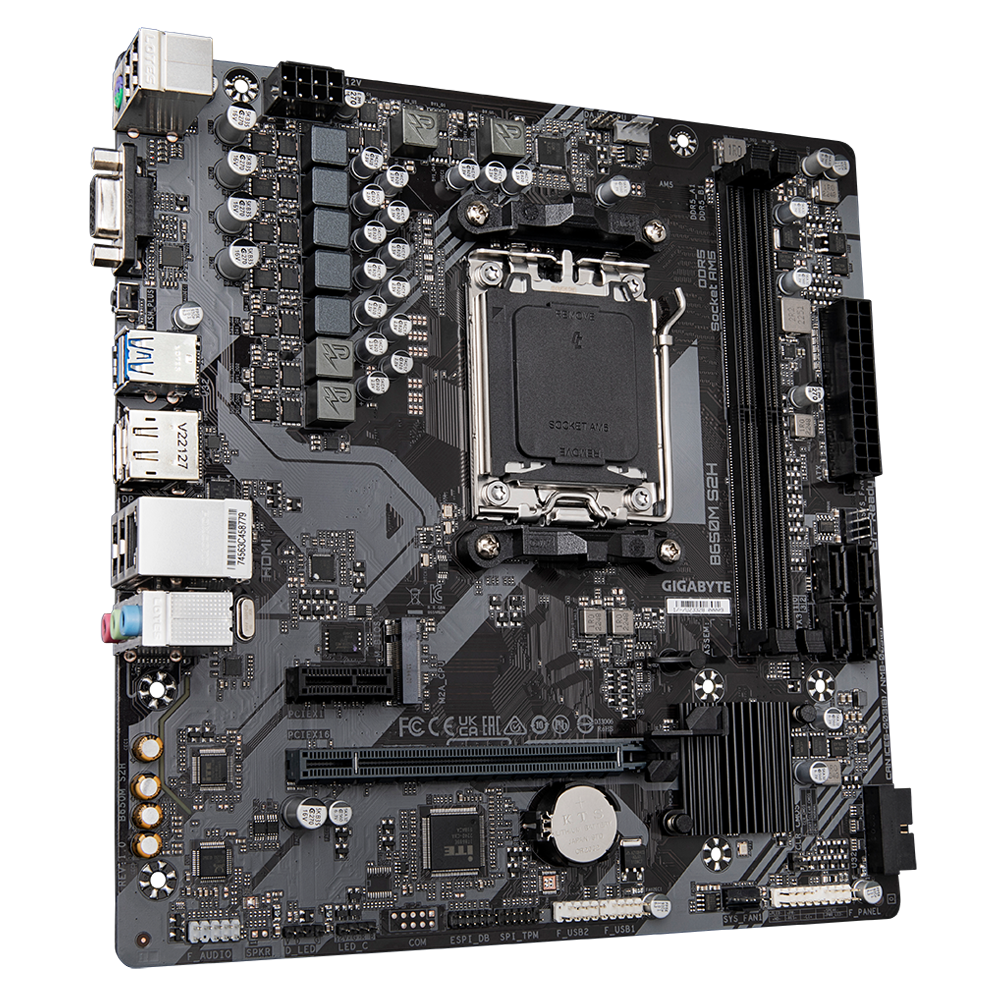

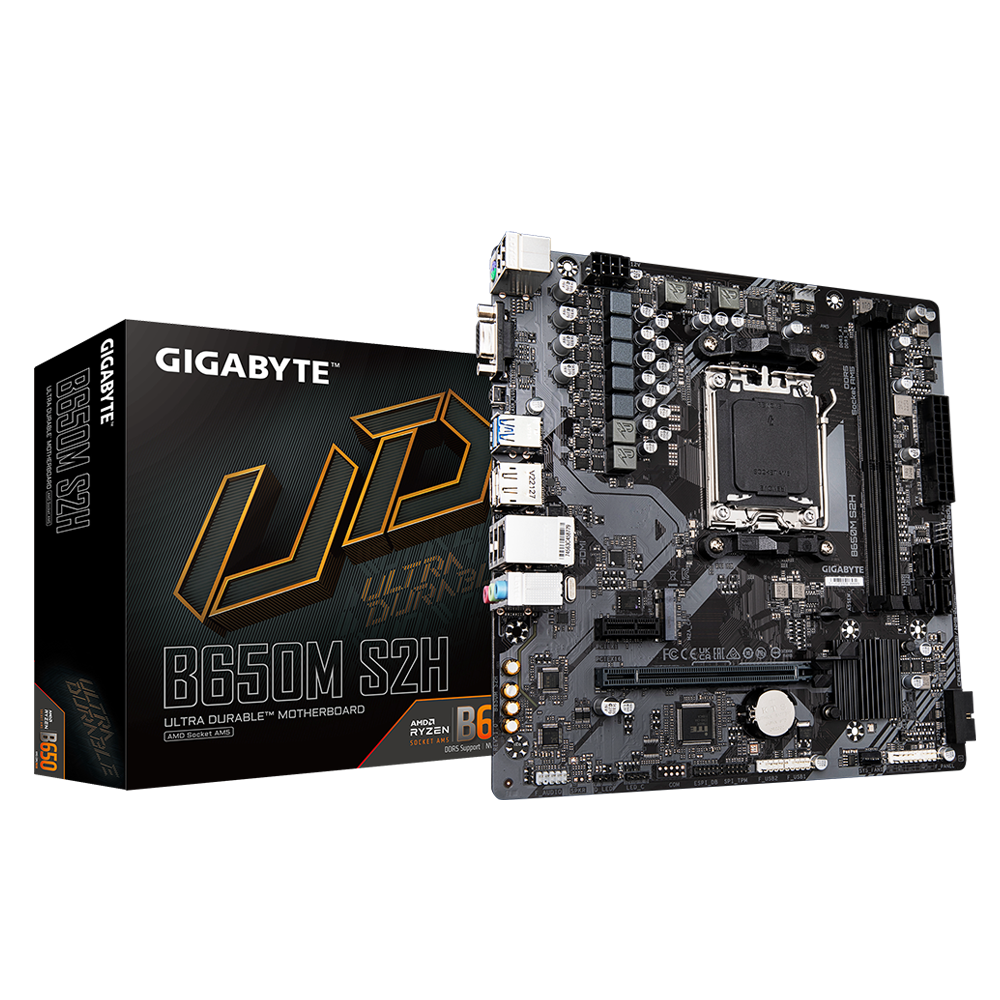

Name: Gigabyte B650M S2H mATX Motherboard for AMD AM5 CPUs
Brand: Gigabyte
SKU: MBD3628
Price: 103.99 GBP
Availability: OutOfStock

Gigabyte B650M S2H mATX Motherboard for AMD AM5 CPUs

Compare

Key Features:

Socket AM5
AMD B650 Chipset
4 x SATA & 6 x USB Ports
DDR5 (max 96GB, 2 slots)
VGA, HDMI and Display Port
mATX Form Factor

CCL Code: MBD3628

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Overview

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Main Features

AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
EZ-Latch: PCIe x16 Slot with Quick Release Design
Fast Networks: GbE LAN
Extended Connectivity: DP, HDMI, D-Sub
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power Supplies, CPU Coolers, Cases, Monitors, Keyboards, Mice, Headsets, Laptop Cases and Bags.

Promotional Period: From 3^rd June 2024 till 7^th July 2024.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till July 7th 2024.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000 / Ryzen 8000 Series Processors
64-bit Support	Yes
Socket	AM5

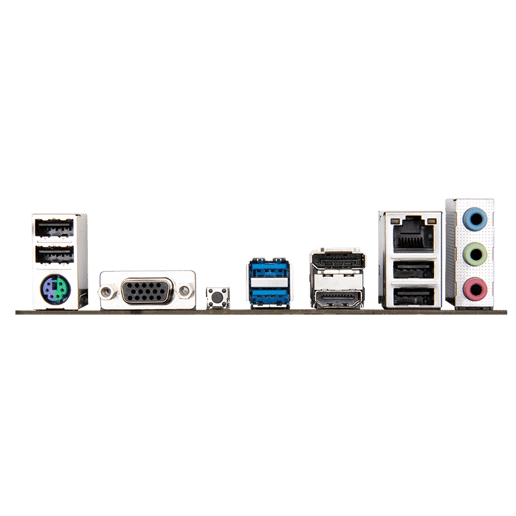

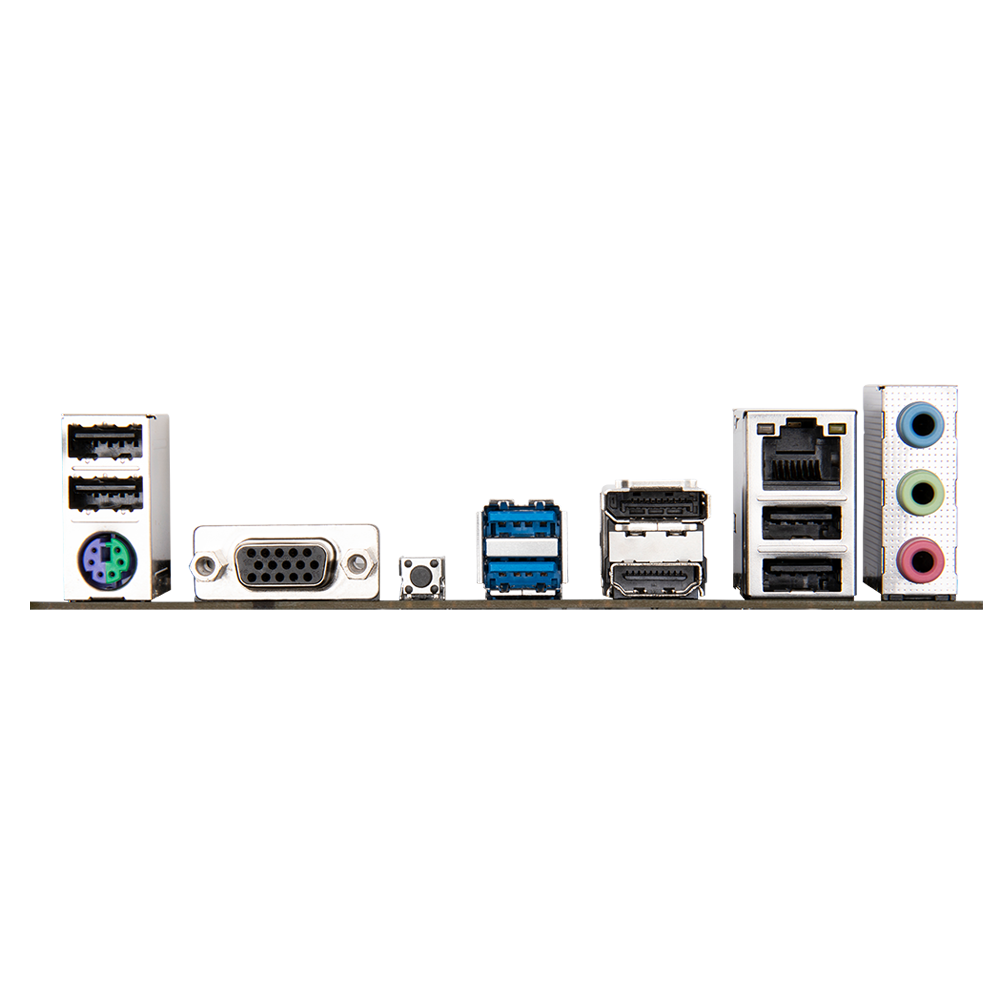

Rear Panel I/O Ports

USB Ports	2 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 2580 (PCIe Gen4) 1 x 3-pin ARGB LED header 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 7200 MHz
Memory Type	DDR5
Maximum RAM	96 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD B650
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
Width	225 mm
Length	230 mm

Key Features

Wireless Network	No
Motherboard Width	225 mm
Motherboard Height	230 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	4200 MT/s
Max Memory Speed Supported (overclocked)	7200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
