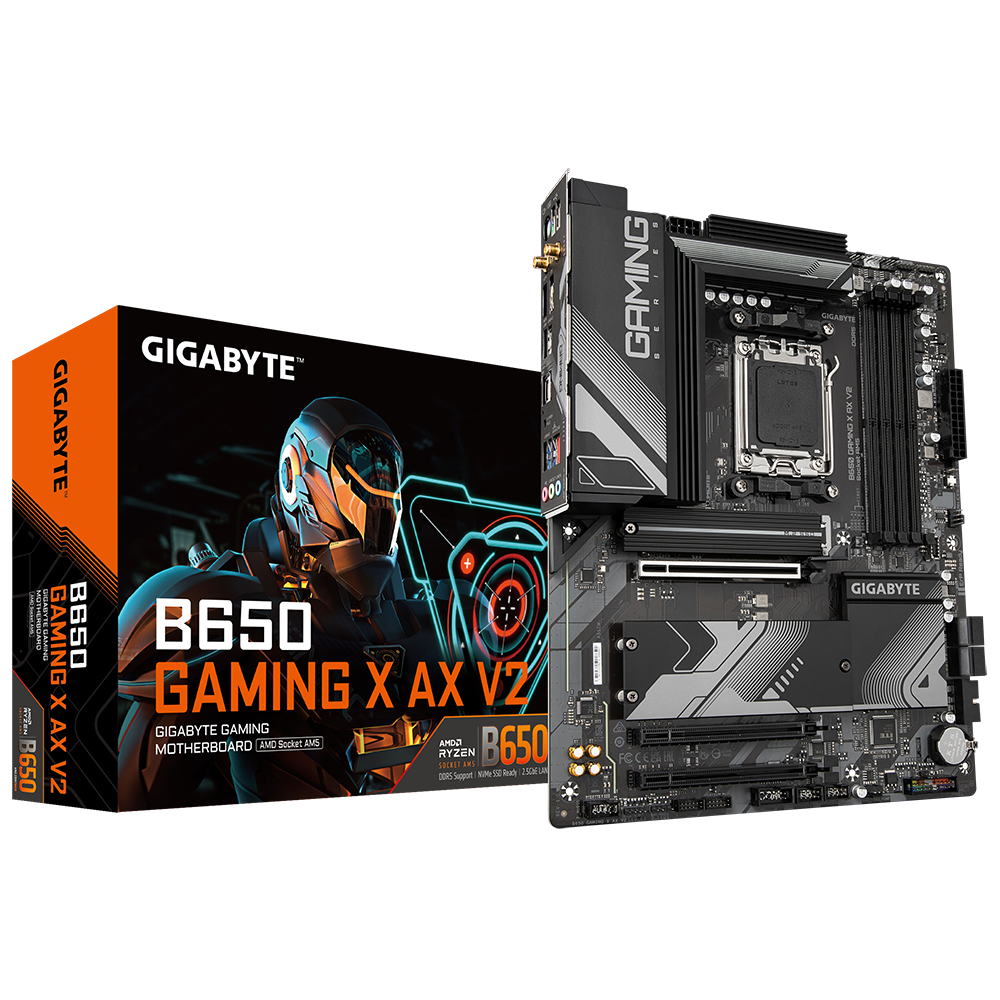

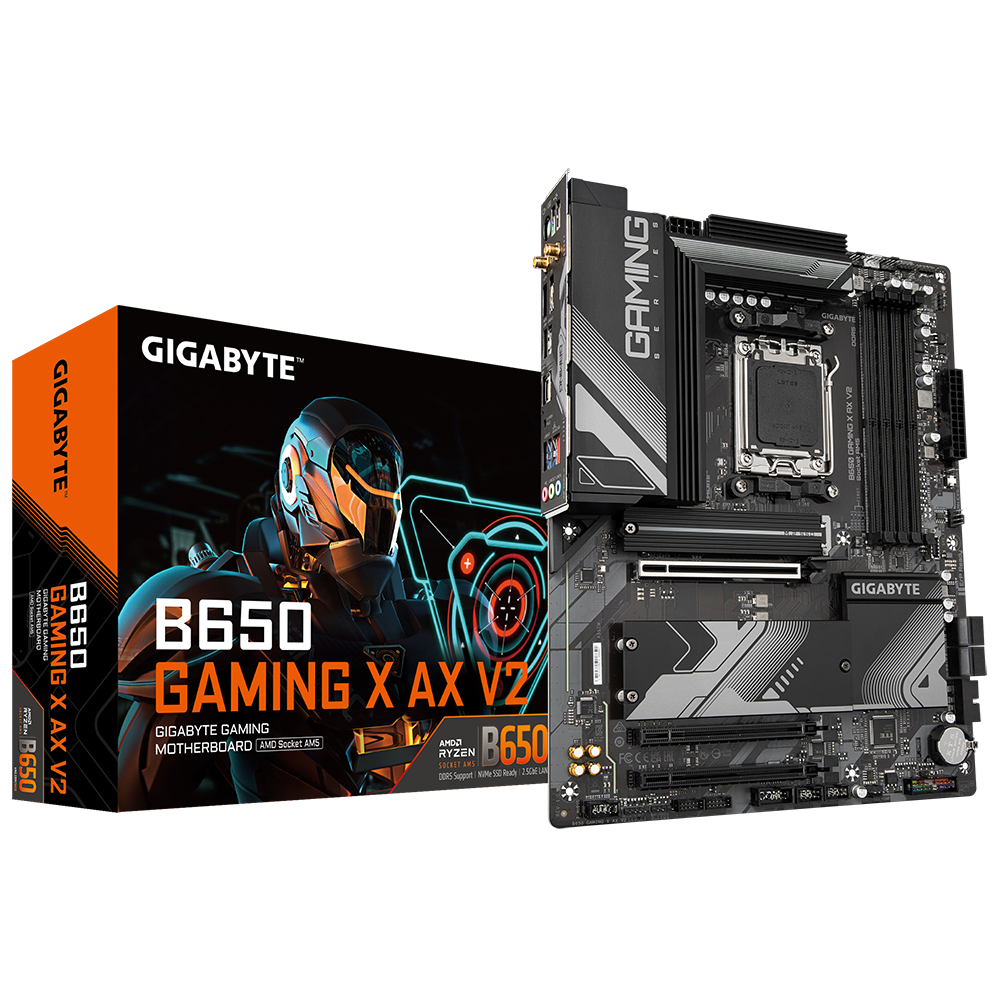

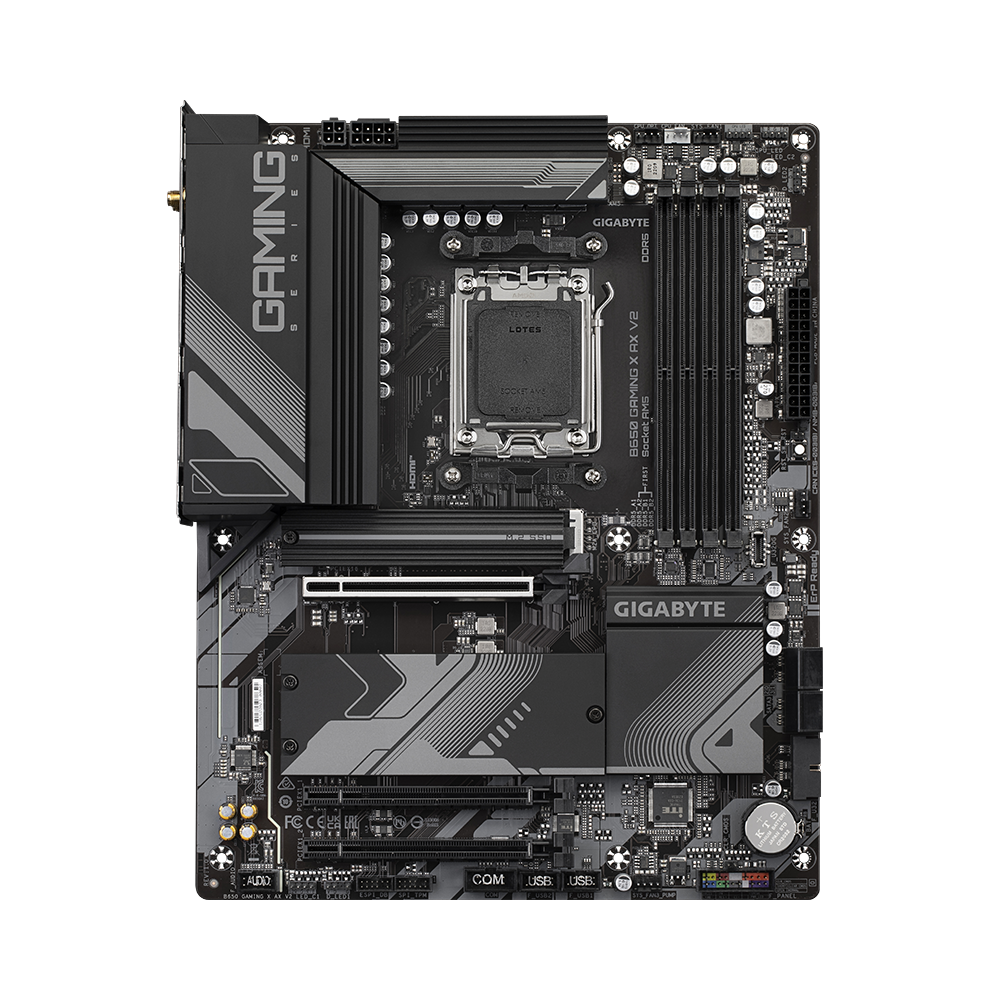

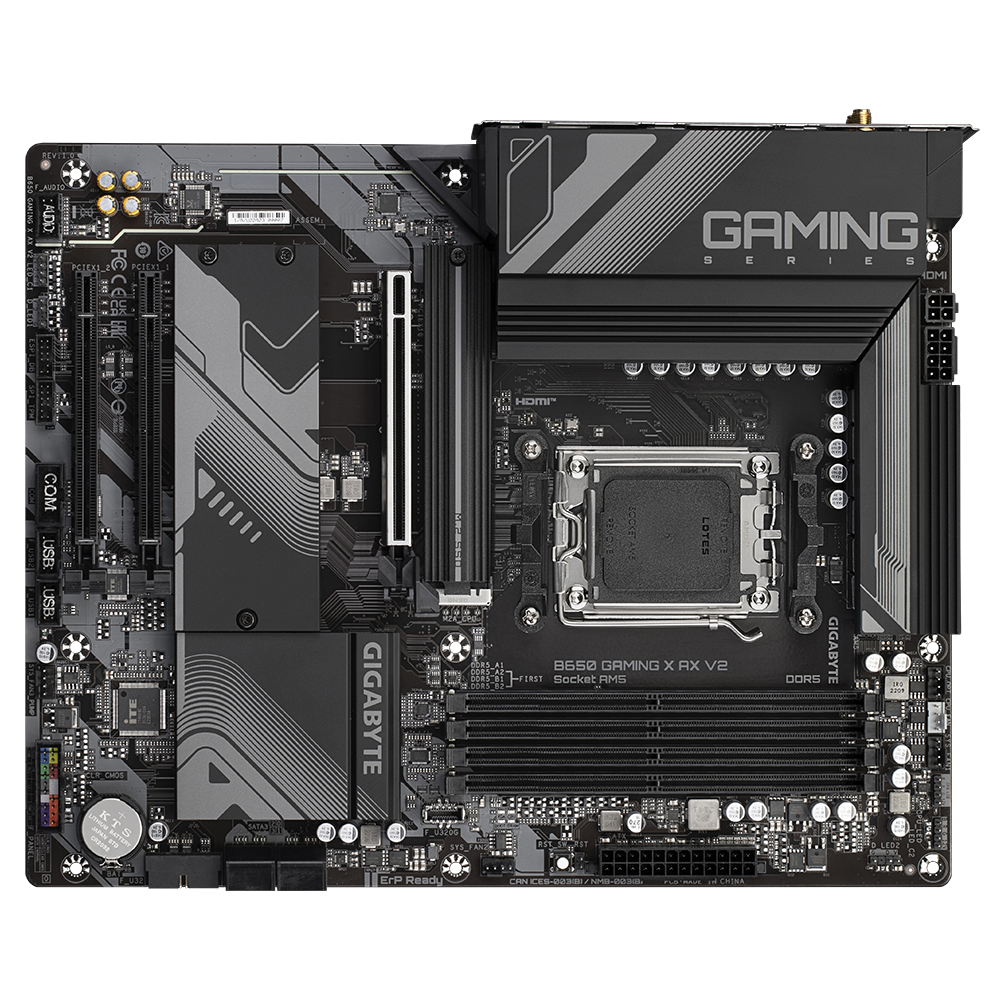

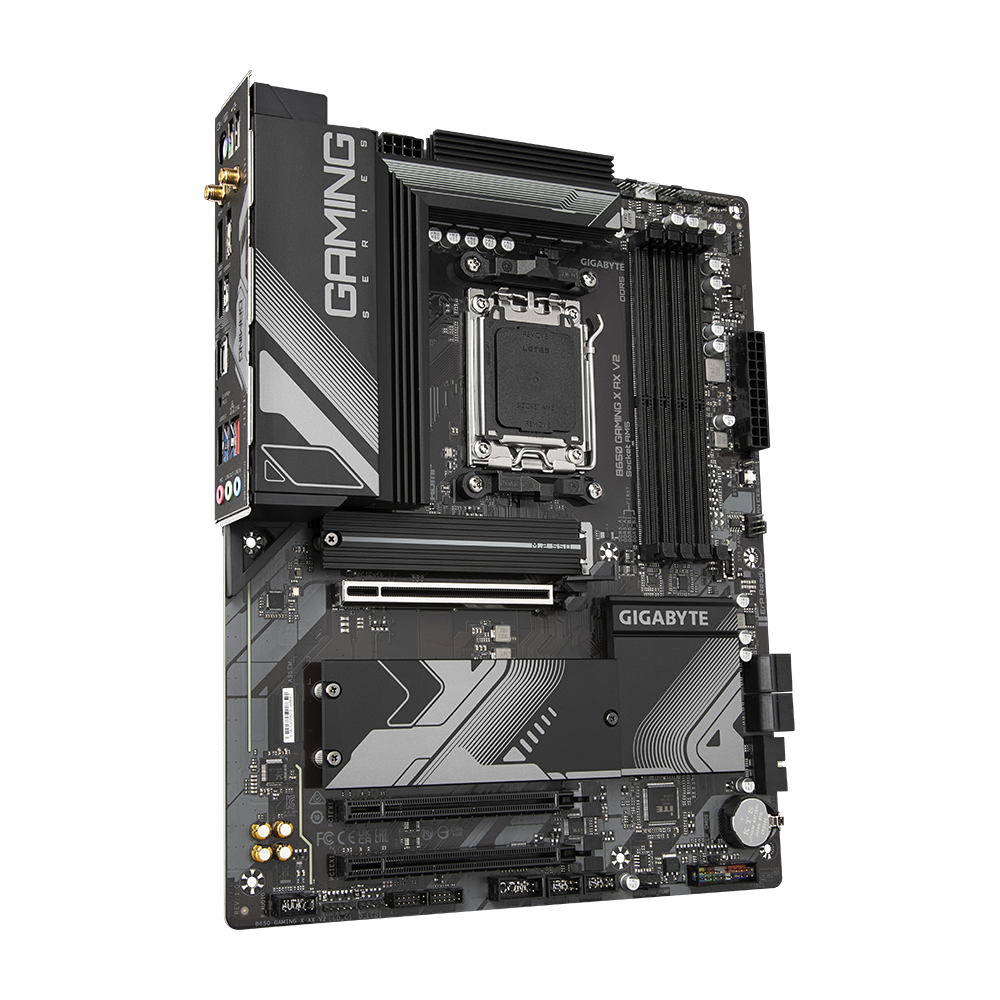

Gigabyte B650 GAMING X AX V2 ATX Motherboard for AMD AM5 CPUs

Gigabyte B650 GAMING X AX V2 ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3629

£148.99 inc VAT

Gigabyte B650 GAMING X AX V2 ATX Motherboard for AMD AM5 CPUs

B650 GAMING X AX V2

£148.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

Hurry, only 1 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD B650 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 3 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3629
Overview

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Main Features

  • AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
  • Unparalleled Performance: Direct 8+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • SuperSpeed Storage: 1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000/ Ryzen 8000 Series Processors
64-bit Support Yes
Socket AM5

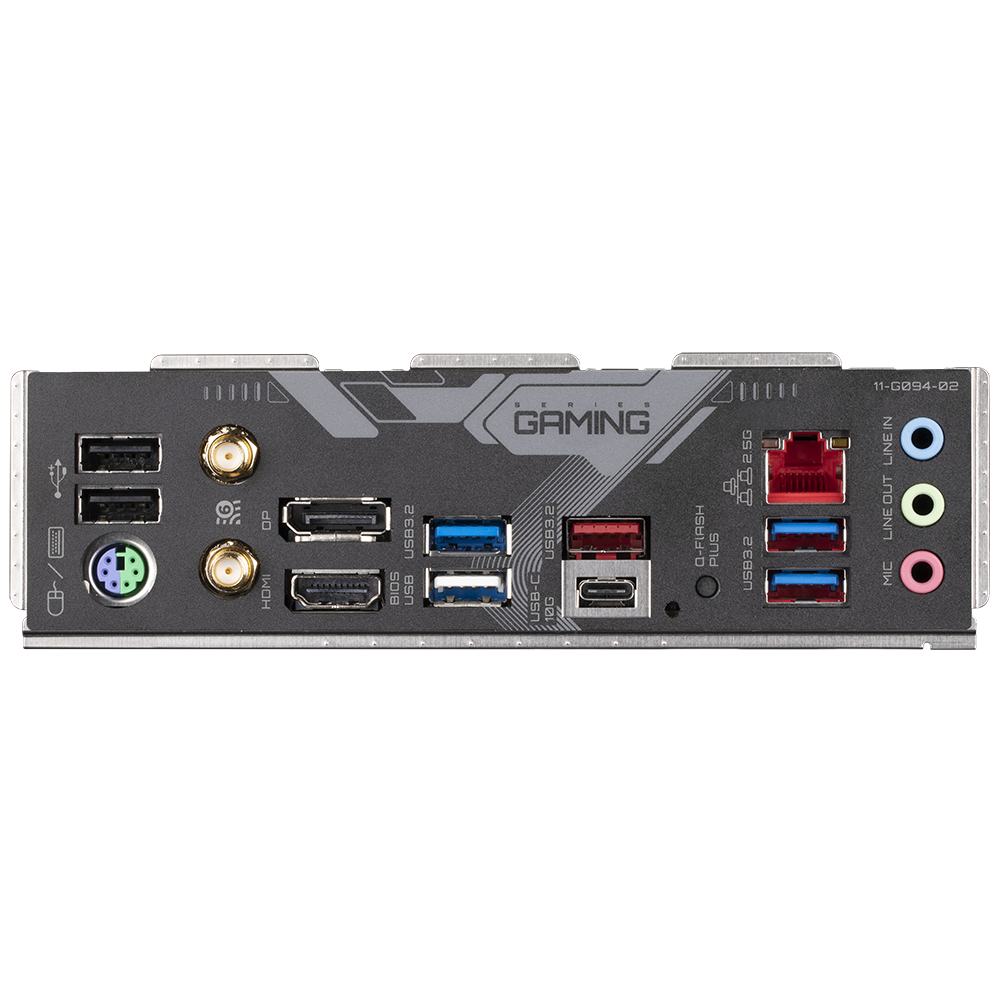

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.1
3 x USB 3.0
3 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water cooling pump header
2 x System fan headers
1 x System fan/Water cooling pump header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2580/25110 (PCIe Gen5)
2 x M.2 slots, Socket 3, M Key, Type 2580/25110 (PCIe Gen4)

Memory

Memory Bus Speed Up to 8000 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 12
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset AMD B650
Thunderbolt No
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion

Item Details

Manufacturer Gigabyte
Manufacturer Code B650 GAMING X AX V2
EAN 4719331860073
UPC 889523041376
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B650 GAMING X AX V2
Reviews
5.0 / 5 1 review

Claire Morris

2 weeks ago

Great looking board for the price. It has plenty of connectors for sata and fans/rgb. BIOS quick flash too which I didn't need to use at it was on a fairly recent update in the box. Pretty well thought out rear IO. The only downside was the WIFI drivers weren't on it. I had to connect it to my phone to piggyback the connection so it could download the drivers but once I was in windows the gigabyte software did it automatically so happy days. Box was a bit damaged but the board was all good. The SSD screws came in 3 little plastic bags which seems a little wasteful but I can understand why they are like that. I would have liked clearer instructions. My first build and I was a little nervous so maybe do what I did and get them up on another pc to really see what they say. Brilliant board overall though. 3 nvme slots and 3 pcie slots too with plenty of access to the second and third even with a bulky 7900xt.
