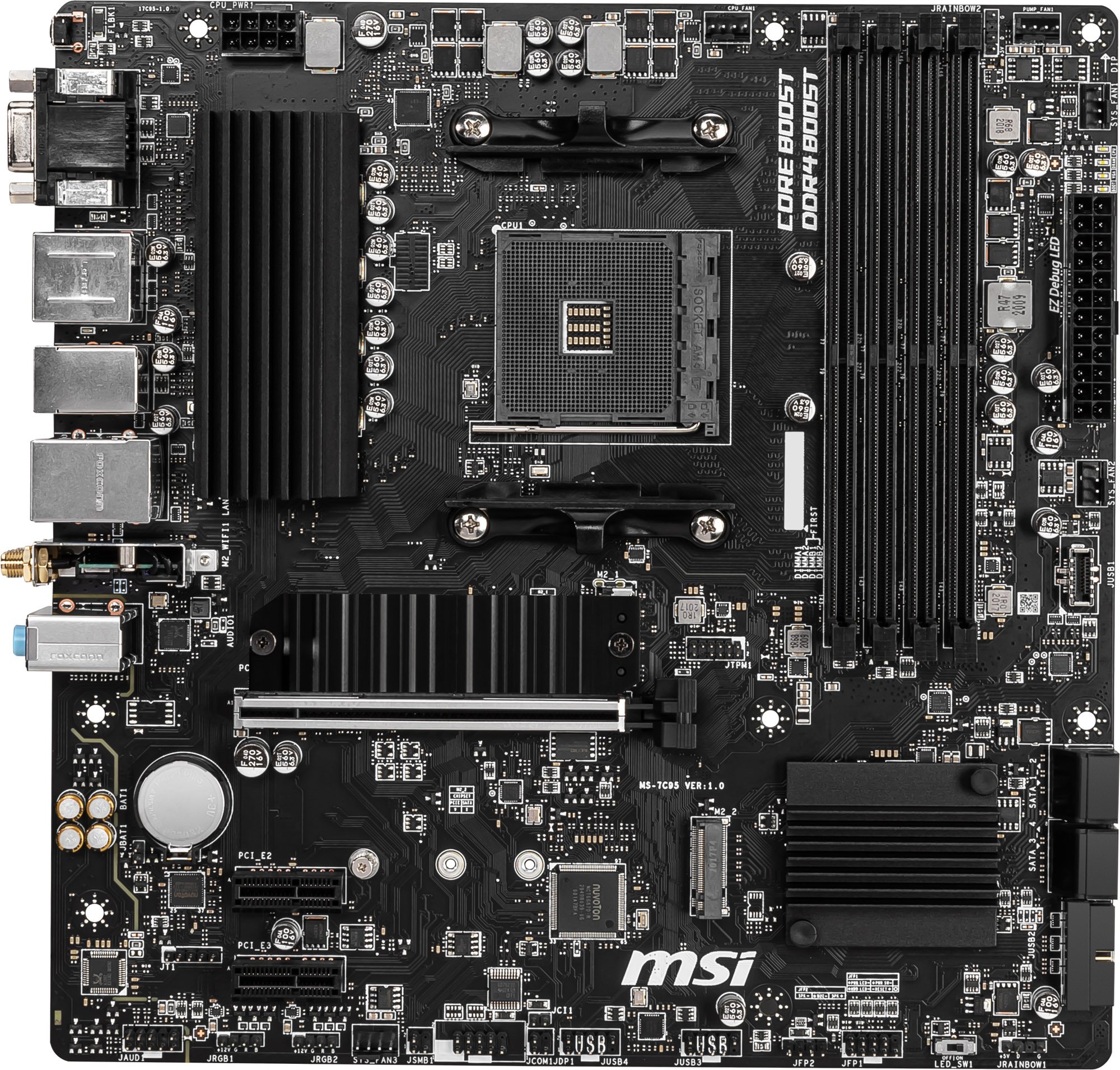

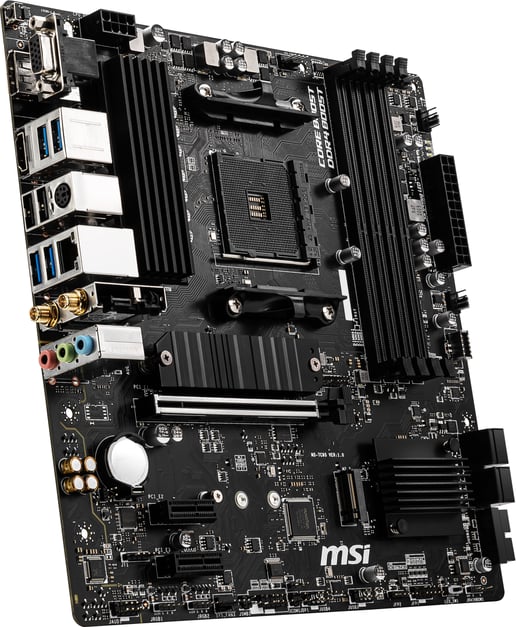

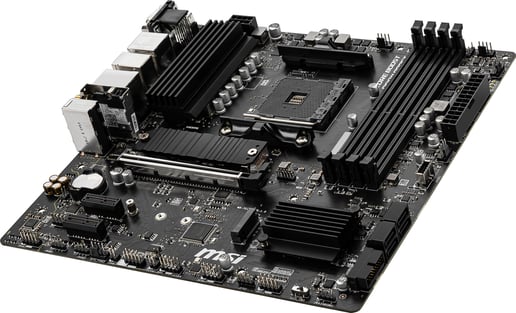

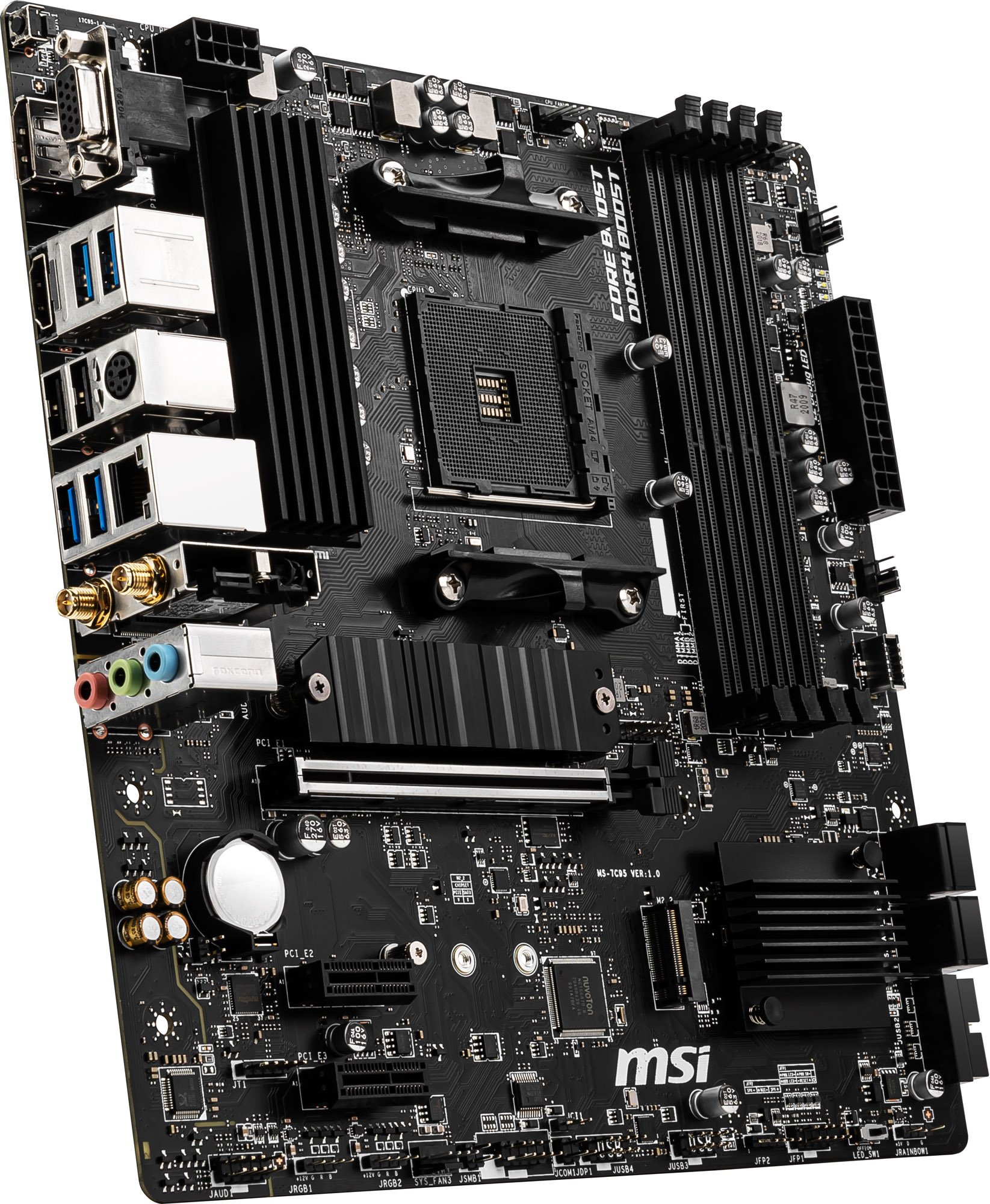

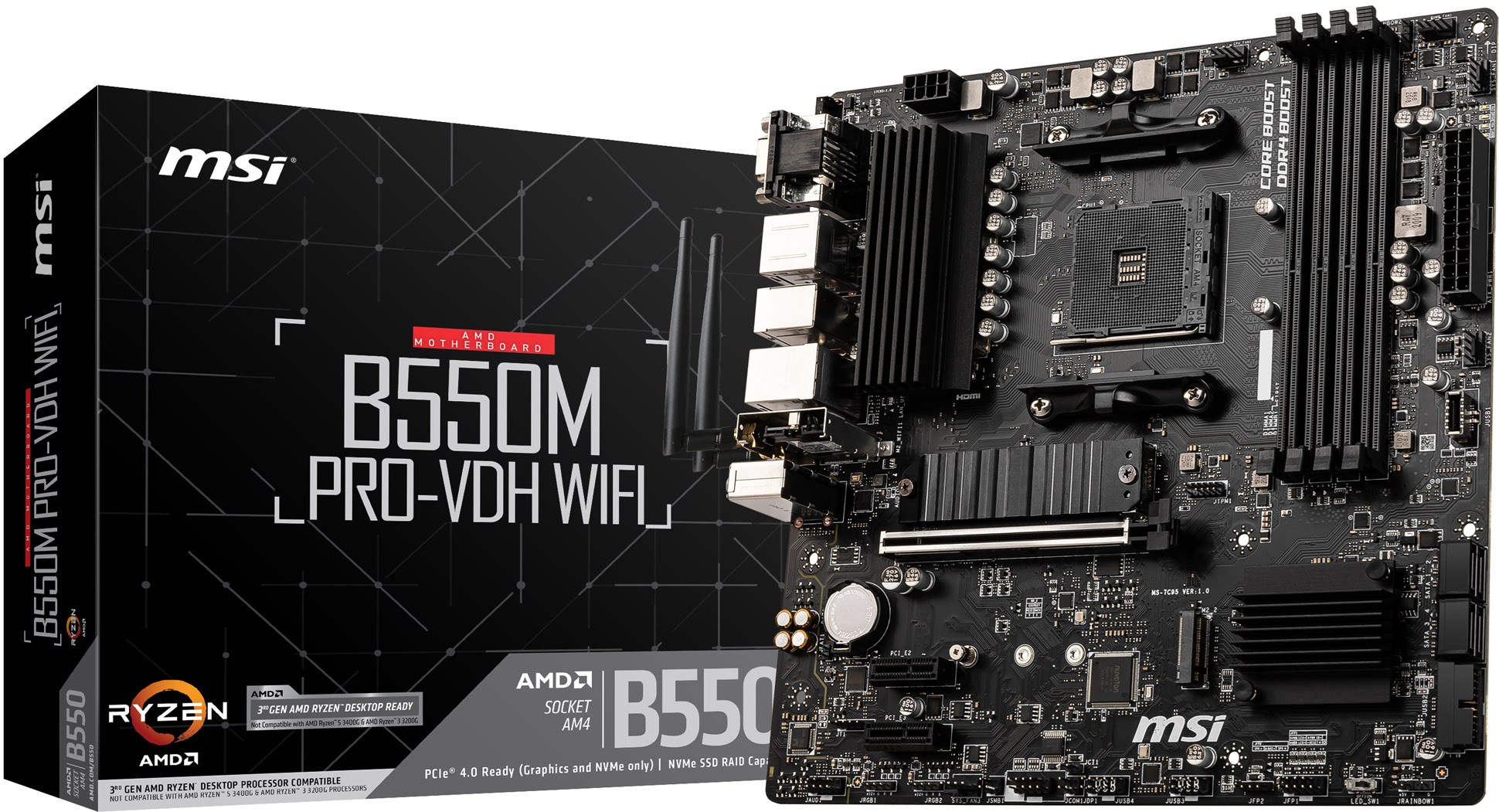

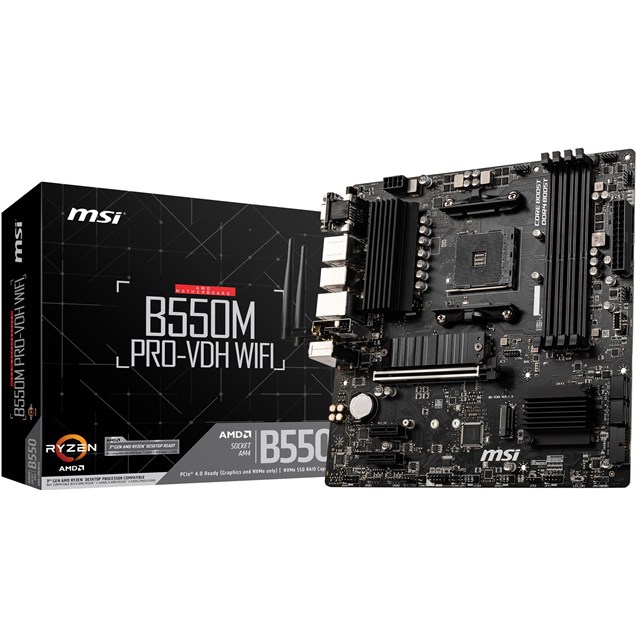

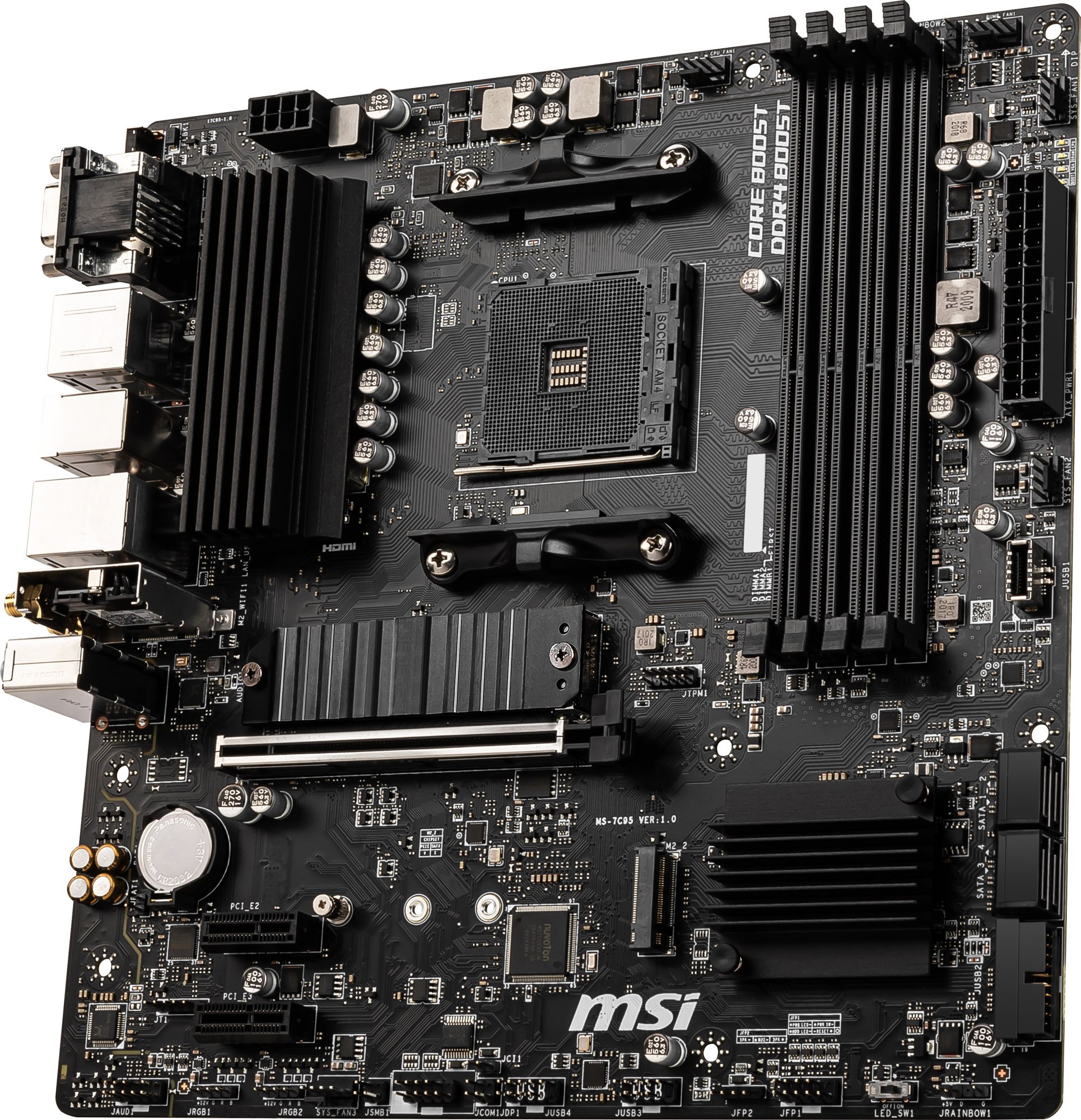

MSI B550M PRO-VDH WIFI mATX Motherboard for AMD AM4 CPUs

MSI B550M PRO-VDH WIFI mATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2850

£105.69 inc VAT

MSI B550M PRO-VDH WIFI mATX Motherboard for AMD AM4 CPUs

B550M PRO-VDH WIFI

£105.69 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD2850
Overview

B550M PRO-VDH WIFI
BUSINESS ELEGANCE
MSI B550M PRO-VDH WIFI overview
MSI Flash BIOS Button Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
MSI Wi-Fi Wi-Fi
Delivering AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
MSI Audio Boost Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Core Boost Core Boost
With premium layout and digital power design to support more cores and provide better performance.
MSI DDR4 BOOST DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

MSI B550M PRO-VDH WIFI & 7G07R

MSI B550M PRO-VDH WIFI CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

MSI B550 -A PRO PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MSI B550M PRO-VDH WIFI USB Type-C ready in Front case panel
USB Type-C ready in Front case panel
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

MSI B550M PRO-VDH WIFI LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR
LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

MSI B550 -A PRO LIGHTNING GEN 4 SOLUTION
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

MSI B550M PRO-VDH WIFI UNMATCHED MEMORY PERFORMANCE
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MSI B550M PRO-VDH WIFI STEEL ARMOR
STEEL ARMOR

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.


MSI B550M PRO-VDH WIFI EXTEND YOUR RGB EXPERIENCE WITH EASE
EXTEND YOUR RGB EXPERIENCE WITH EASE

Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.


MSI B550M PRO-VDH WIFI INTEL® WI-FI AC & BLUETOOTH
INTEL® WI-FI AC & BLUETOOTH

Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps.


MSI B550M PRO-VDH WIFI AUDIO BOOST
AUDIO BOOST

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.


Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
64-bit Support Yes
Socket AM4

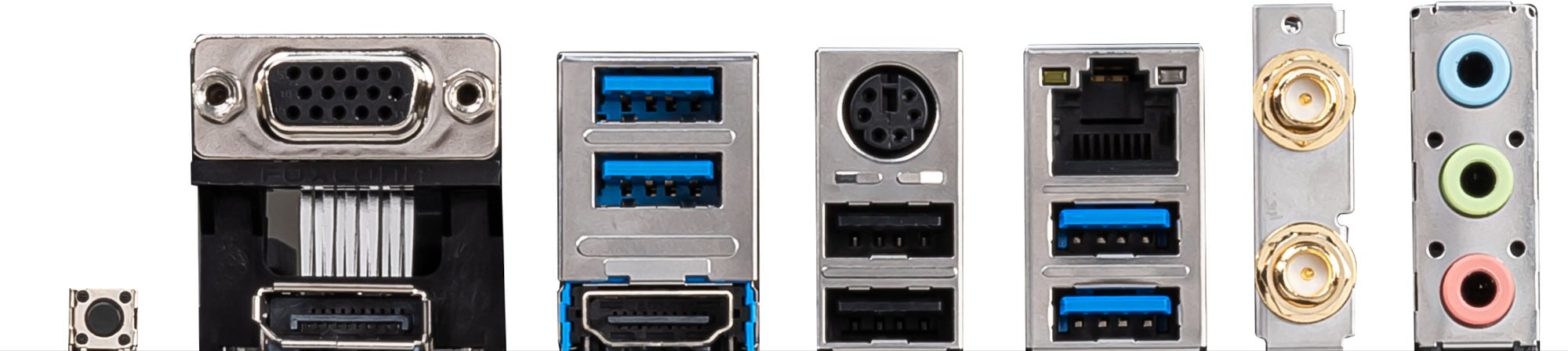

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Water Pump fan header
3 x System fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 4400 MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek 8111HN
Network Speeds Supported Up to 1 Gbps
Wireless LAN Yes - Wi-Fi 4
Wireless Network Speed Up to 433 Mbps
Bluetooth Yes
Bluetooth Version 4.2

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

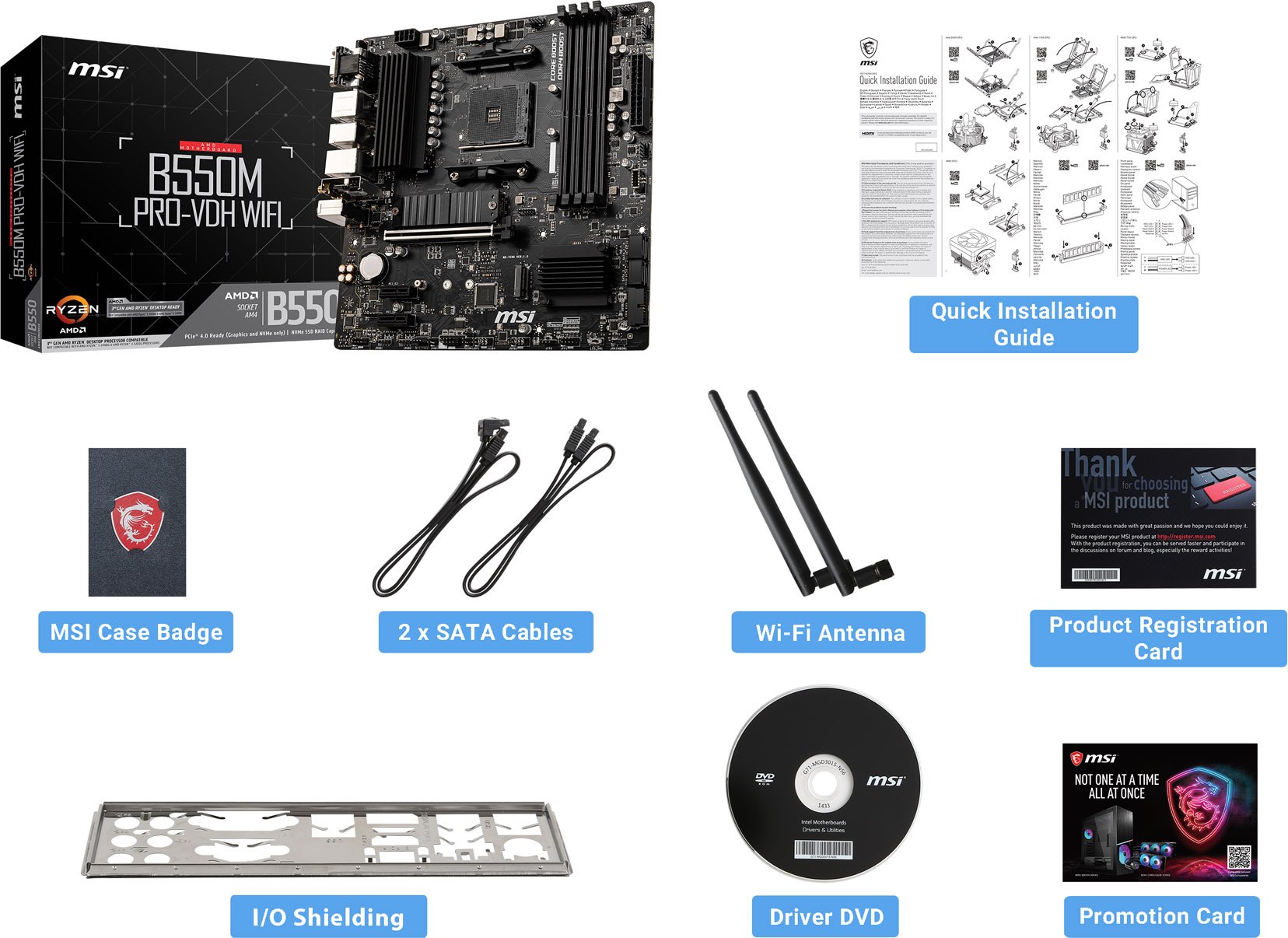

In The Box Motherboard
Quick Installation Guide
2 x SATA Cables
Wi-Fi Antenna
I/O Shield
Width 244 mm
Length 244 mm

Key Features

Motherboard Model MSI B550M PRO-VDH WIFI
WiFi Speed 433 Mbps
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 4400 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 4400 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer AMD
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No

Item Details

Manufacturer MSI
Manufacturer Code B550M PRO-VDH WIFI
EAN 4719072733698
UPC 824142219393
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code B550M PRO-VDH WIFI
