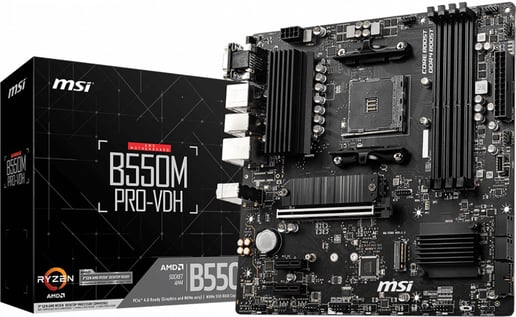

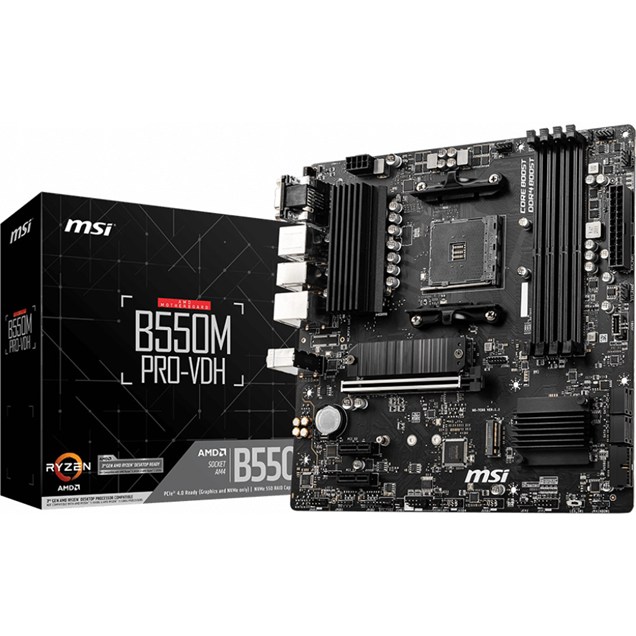

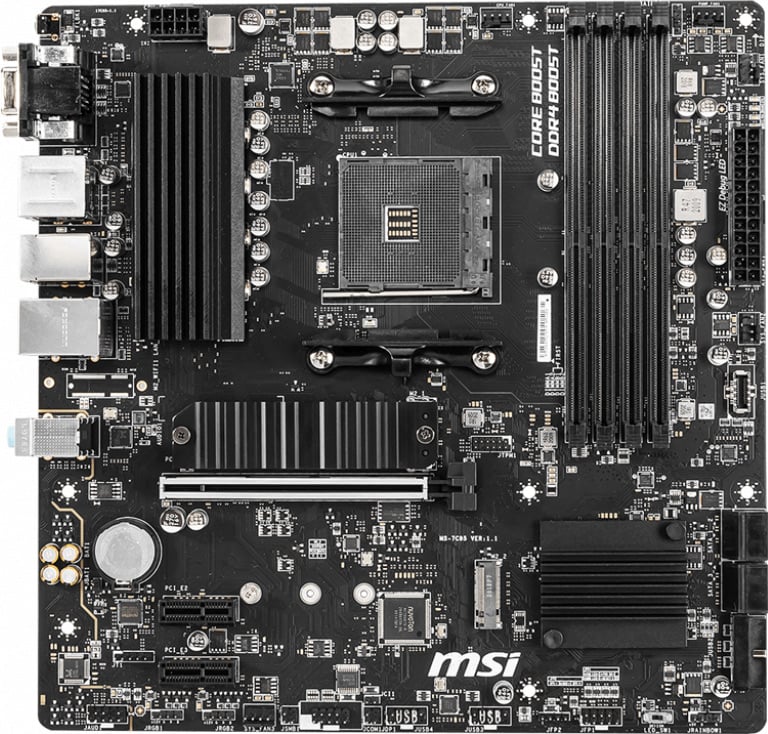

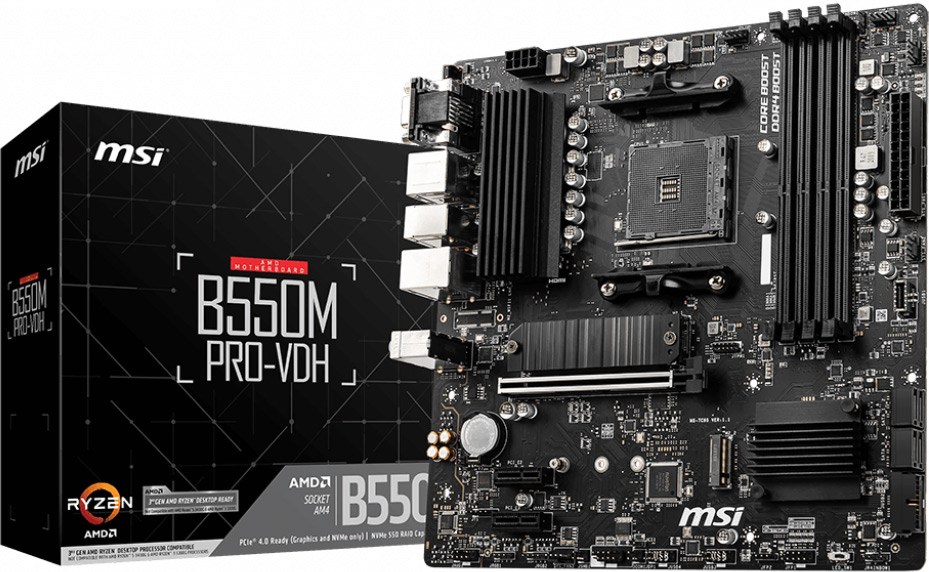

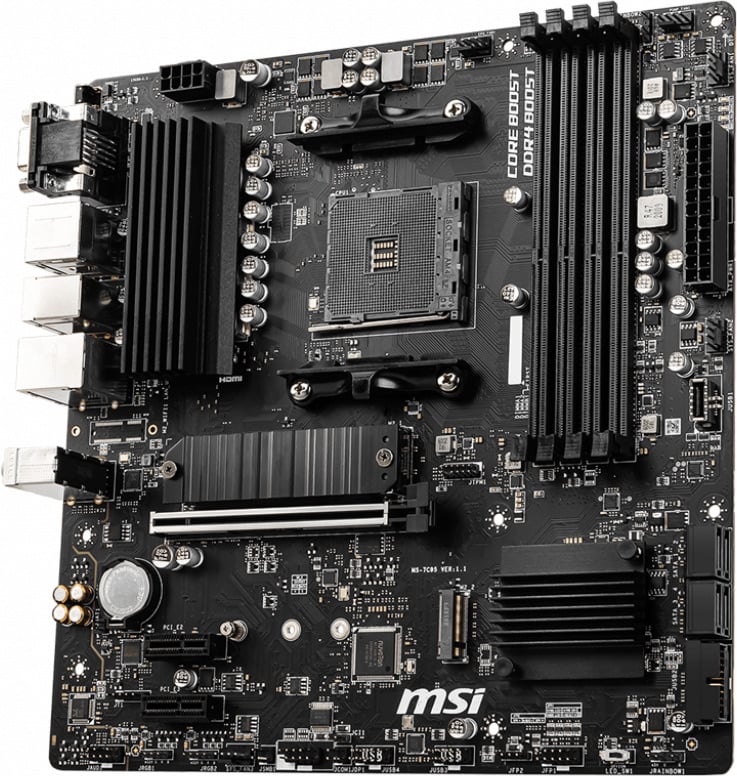

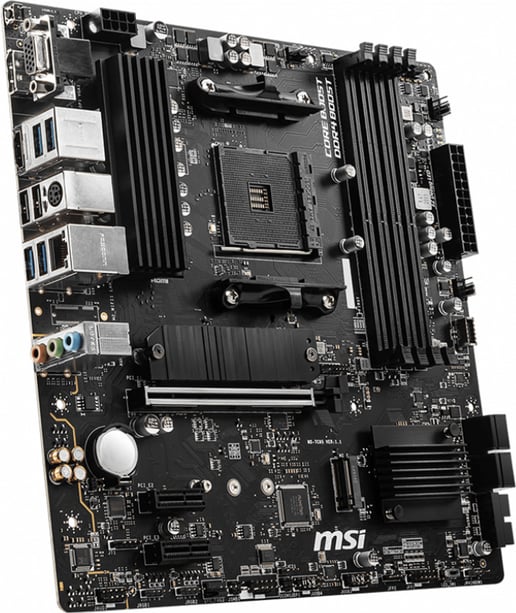

MSI B550M PRO-VDH mATX Motherboard for AMD AM4 CPUs

MSI B550M PRO-VDH mATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2965

£93.99 inc VAT

MSI B550M PRO-VDH mATX Motherboard for AMD AM4 CPUs

B550M PRO-VDH

£93.99 inc VAT

Available for delivery from Tuesday 26th November

or Click & Collect from Tuesday 26th November

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD2965
Overview

B550M PRO-VDH
BUSINESS ELEGANCE
MSI B550M PRO-VDH overview
MSI Flash BIOS Button Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
MSI Audio Boost Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Core Boost Core Boost
With premium layout and digital power design to support more cores and provide better performance.
MSI DDR4 BOOST DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

MSI B550M PRO-VDH & 7G07R

MSI B550M PRO-VDH CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

MSI B550 -A PRO PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MSI B550M PRO-VDH USB Type-C ready in Front case panel
USB Type-C ready in Front case panel
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

MSI B550M PRO-VDH LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR
LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

MSI B550 -A PRO LIGHTNING GEN 4 SOLUTION
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

MSI B550M PRO-VDH UNMATCHED MEMORY PERFORMANCE
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MSI B550M PRO-VDH STEEL ARMOR
STEEL ARMOR

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

MSI B550M PRO-VDH EXTEND YOUR RGB EXPERIENCE WITH EASE
EXTEND YOUR RGB EXPERIENCE WITH EASE

Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

MSI B550M PRO-VDH AUDIO BOOST
AUDIO BOOST

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.


Main Features

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
64-bit Support Yes
Socket AM4

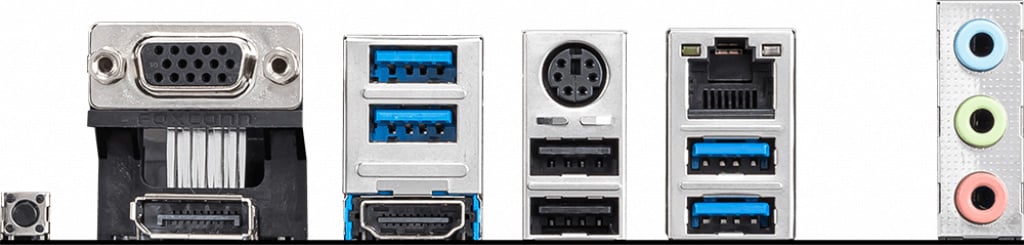

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 Type-C header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Cooling Fan Support 1 x CPU fan header
1 x Water Pump fan header
3 x System fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors 2 x M.2, Socket 3, M Key (Type 2242/2260/2280)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC892/897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek 8111HN
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

Jumpers 1 x Clear CMOS

Physical

Form Factor MicroATX Motherboard
In The Box B550M PRO-VDH Motherboard
Quick Installation Guide
MSI Case Badge
2 x SATA Cables
Promotion Card
Product Registration Card
I/O Shield
Driver DVD
Width 244 mm
Length 244 mm

Key Features

Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No
Motherboard Model MSI B550M PRO-VDH
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 4400 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 4400 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Back Connect Support No

Item Details

Manufacturer MSI
Manufacturer Code B550M PRO-VDH
EAN 4719072758417
UPC 824142227213
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code B550M PRO-VDH
Reviews
4.7 / 5 3 reviews

Matt

August 2022

Works well, easy to install components on, has a good amount of ports

Steve Edmondson

February 2022

Seems to work well.

Sam Johnson

February 2021

Feature rich, small board for a competitive price. Sadly the on board audio isnt too good. Using a microphone and headphone cable separate you do get pass through (friends may hear your computer sounds back through your mic). Only real downside I can see and Ive now just swapped to a PCI-E sound blaster unit instead. Otherwise the board is great. Highly recommended from me
